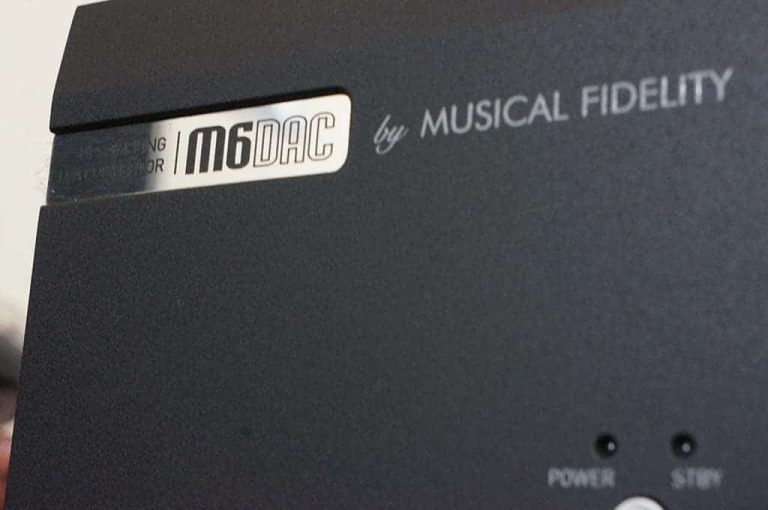

Video Musical Fidelity M6 DAC

VIDEO – We hebben van importeur Viertron een Musical Fidelity M6 DAC ter test gekregen. Bekend met de M1-serie zijn we erg benieuwd wat deze duurdere en chiquere broer moet brengen! We leggen hem voor u alvast vast op video.

Bekijk hieronder de video

Specificaties Musical Fidelity M6 DAC

Prijs:

• 2500 euro

Algemene prestaties

• Jitter: <12 picoseconds peak to peak
• THD(+ noise): <0.0012% 10Hz to 20 kHz
• Frequency Response: +0, ?3dB, <2Hz to 90 kHz (192kHz sample rate)
• Signal to Noise ratio: >120dB A?- wtd.
• Channel seperation: >105dB

M6DAC

• Type: 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling with asynchronous up sampling on all inputs to 192 kHz
• Digital filter (fast roll off): -3dB @ 0.49 x sampling frequency, ±0.0002dB pass band ripple
• Digital filter (slow roll off): -3dB @ 0.45 x sampling frequency, ±0.001dB pass band ripple

Inputs

• 1x XLR AES balanced digital input 32-192 kbps (16-24 bit stereo PCM)
• 1x RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM)
• 1x TOSLINK optical connector 32-96 kbps (16-24 bit stereo PCM)
• 1x USB type ?B? host connector – 16-24 bits, 32-192 kbps (Determined by source file/computer settings)

BlueTooth

• Bluetooth specification v2.1 + EDR
• aptX 16 bit 44.1 kHz
• Carrier frequency 2.402 to 2.480 GHz ISM band
• Transmission power -2dBm (min) to +2dBm (max)
• Class 2 (up to 30M (90ft) dependant on connected device)
• Receiver IF frequency 1.5 MHz centre frequency
• Antenna socket type RP-SMA
• Antenna input impedance 50 ohms

Outputs

• 1x line level RCA (phono)
• 1x line level XLR (balanced)

General

• Dimensions – WxHxD (mm): 440 x 102 x 380
• Weight (unpacked / packed): 10.6 kg / 14.8 kg
