Measurements and conclusion
Contents
We measured the Voice Victory Supreme with the CLIO 12, using a DPA 4061 as a microphone. It is flat up to 20 KHz. Unfortunately, we were not able to do an impedance measurement ourselves, because this speaker is simply too heavy, the connection is all the way down and we cannot put it down on the workbench either. We will get another impedance measurement from Voice Victory.

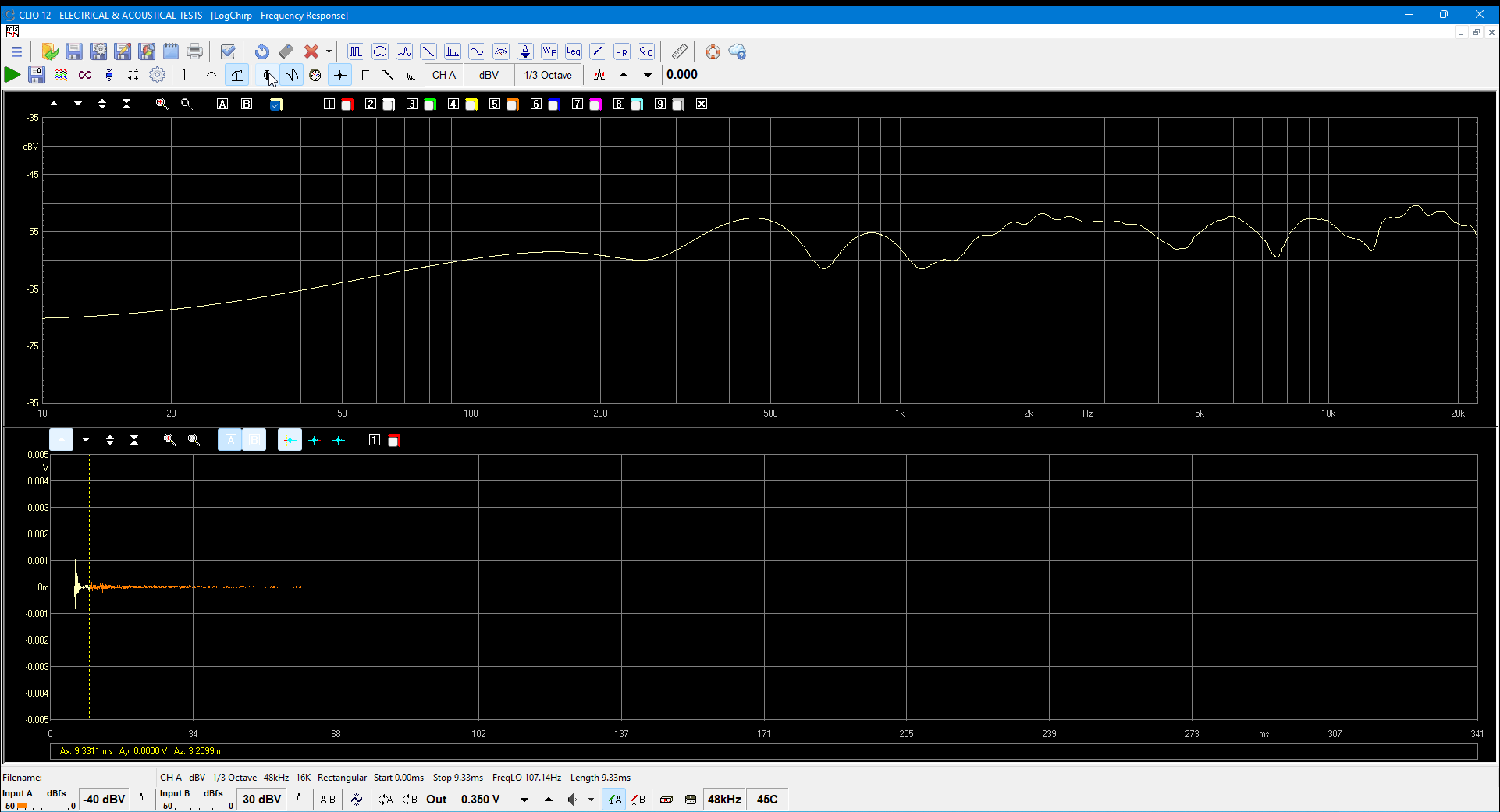

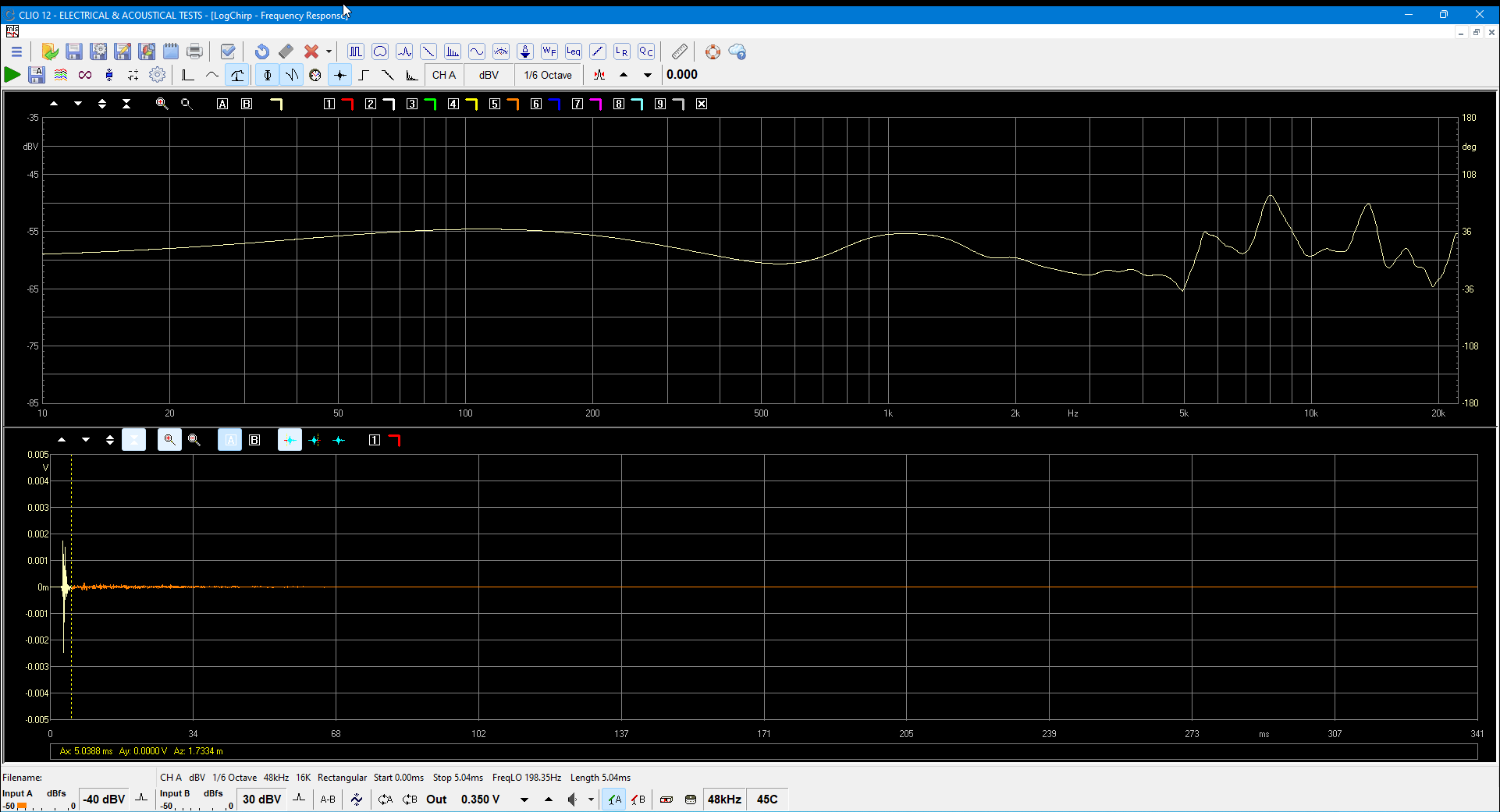

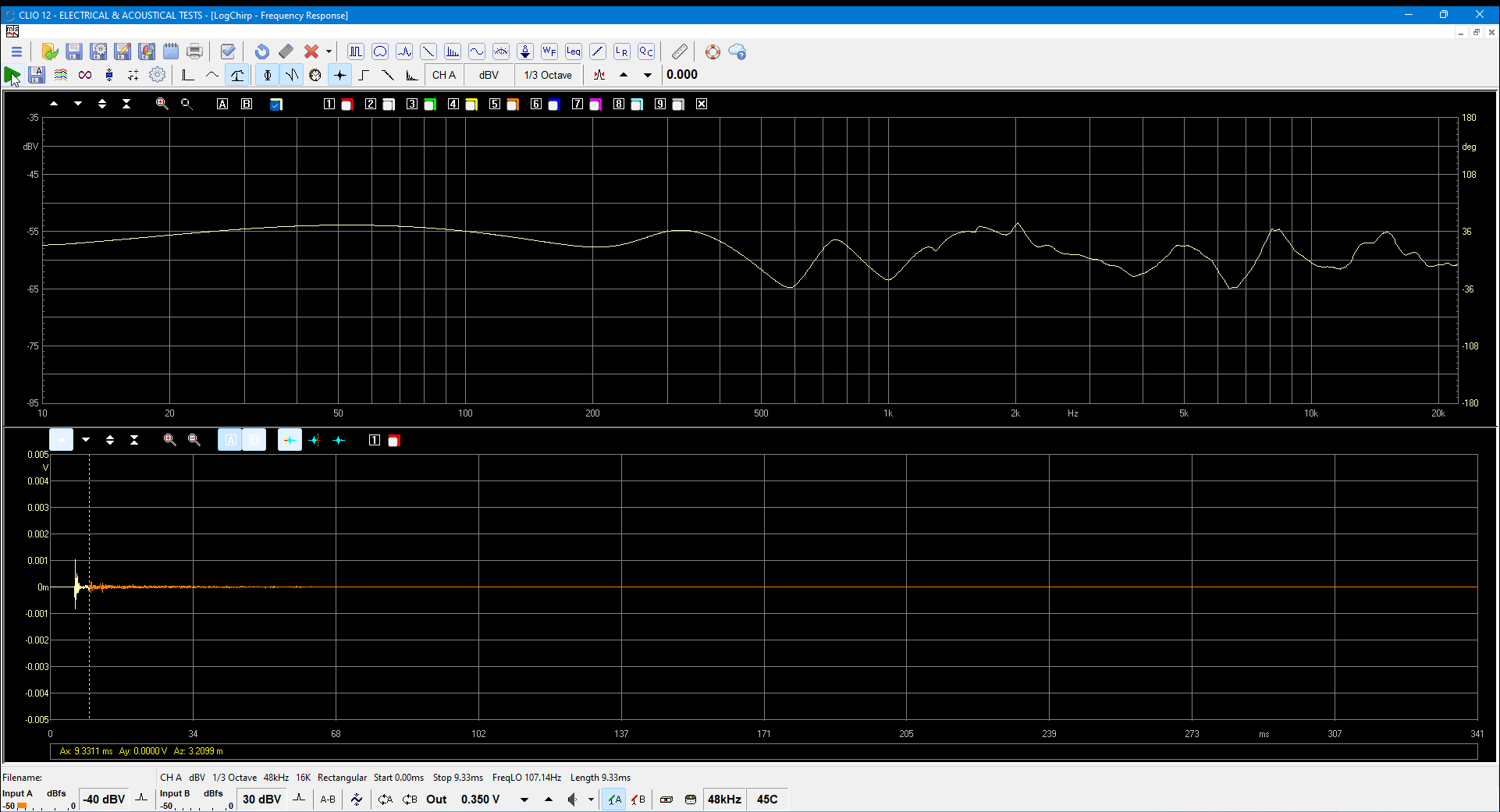

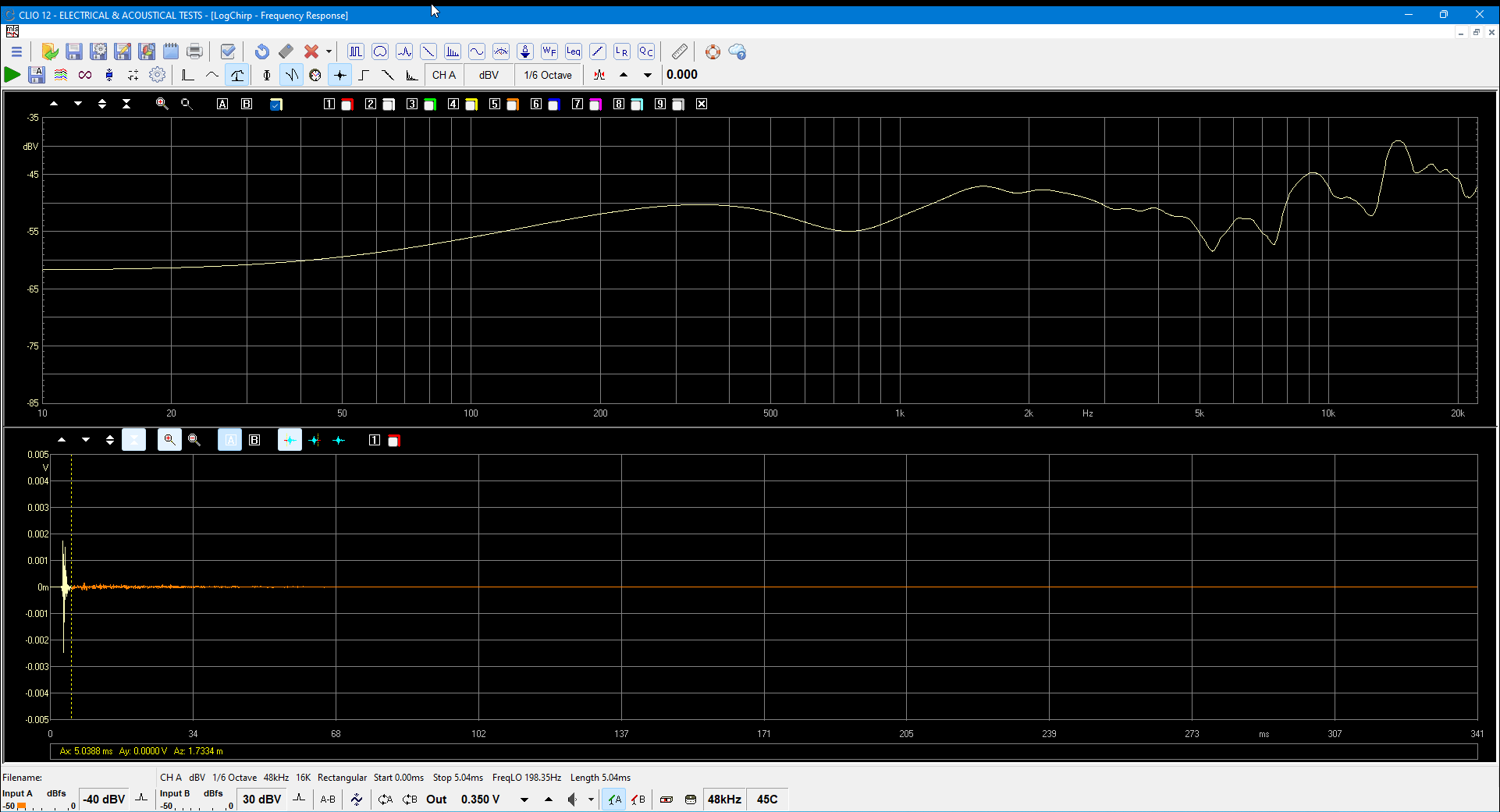

Measurements Voice Victory Supreme – 1 meter and 2 meters
This speaker was not very easy to measure because the baffle is quite long and it is a three-way system. We therefore measured at 1 and 2 meters. It can be clearly seen that at 2 meters the response already becomes more balanced. We listen at 3 meters and that explains that it appears very homogeneous: it pulls together at a distance.

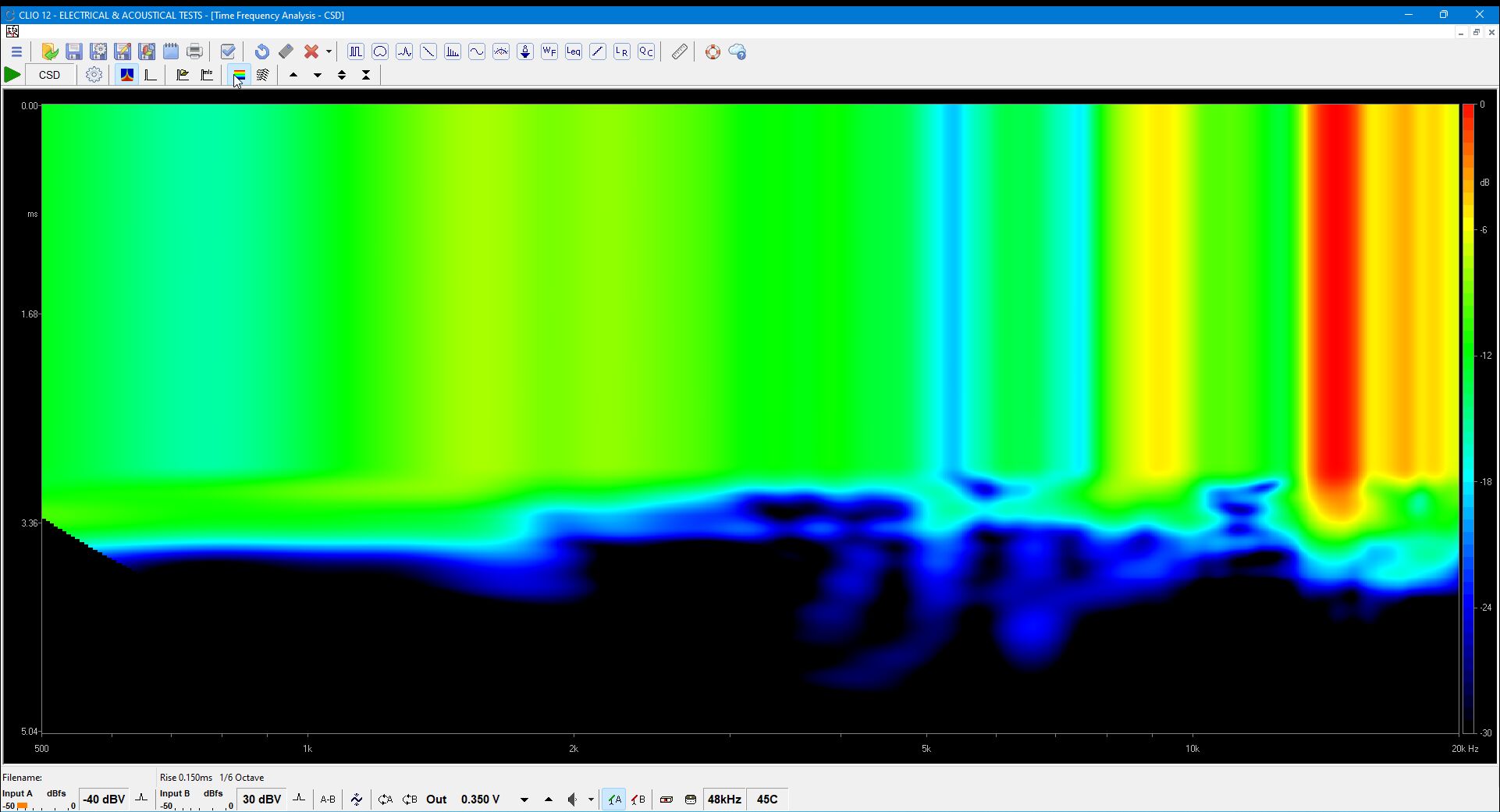

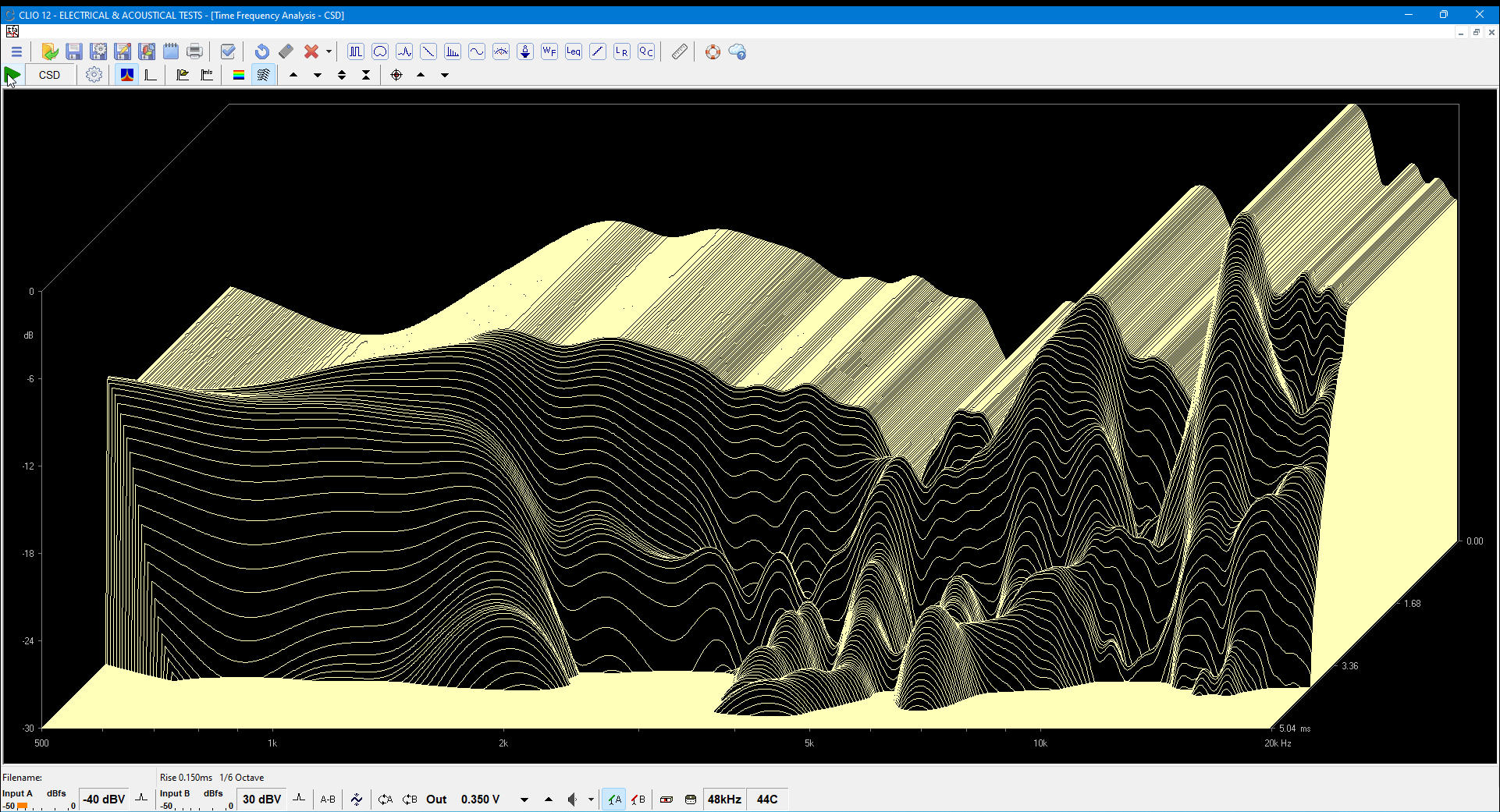

Resonances are very well controlled. You can see that in the waterfall (these are measured at 1 meter, so take the peaks with a grain of salt). There is really very little resonance; hats off!
