At Alpha Audio, we dare to claim that we have a lot of insight into how to achieve optimal networking for music playback. We have done a lot of listening tests, set up comparative tests and taken measurements to understand what is happening. In this background article, we lay out this knowledge for you.
Ever since music streaming has taken a dominant role in the hi-fi hobby, there have been discussions about whether or not the (data) network that transports the audio bits and bytes has an effect on quality. Even we at Alpha Audio were quite skeptical at first, since a data network has error correction. So how is it then possible that differences are audible? After all: when data corruption occurs, you just hear a tick, click or a dropout.
Initial tests
However, Alpha Audio has always kept an open mind when it comes to trying and investigating interesting propositions and phenomena. So also the influence of network tweaks.
Our assumption was (and is): if there is a difference in switches and network cabling, then the difference between a standard UTP cable and fiber must be very large…. To that end, we purchased a fiber to UTP converter and set up a simple A / B test. The difference…? VERY audible! Oy! … That test was the end of our unconscious assumption that there could be no difference. However, the bits and bytes were the same. So how could that be? The only difference between the two is the transport medium…. And what then remains is (especially common mode) noise. After all, fiber is the ultimate isolation.
Noise measurements

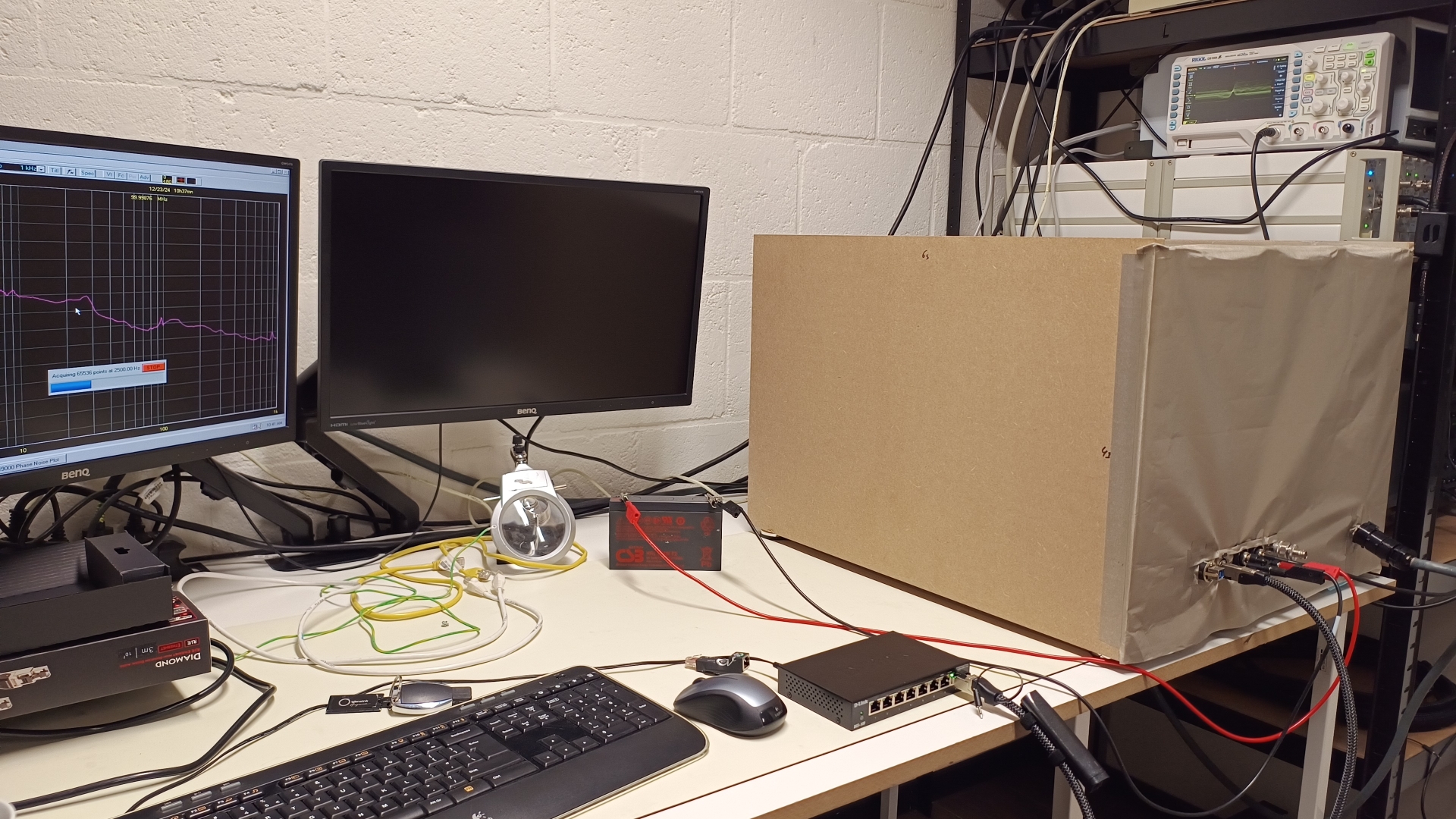

The assumption that it must be in (common mode) noise led to the first major test of switches and power supplies of switches. The first, large background article can be found here. And the first major test we did here.
The conclusion: there is quite a difference in switches and their noise levels. The power supplies of the switches also differ greatly. And swapping out the standard power supplies for a decent (quiet) model, lowers the noise floor significantly.
Jitter measurements

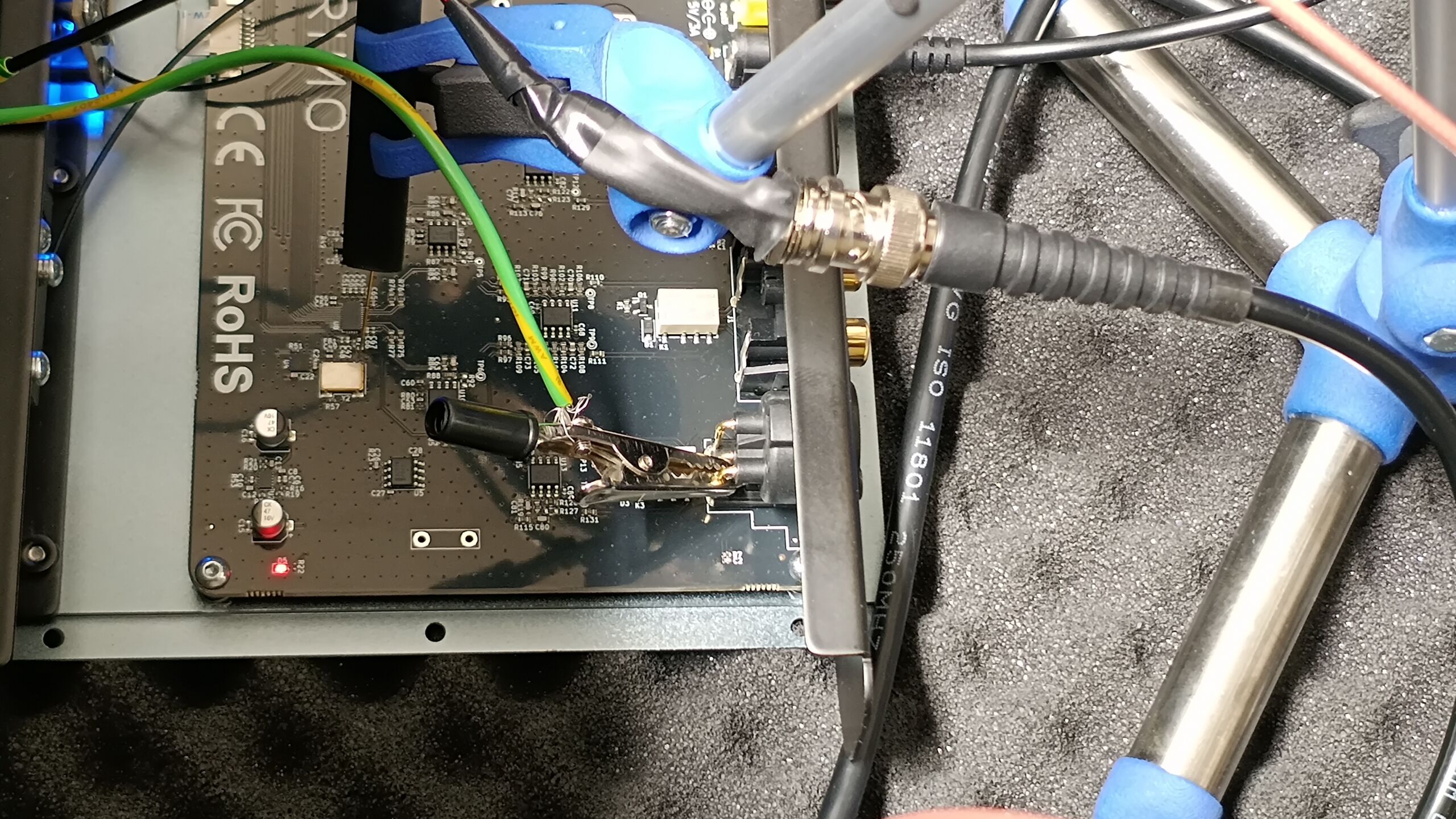

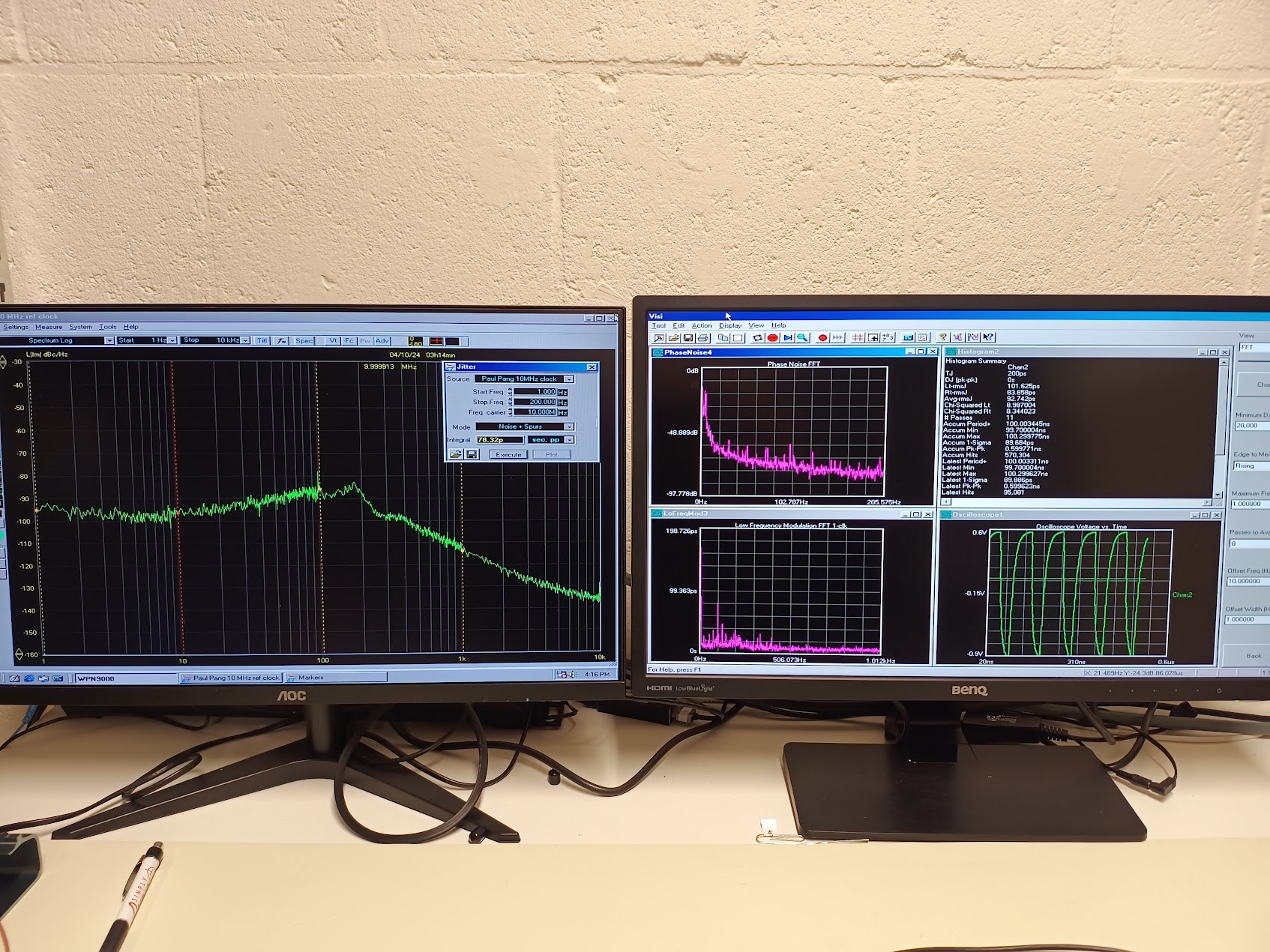

The next step we wanted to do was to measure jitter. That was another serious challenge, because not only do you need expensive measurement equipment; the environment in which you measure also plays a big role.
We managed to make considerable strides there, thanks to the help of engineers with whom we have good contact. As a result, we started working with active probes and made an RF measurement box. All to be able to measure more precisely.
Again, the results speak for themselves: swapping out a switch lowers the noise floor and thus the jitter on the clock that drives the dac. These are reproducible measurements and results that have also proved audible.
We were not only able to gain insight into the influence of switches: cables also have an influence, although these differences are usually smaller. But anyway: every little bit helps….
Other issues
That hardware has an influence is pretty obvious to us. But what about software? Consider streaming software and settings of switches and routers.
That too has an influence. The differences between J River, Roon and Audirvana, for example, are quite audible. You can read about that in this article and in this latest background piece.
And switch and router settings also have an impact. Think flow control, priorities and Vlans that can isolate and prioritize traffic (by setting the QoS priority per Vlan). We use PF Sense to keep our network running smoothly.
In this article
The following pages detail our findings by network component. We work from the router to the switch, power supplies and cables. For each component, we outline our insights.
