Measurements and conclusion
Contents

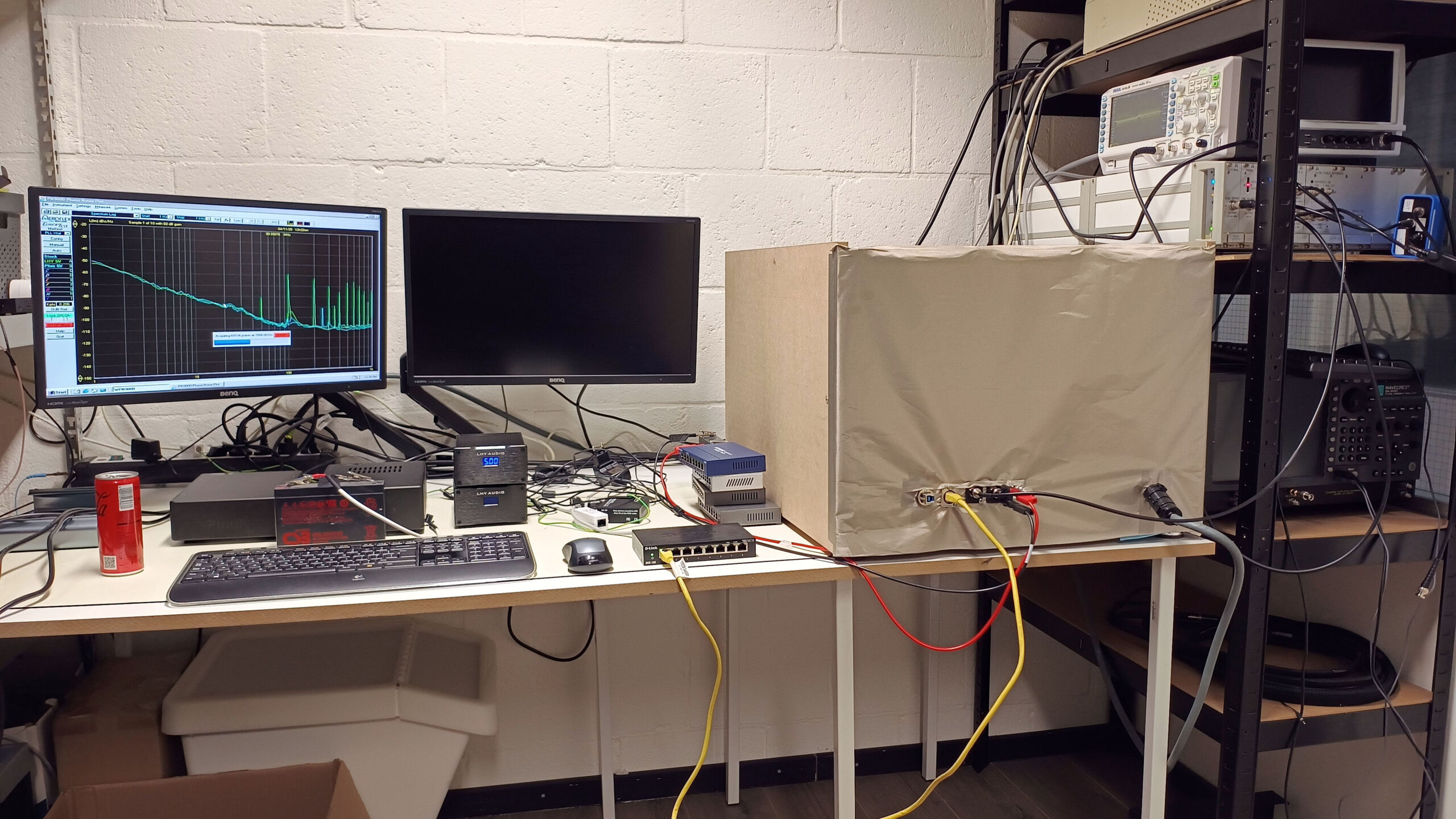

We subjected the LHY LPS-25 to a few measurements. First, we measured the stability of the power supply on a Rigol Electronic Load. Then we looked at how much noise the LHY “throws” to the mains and how clean the DC output is. We did this with a Tekbox LISN, Picoscope 5000-series, a variable resistor and a splitter for common mode and differential mode. Finally, we looked at how the LHY affects jitter when connected to a switch. Also on the Volumio itself. We measured that with an Aeroflex 5000-series, our RF shielded box, an Axtal reference oscillator and an active probe.
Stability

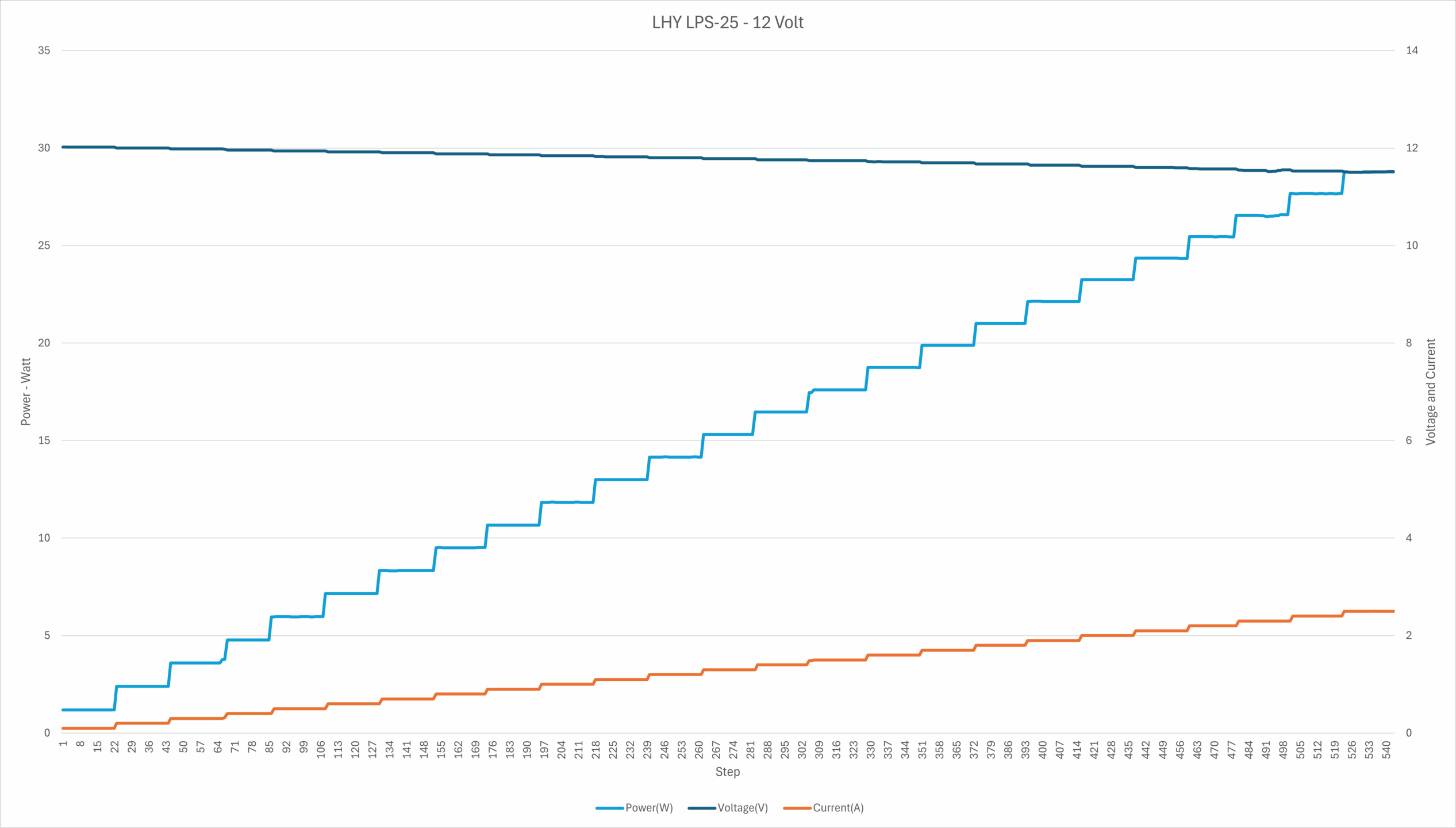

The 12-volt version of the LHY LPS-25 performs extremely well. We see very stable and predictable behavior. The voltage drop is minimal; even above 25 watts. In short: neat!

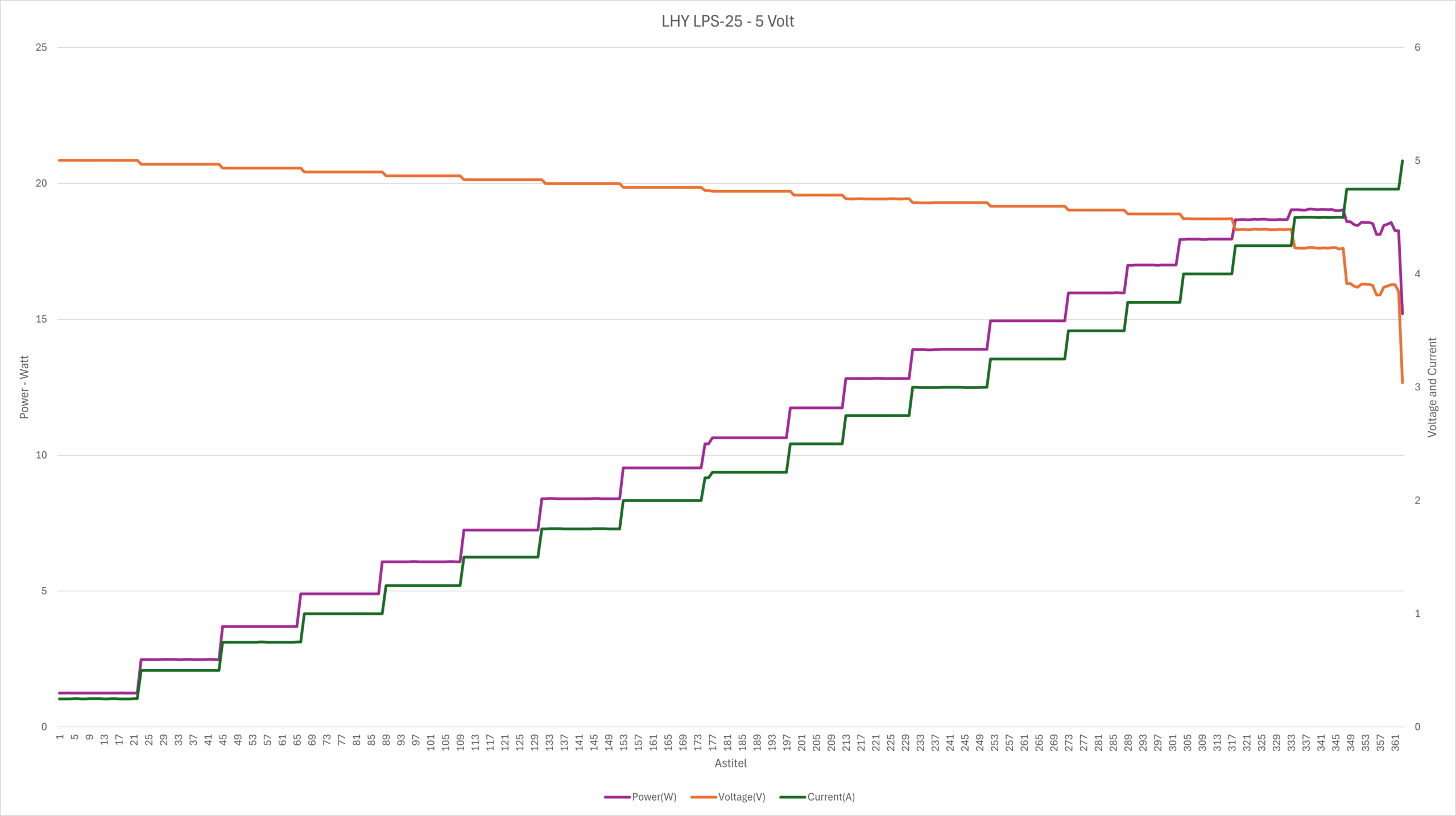

The 5-volt version also performs downright nicely. We loaded it somewhat heavily in this test, to see what the power supply does if we were to load up to 5 Amps. Up to 3.5A it does fine; after that it collapses. We get up to 17 watts stable.

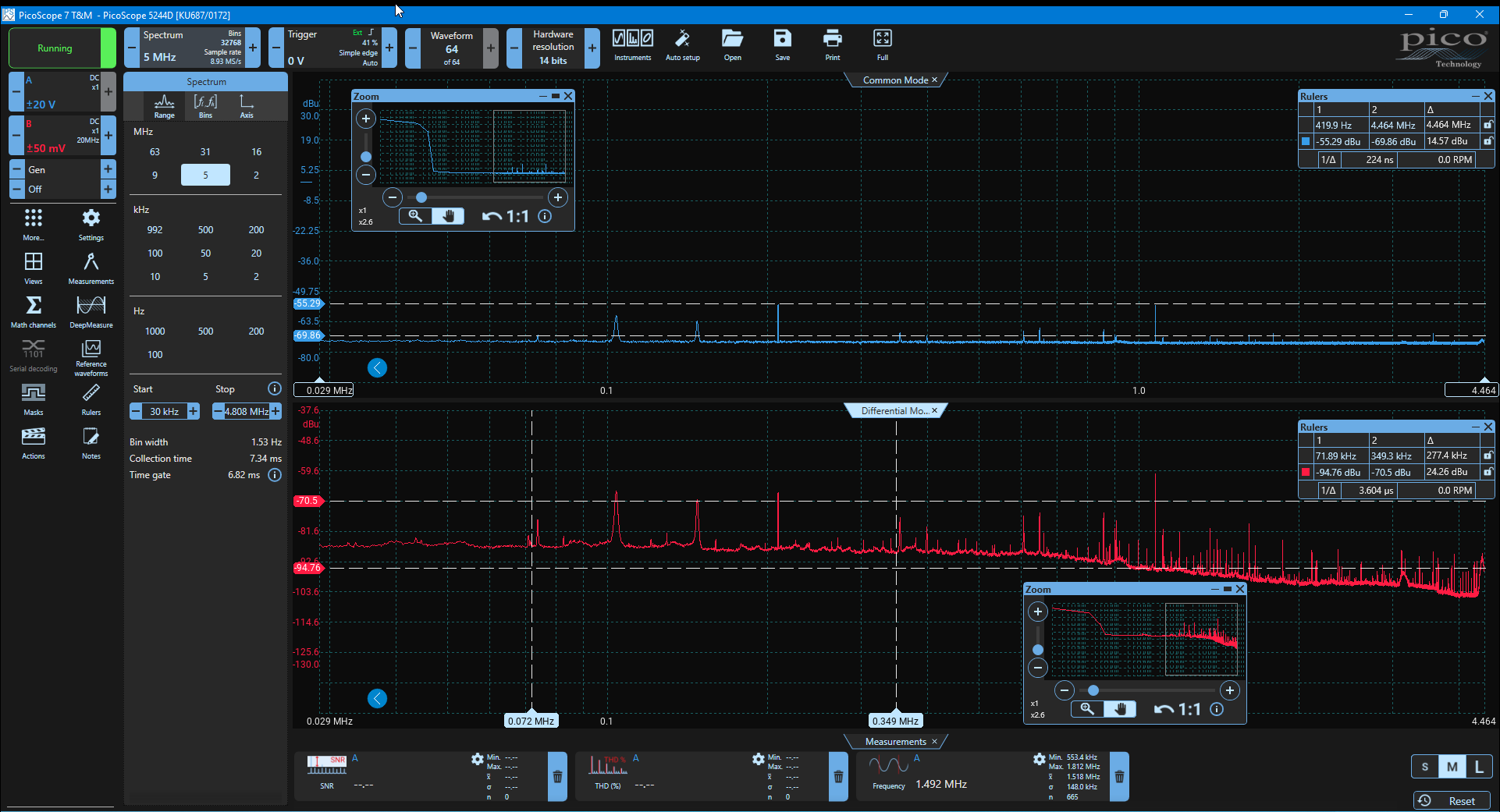

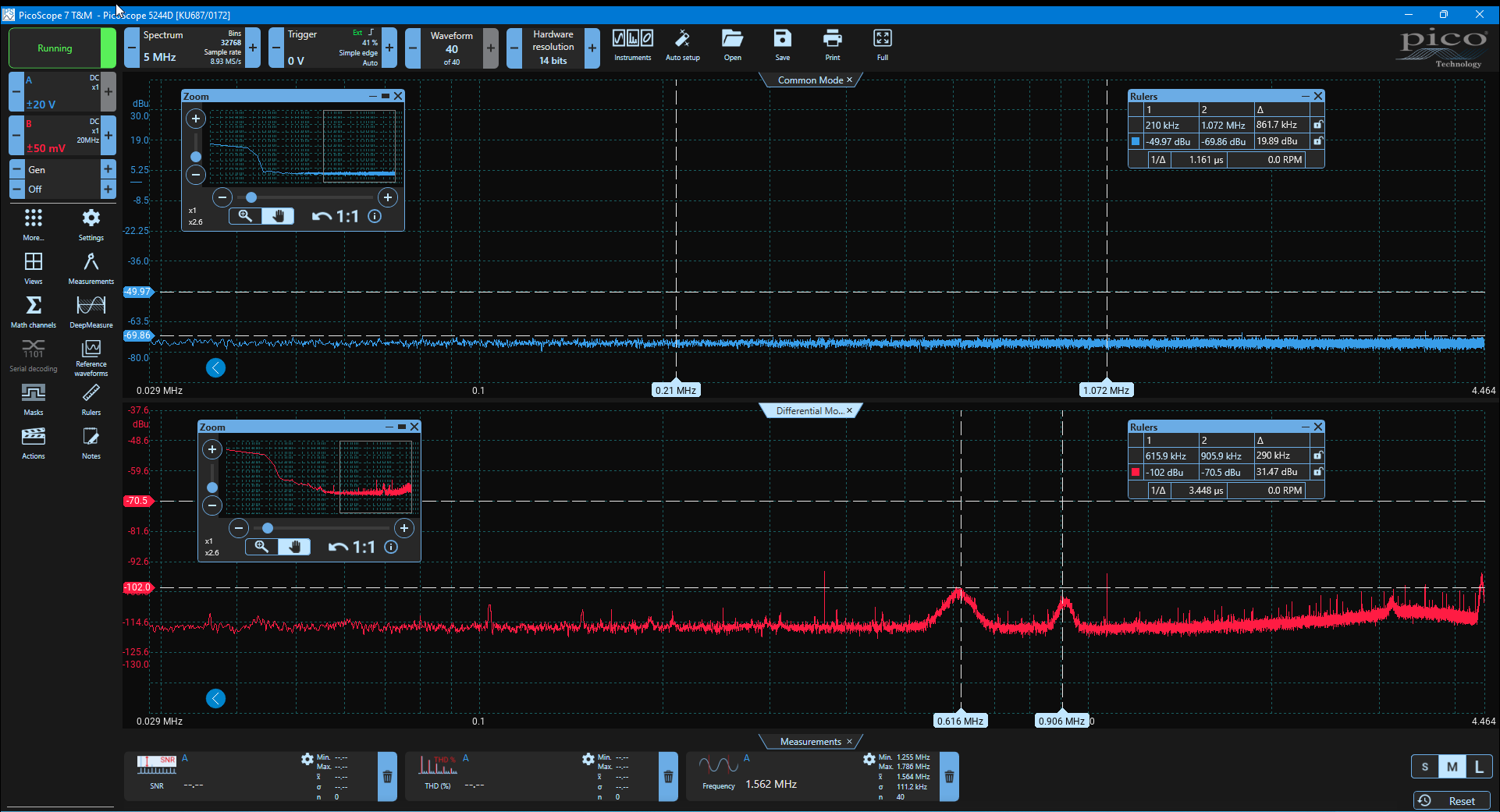

Noise

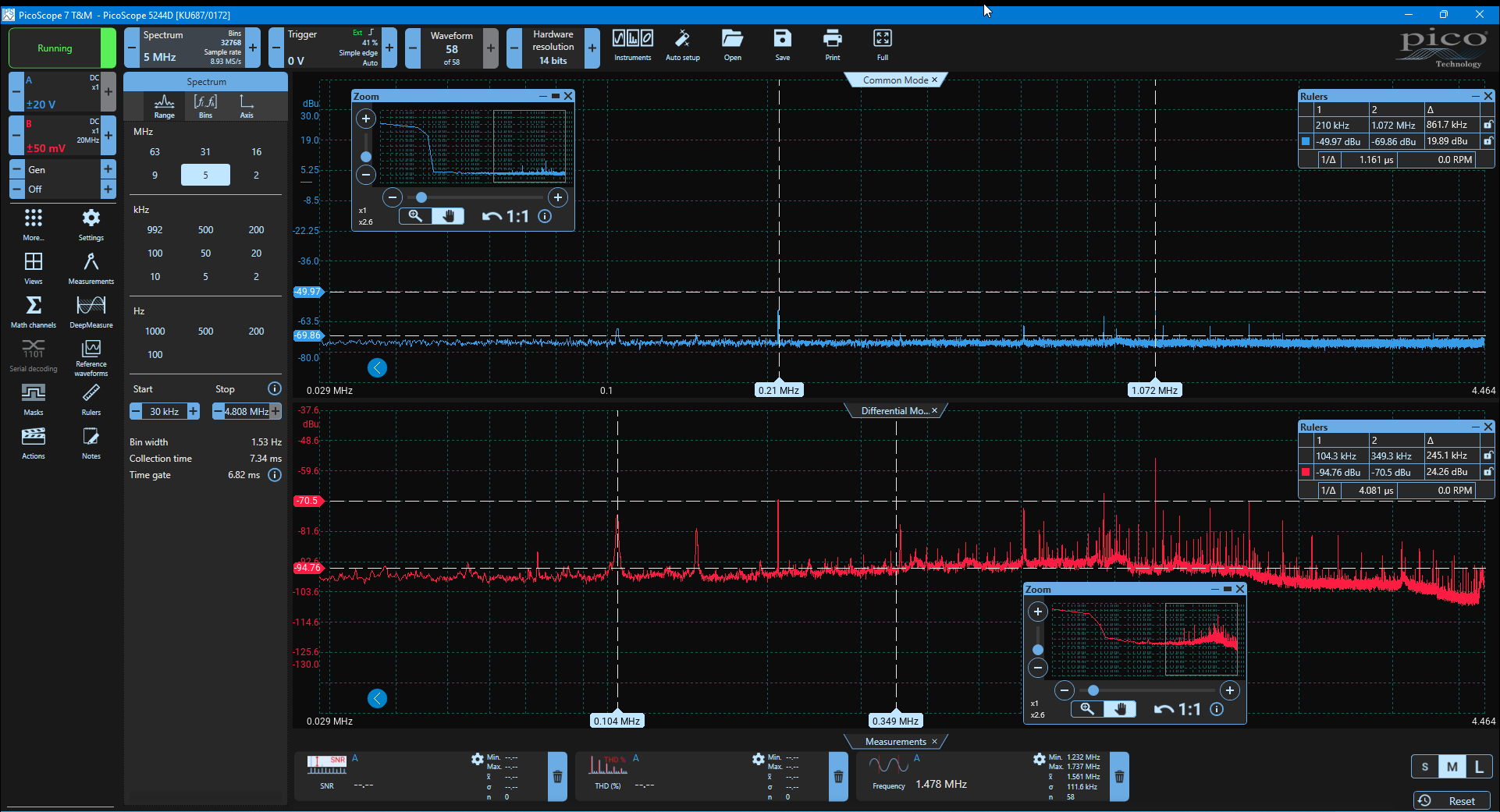

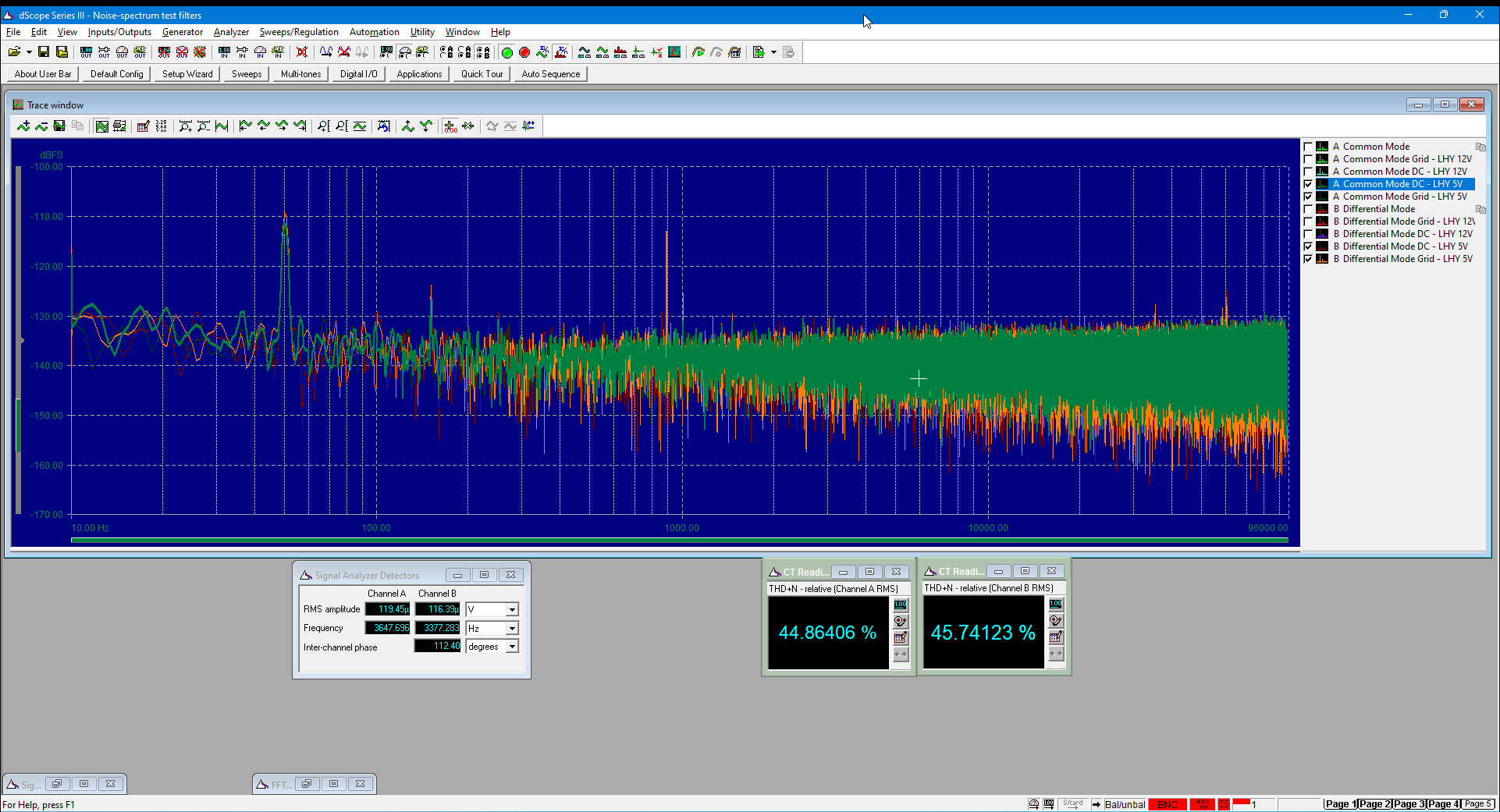

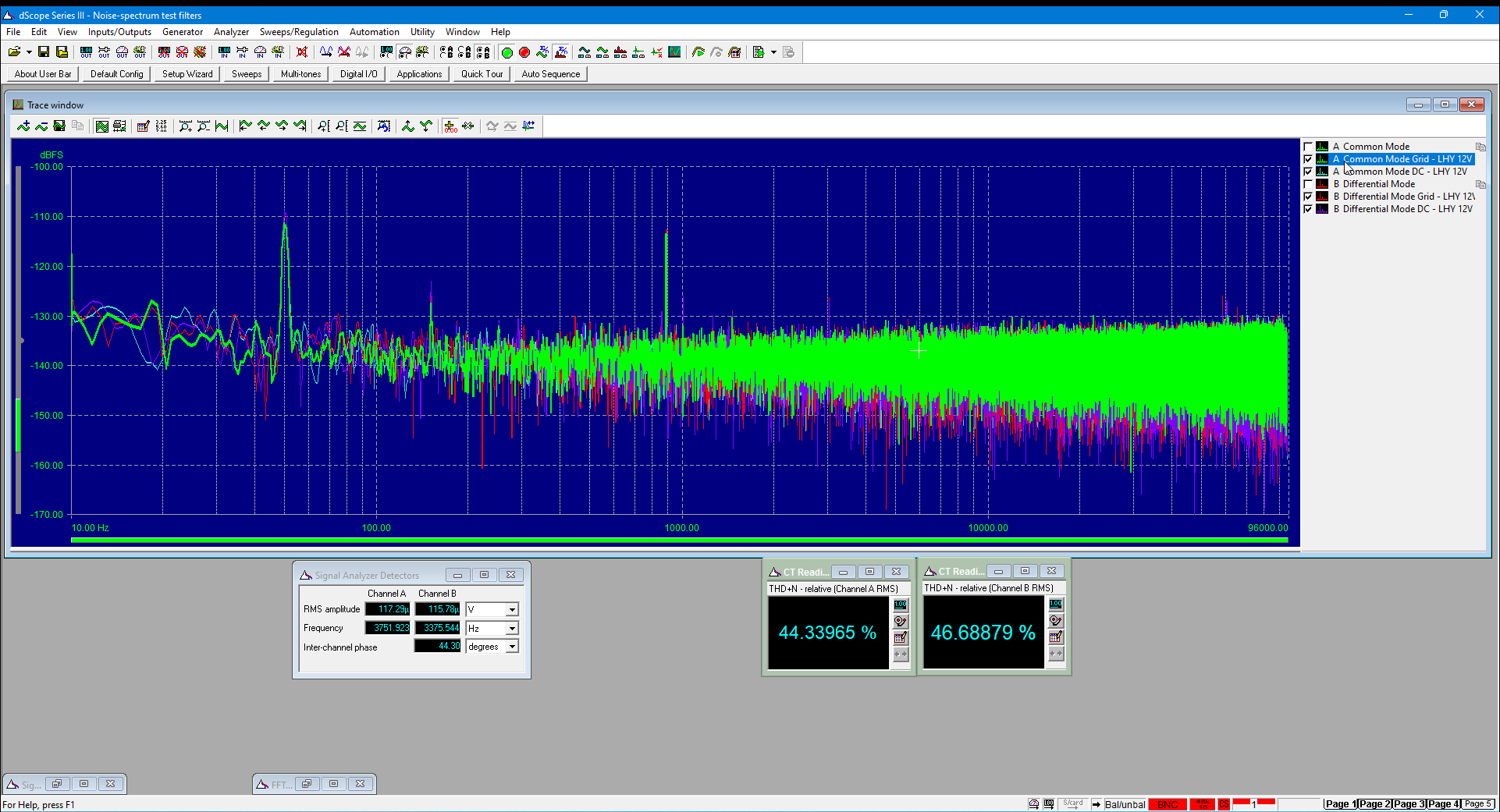

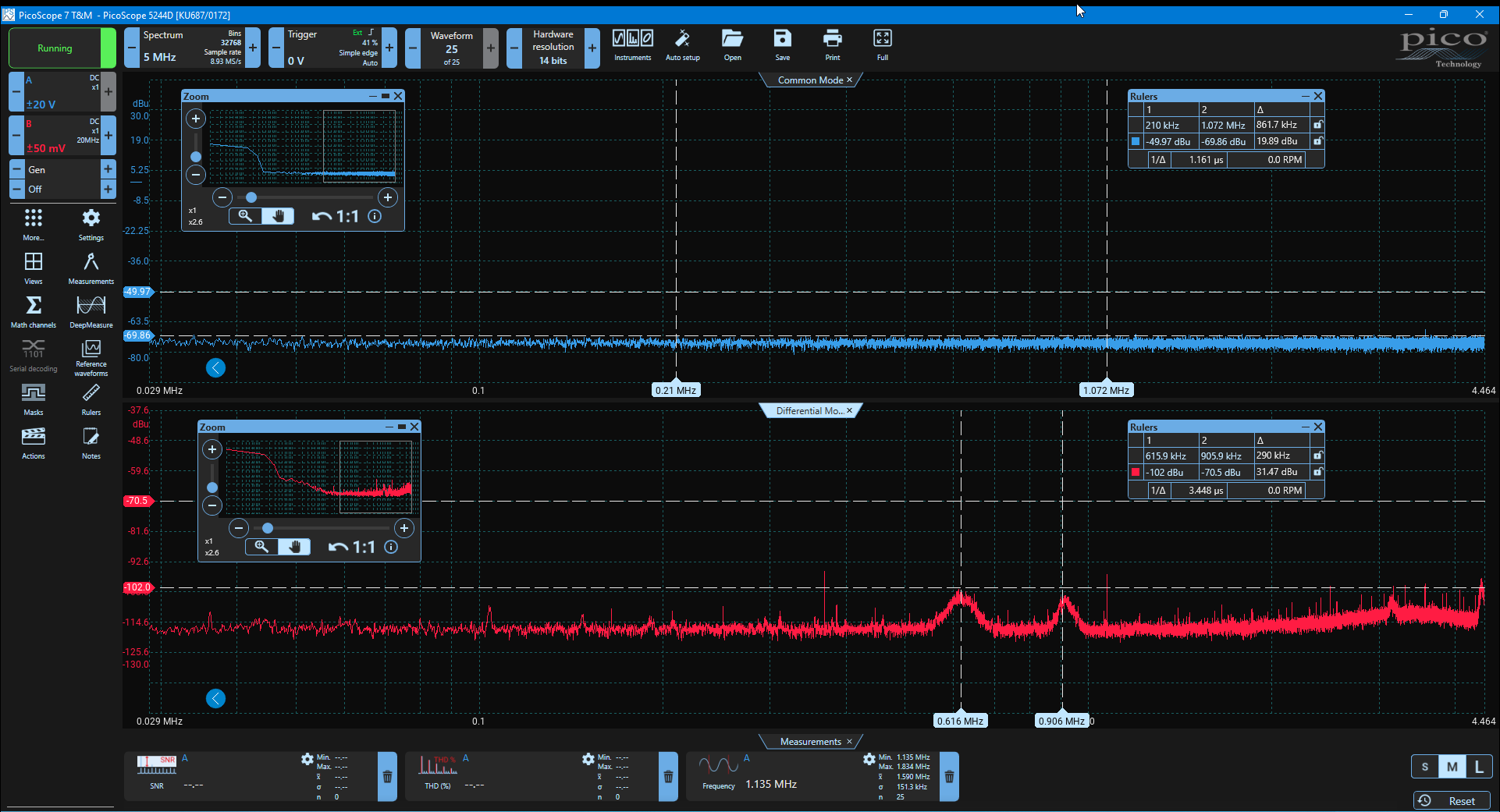

Noise to the mains is downright neatly under control. In fact, we just don’t see anything; this power supply is clean. On the DC side we also see neat values, although we clearly see more and somewhat higher noise than with the Plixir we tested earlier. All value for money, shall we say: the Plixir costs more than three times as much. So it is just as well that it performs better here.
Remarkably, the 12-volt has more noise on the DC output than the 5-volt version. Perhaps this is due to the regulator having to do a bit more?

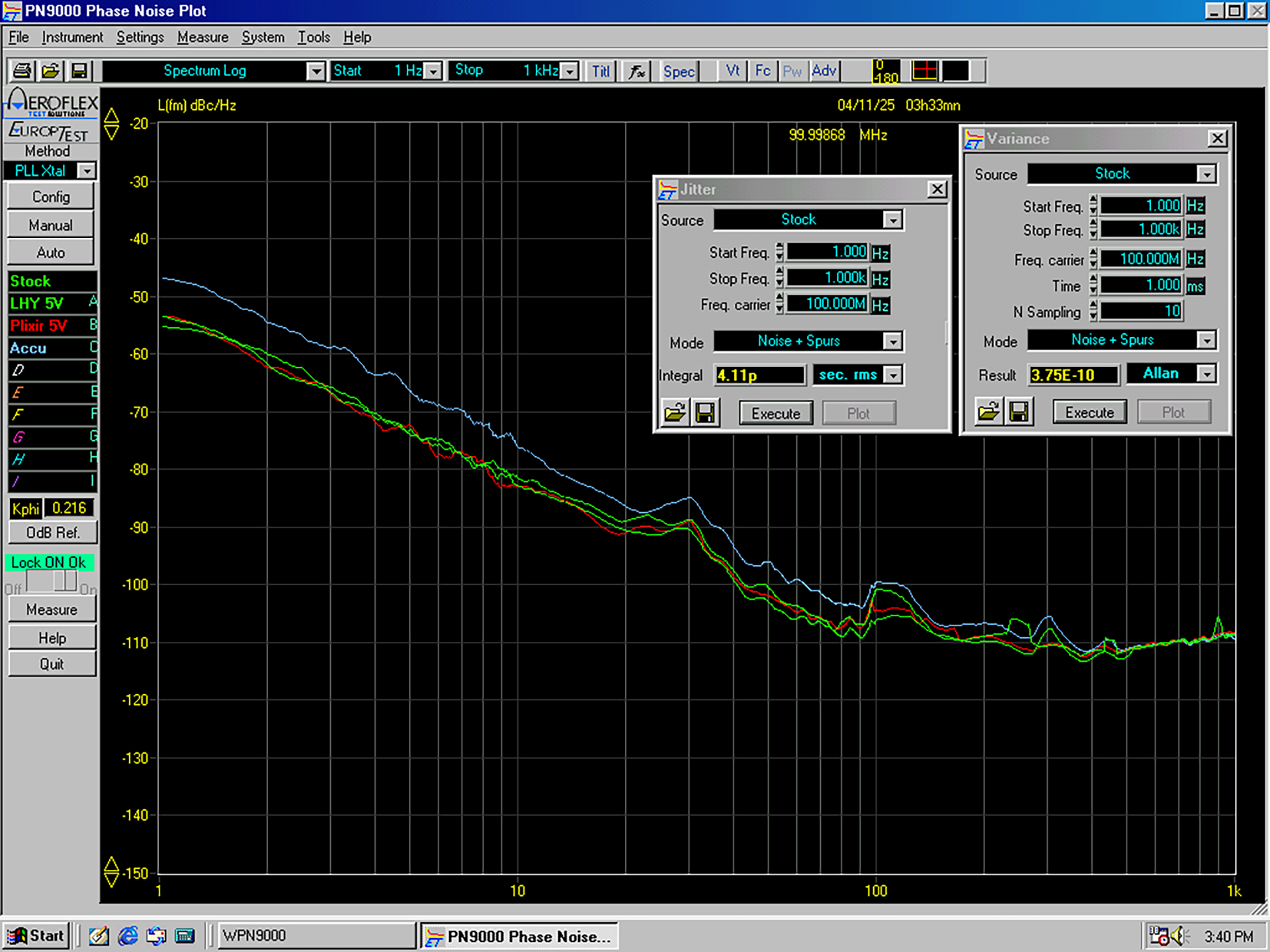

Jitter

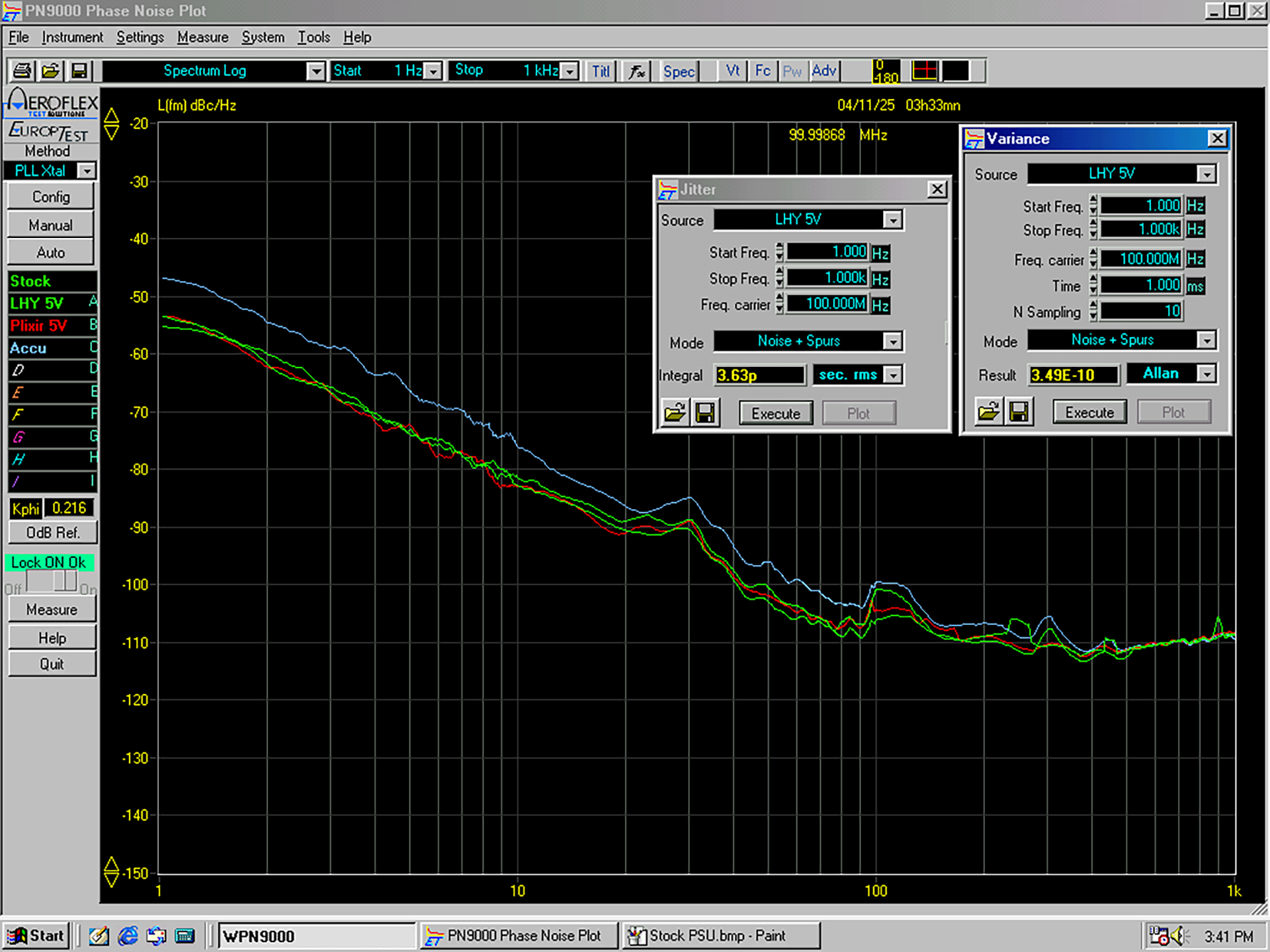

Looking at what this power supply does in practice, we immediately see the effect of a better power supply: the LHY reduces jitter on the Volumio Primo’s main crystal. Both if you use it on a connected network switch, and at the streamer itself (screenshot follows as soon as possible; it was not saved properly). By now we are familiar with this effect; so we are not surprised. However, it is still nice to see that a power supply has an immediate impact.
