Measurements and conclusion
Contents

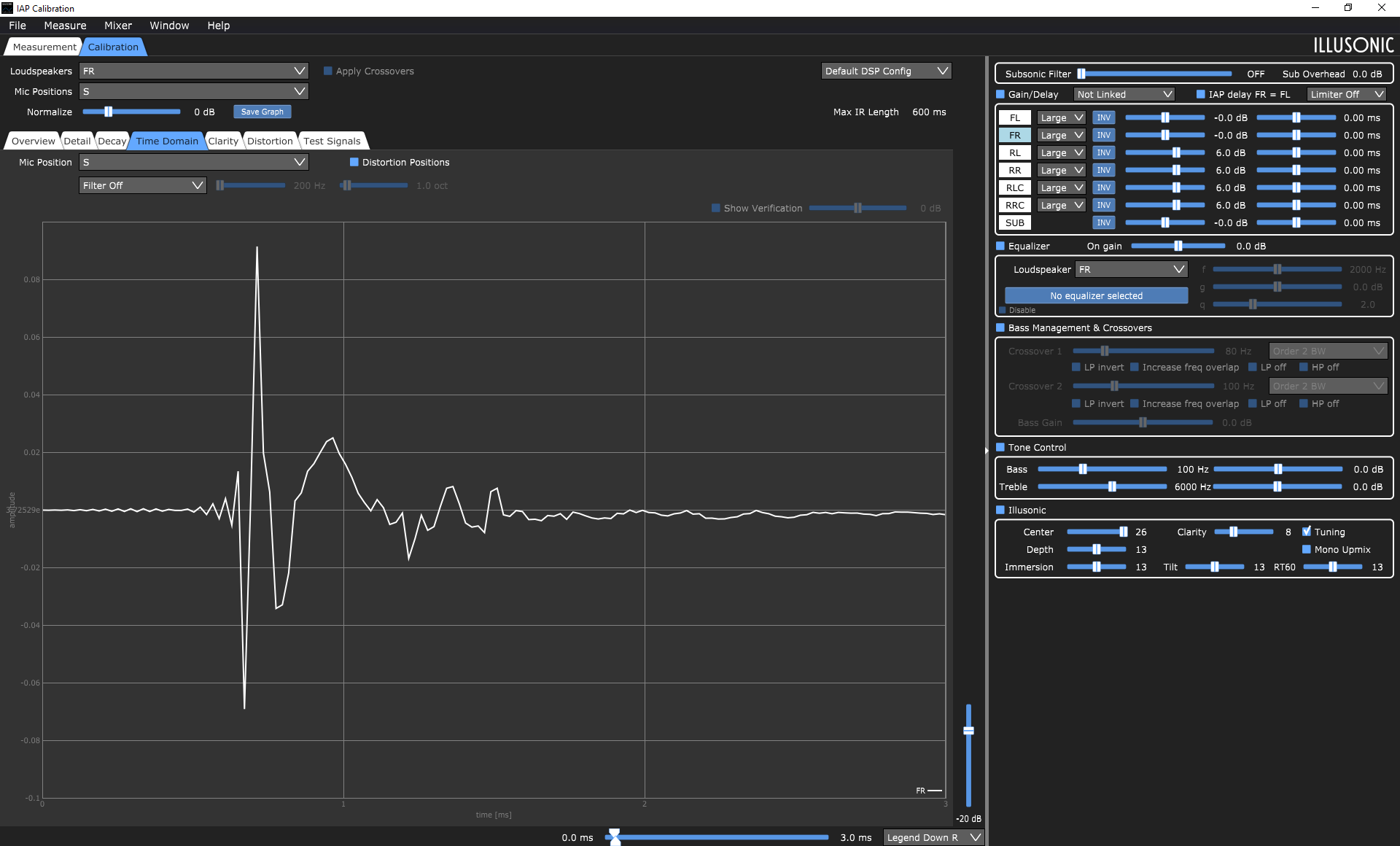

We measured the Graham LS8-1 using our Illusonic software. For the measurements, we use a DPA 4091 measurement microphone that we position at 1 meter for the basic measurements. We always try multiple positions to get the best results. The window is set to 3ms for the measurements to exclude reflections.
Response and distortion

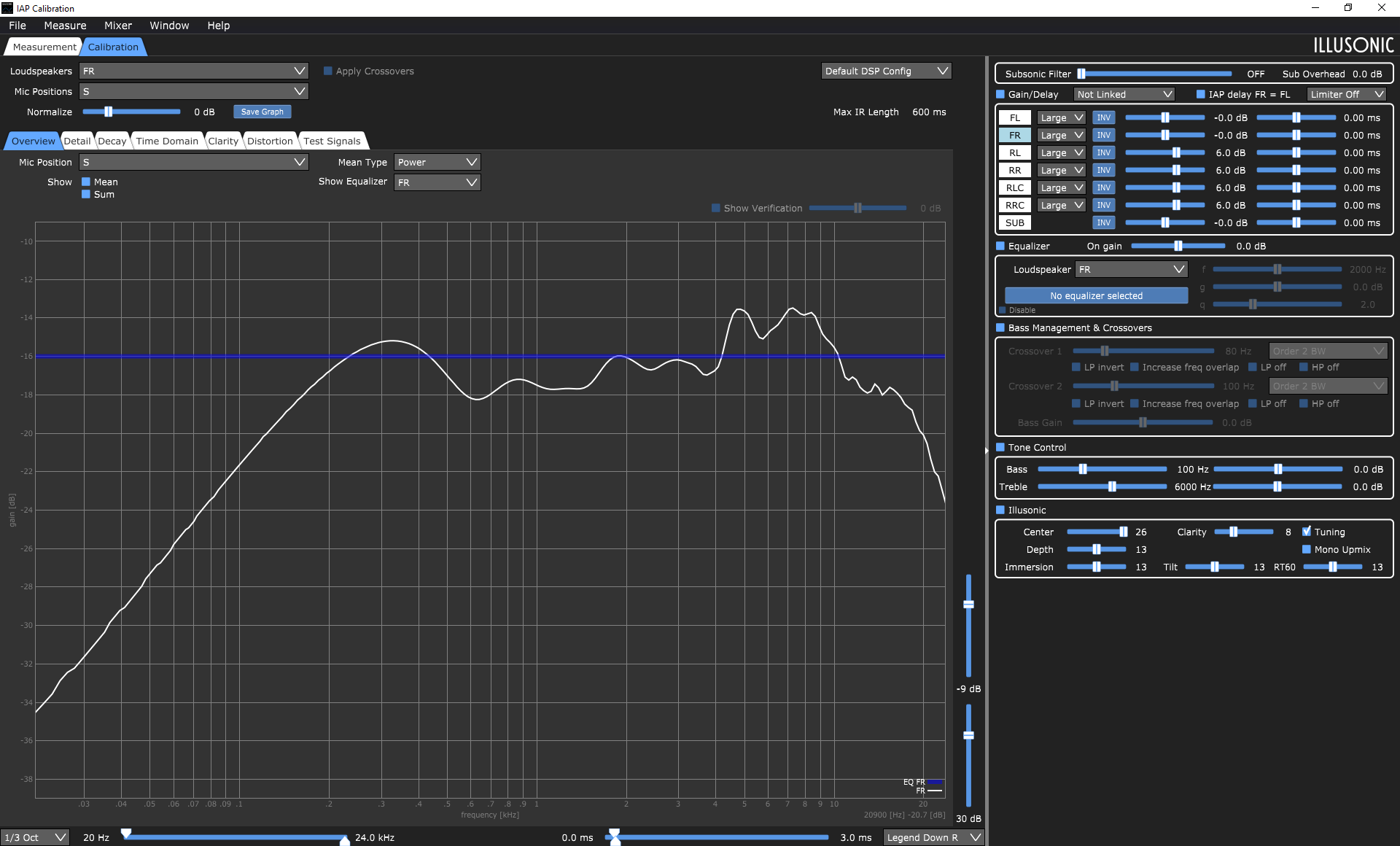

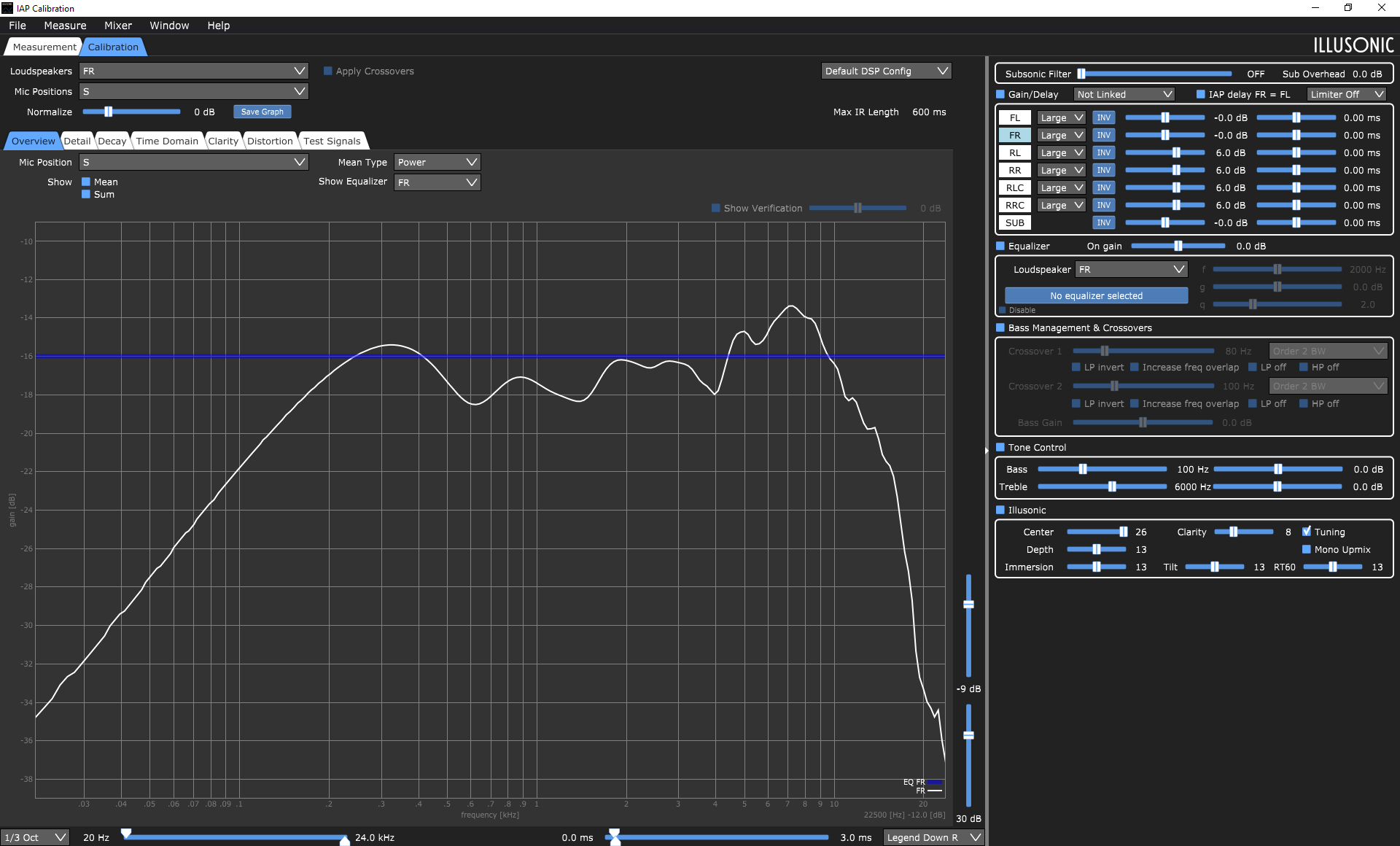

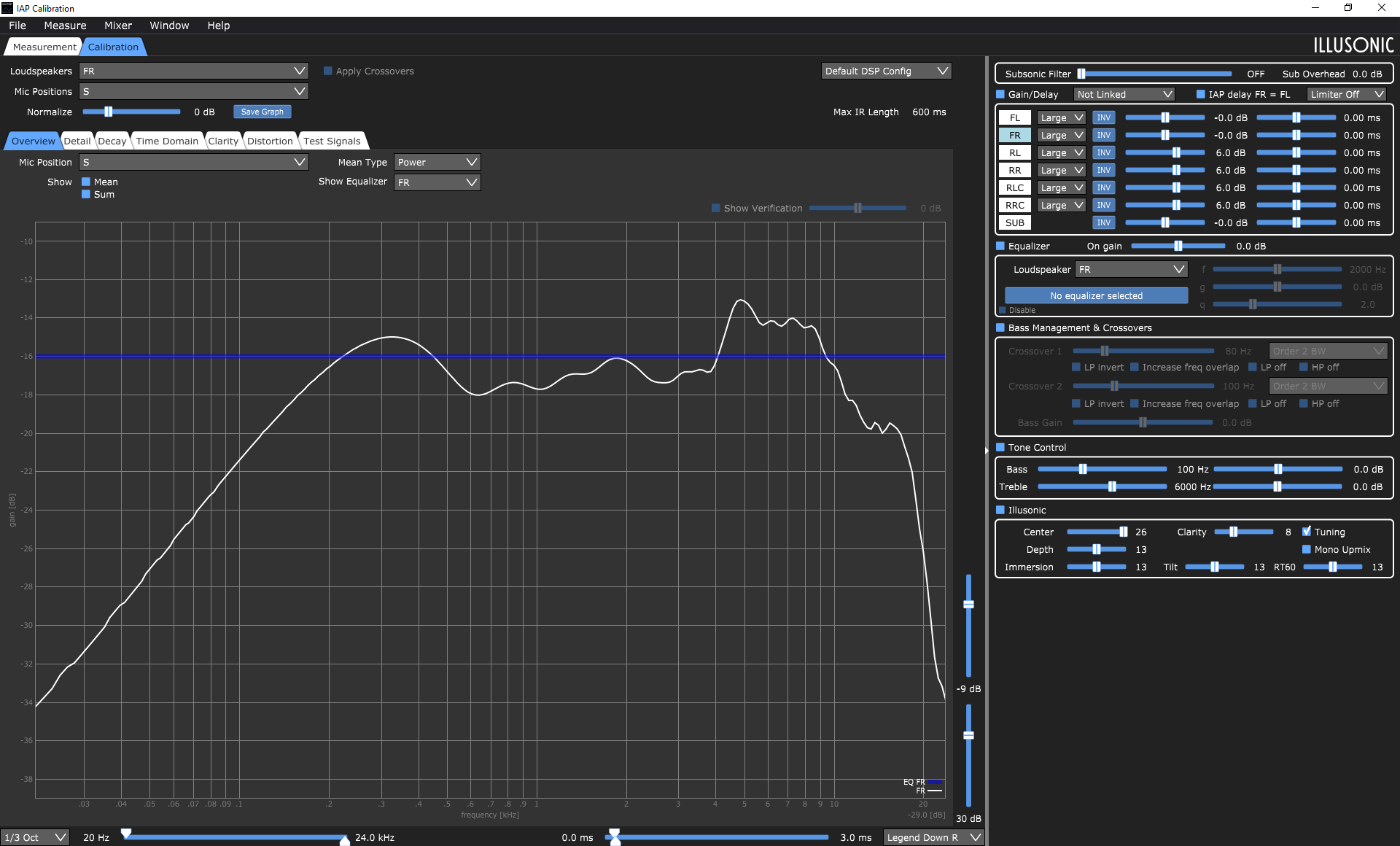

The Graham LS8-1 uses two tweeters. That’s a wacky setup, of course. We used three positions to see where it coincides: just above the woofer, between the tweeters (best) and on the top tweeter. In all cases, the curve is about the same: a bit of a BBC dip (2dB) and a slight bump between 4 and 10 kHz (2dB). It’s all pretty mild. And that’s audible: this is not an overtly tuned speaker.

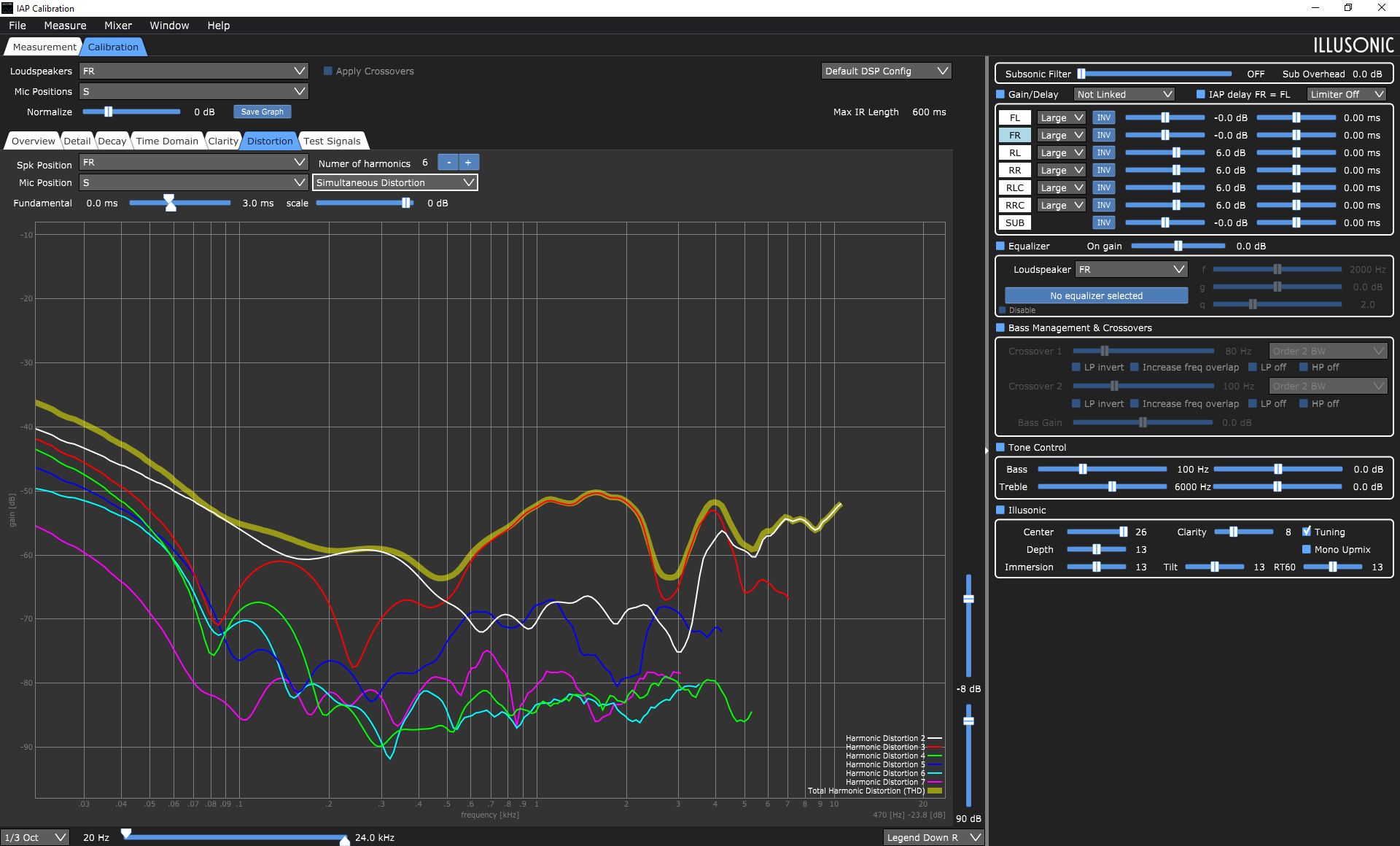

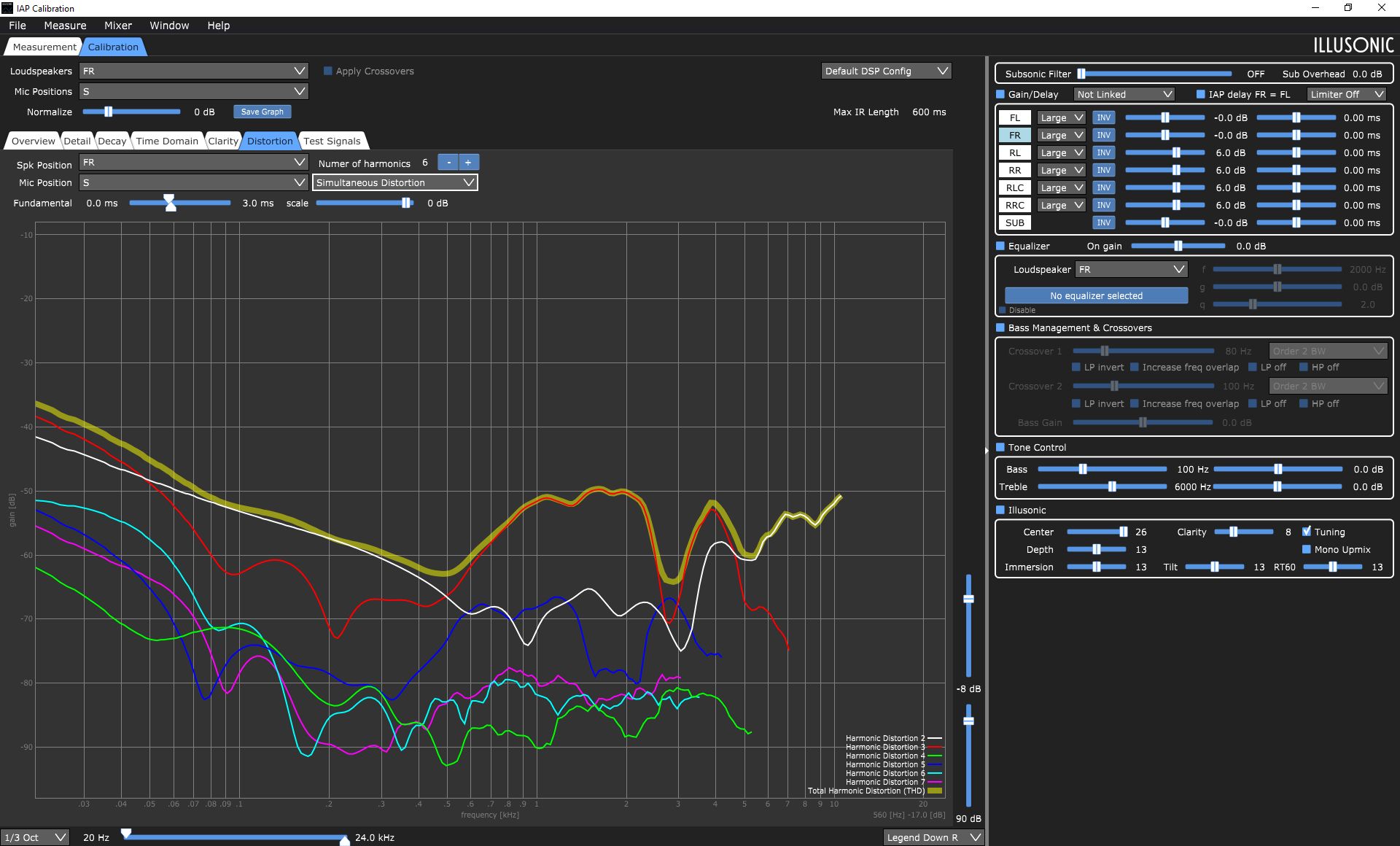

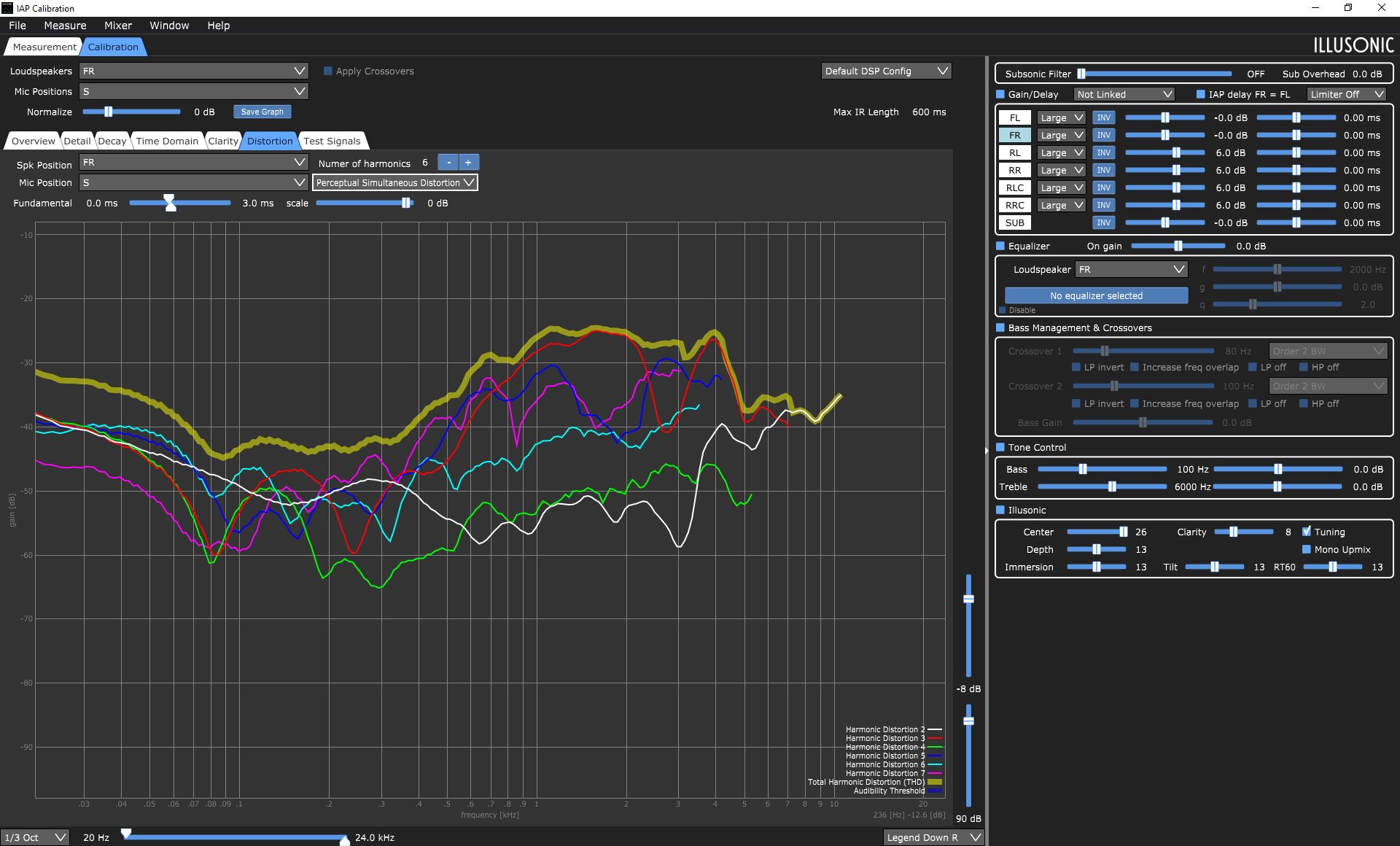

Distortion is low. It shifts a bit between -50 dB (0.3%) and -60dB (0.1%). These are not bizarre scores, but it is decent for a speaker in this class (6200 euros per pair). The third harmonic is dominant, which also explains the clear character a bit.
Impedance

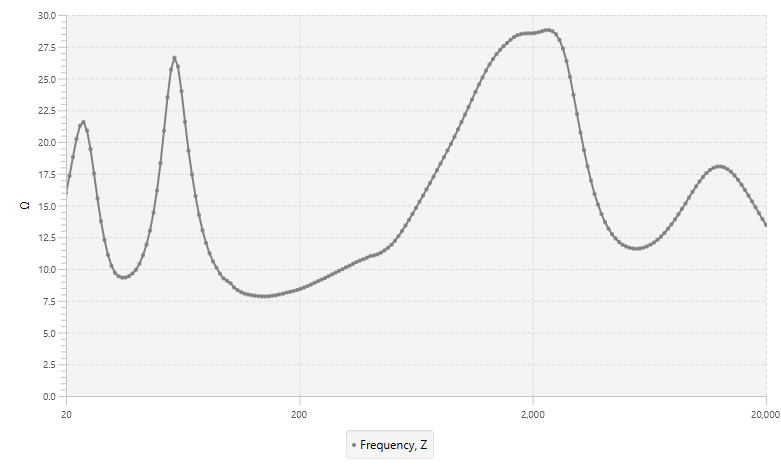

The Graham’s impedance is quite friendly: there are no dips below 8 ohms. It does go up quite nicely: 26 in the low end (2nd resonance point) and at the region around 2000 Hz we see almost 30 Ohms. This can cause coloration when using a tube amplifier.

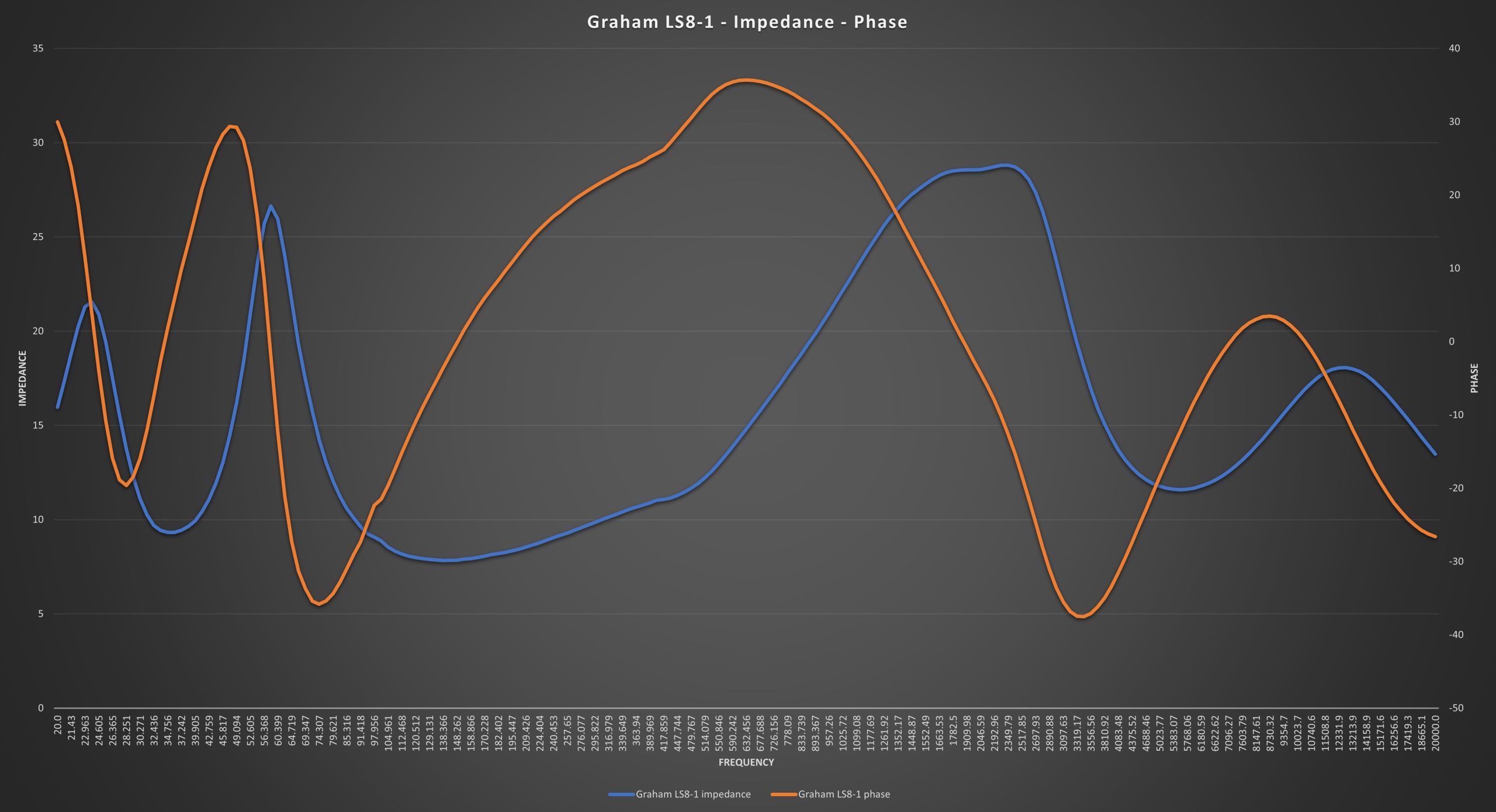

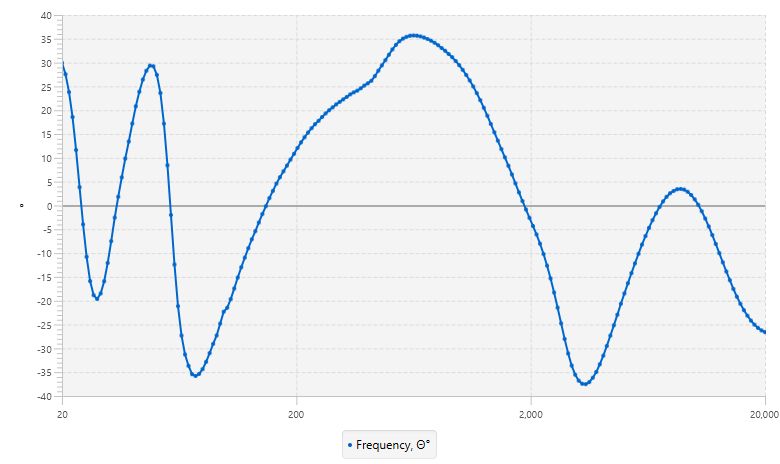

The electrical phase shifts between -35 and +35 degrees. That’s pretty friendly. It will not easily drain an amplifier, we estimate.
