Measurements and conclusion NAD M23
Contents
That NAD has an interesting product with the M23 is obvious. But how does the device stack up technically? Well: good!

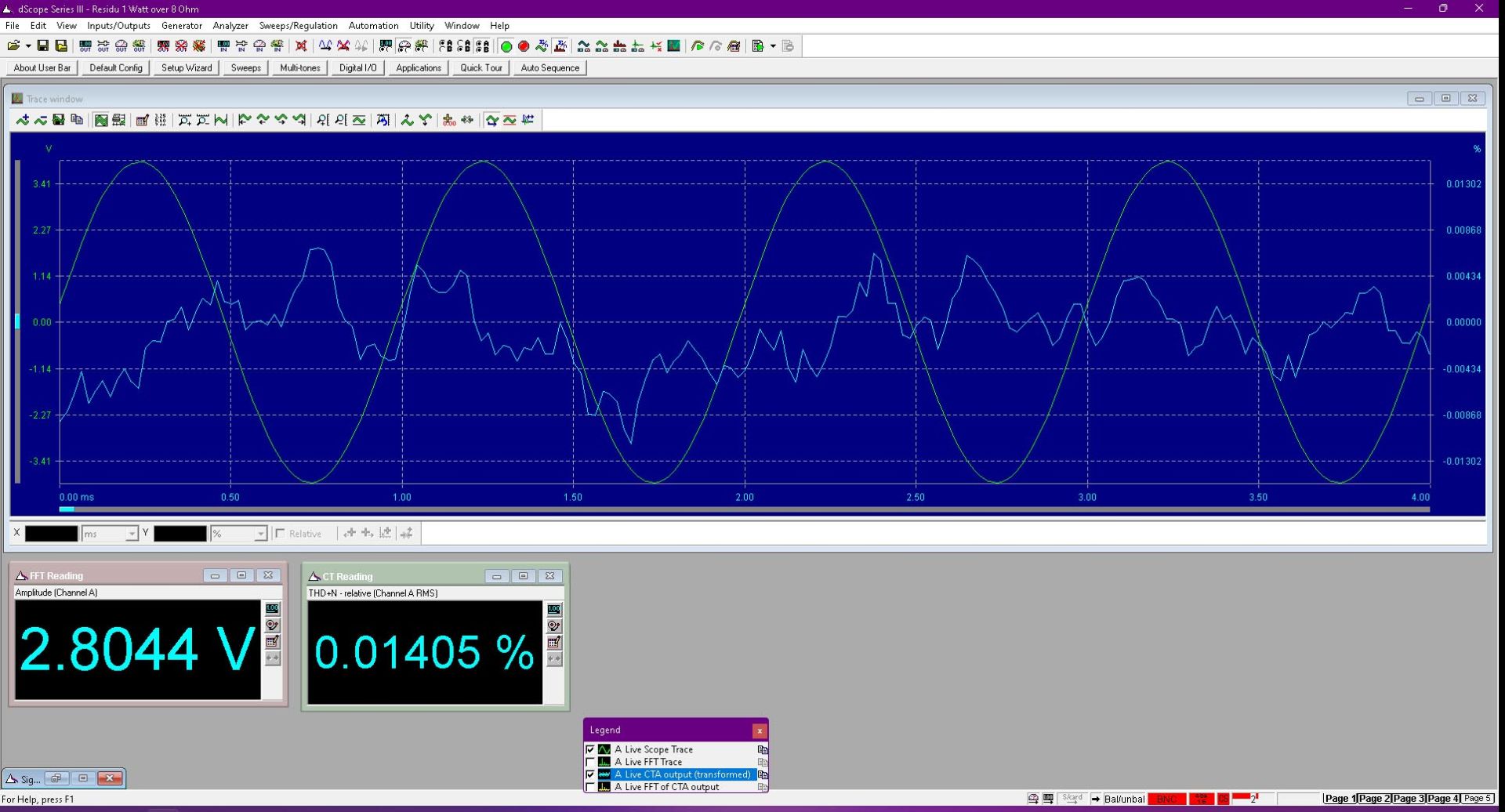

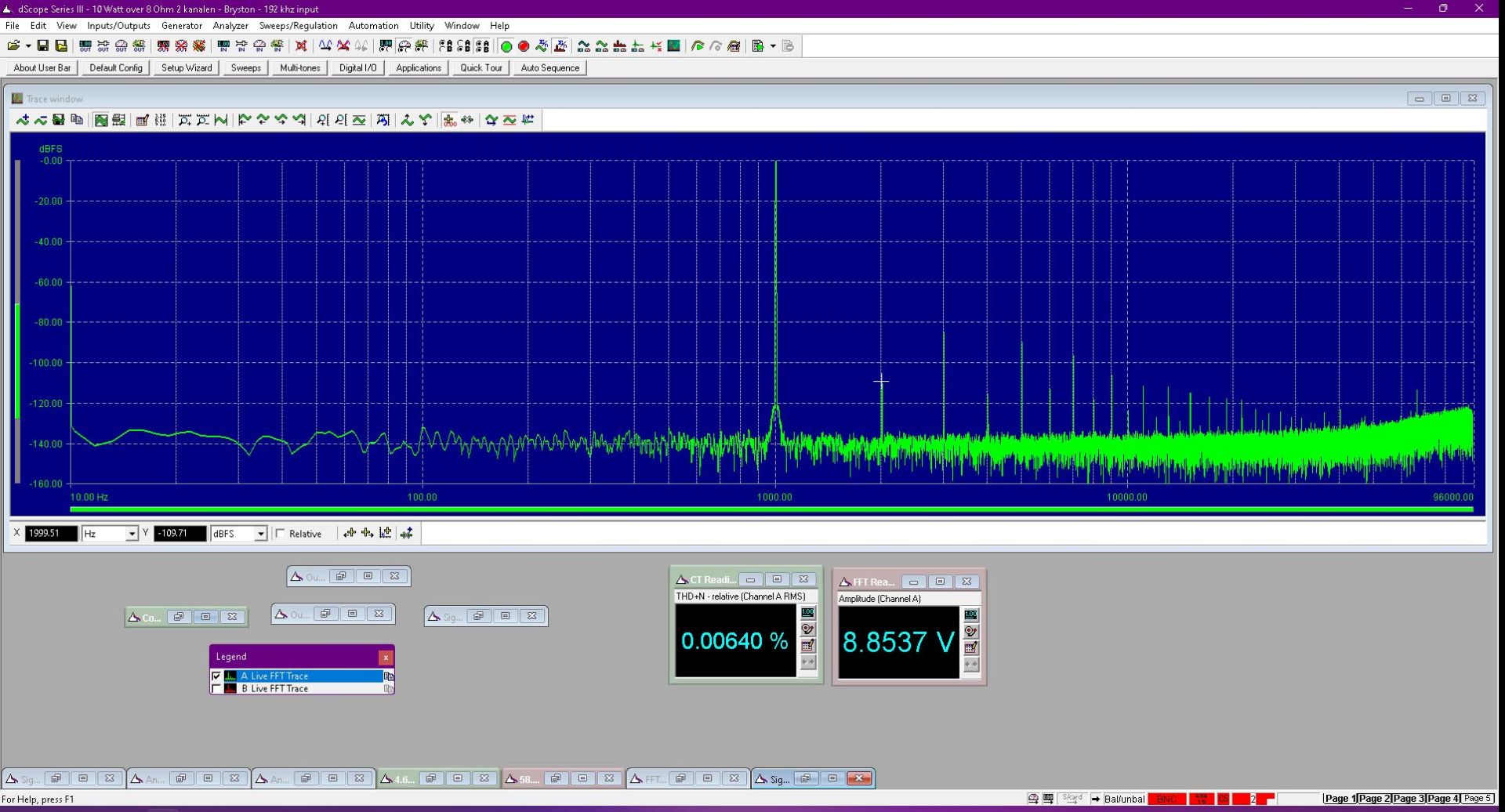

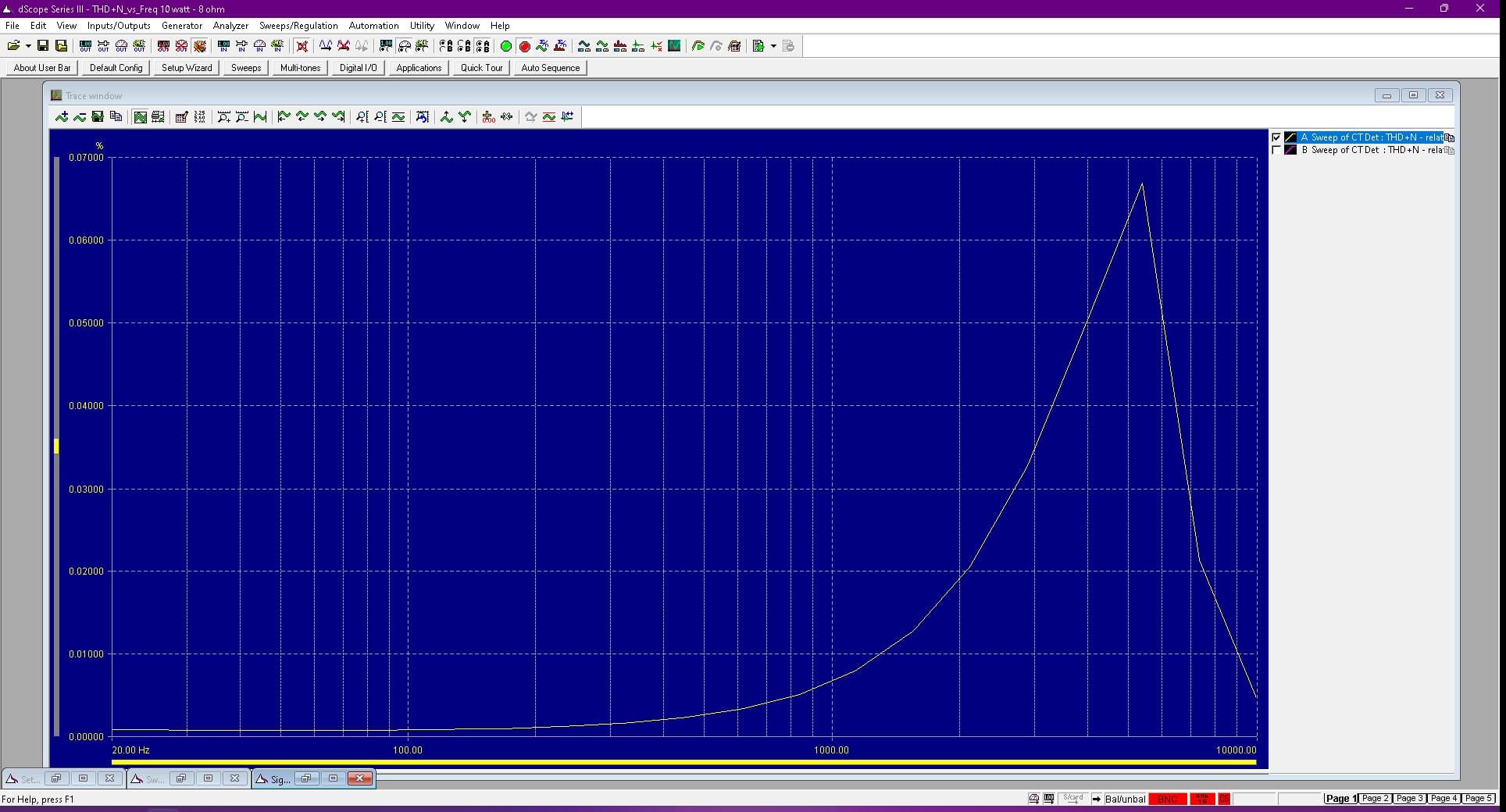

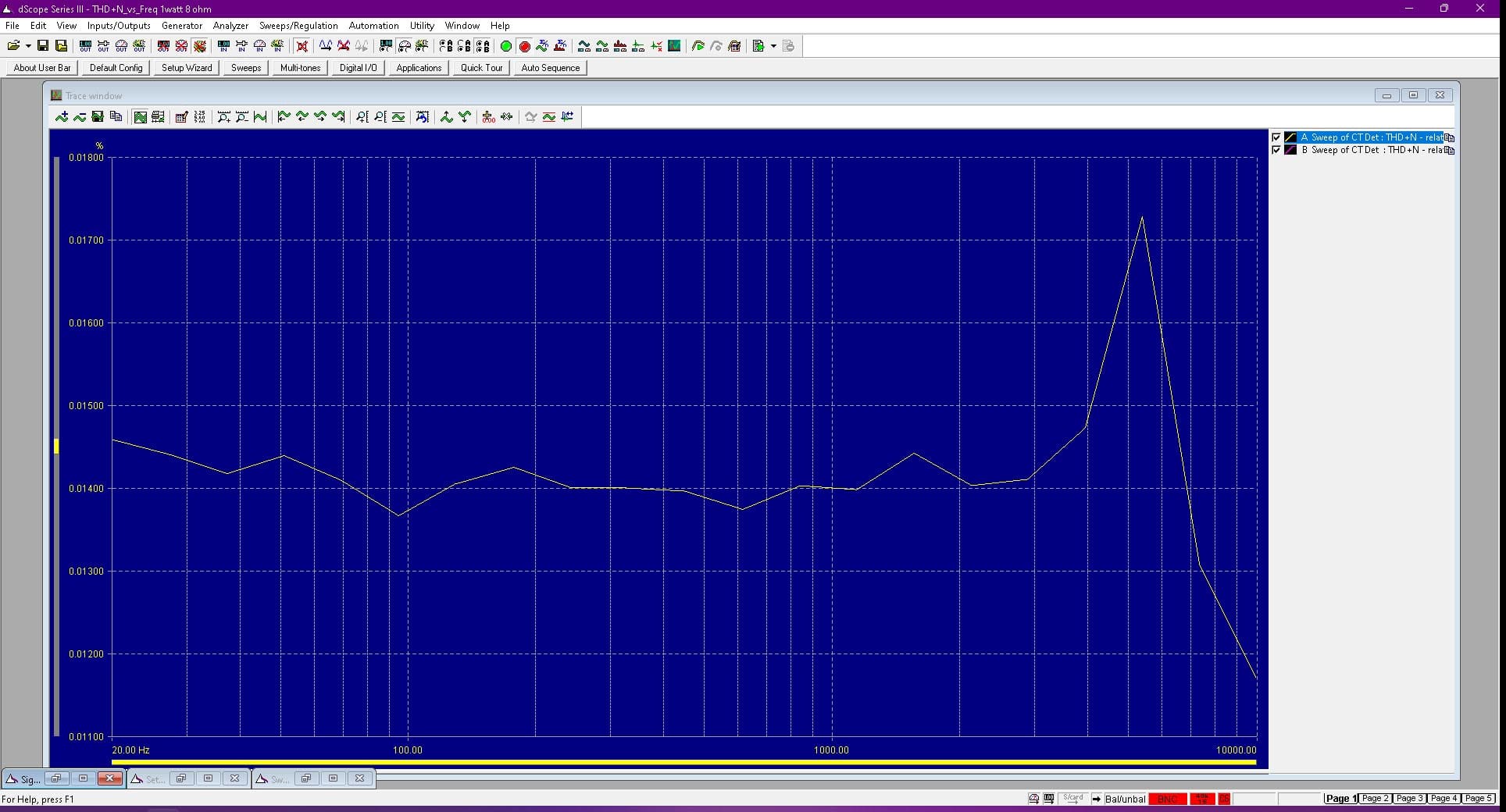

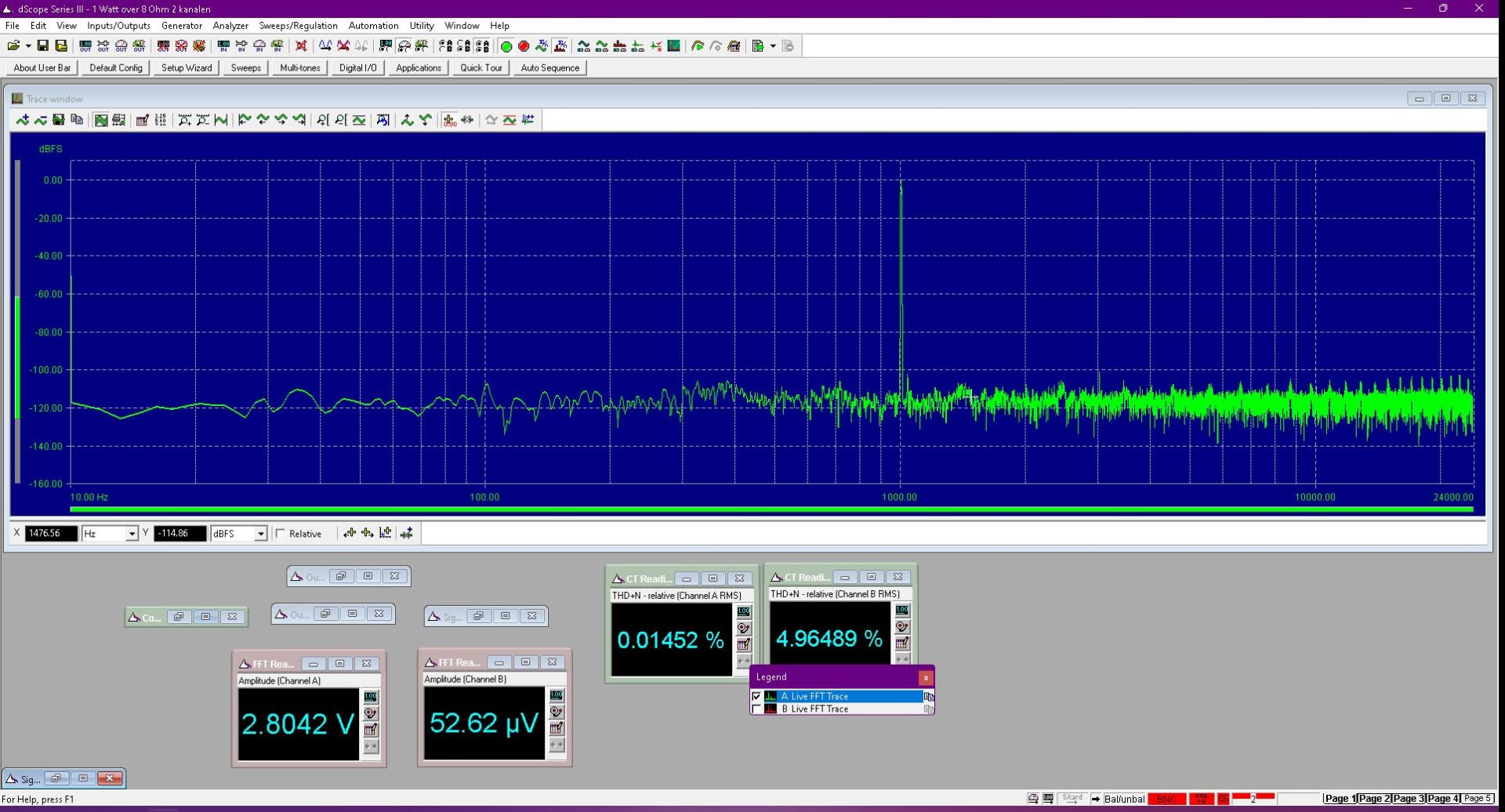

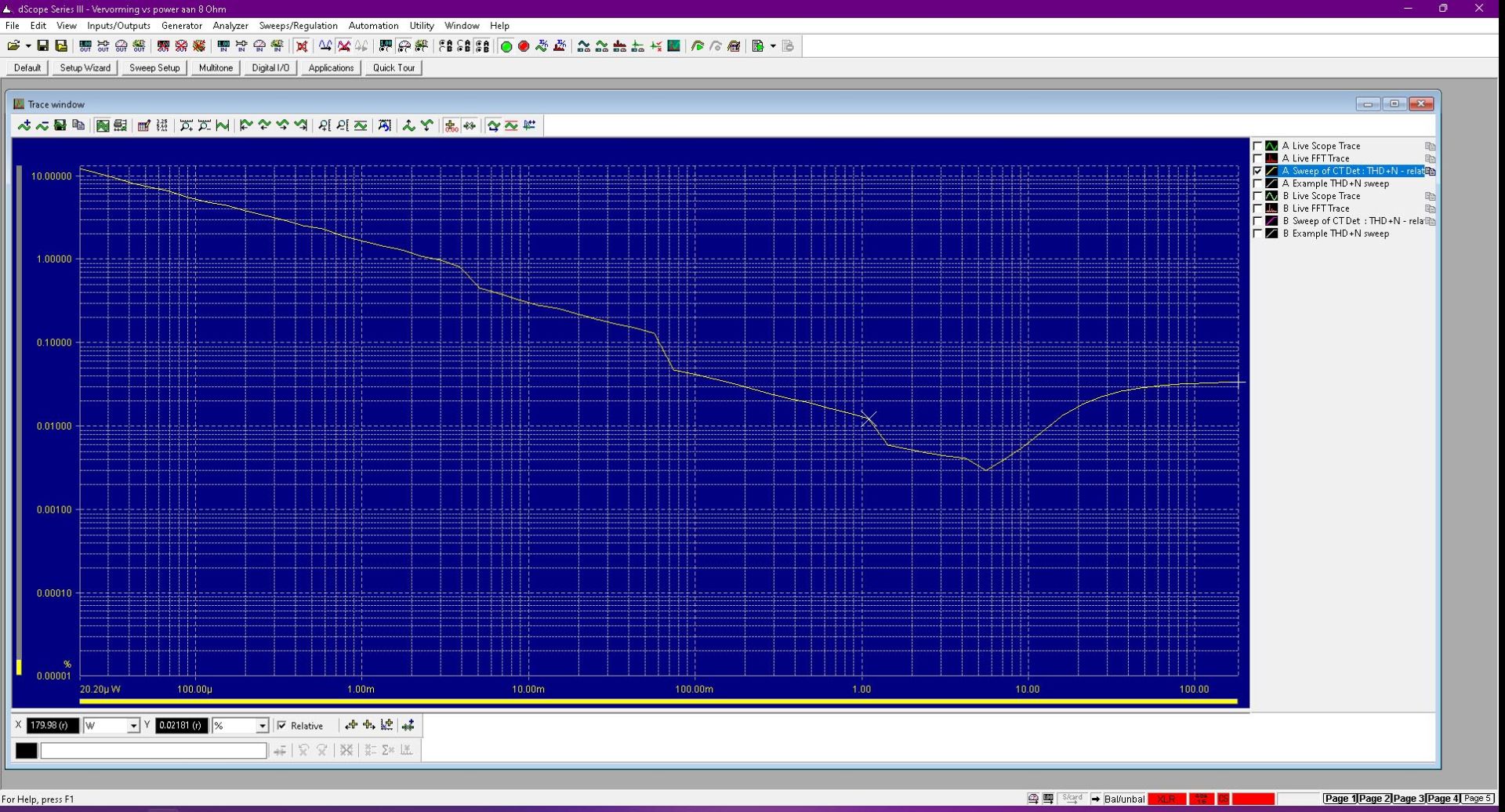

The noise floor is between -120 and -110 dB at 1 watt over 8 Ohms. Distortion at 1 watt input is 0.0145% which is neat. At slightly higher loads, the noise floor drops partially to -140dB and we see the distortion drop as well: 0.006%.

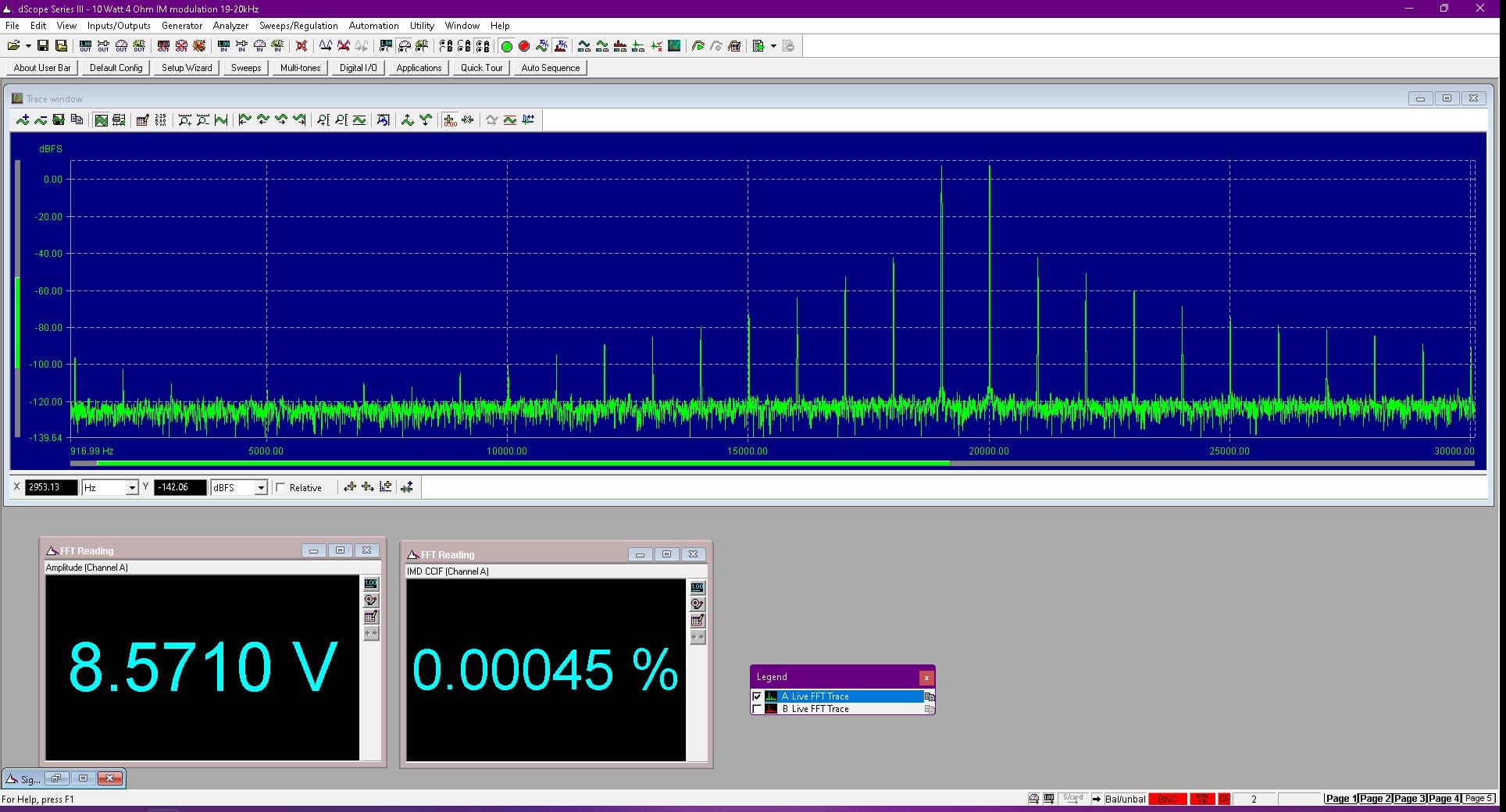

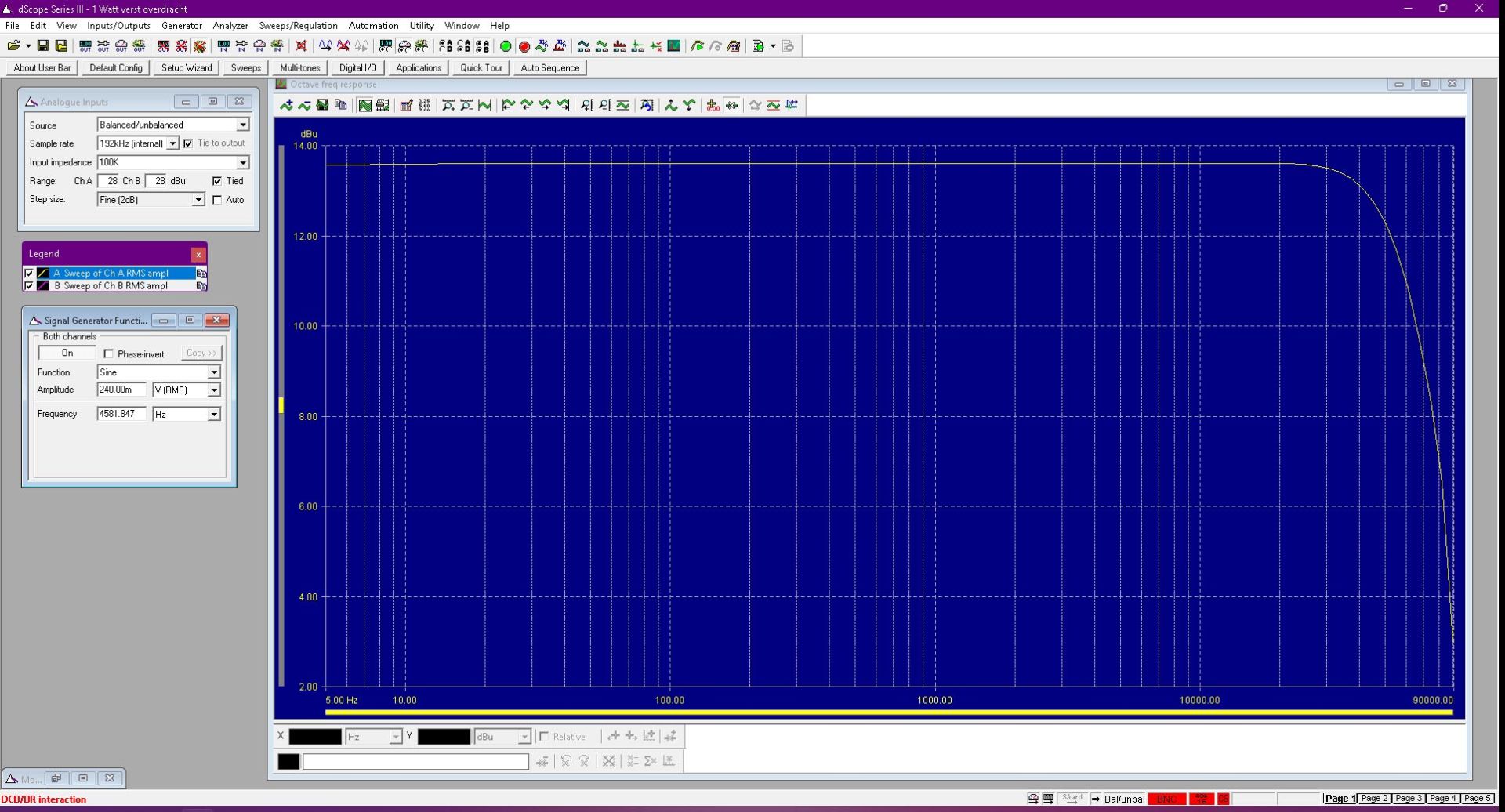

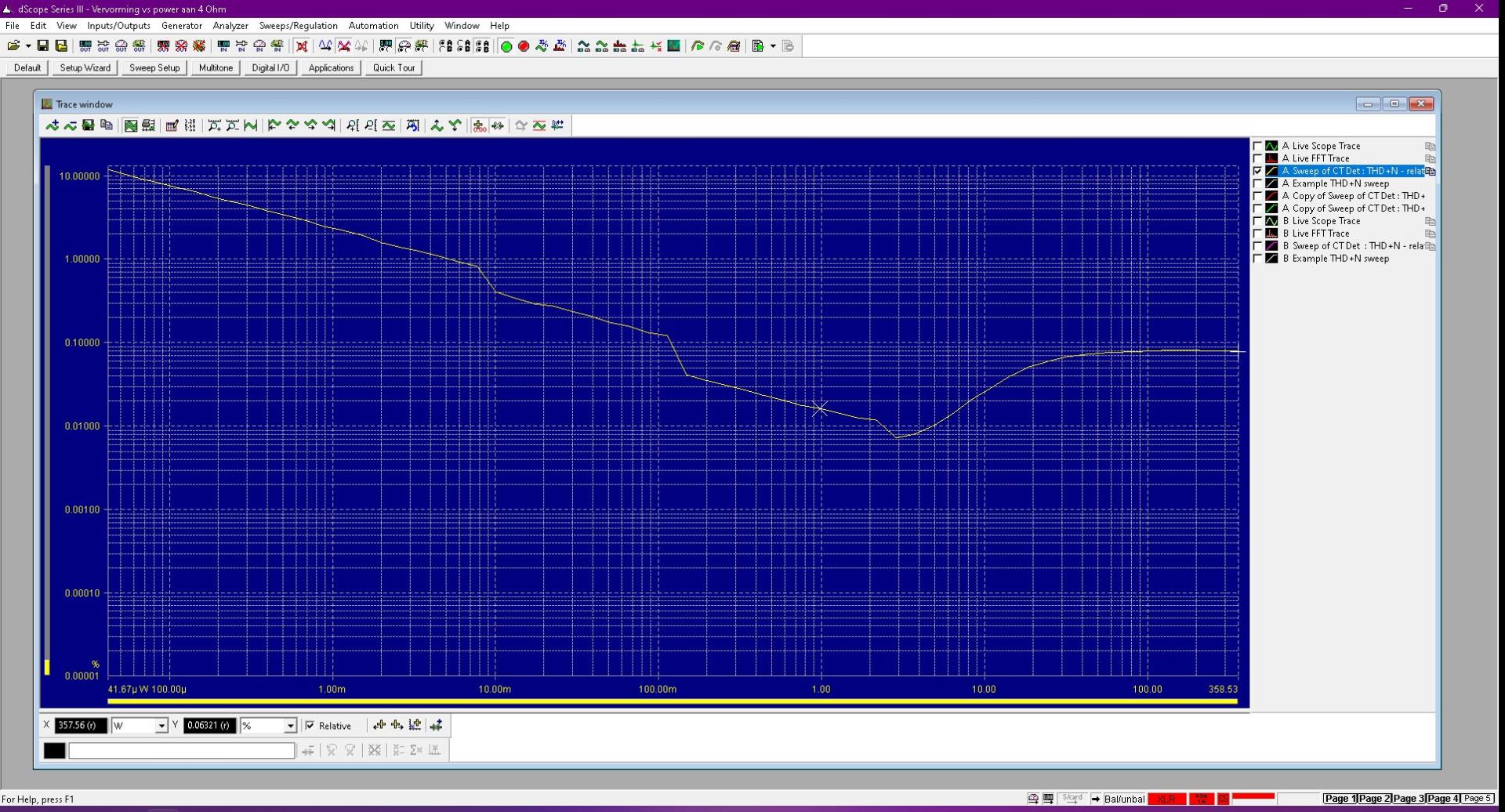

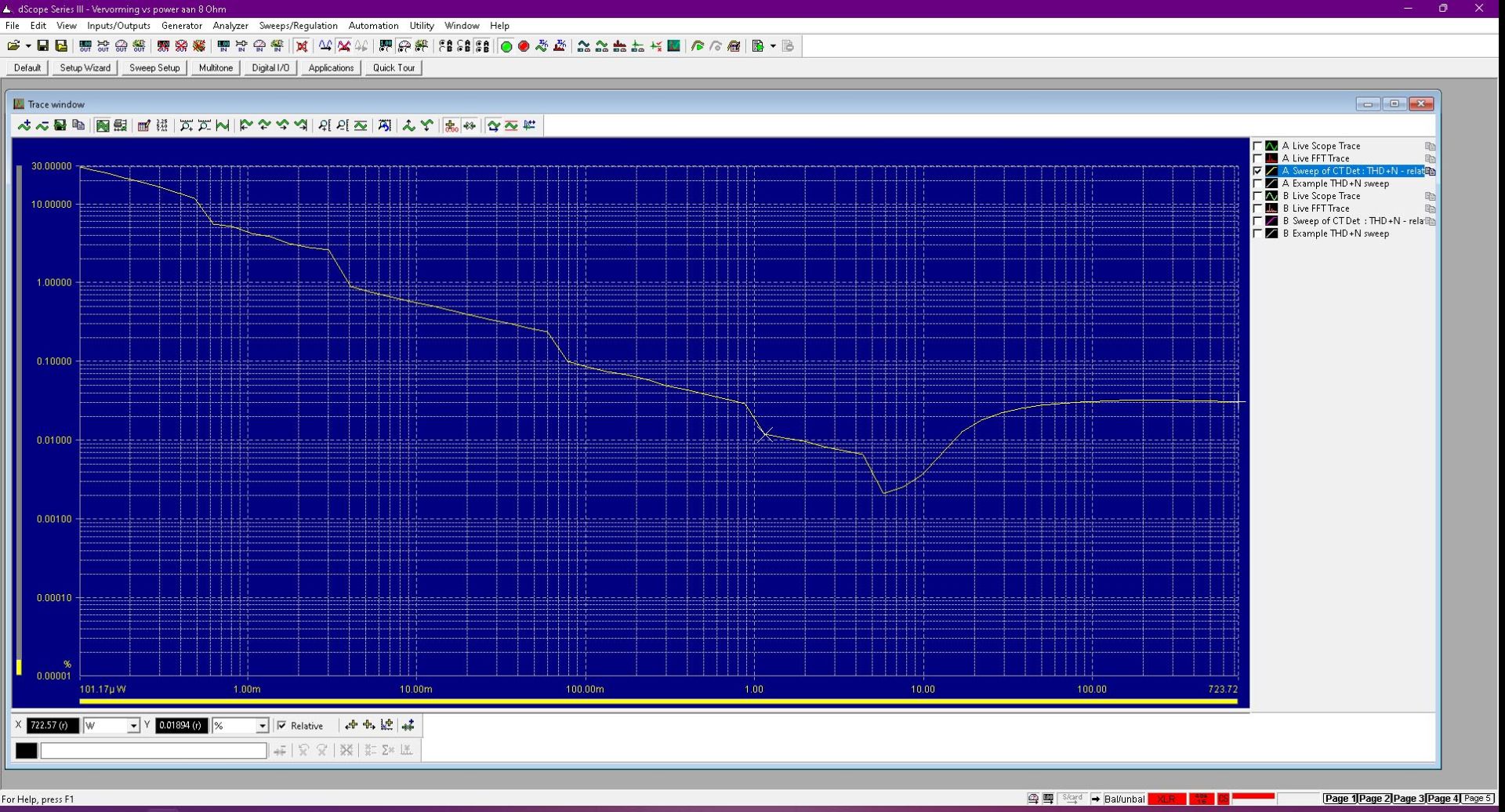

Intermodulation distortion is practically non-existent with 0.00045%. Also, the frequency response is practically straight. Super. If we look at the power measurement we measure 180 watts in 8 Ohms, 357 watts in 4 Ohms and 722 watts in bridge mode. Fairly around the specified power output.
Now a word about what the M23 throws back at the mains. That can be an issue with a SMPS. We can see from the picture below that it is not that bad. Green is with the M23 on and a small load on it. Pink is off (standby). In short: almost no distotion or noise is thrown back to the grid. At least: not in the audible band.
