Measurements and conclusion
Contents

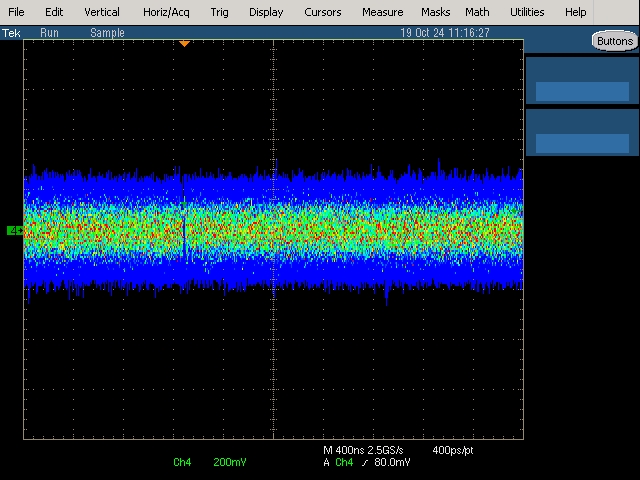

We did a few measurements on the cables. First, the “standard measurements” on the Sourcetronic LCR. Think: capacitance, inductance, impedance and conductance. Also, to look a little deeper, we measured propagation variation and noise behavior on the Tektronix scope. Please know that propagation variation is very difficult to measure properly, since it is partly a manual process…. so those values are not absolute, but an approximation.
Measurements Dyrholm Phoenix

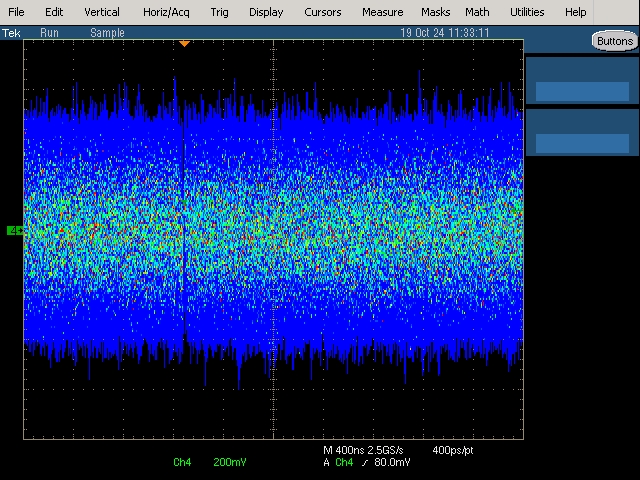

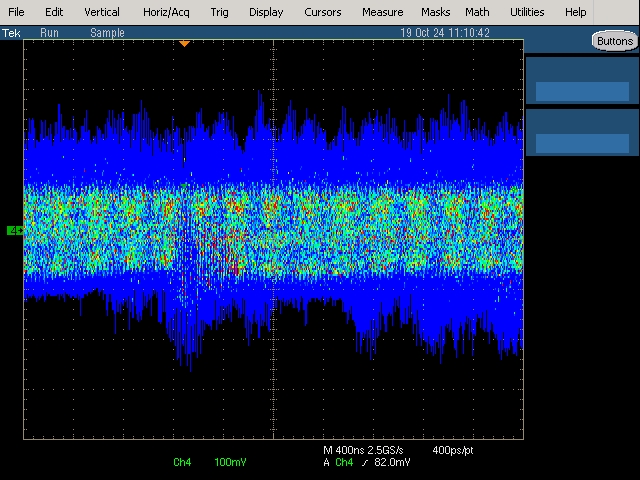

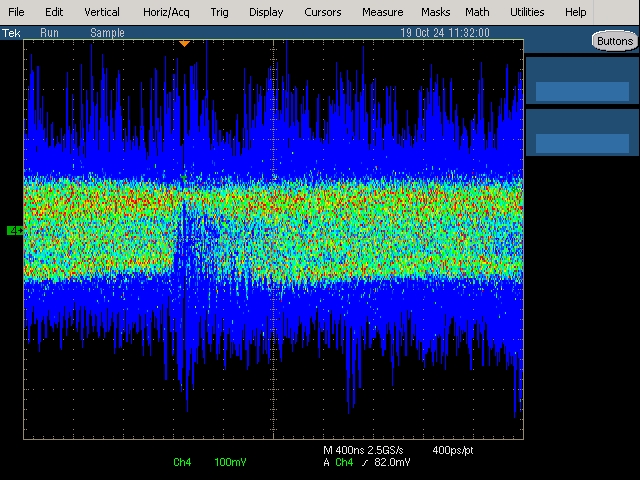

The Dyrholm Phoenix falls in between the Kimber and OePhi in terms of noise. This makes sense given its structure and LCR scores. It’s not the quietest, but it’s also not the most “noisy” cable. That’s kind of how we experienced it in the listening test.

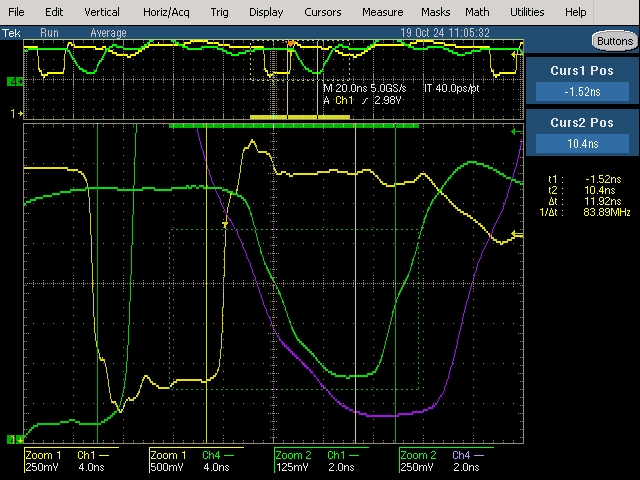

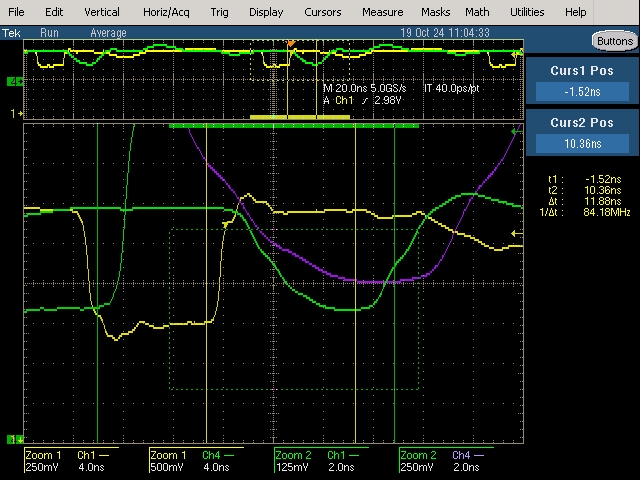

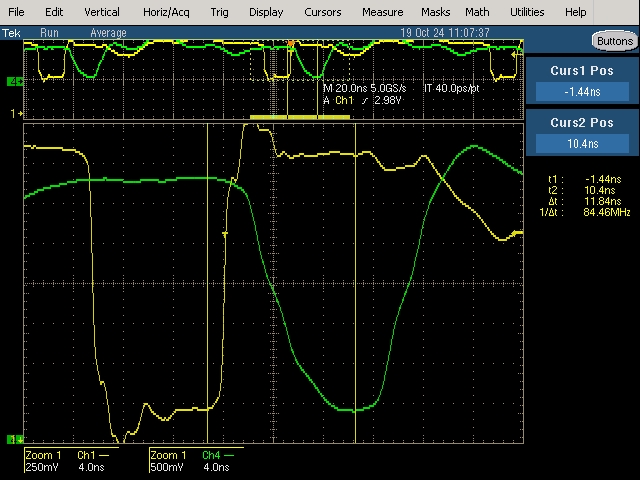

In terms of propagation variation we see very good scores. Better than the OePhi even. This is remarkable because the capacitance is higher. We see 11.88ns at 1V, 11.92ns at 2V and 11.84ns at 2.5V. That’s only 40ps both ways so 80ps total. Neat score: we rarely see it that good.
LCR measurements Dyrholm Phoenix

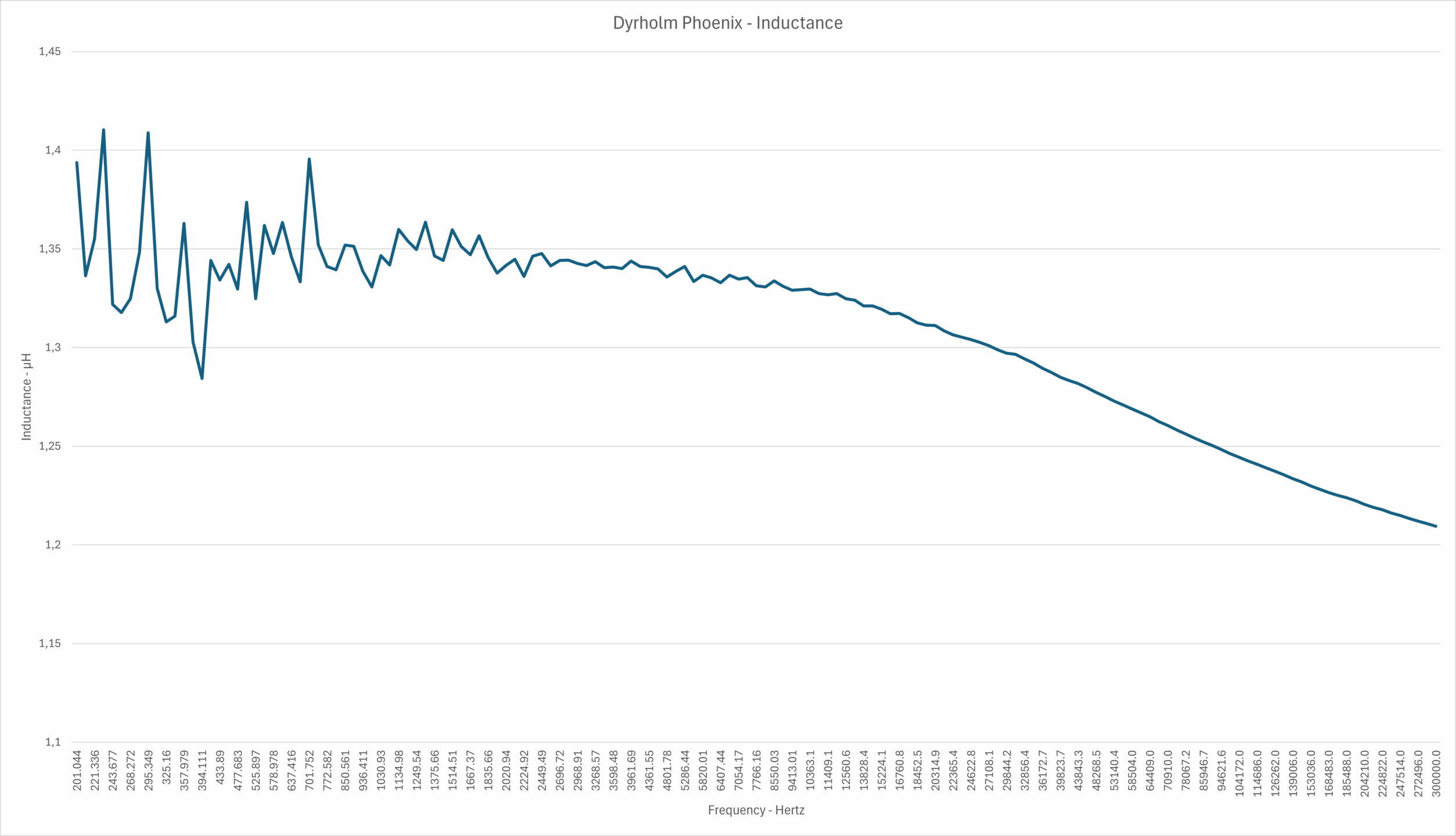

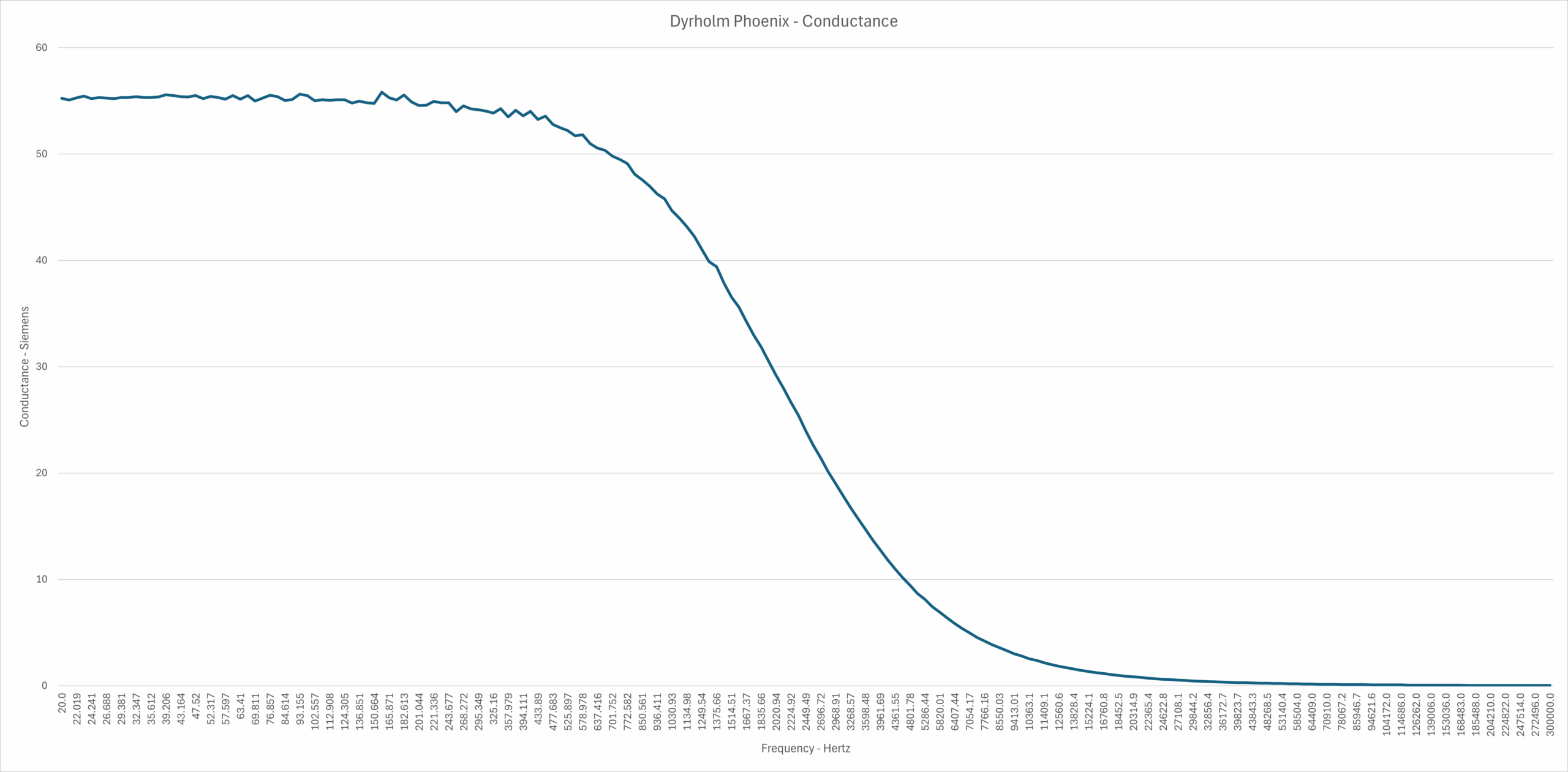

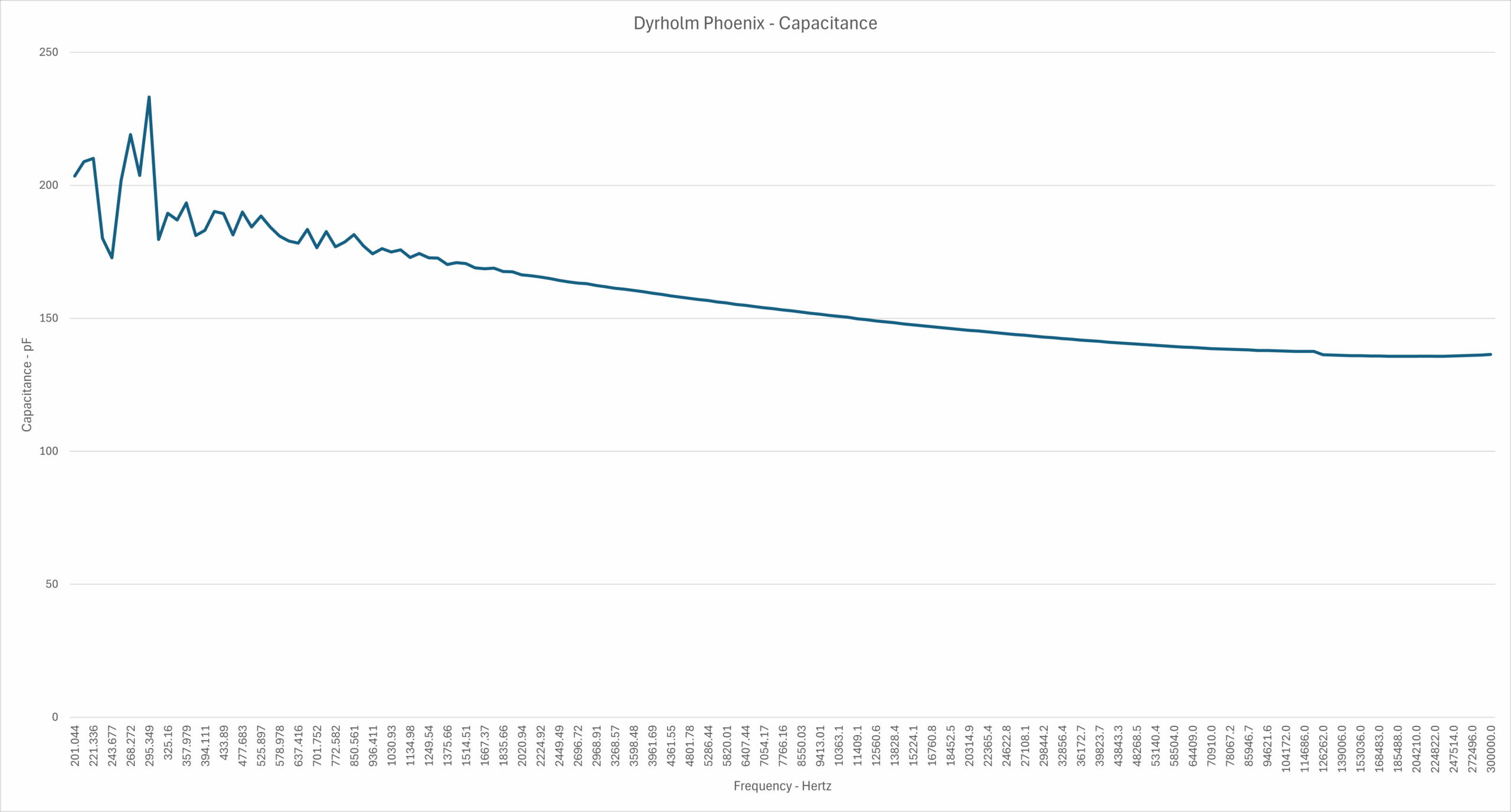

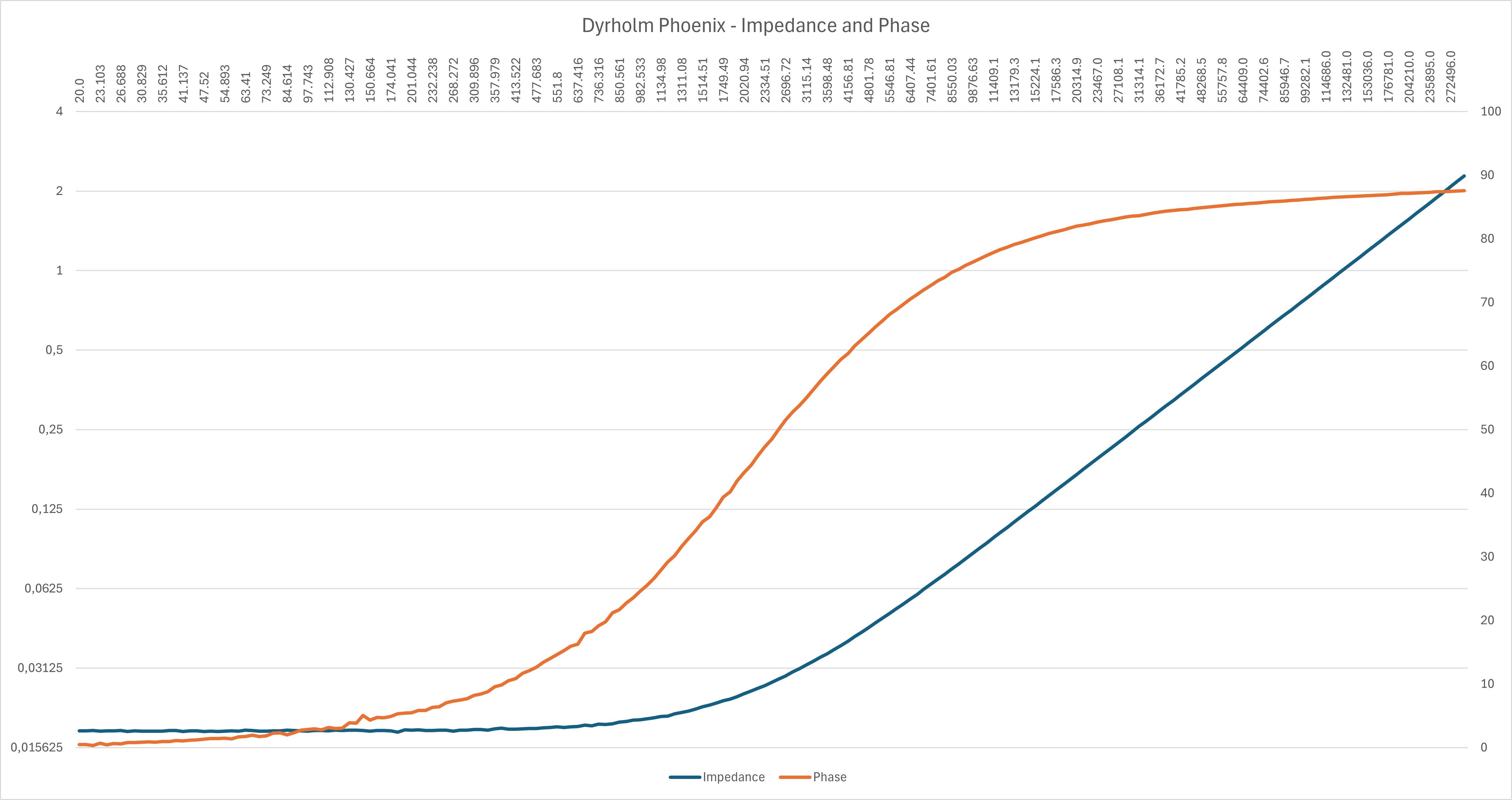

We see no weird scores in these measurements. The Dyrholm Phoenix is nicely balanced. Capacitance is fine under control with 150 pF on average. Conductance is decent at about 55 Siemens and inductance is fine with an average of 1.3 uH. This results in a neat impedance that is a minimum of 18 mOhm and a maximum of 2.2 ohms.
Measurements OePhi Reference
The OePhi is not a very “quiet” cable. We hear that, too. The advantage is that the character is energetic AND that it is a cable rich in detail, although we do not know if there is a real connection there. It did stand out during the listening test. The difference in detail between the Kimber and OePhi is huge. The Kimber shows less in the quieter parts.

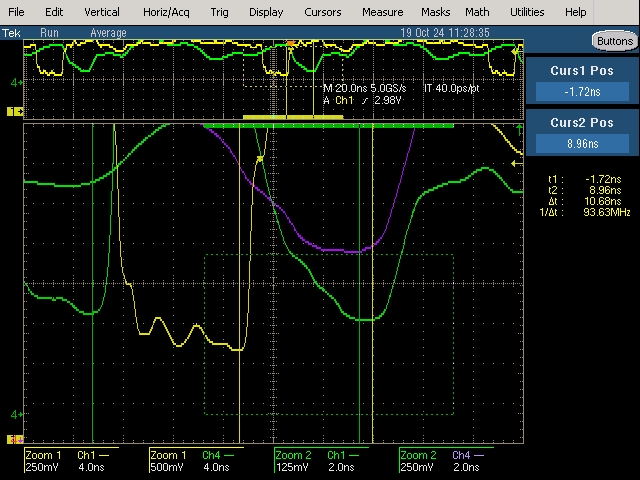

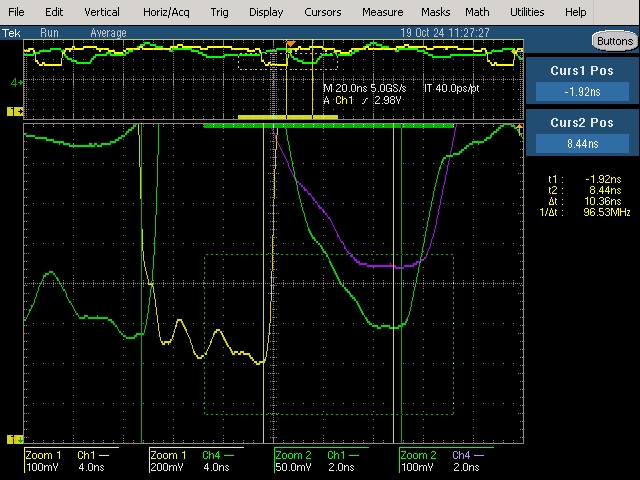

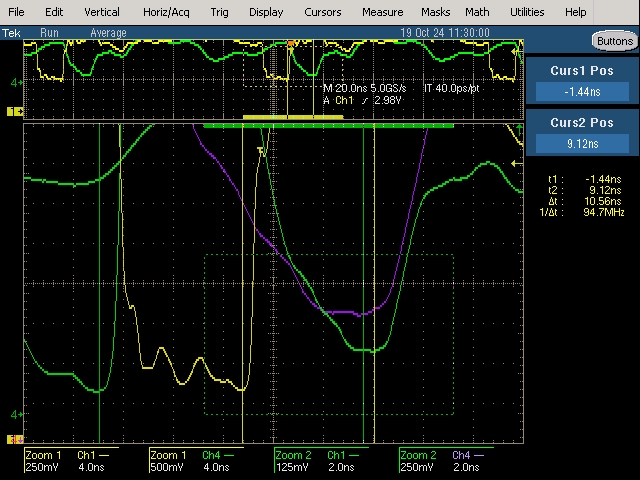

In terms of propagation variation, the OePhi scores well, which is not surprising given its insanely low capacitance. We see 10.36ns at 1V, 10.56 at 2V and 10.68 at 2.5V. Those are small steps. Between 1V and 2.5V, we see 330ps difference, which is negligible. Neatly done.

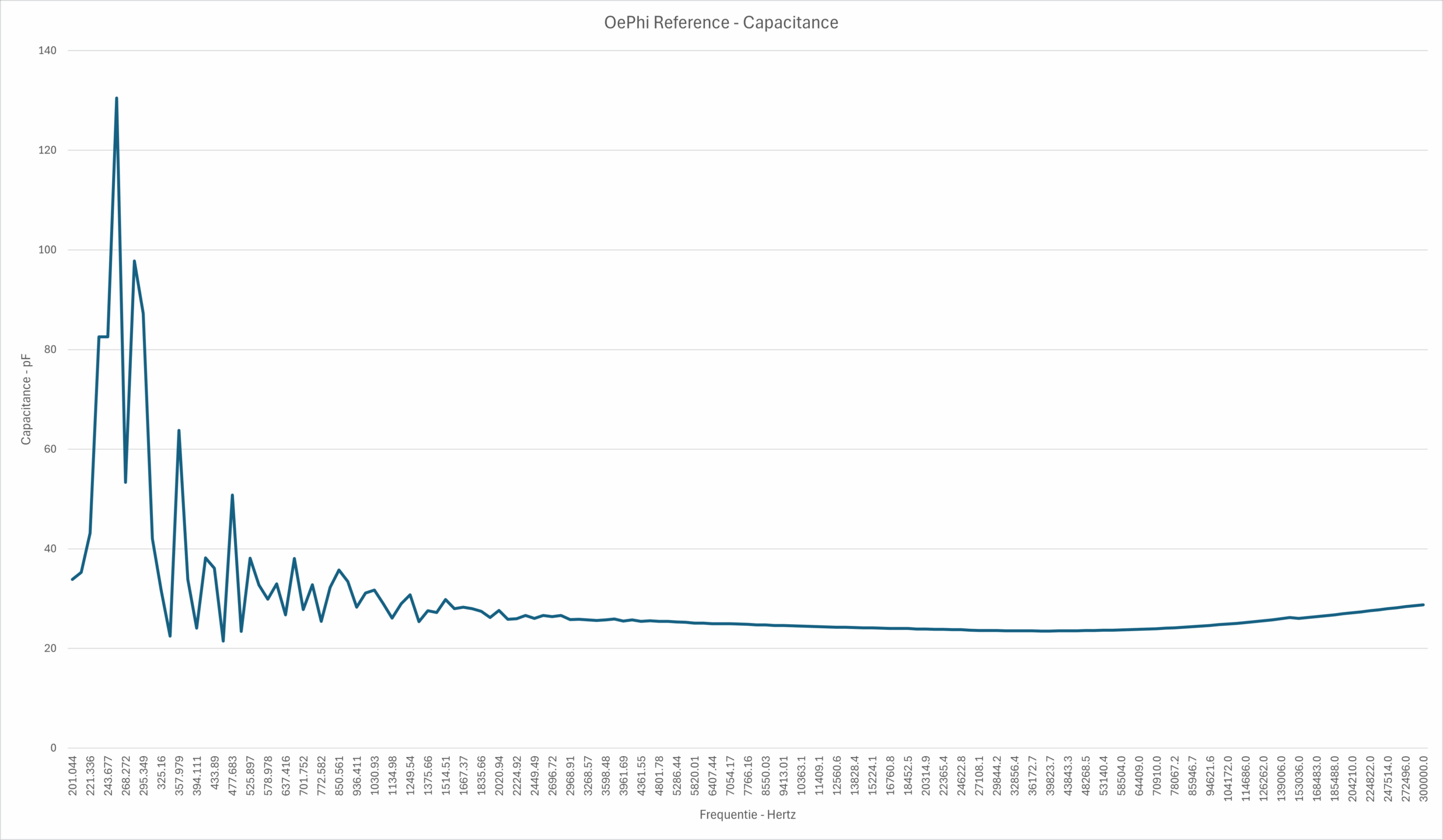

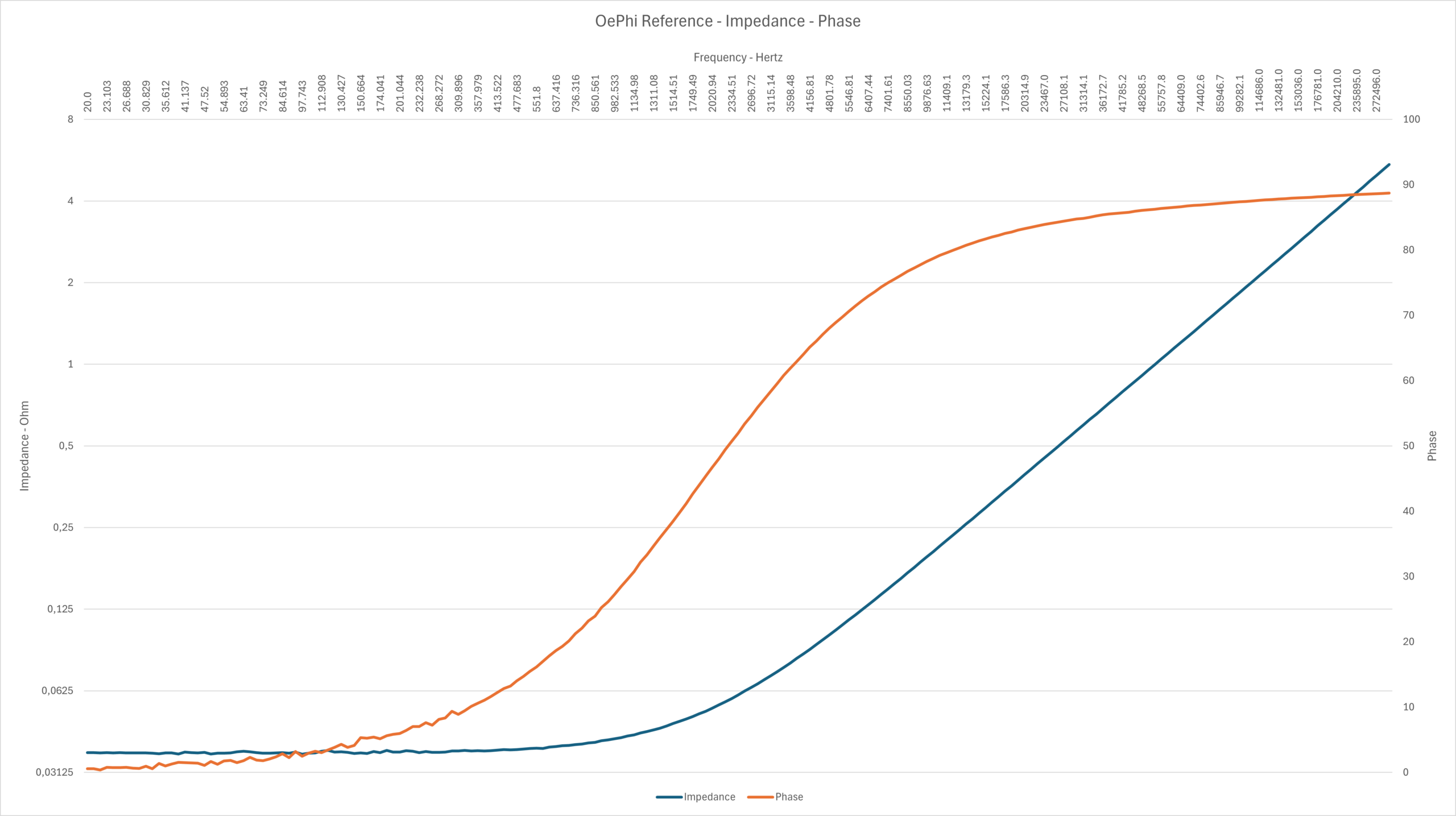

LCR measurements OePhi Reference

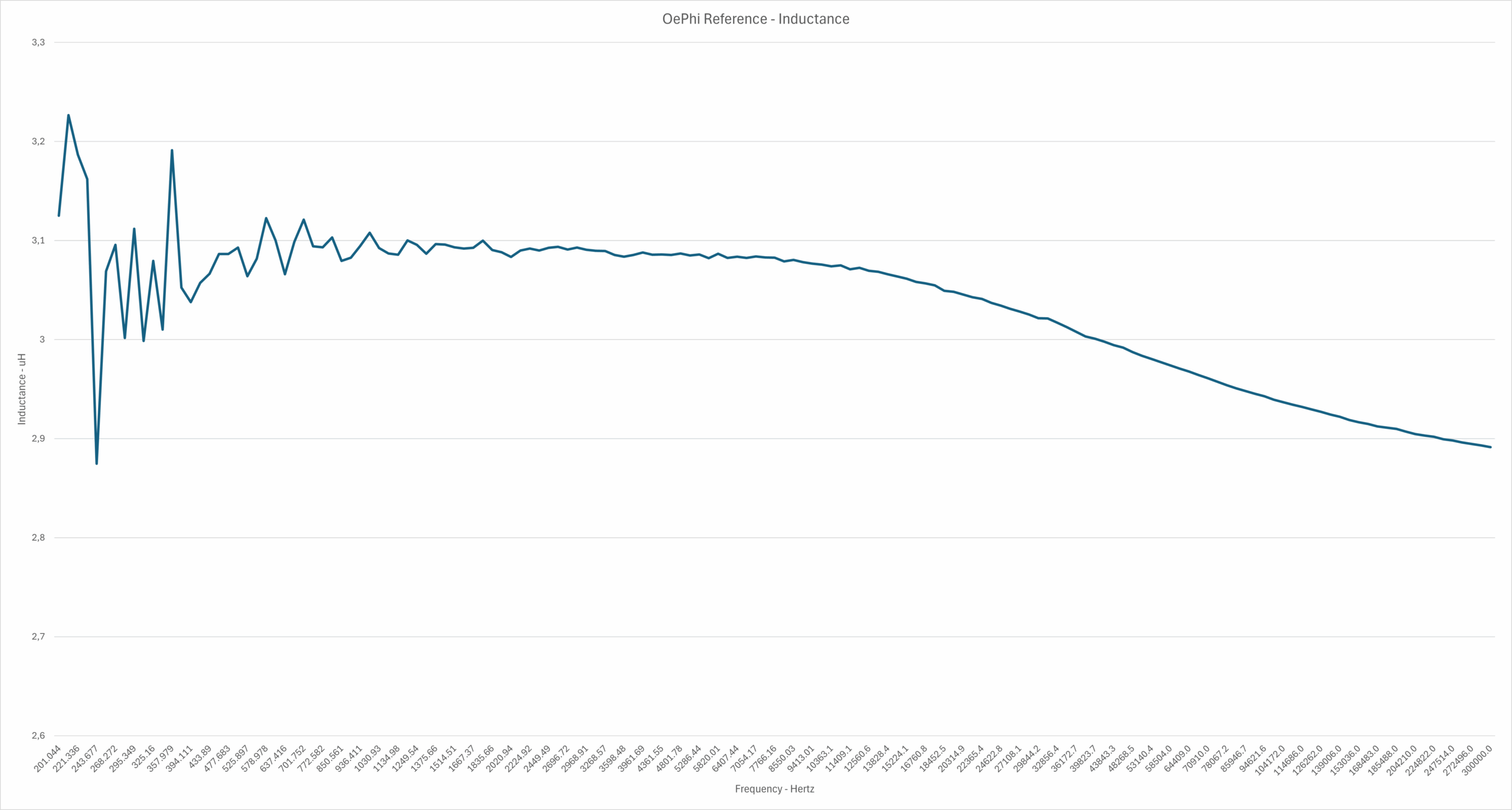

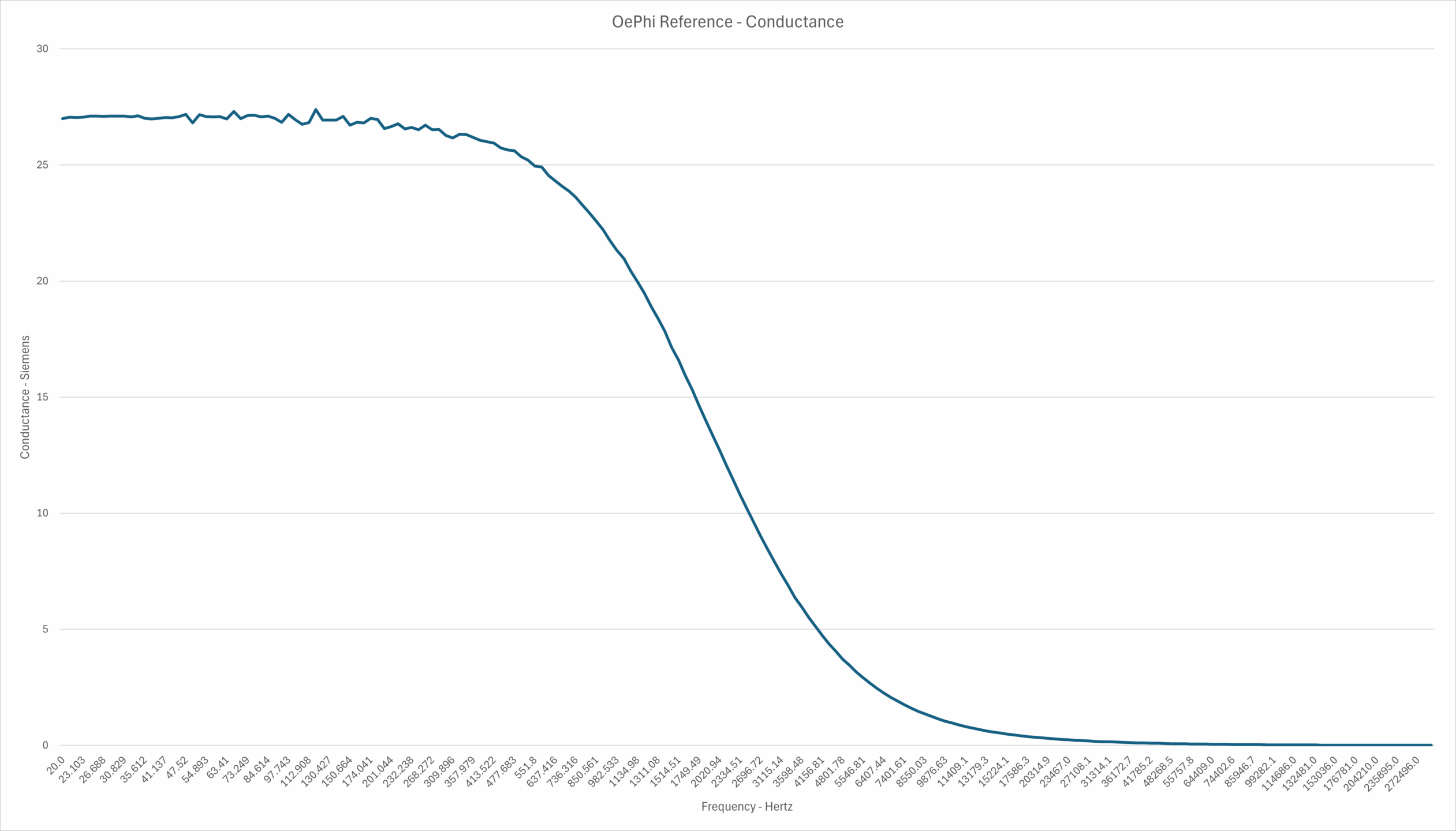

The OePhi is not a monster when it comes to conductivity. 27 Siemens is just not very much and that in turn manifests itself in a fairly high impedance. 37 mOhm and a maximum of even 5.45. This is due to the high inductance of 3 uH. Capacitance again is insanely low at 24pF. A bit of a wacky cable measurement-wise.
Measurements Kimber Kable Carbon 18XL

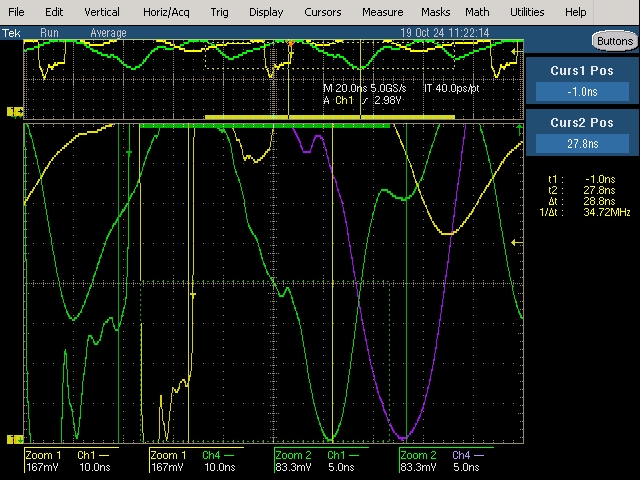

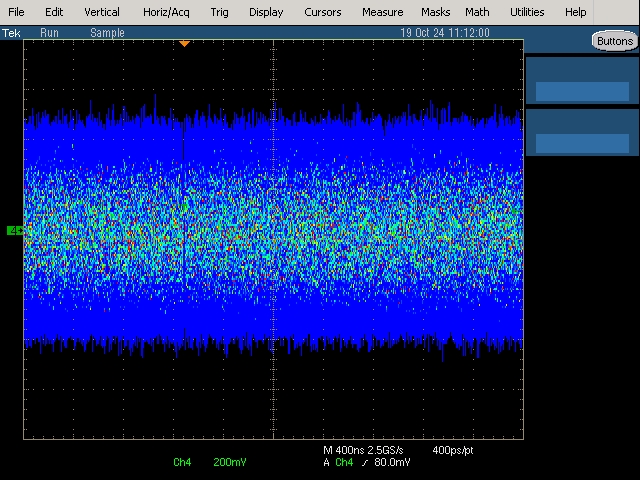

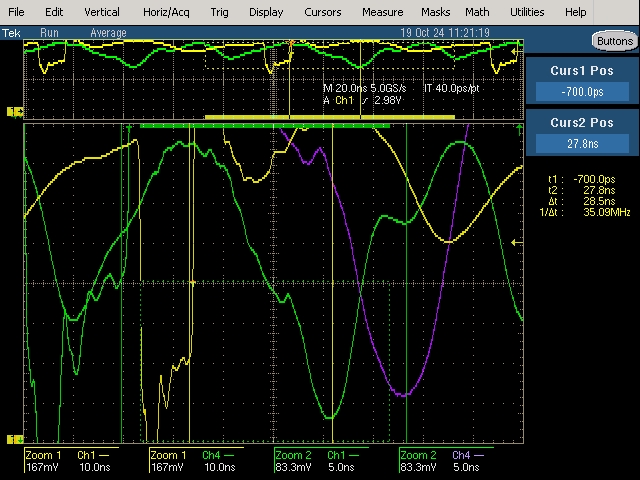

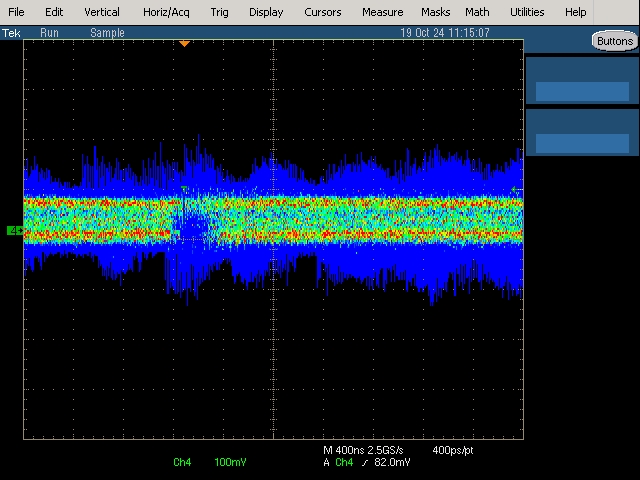

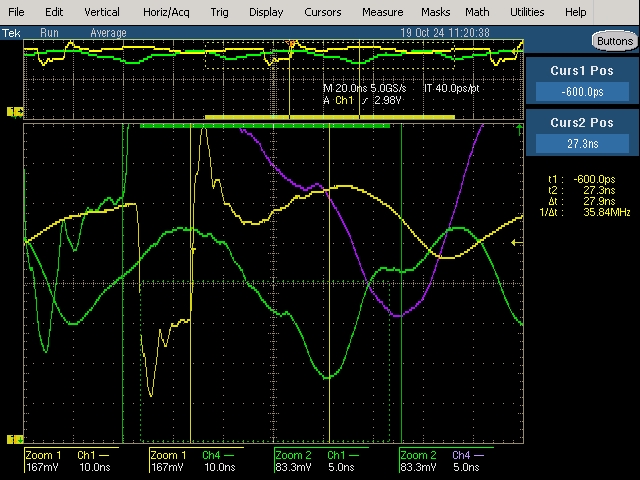

What becomes immediately apparent is how quiet this Kimber is. And that is actually true of all Kimbers. This is obviously due to the geometry of the cable. One disadvantage of this geometry is the very high capacitance (see below). High capacitance also leads to large propagation variation, as we now know from the large cable test. We see a step from 27.9ns at 1V (which is already on the slow side) to 28.8 ns at 2V and finally 28.5ns at 2.5V. That’s almost a 1ns variation between 1V and 2V. That is a lot…
LCR measurements Kimber Carbon 18XL

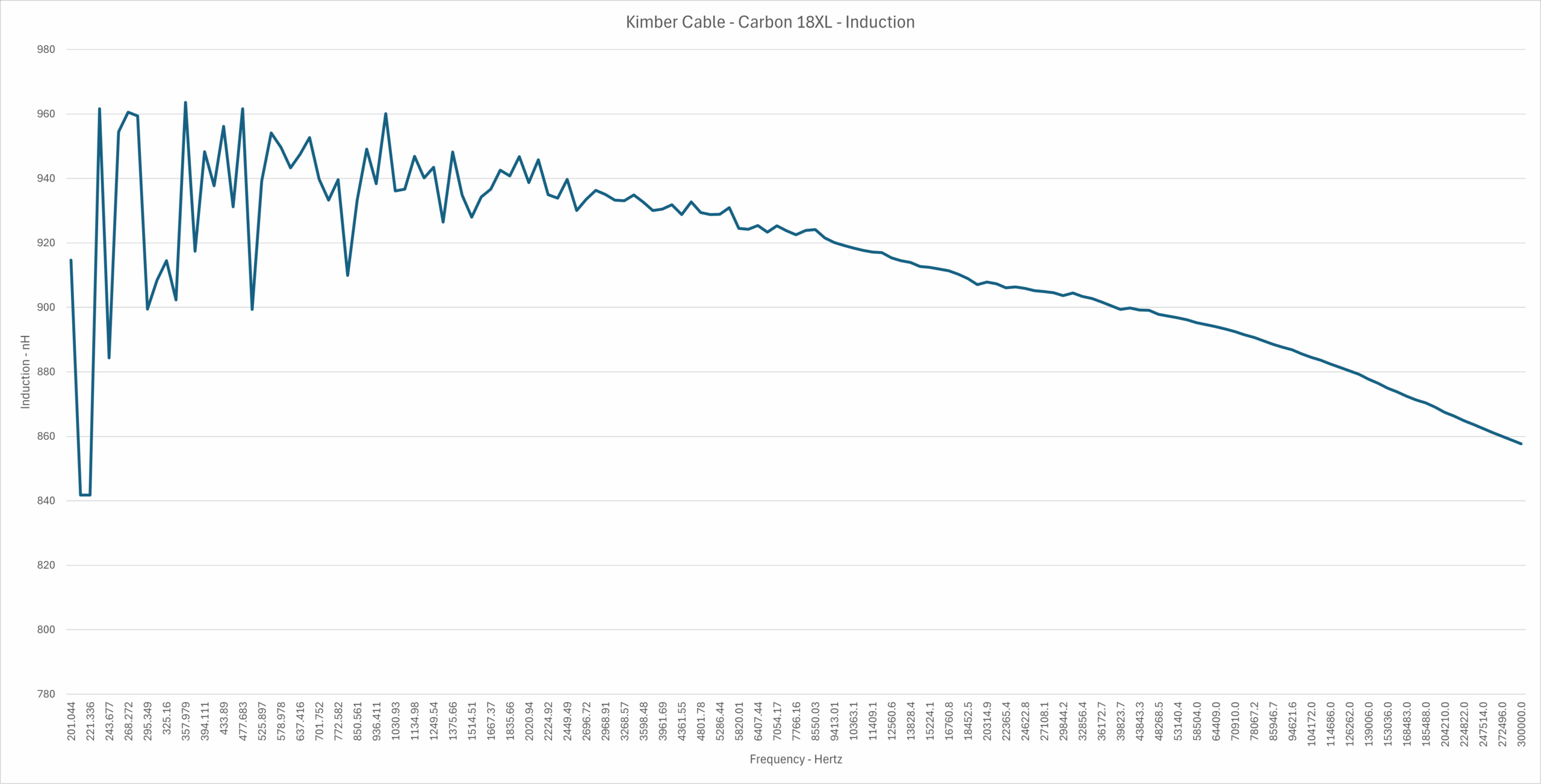

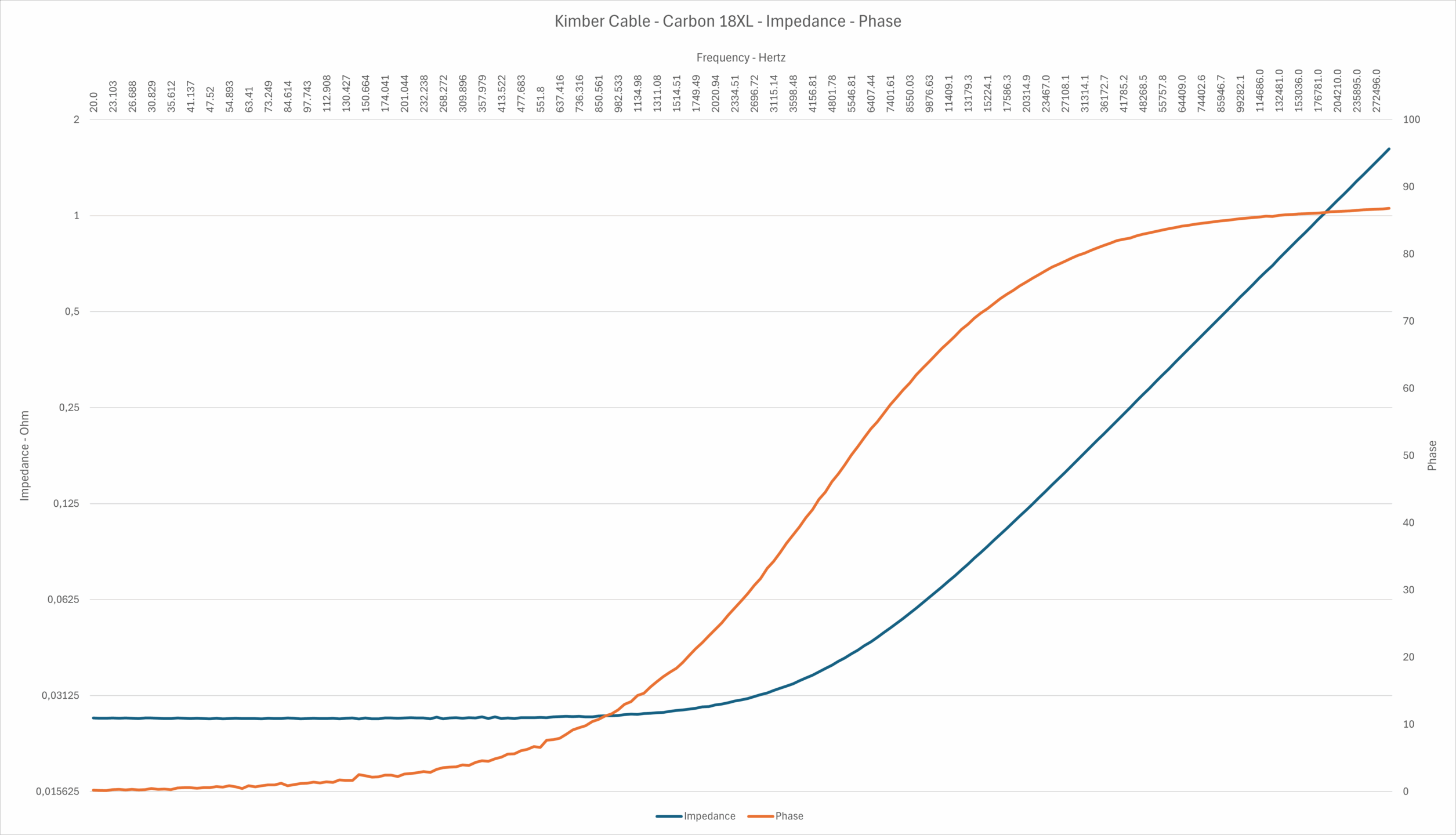

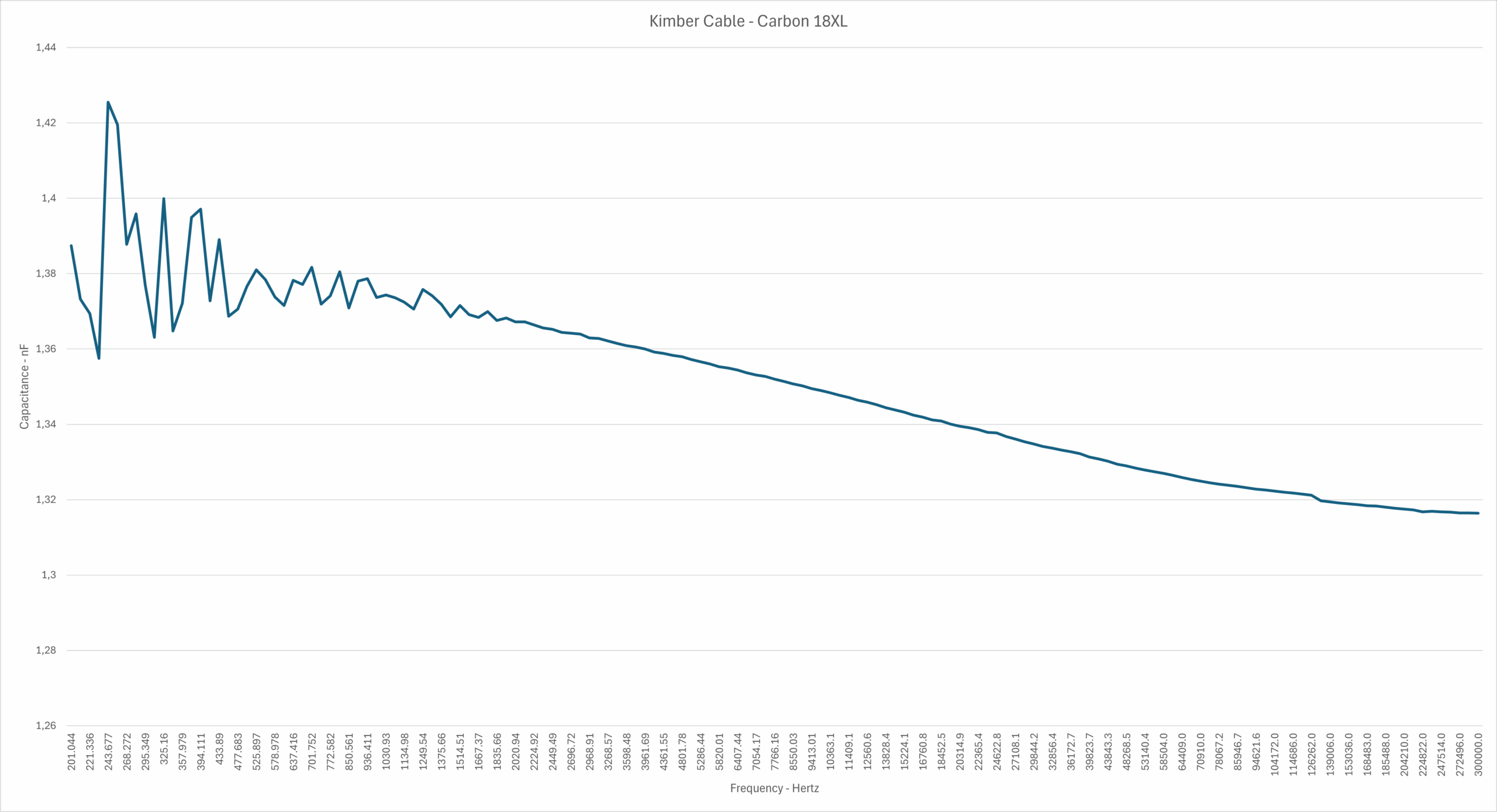

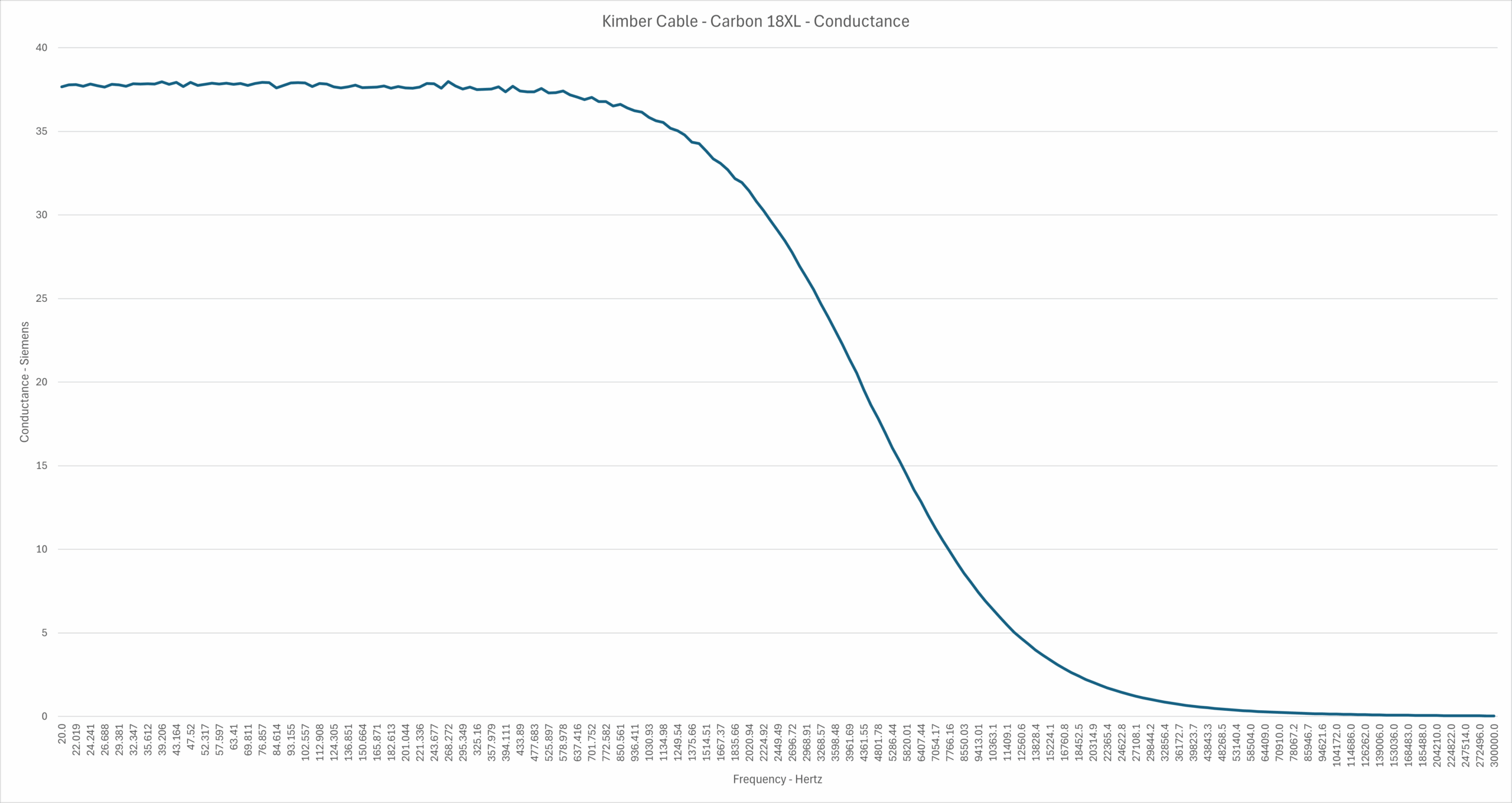

This Kimber is a bit of a mystery cable. Conduction (converted to 2.5M) is not super high at 45 Siemens. However, Kimber has managed to keep inductance very low, so this cable does not peak very high in terms of impedance, which is favorable for coloration. We see a minimum of 22 mOhm and a maximum of only 1.35 Ohms at 300 KHz. This makes the cable quite constant over a wide bandwith. Capacitance, however, is particularly high at (converted to 2.5 meters) 1411 pF.

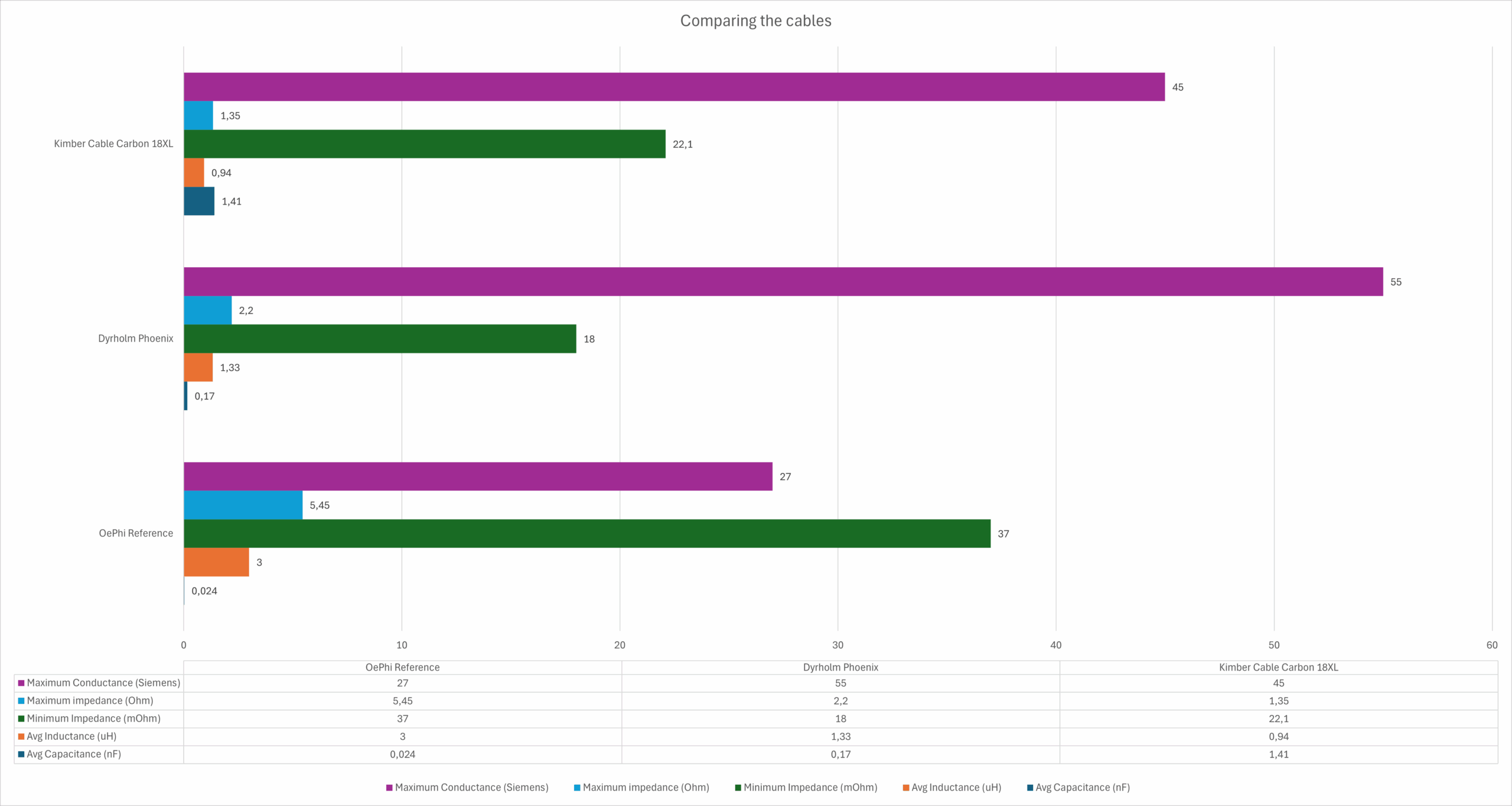

Comparison
We have made an overview of all cables for your convenience. In it we see – not entirely surprisingly – a clear relationship between conductance, inductance and impedance. Interestingly, the Kimber has a lower maximum impedance than the Dyrholm, while the Dyrholm has a higher conductance. However, the inductance of the Kimber is much lower, thus resulting in a lower maximum impedance (at higher frequencies). The OePhi confirms this picture with a very high maximum impedance and thus also a high inductance. So the high bandwith OePhi claims is not entirely true.
On average – we think – the Dyrholm has found the best balance when it comes to capacitance, inductance and impedance. We estimate that if Dyrholm did not use Rhodium plugs, this cable would sound even better than it does now.
Measurement on speaker

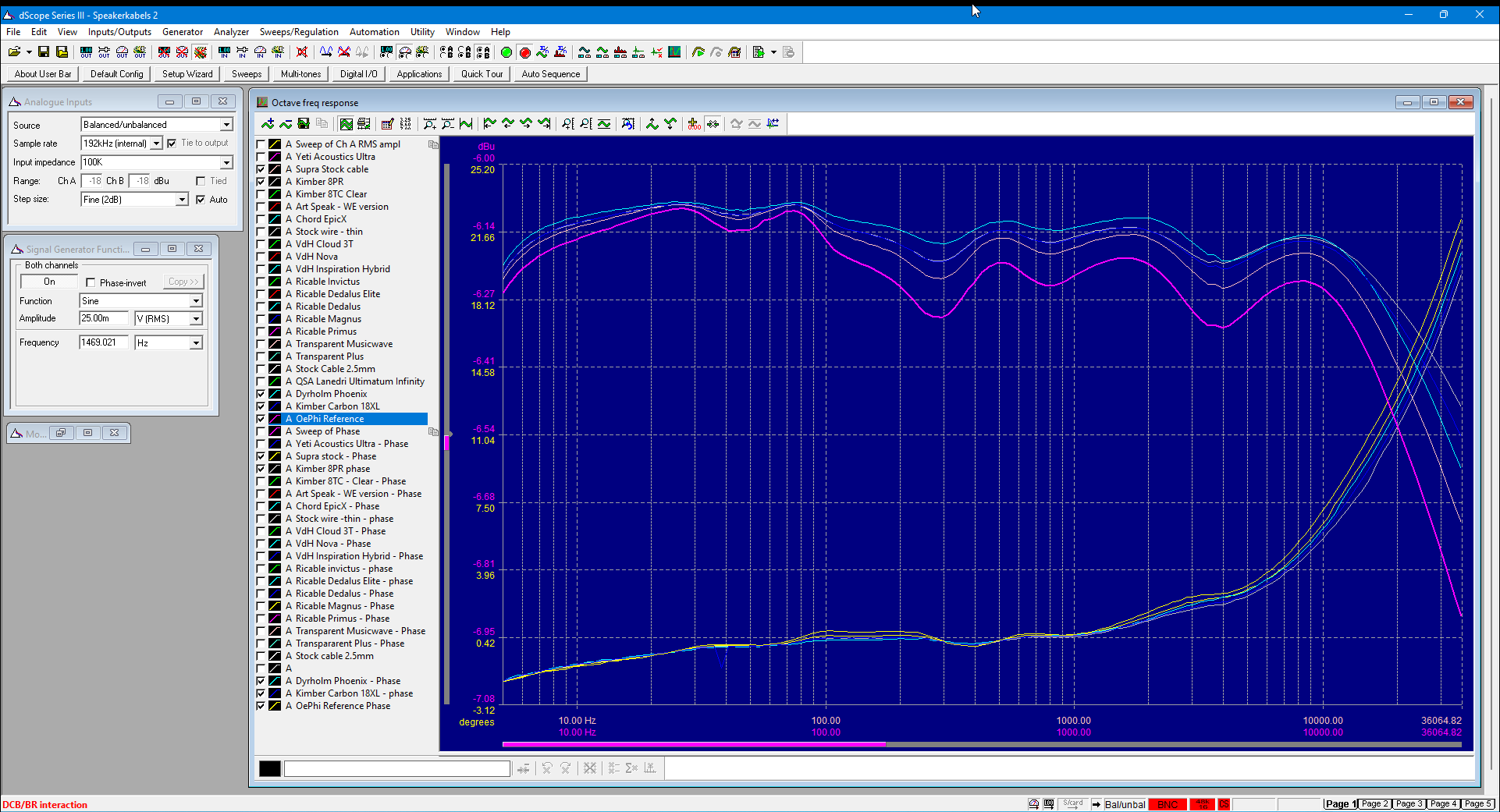

It is very nice to see the warmth of the OePhi reflected in this measurement. However subtle the differences are in reality (we are talking about tenths of dBs). The Dyrholm measures the tightest up to just over 10 KHz. After that the Kimber passes it, which is true if we look at the impedance (and also sound for that matter: the Kimber sounds undoubtedly fresher and more open than the Dyrholm). What is striking, however, is that a Supra entry-level cable simply comes out better than the OePhi in this measurement…. We are talking purely about frequency response of course. In terms of timing and propagation variation, the OePhi goes a lot further.
