We’re writing a lot about it at the moment: jitter. But yes: anyone getting into digital audio cannot avoid jitter. We were curious this time about how much influence a source has when connected to the d/a converter via spdif. We grabbed the Sonnet Pasithea and a few sources and locked ourselves in the lab for a few days.

Yes, we know: digital is digital…. ones and zeros… As long as those get through the cable, there’s nothing wrong. Right?

In a sense, that’s true, of course. With computers, the ones and zeros just have to get from A to B. If that works, it’s fine. A file can be copied from one disk to another just fine without any loss. With a network, ditto: as long as the data packets arrive, nothing is wrong. Fortunately: otherwise the Internet would be constantly broken.

Timing

With audio it is slightly different. It’s not just about the ones and zeros. It is – above all? – timing. A clock controlling the dac determines when those ones and zeros are converted to a certain voltage. A dac does that 44,100 times per second at CD quality. Or 96000 times per second with 24 bit / 96 KHz high-res audio material.

Now, no clock is perfect. Every clock ‘jitters’ a bit and every clock suffers from (a bit of)  ‘phase noise’. Phase noise is measured in the frequency spectrum. Jitter we measure in the time domain. These are two ways of looking at clock anomalies. We explained this in a bit more detail in this article on the influence of network cables.

Spdif – the source is leading

In most audio systems we are talking about digital sources. The serious enthusiast will have a separate d/a converter in the hifi rack. Or may have an amplifier with a serious d/a converter and thus digital inputs.

Here’s the thing: with spdif, the source is leading and therefore handles the clock. With USB and I2S, the d/a converter is leading. But since the bulk of users will use a coaxial, optical or perhaps BNC or AES input, we are talking about spdif. And in that case, the source is leading: it provides the clock signal.

We were curious how much impact that has on the clock and jitter in the d/a converter. We are now in 2024 and with the robust spdif receivers and reclocking, that should have no impact at all, right?

Spoiler: it still matters! Quite a lot, in fact!

The test setup

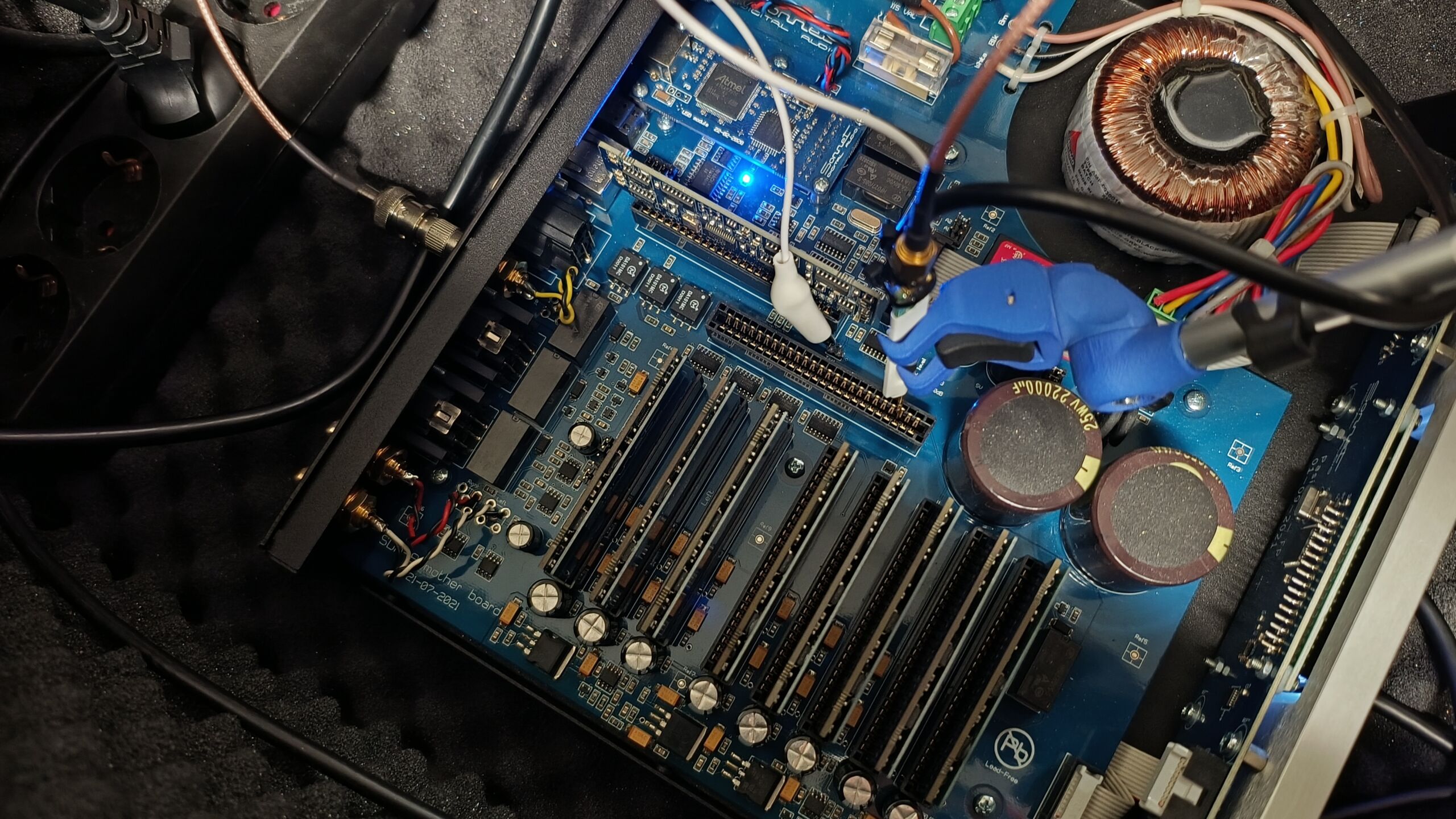

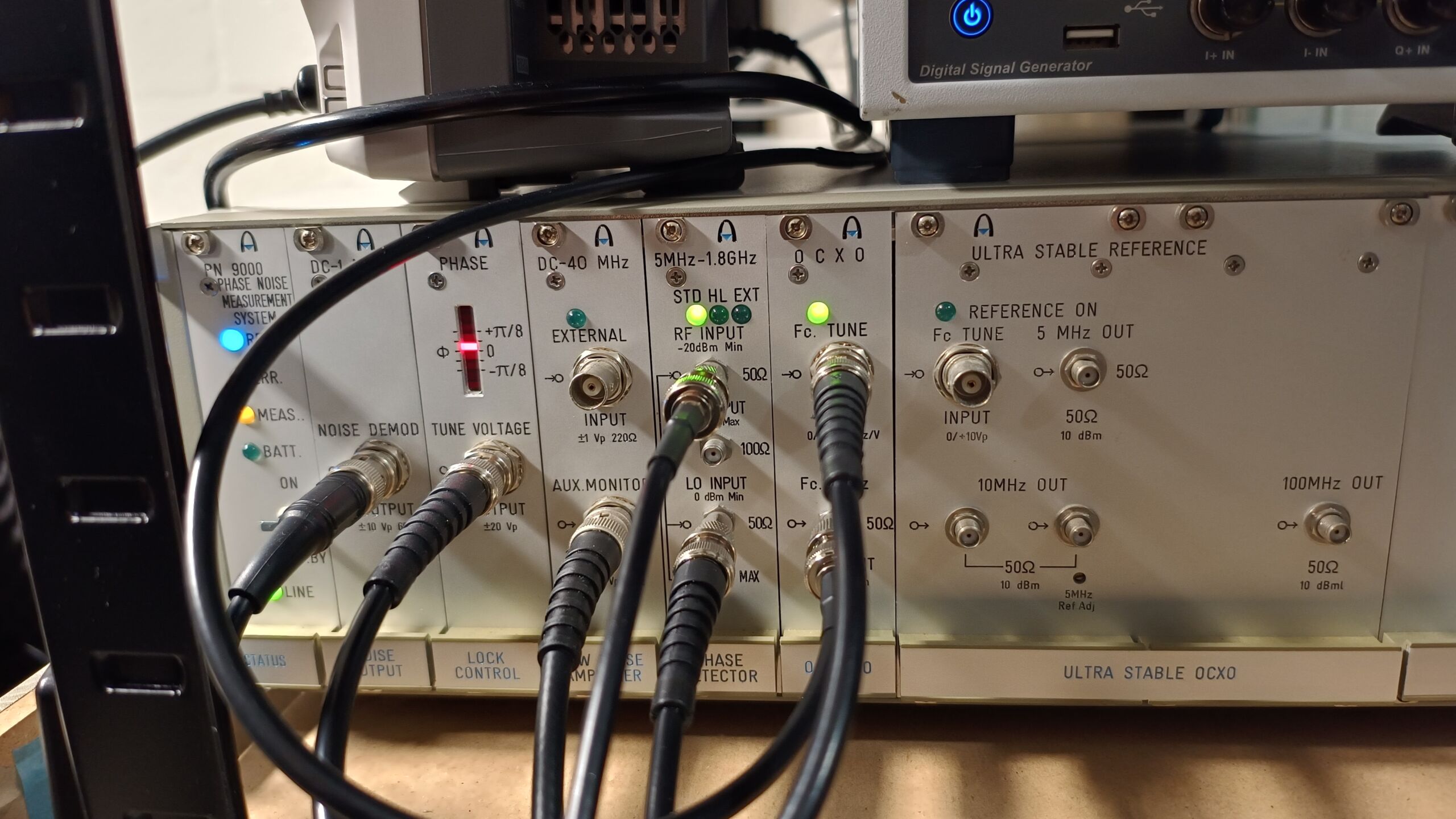

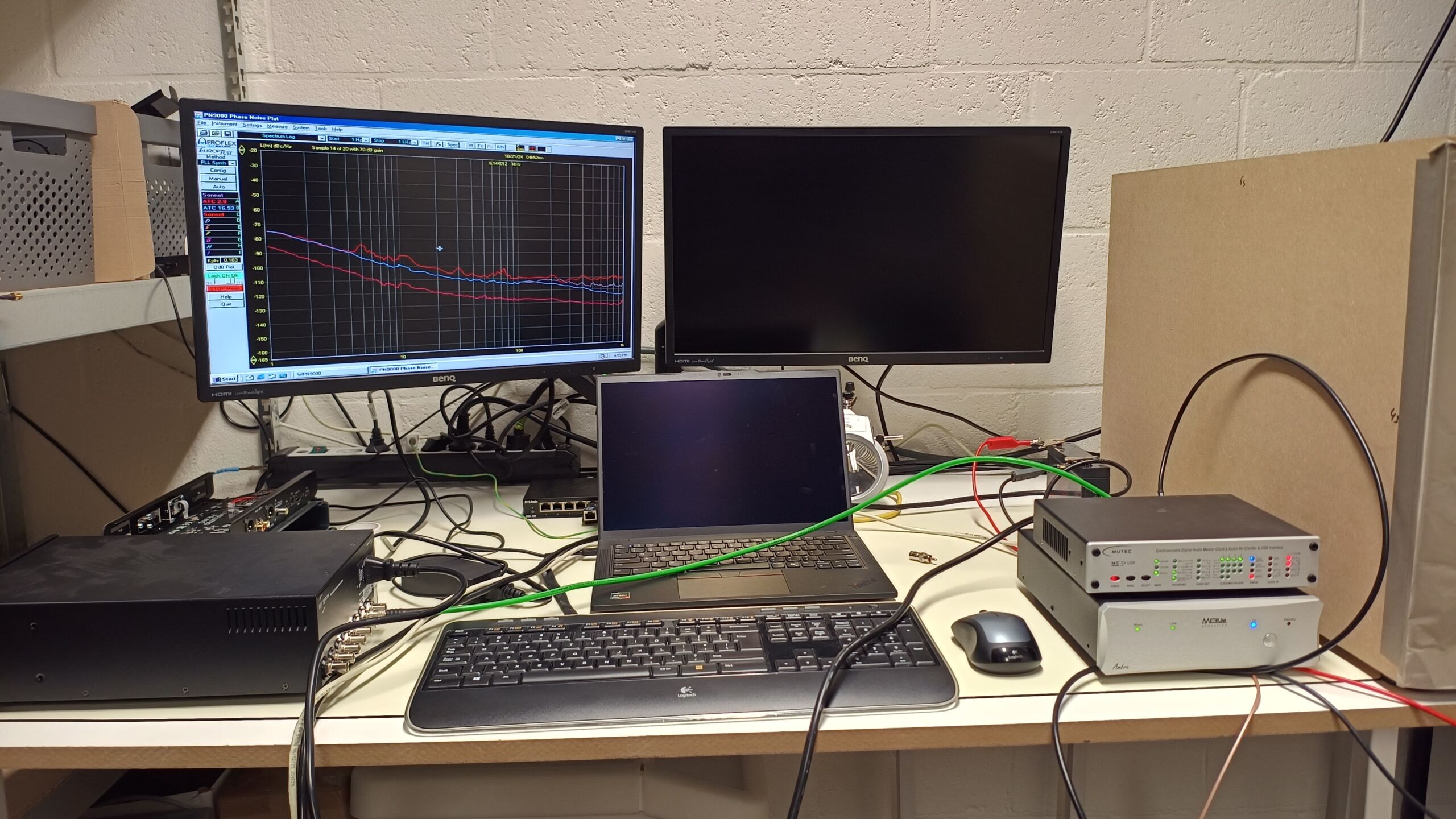

We put the Sonnet Pasithea in our measurement box for this test. The Sonnet uses a modern spdif receiver from AKM. To measure the clock signal, we put an active probe at a measurement point in front of the clock. This clock controls the dac modules and is thus directly responsible for the reproduction of the music. The output of the probe goes to the Aeroflex PN9000.

As a reference, we use an Aeroflex SGD3 generator. This uses the PN9000’s clean 10MHz crystal as a reference (bottom left OK butting is green, meaning a REF clock is locked). This really makes a huge difference in performance we have noticed.

As sources we have a Volumio Rivo and a Metrum Acoustics Ambre. The Ambre has two nice Tentlabs clocks internally. We’ll see the benefits of these later. We also grabbed a Mutec MC3+ and a Mutec REF10-120 for this little investigation. We measure the Ambre standalone as well as through the Mutec MC3+ with and without the REF clock.

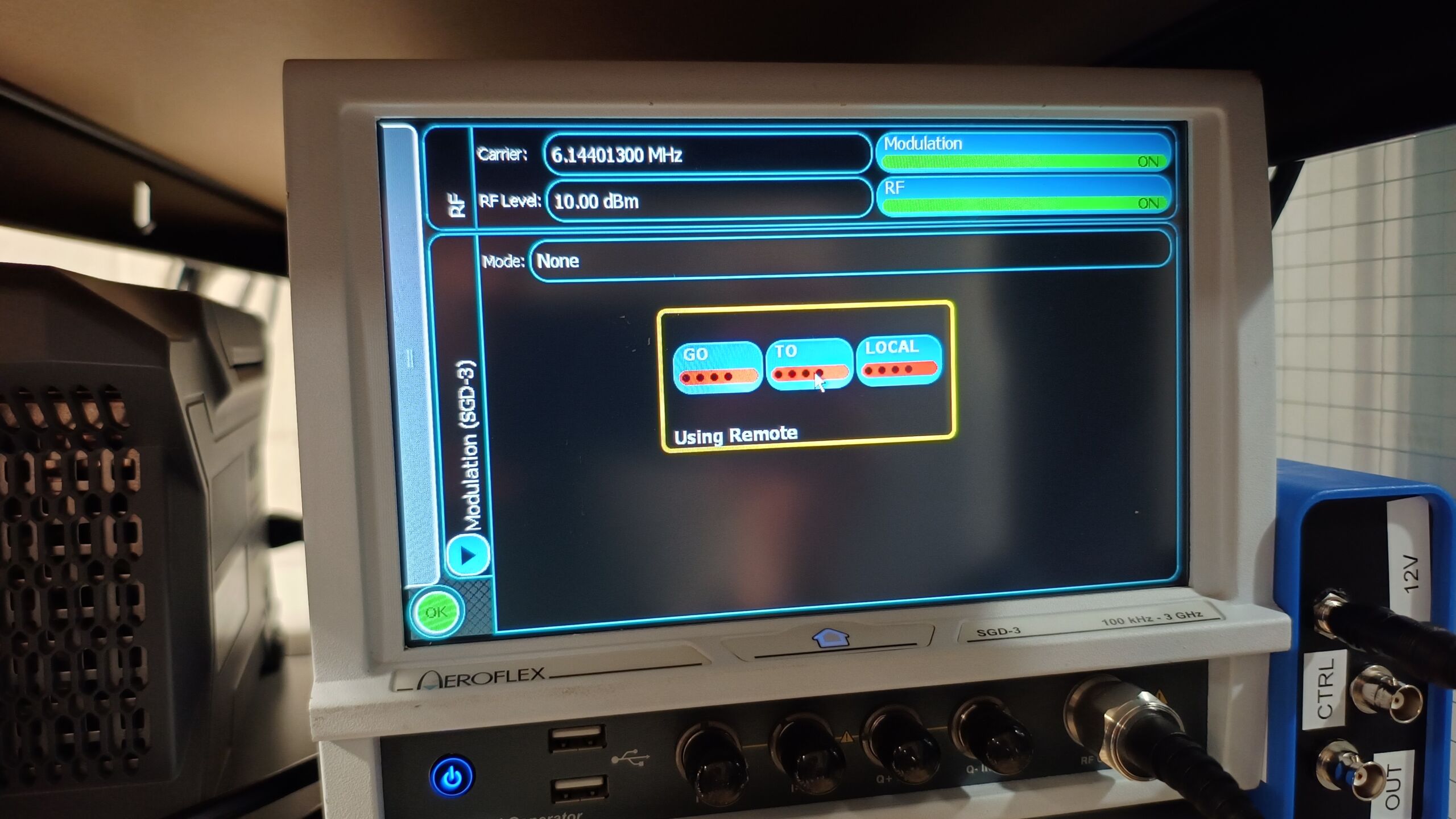

We have to play music to activate the Pasithea’s “dac clock. For this test we grabbed a high-res track: 24 bit / 96 KHz. That results in a dac clock of 6.14 MHz, as shown in the picture of the Aeroflex SGD-3.

Phase noise

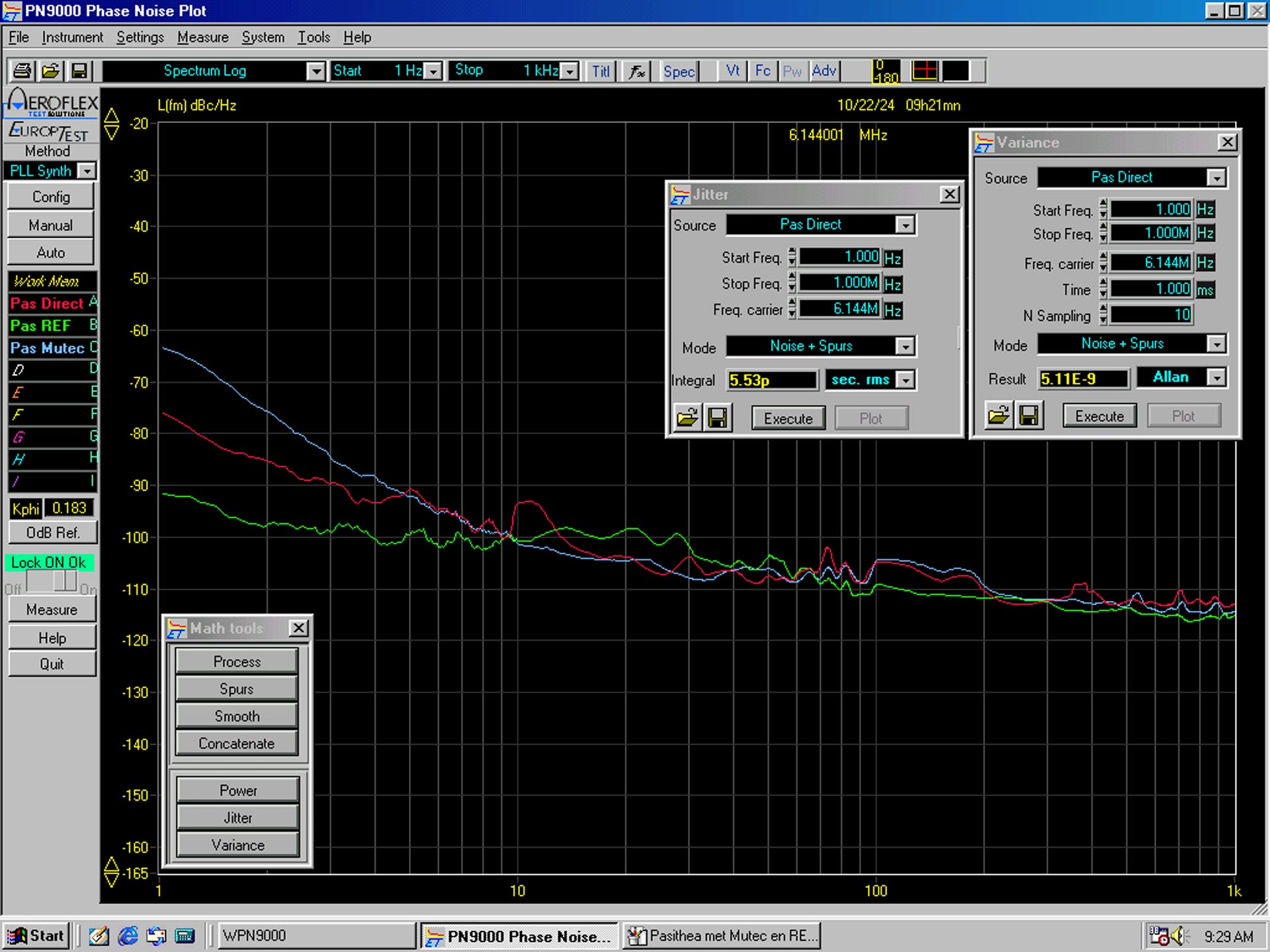

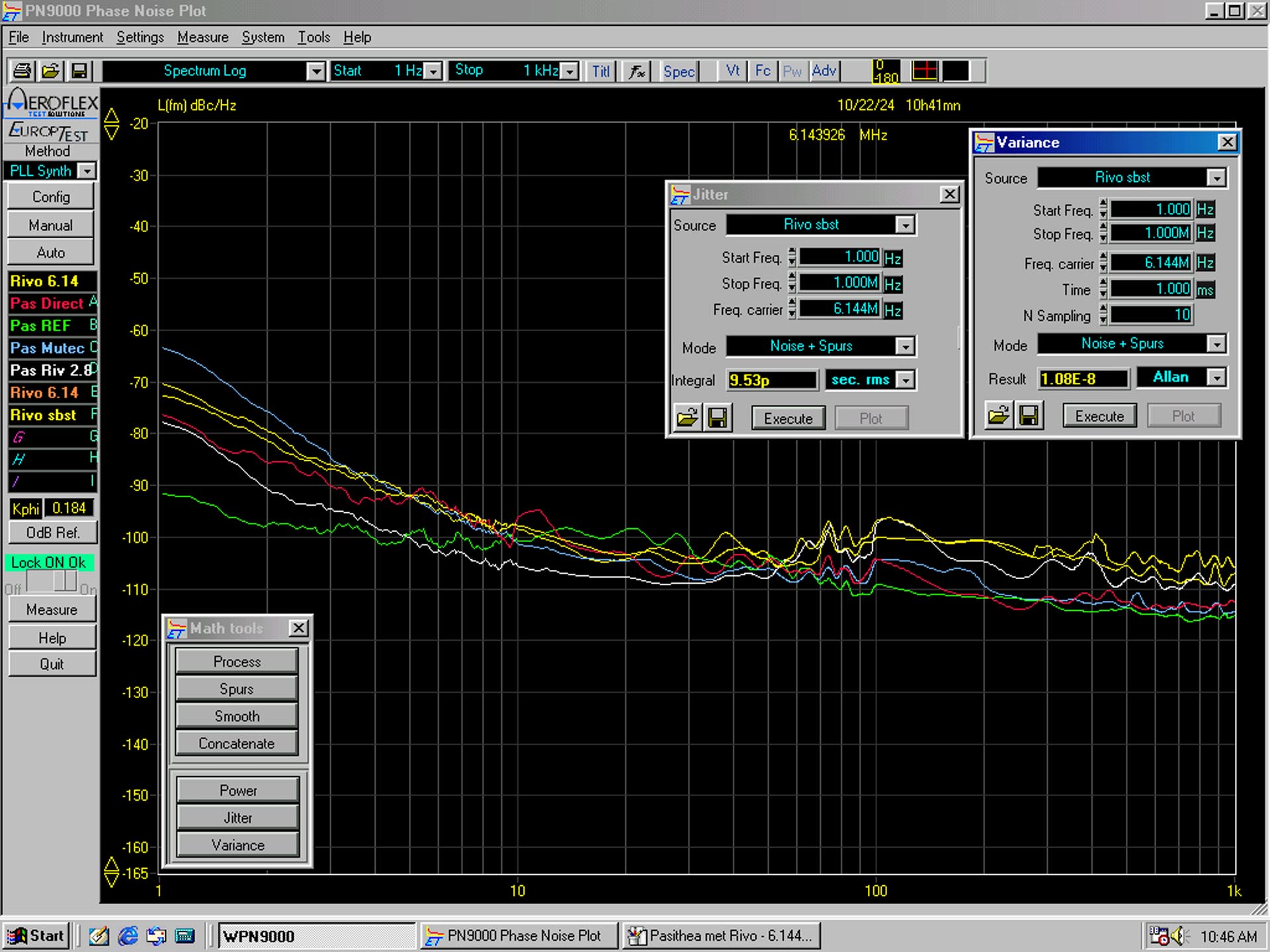

We were a bit shocked when we saw these results. What a difference! Especially close to the carrier – the main frequency of 6,144 MHz – we see significant differences. Because we could hardly believe it, we measured several times.

A REF-Clock helps

Interestingly, the Ambre without a Mutec MC3+ performs better close to the carrier. The Tentlabs clocks perform better there than the Mutec MC3 (without a REF-clock). This manifests itself immediately in less jitter. However further on, the Ambre with MC3+ does dip below the Ambre without reclocker.

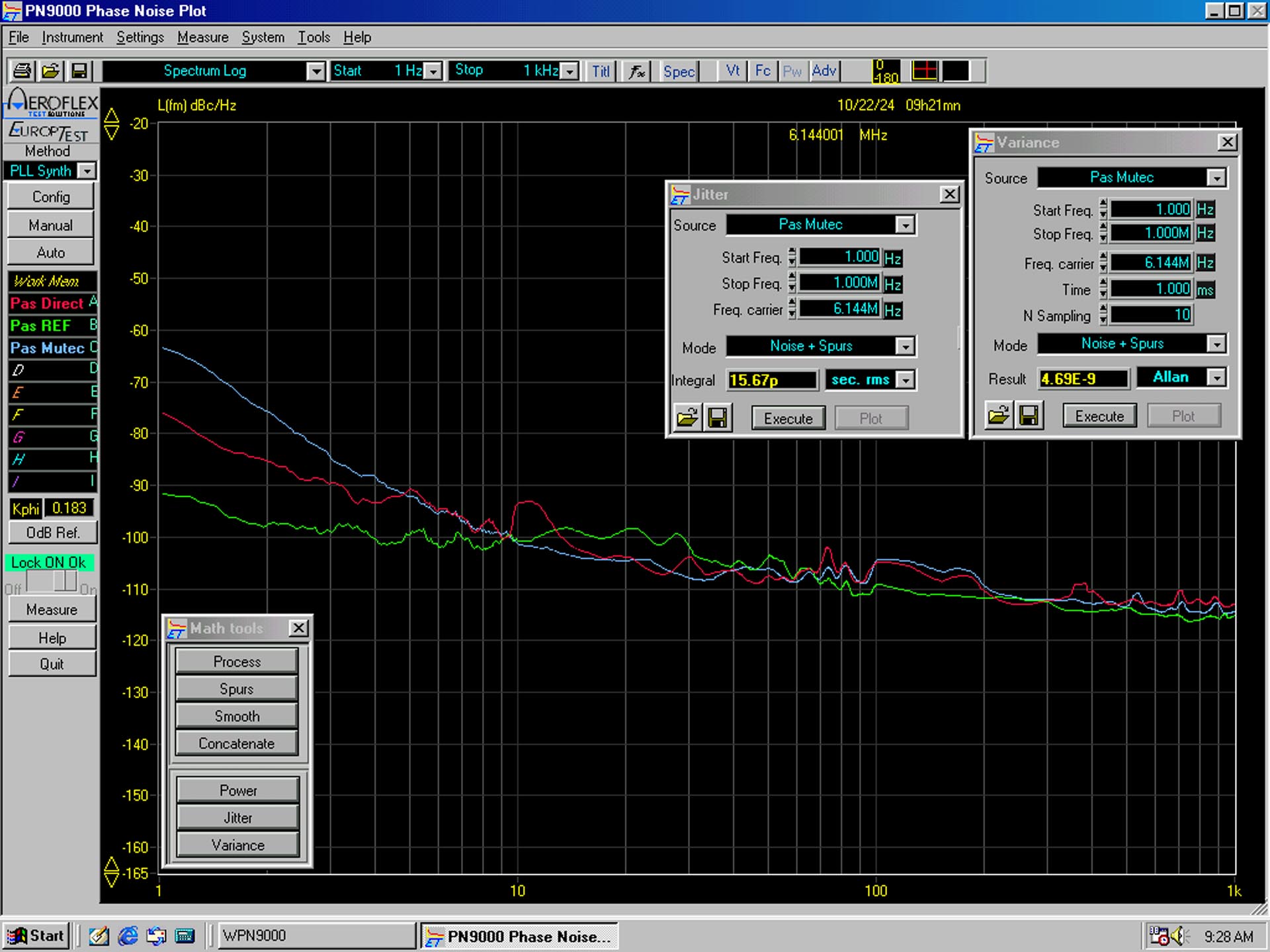

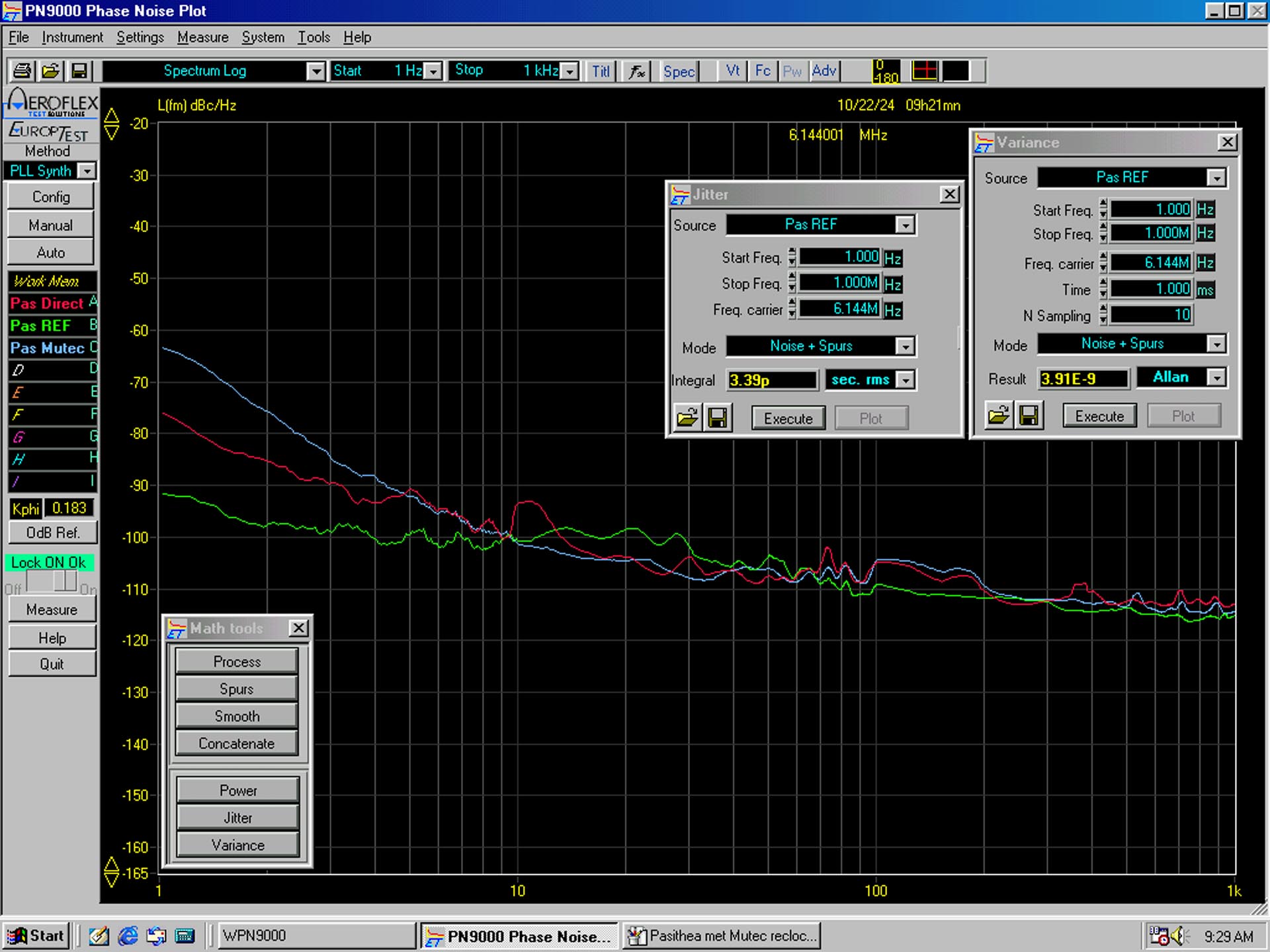

If we connect the REF10-120 to the Mutec MC3 it is a totally different story. What a huge difference: the phase noise plunges from about -75dBc/Hz (Ambre without Mutec MC3 ) to -92 dBc/Hz. The difference between the MC3 with and without a REF10-120 is even almost 30 dBc/Hz. In short: an external REF helps tremendously.

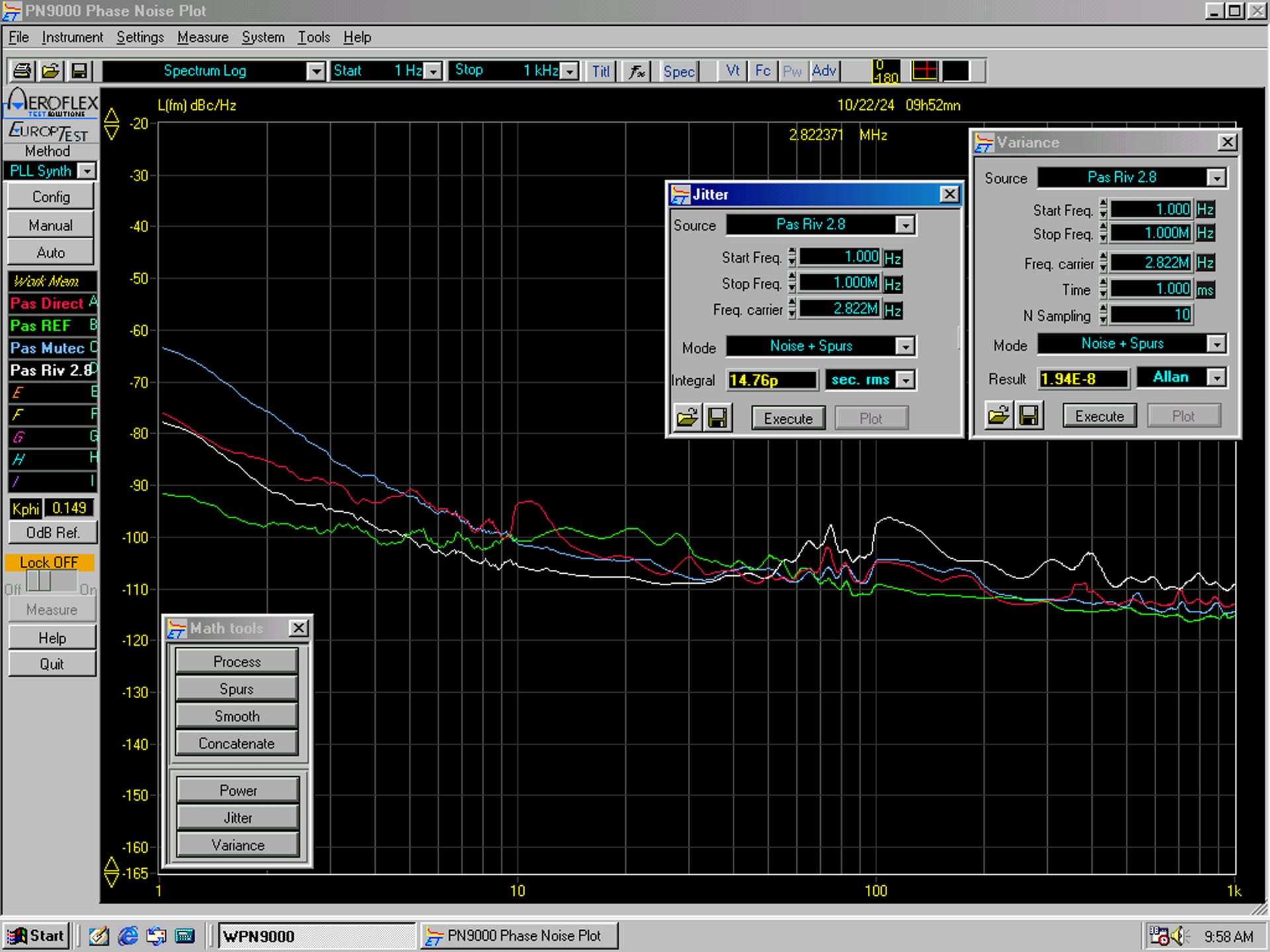

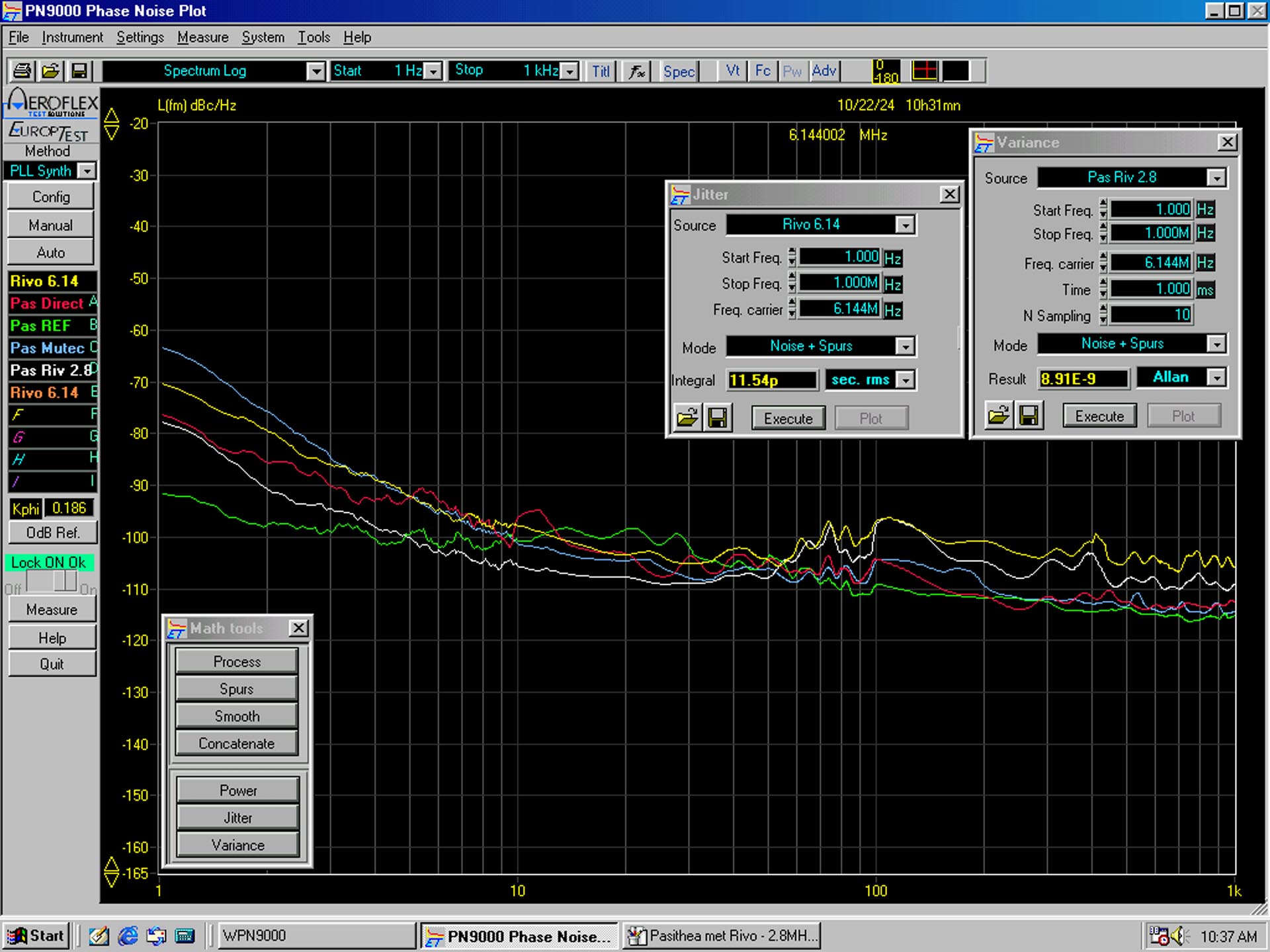

For comparison, we took another decent Volumio Rivo streaming bridge and connected it to the Sonnet Pasithea. We see that this one slightly increases the Allan Variance. An Sbooster power supply helps with jitter though. That drops by 2ps. An obvious difference. And audible as well.

Bonus

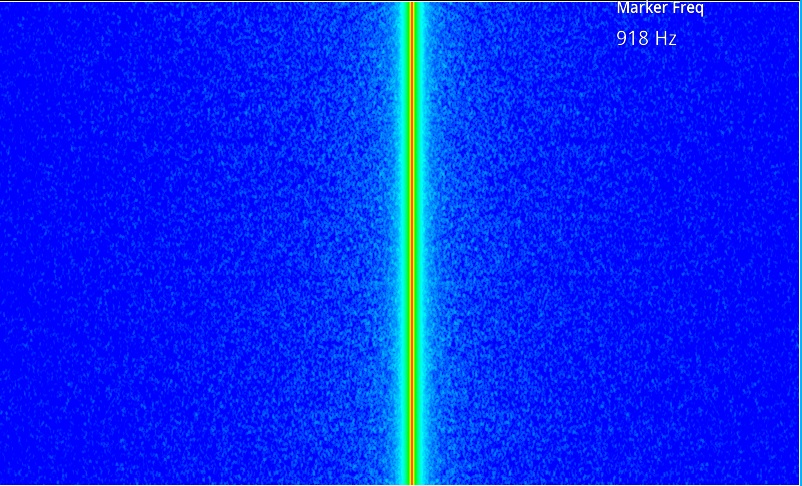

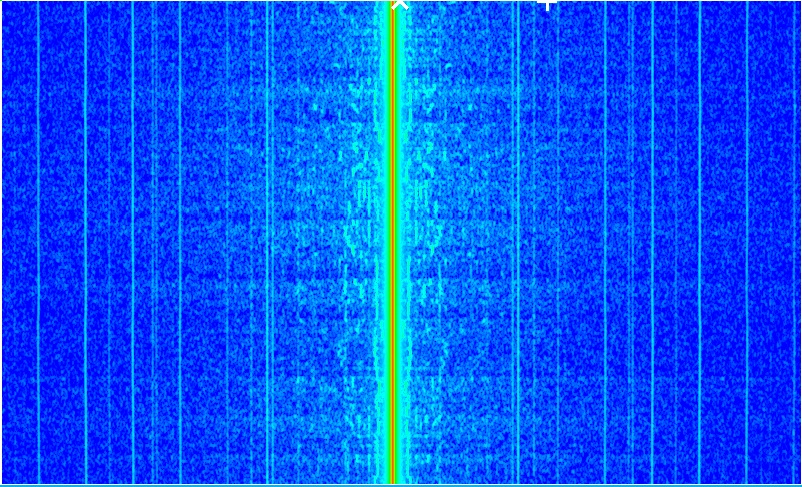

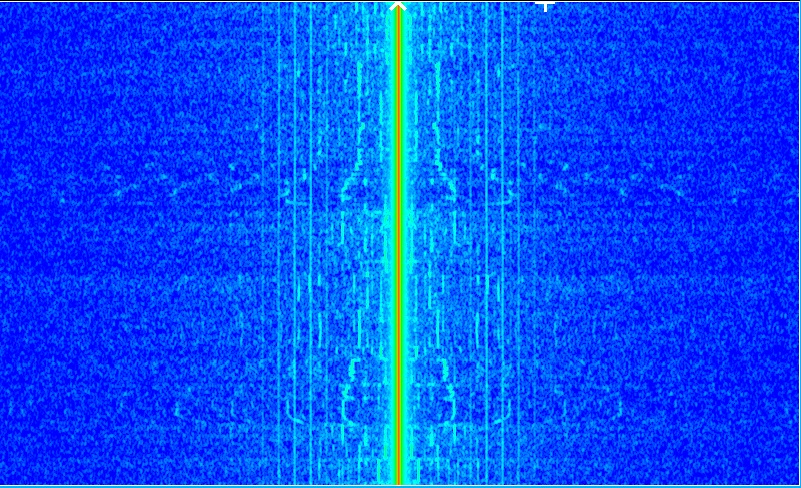

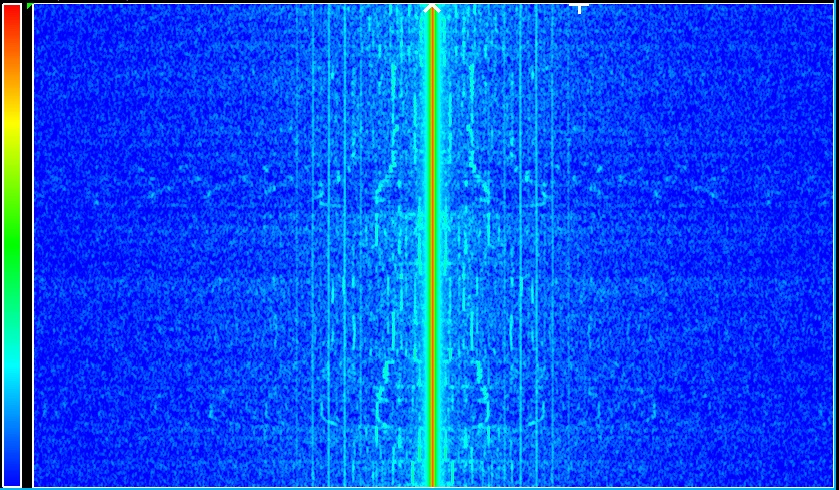

We got some more measurements from Cees Ruijtenberg who managed to visualise something interesting with an FFT measurement. What you see from left to right is music modulation on the clock signal. This also manifests itself in jitter. And this jitter / modulation must be coming from the spdif receiver, because it is completely gone if we use the I2S-interface. This is not odd, because then the DAC is leading and not the source. Interesting to see that so clearly!

Conclusion

Even in this digital age, the source is and remains incredibly important. Indeed, in the case of spdif, the source controls the clock. The PLL of the receiver chip in the dac must lock onto this signal. If the source’s clock is full of jitter, this will undoubtedly manifest itself in the final playback. After all: look at the above measurements….
