Isolation Spectrum analyzer
How well does a switch isolate between ports? After all, if a device emits a lot of noise, it can leak noise to other ports.

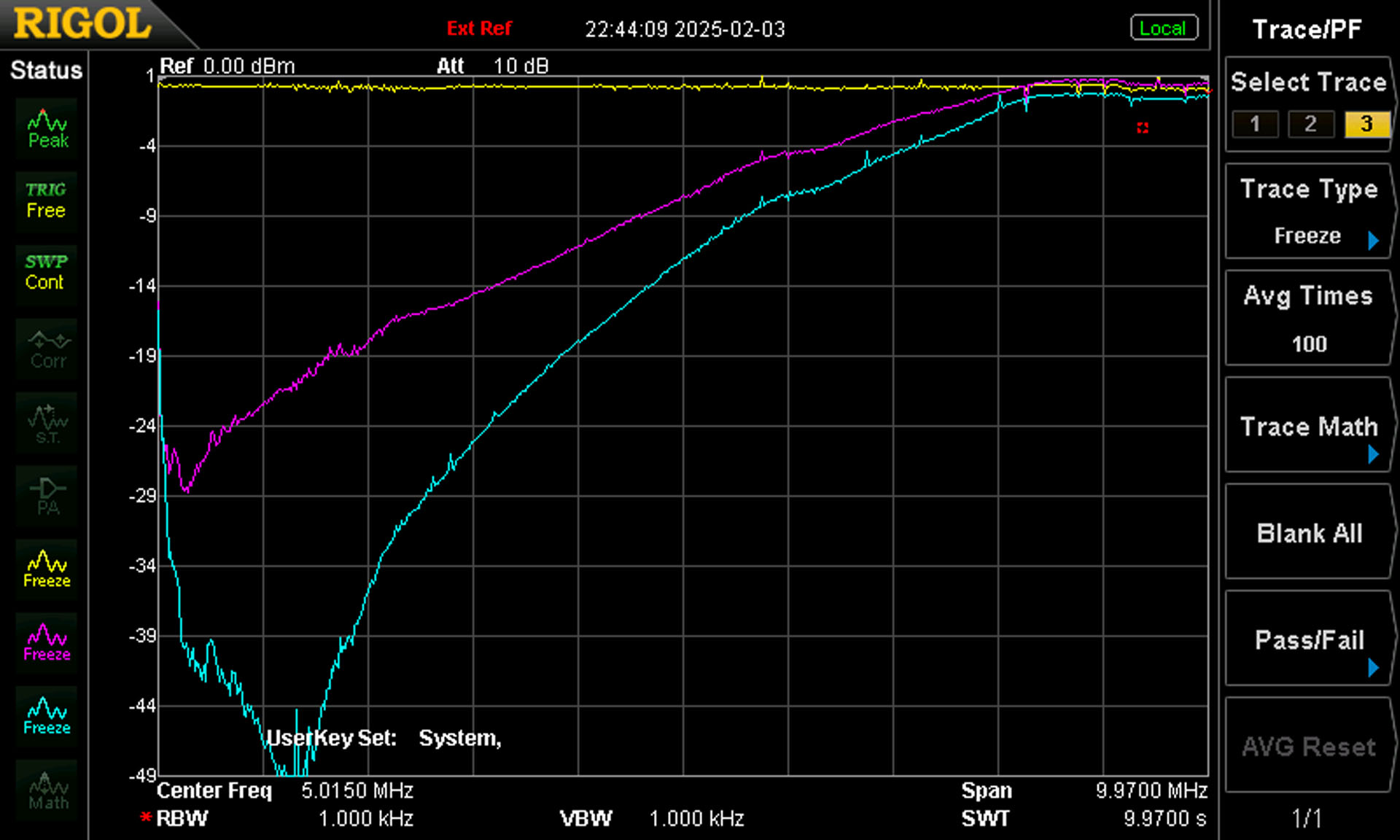

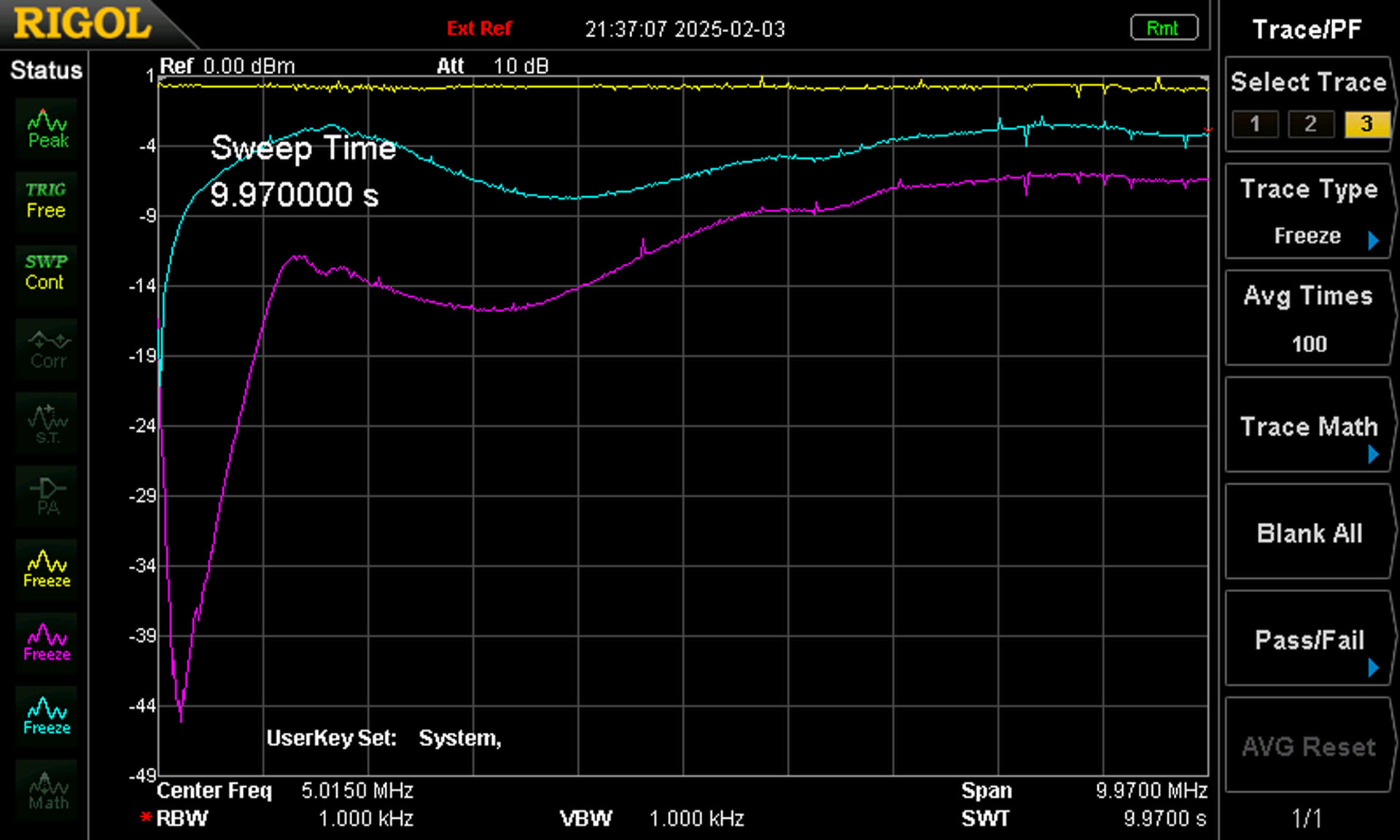

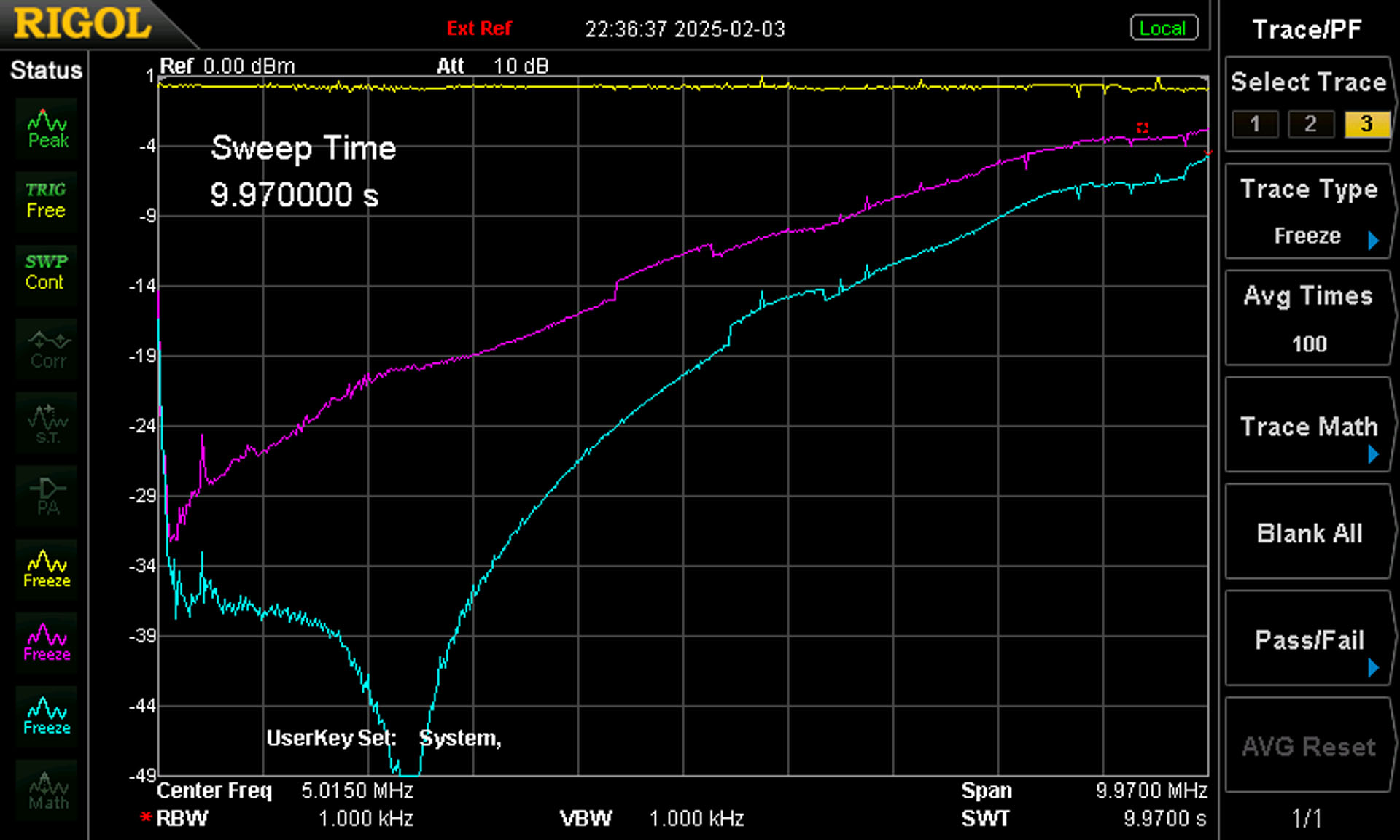

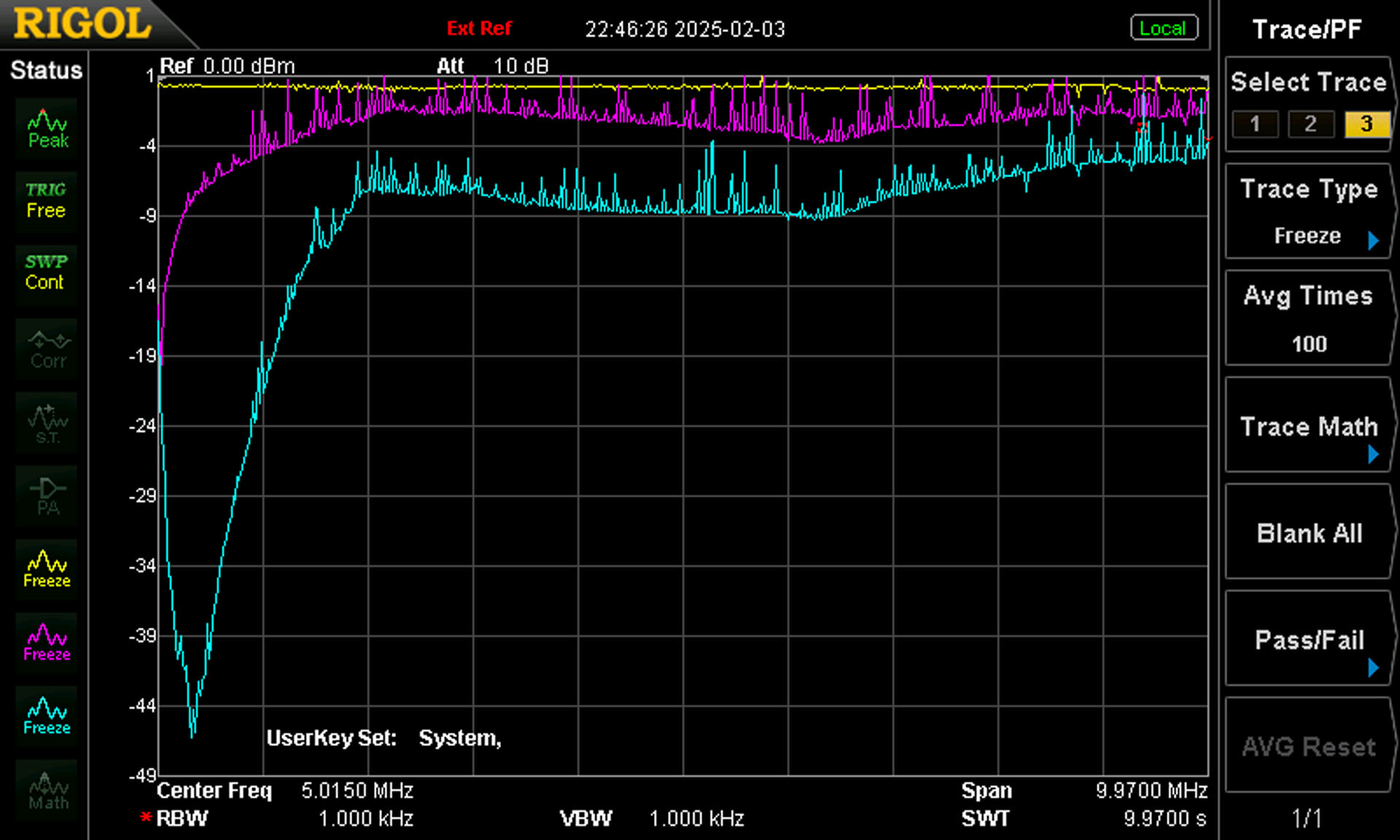

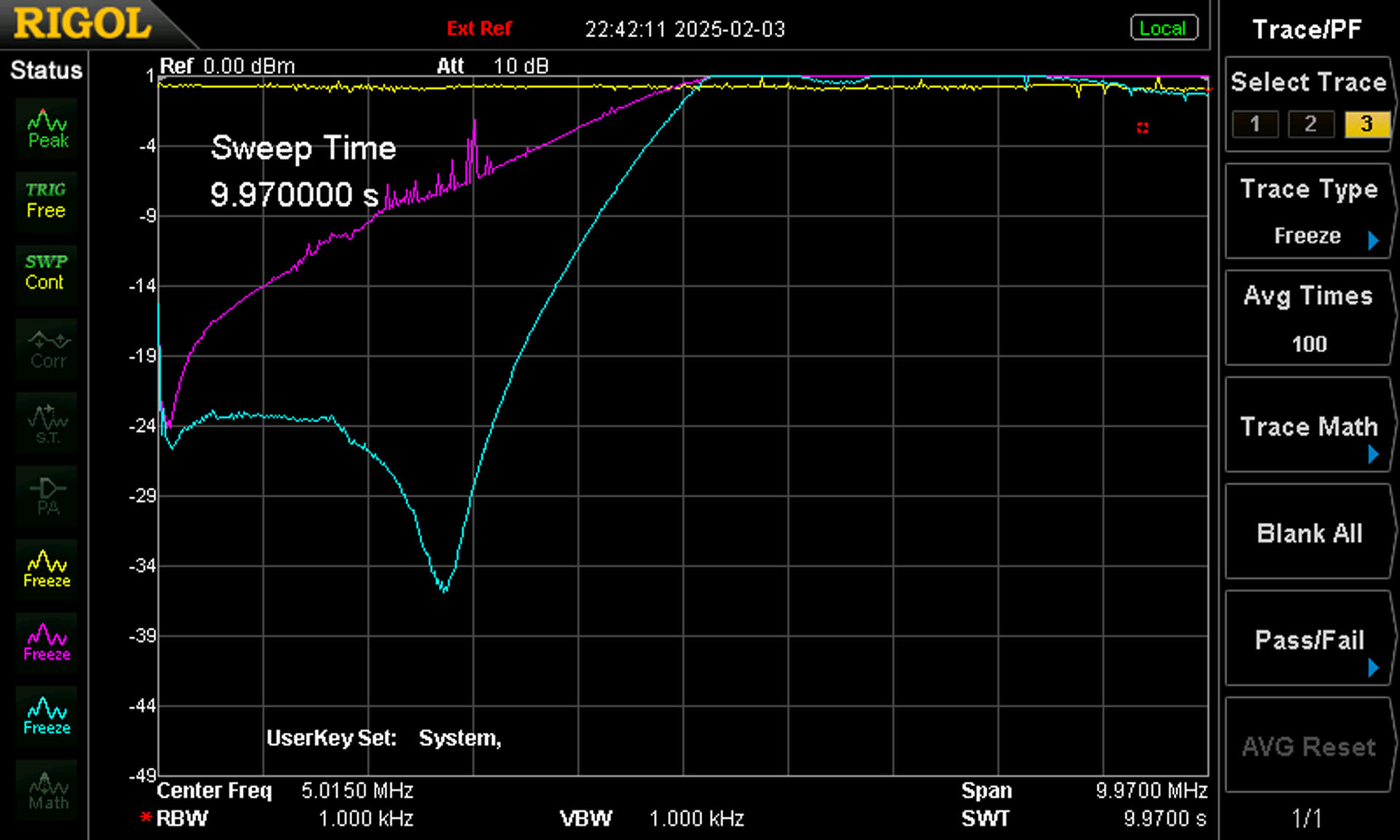

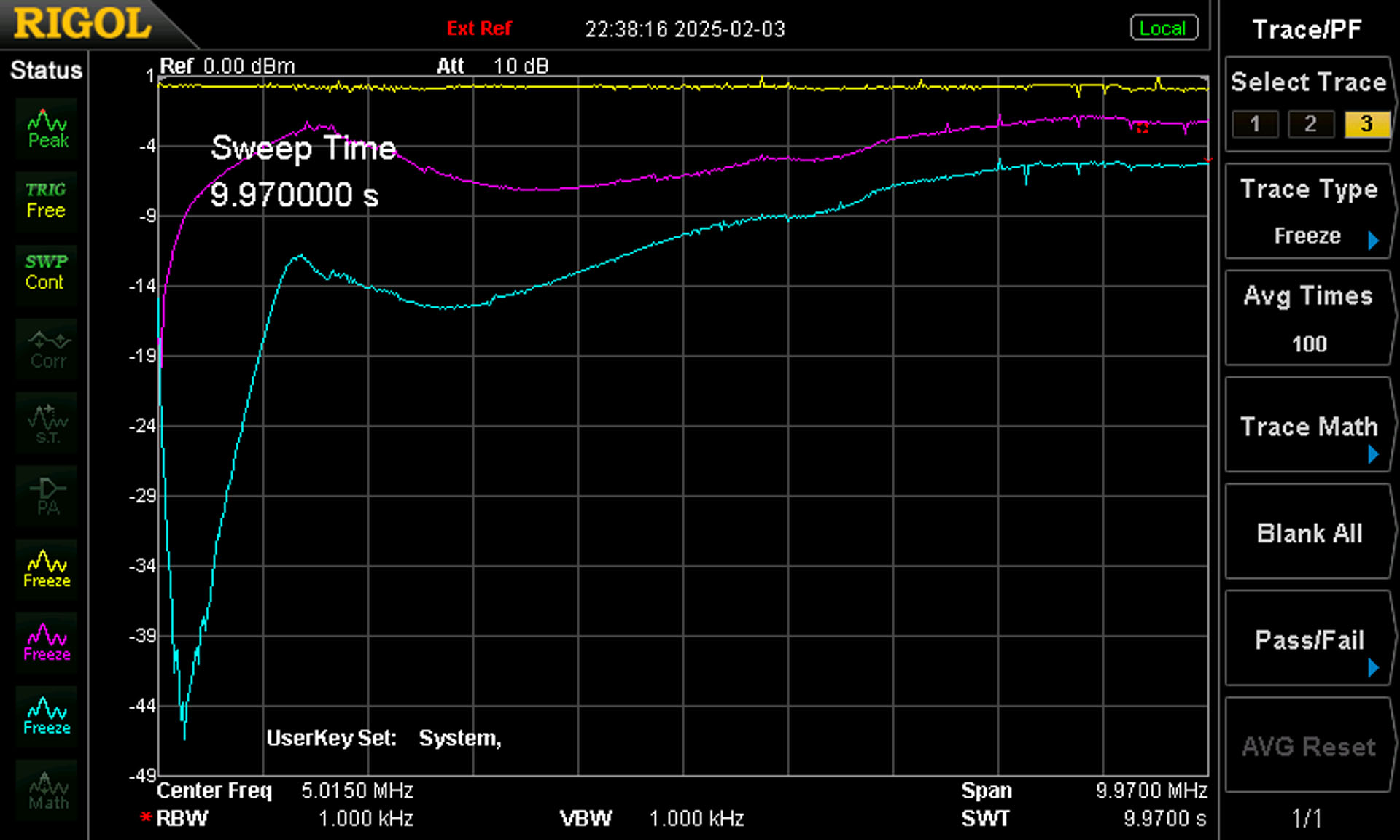

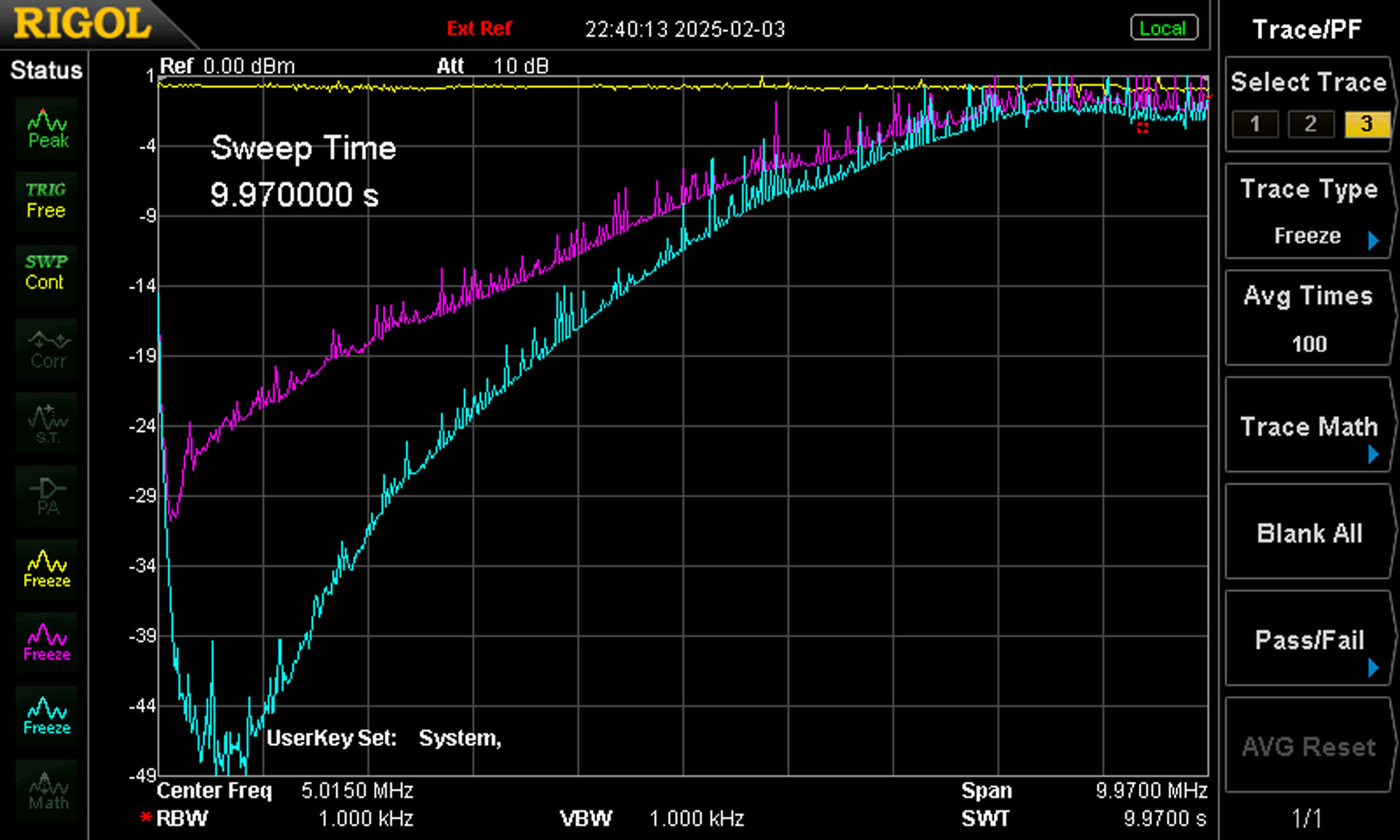

For this test, we inject white noise into the switch and see how well the switch manages to keep it away from other ports.
Again, we see big differences between the various models. Each model filters differently. The new Dlink 108 V4 filters much better than the old 108 V3. The Dlink 1100 is clearly based on the older 108. The Dlink 108V4 scores very well in this test.
The Netgear 108 and 108E differ from each other. The 108T is similar to the 108E. Both filter better than the regular 108. Netgear scores very well here with the 108E and 108T.
The Zyxel 1200-08 does not seem to filter very well. The 2200 does much better, we know from other / older surveys.
What we clearly see with all switches is that it is crucial to ground things properly: that significantly reduces the noise floor. We have also tested and heard this before: focus improves and there is more calmness in the soundstage and presentation.
Noise from LAN port – Picoscope

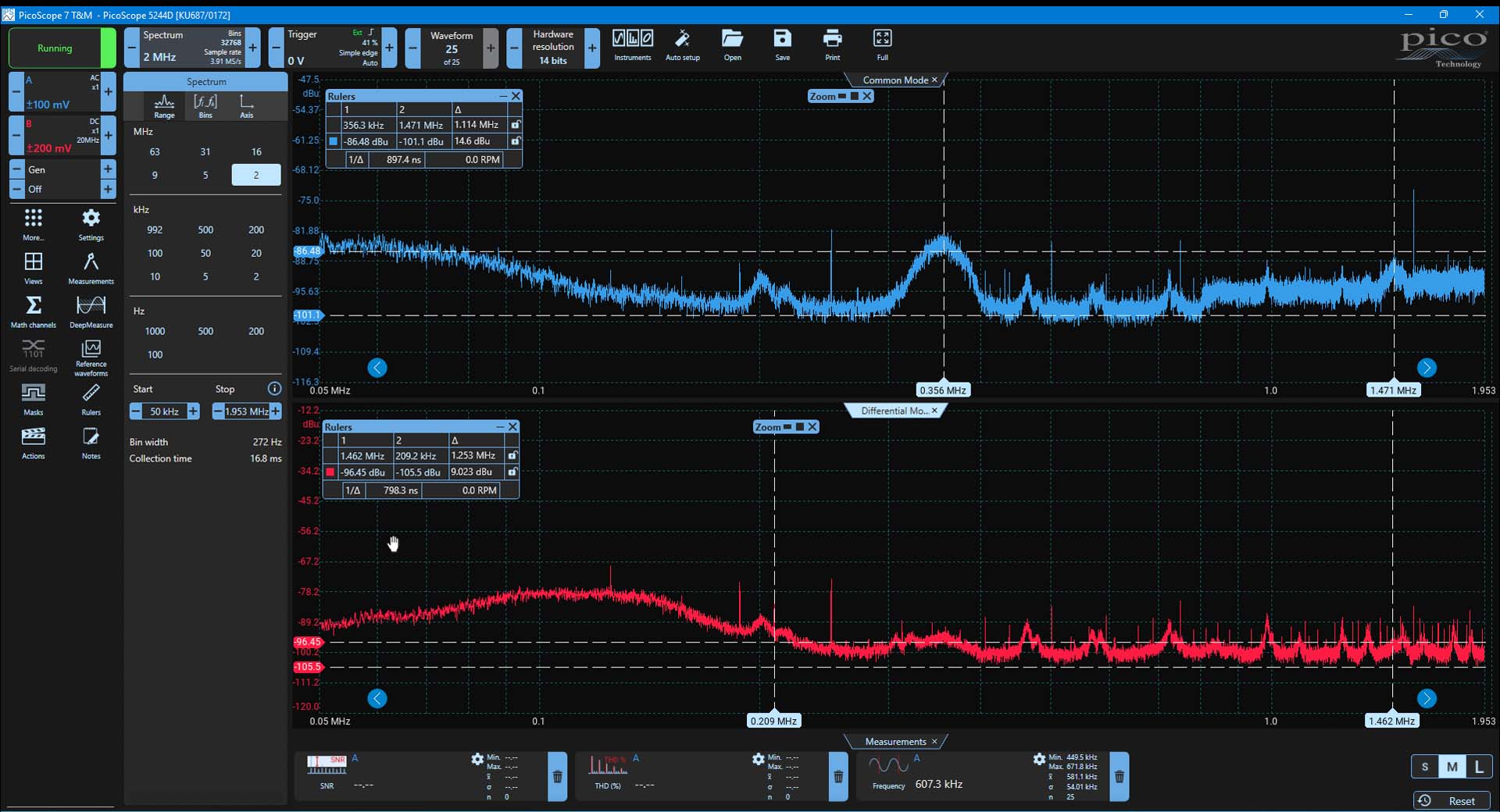

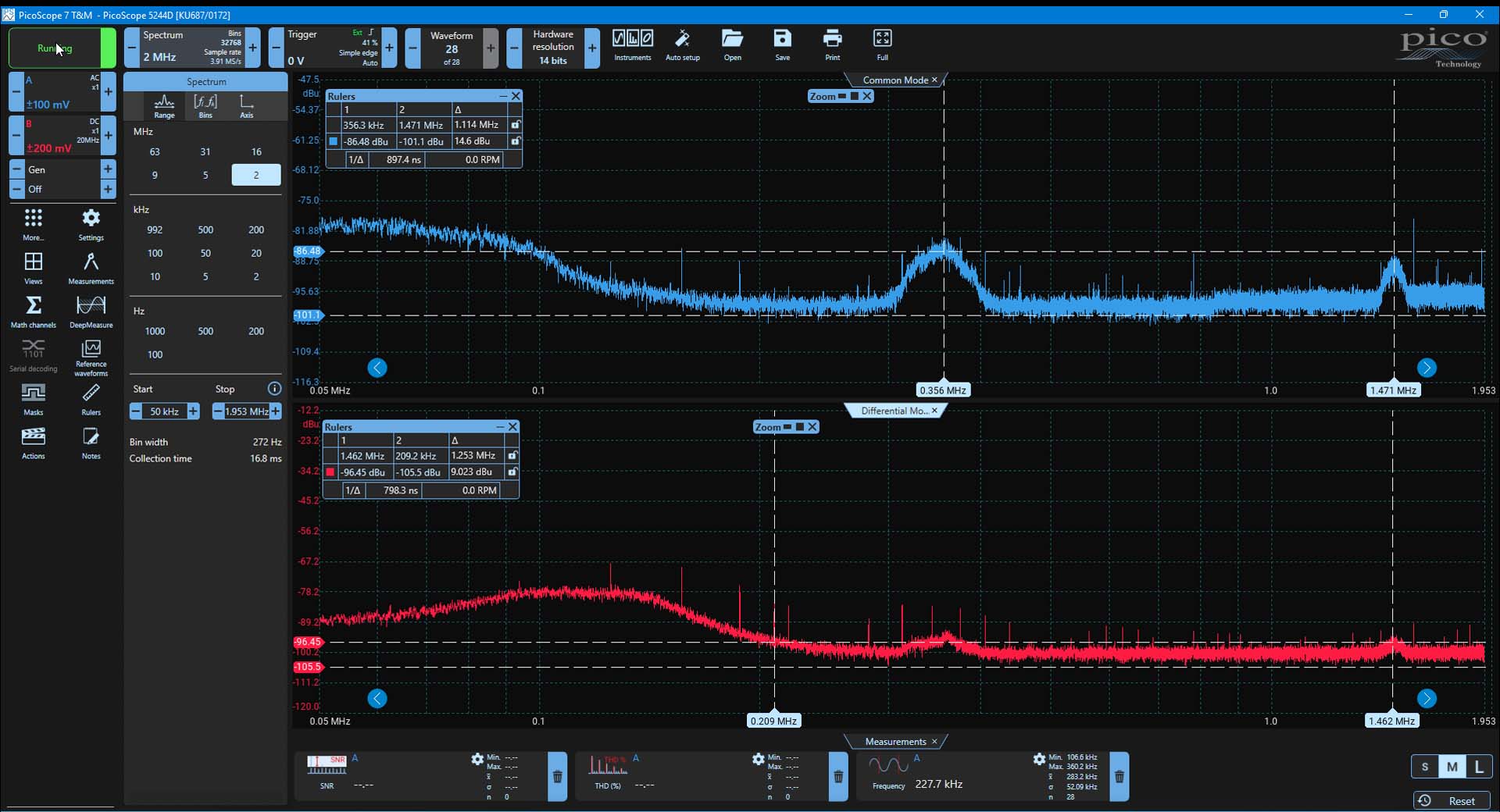

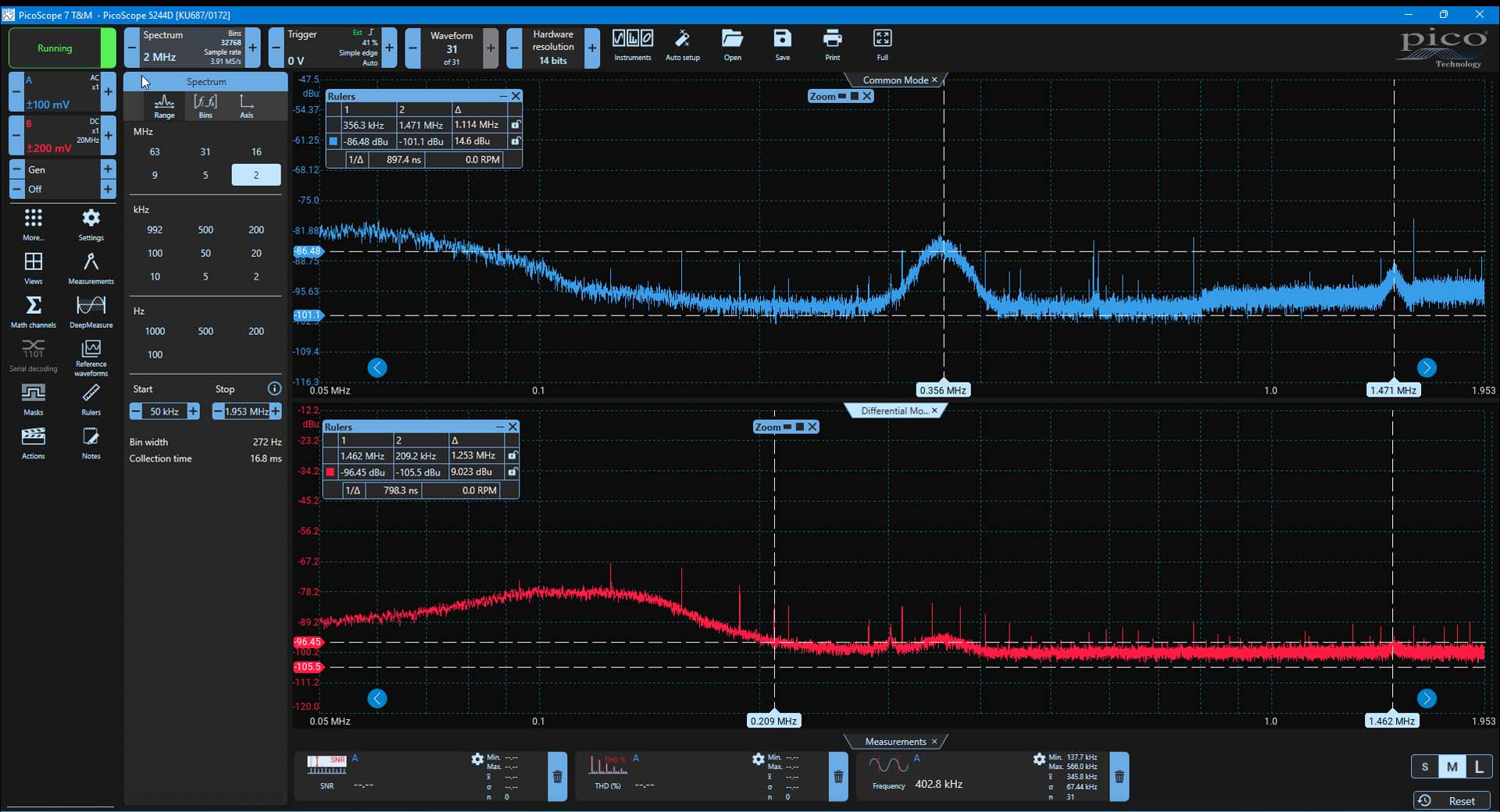

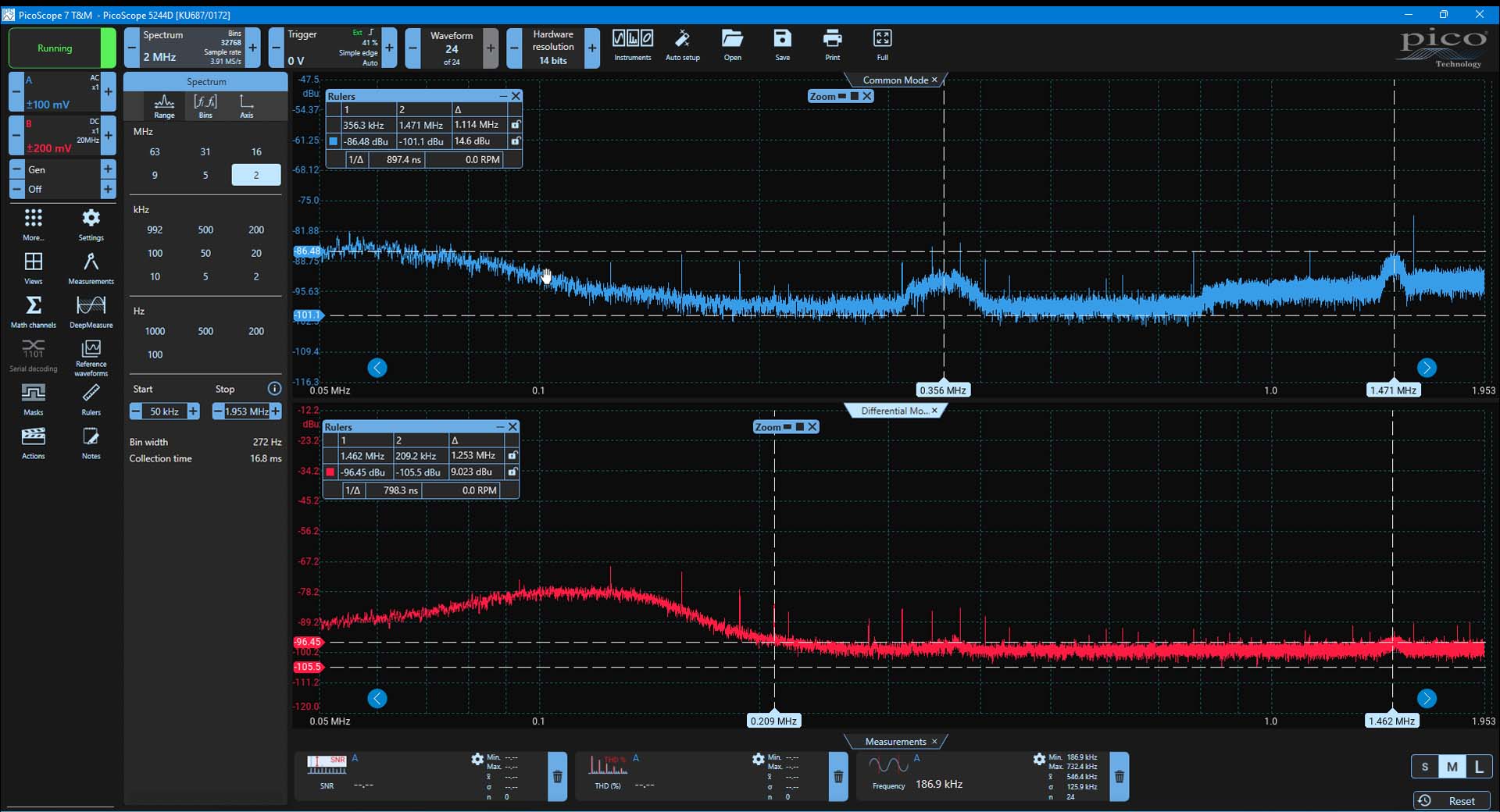

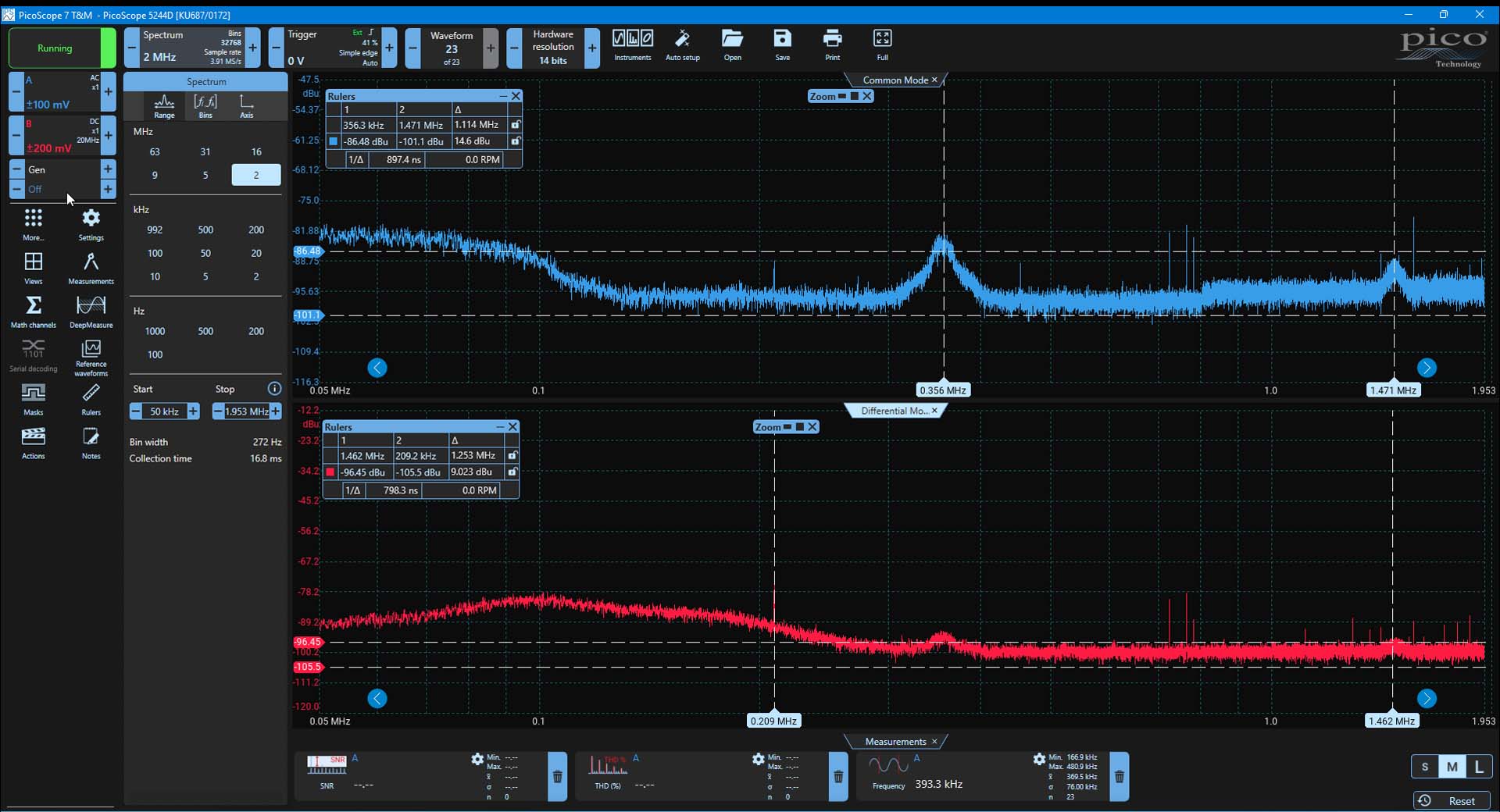

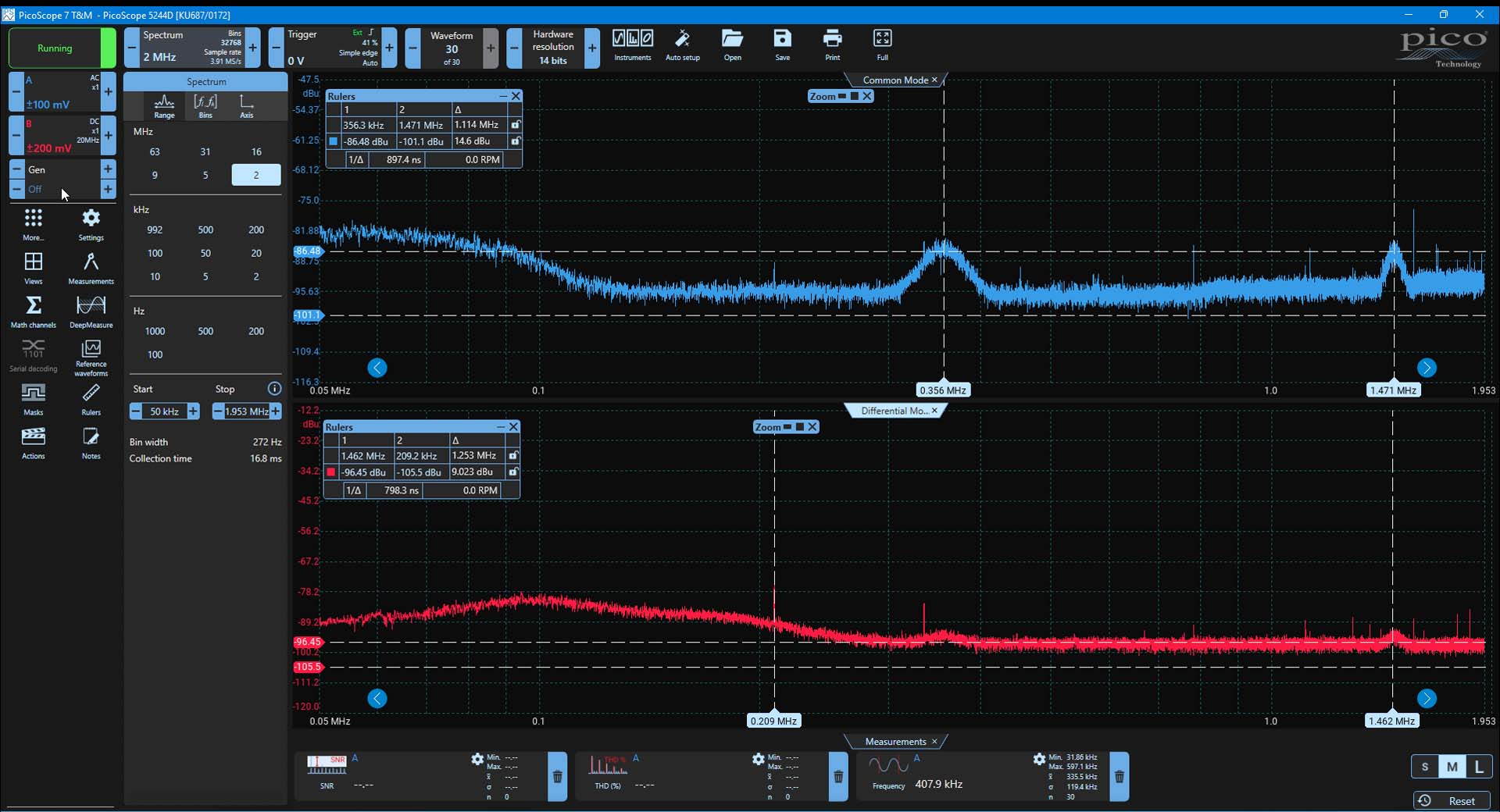

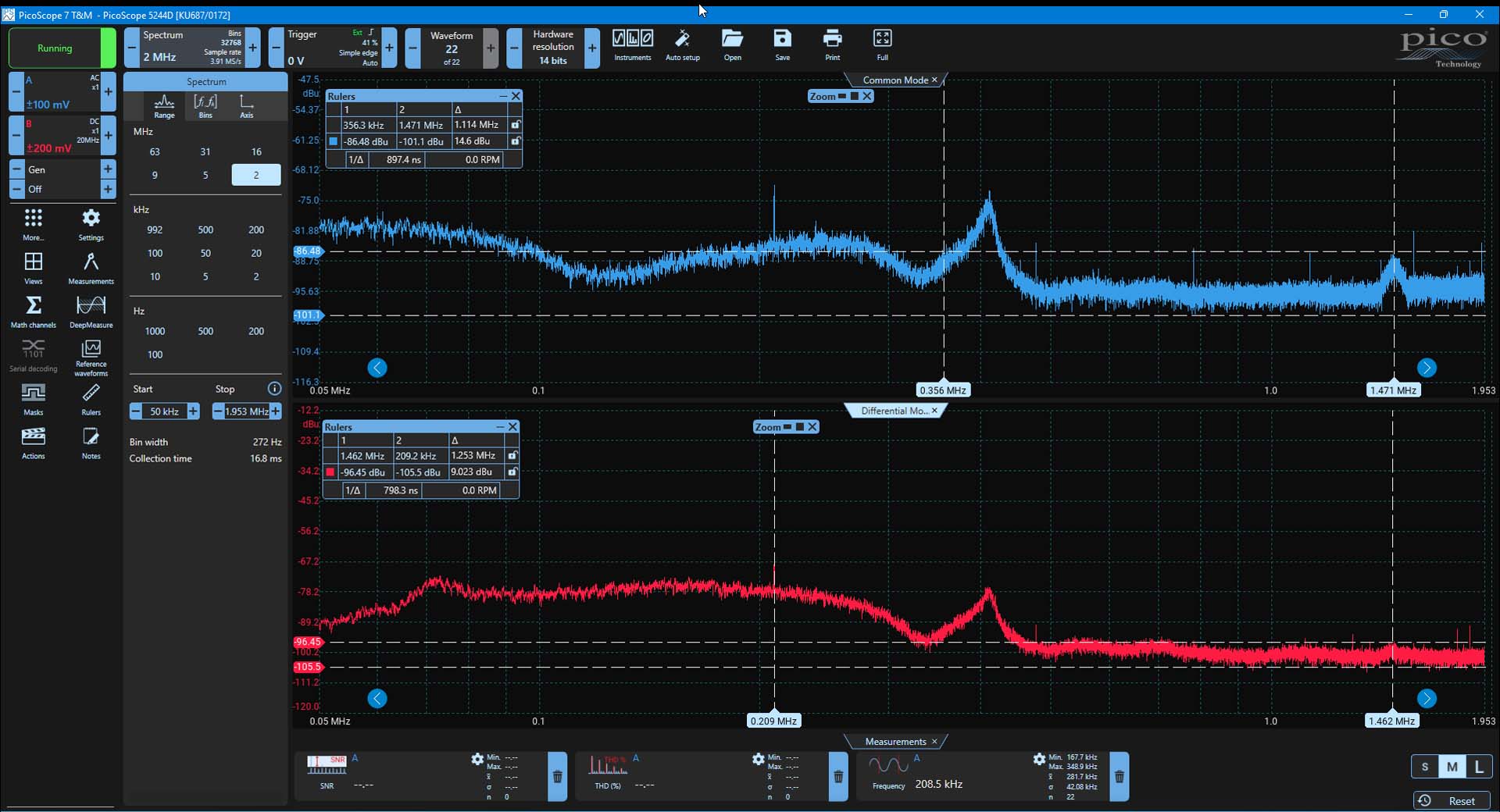

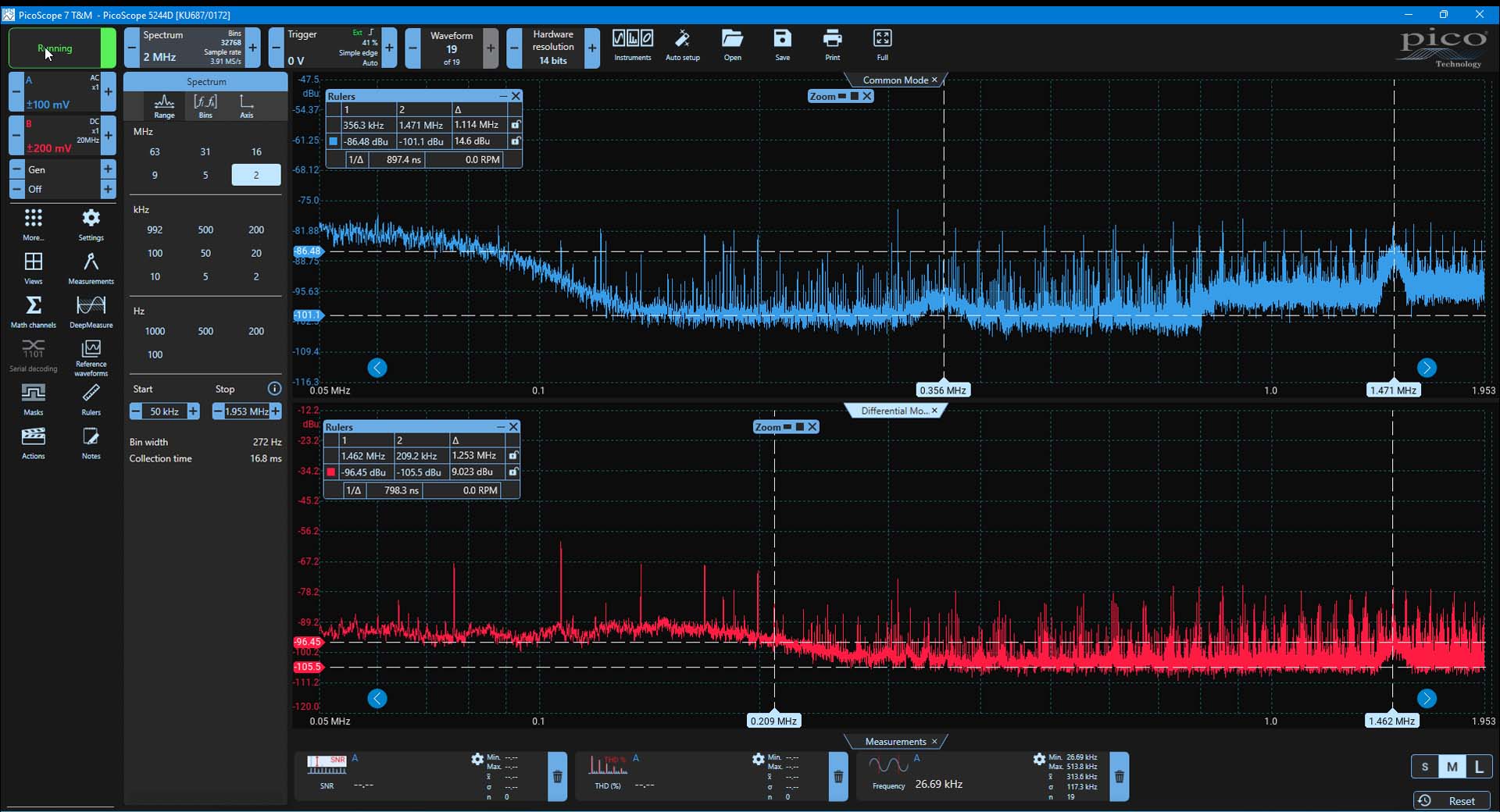

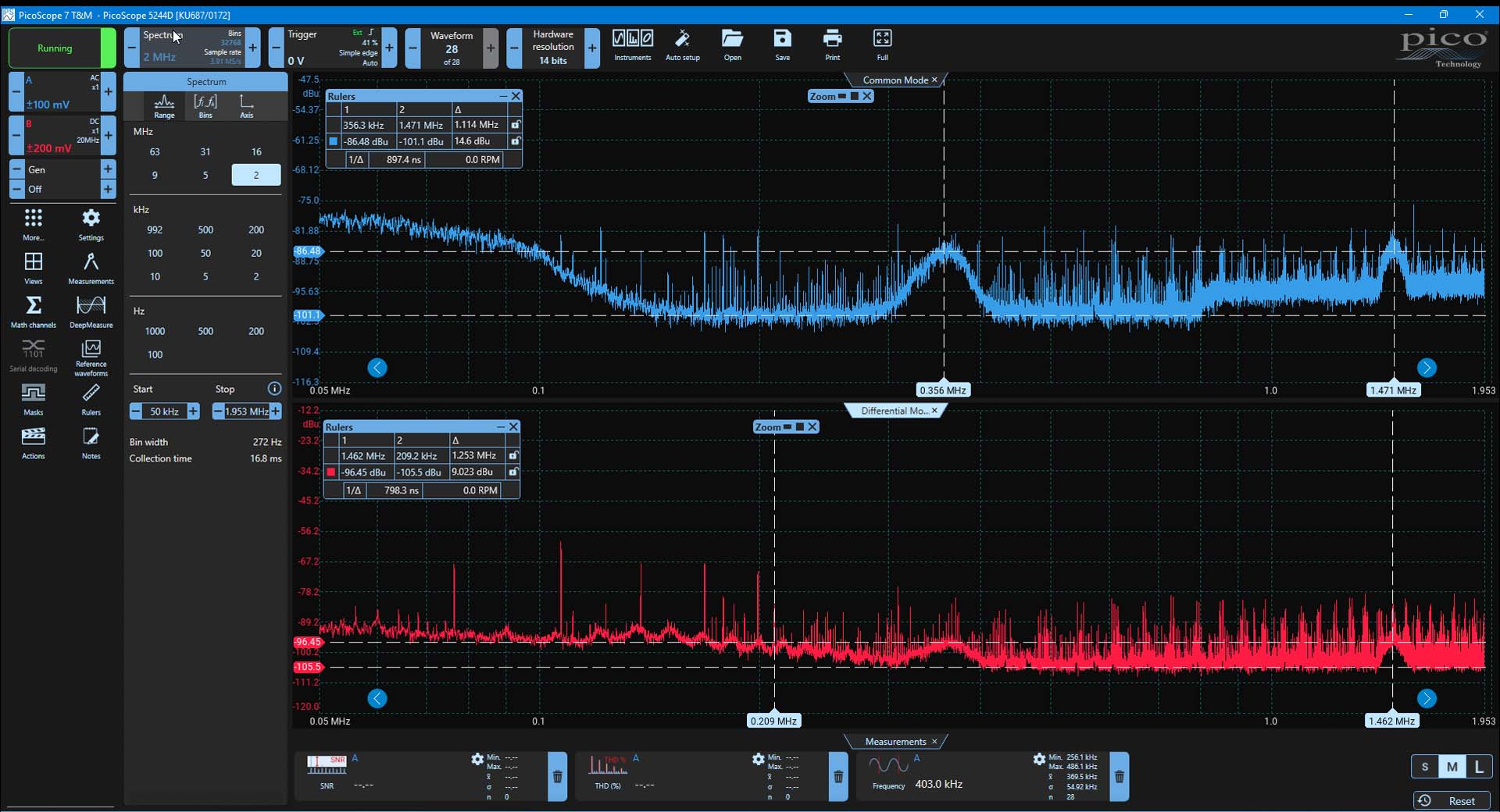

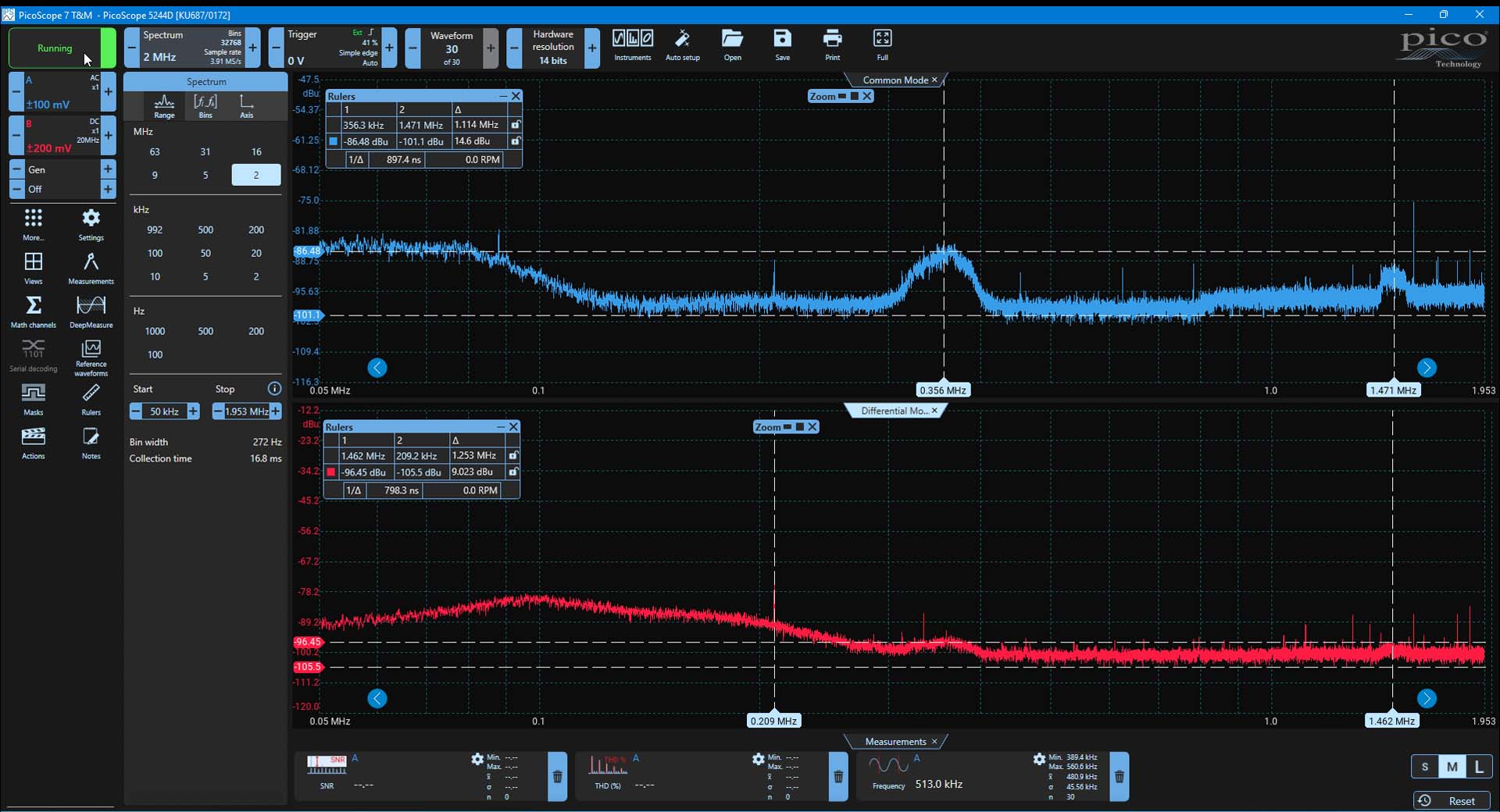

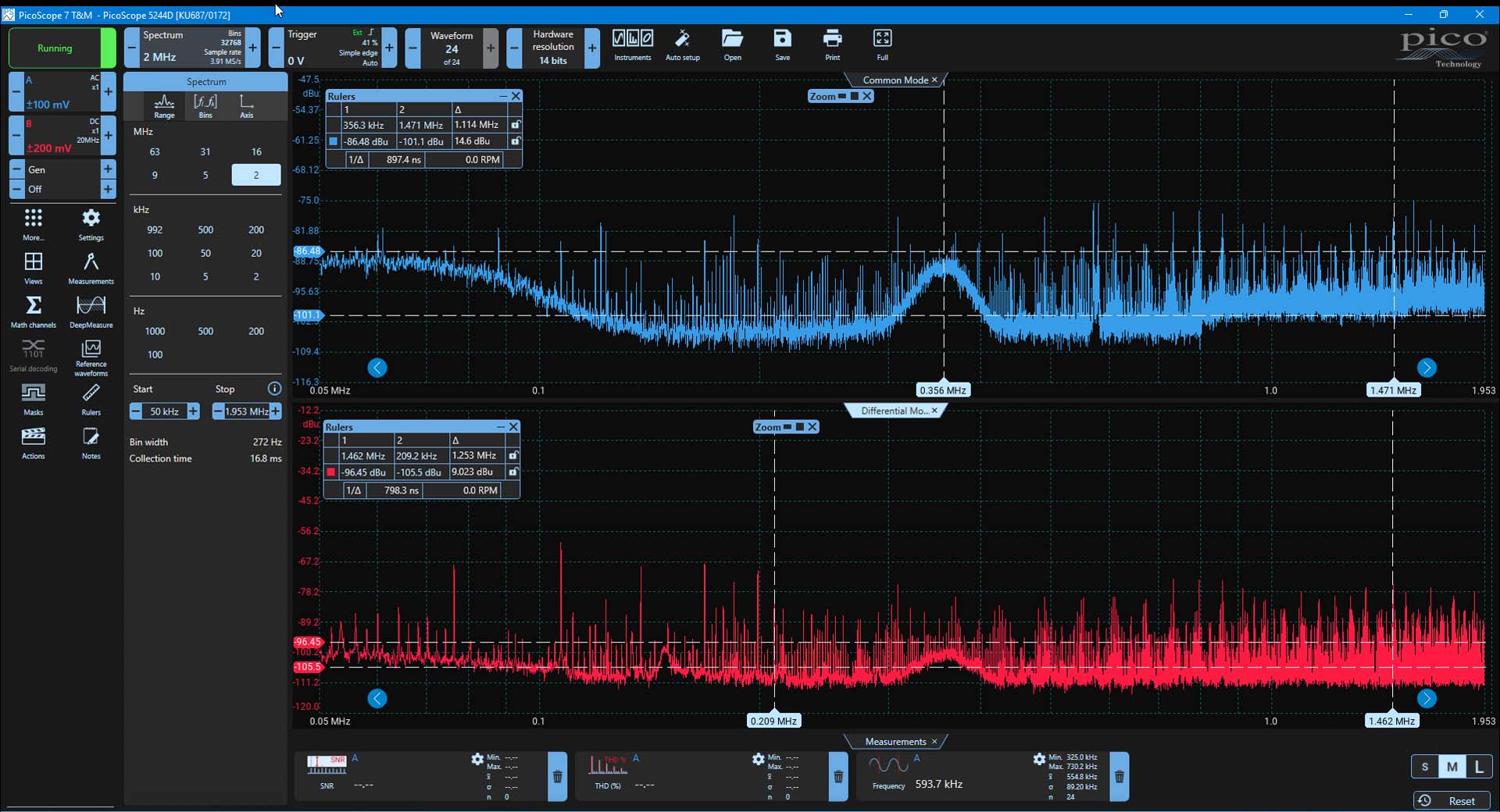

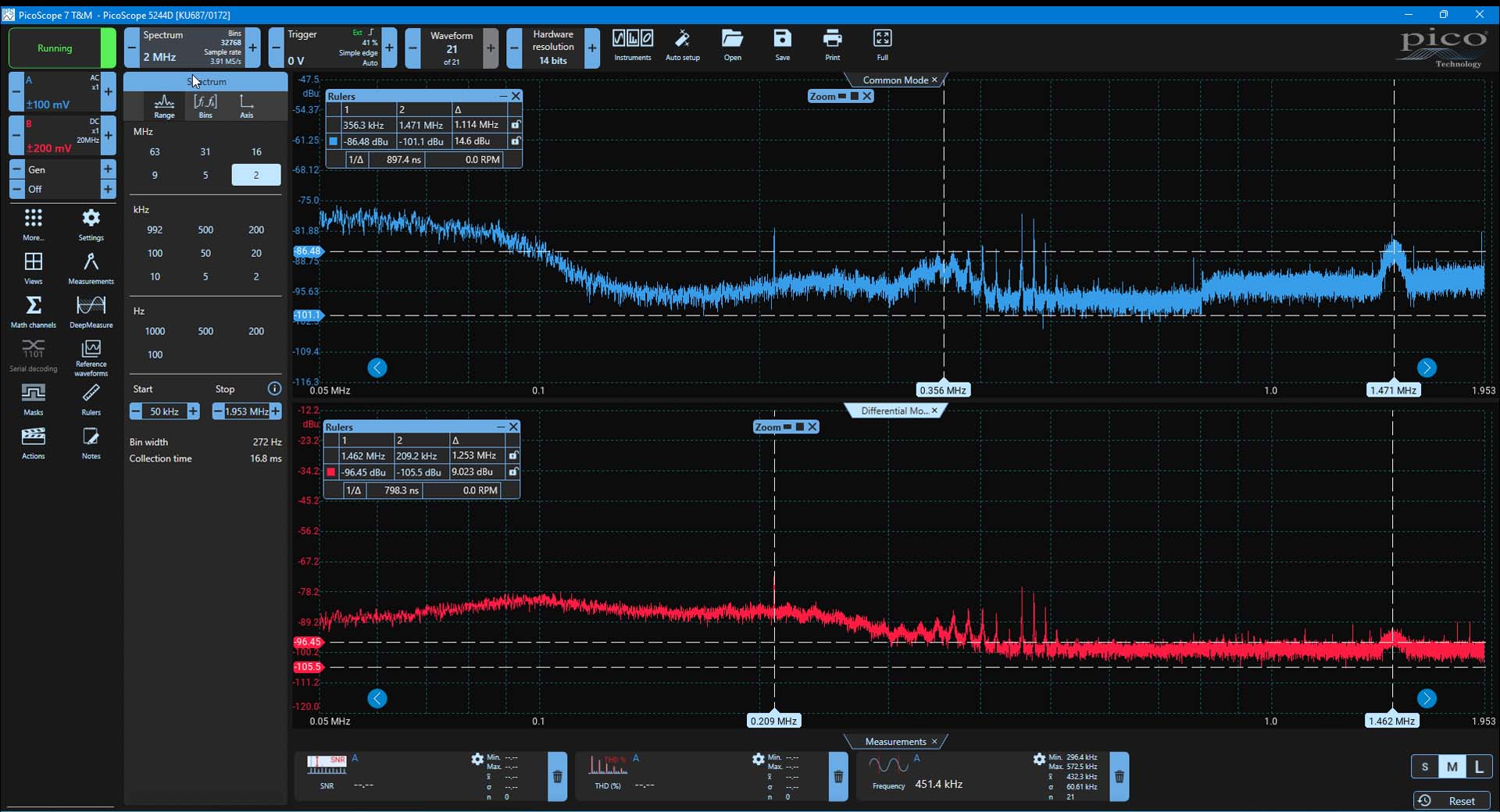

We also measured the noise from the lan port. This is done through a so-called CDN – Coupling / Decoupling Network. We capture the noise from the port and send it through a splitter for differential and common mode noise.

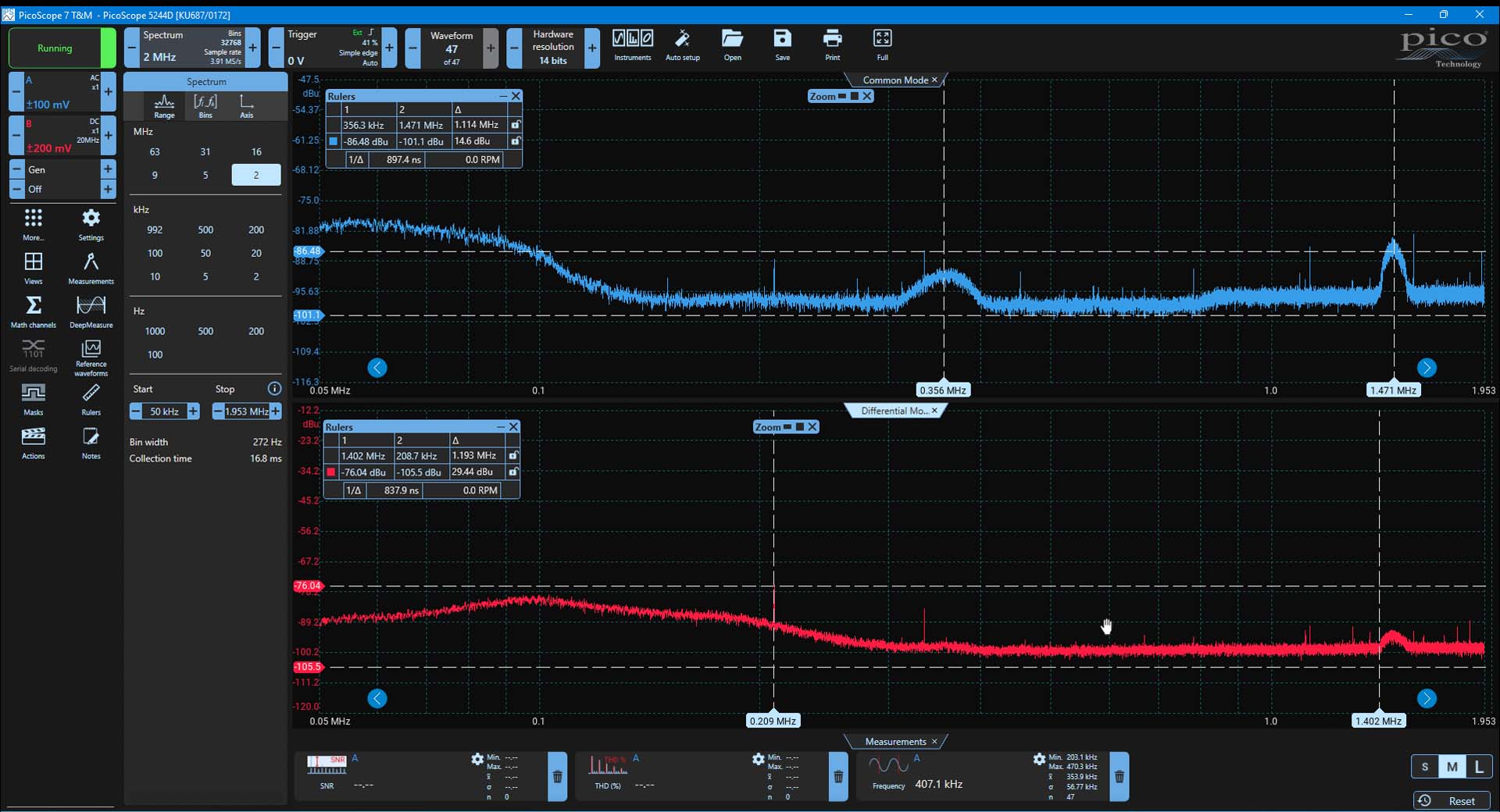

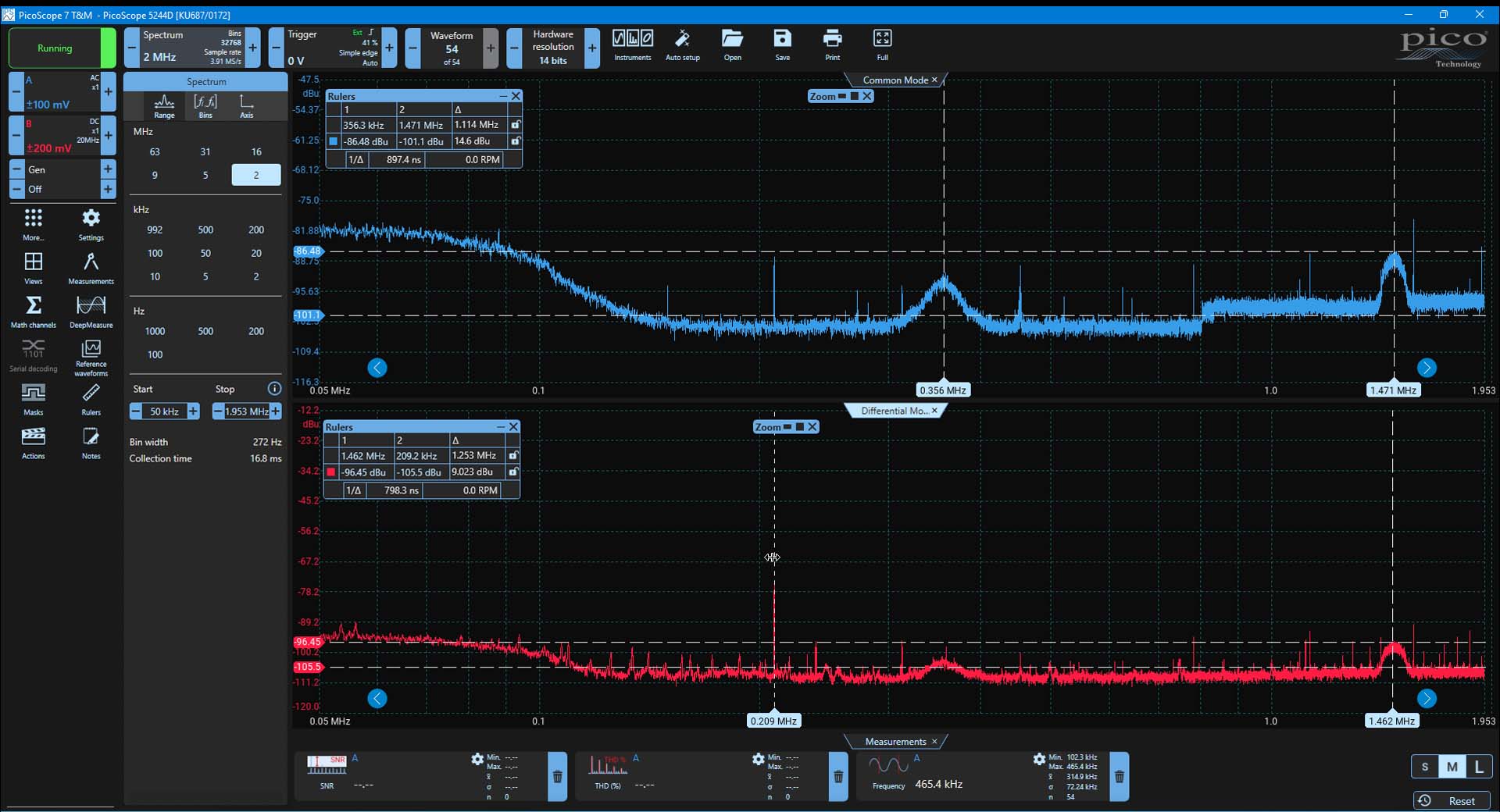

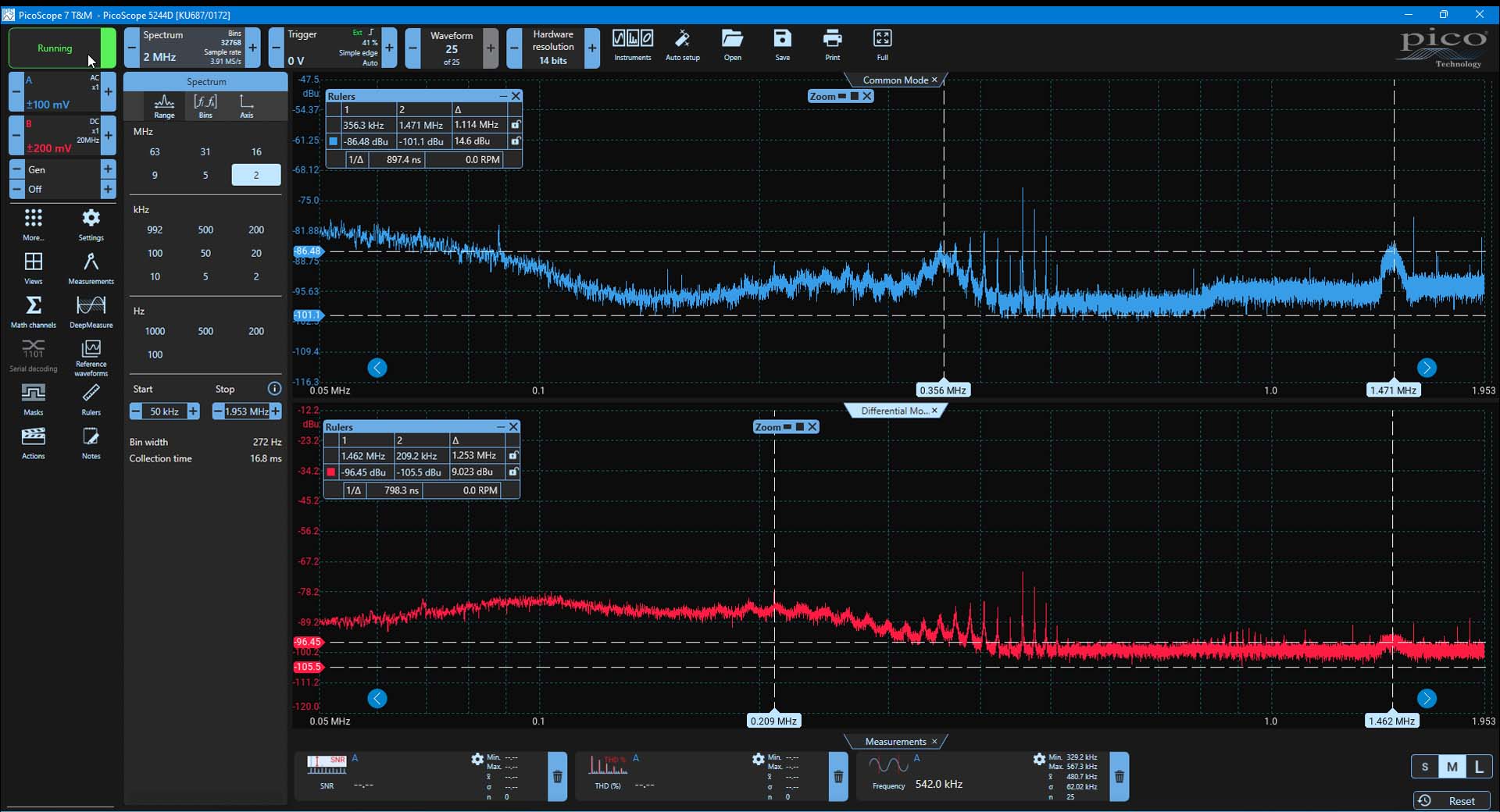

What is noticeable is that the Netgear measures the quietest. And then the GS108E version. The Dlink 108 V4 is close to that. That also comes from the previous measurement where we measure port isolation.

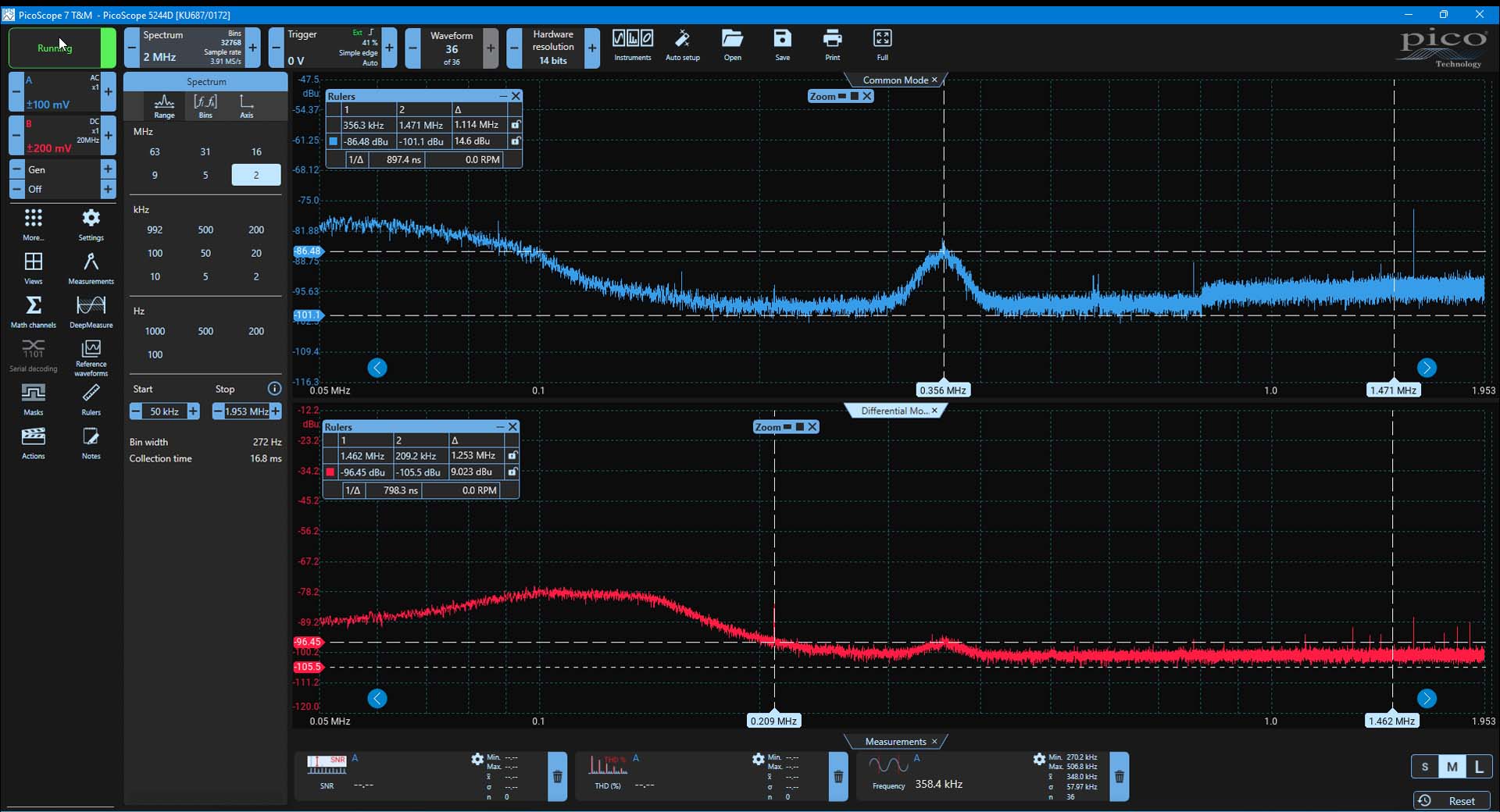

The power supply – as you can see – is crucial to the noise level. Both linear power supplies and filtered versions perform significantly better than standard adapters. We see this later also in the jitter measurement.
100 Mbit?

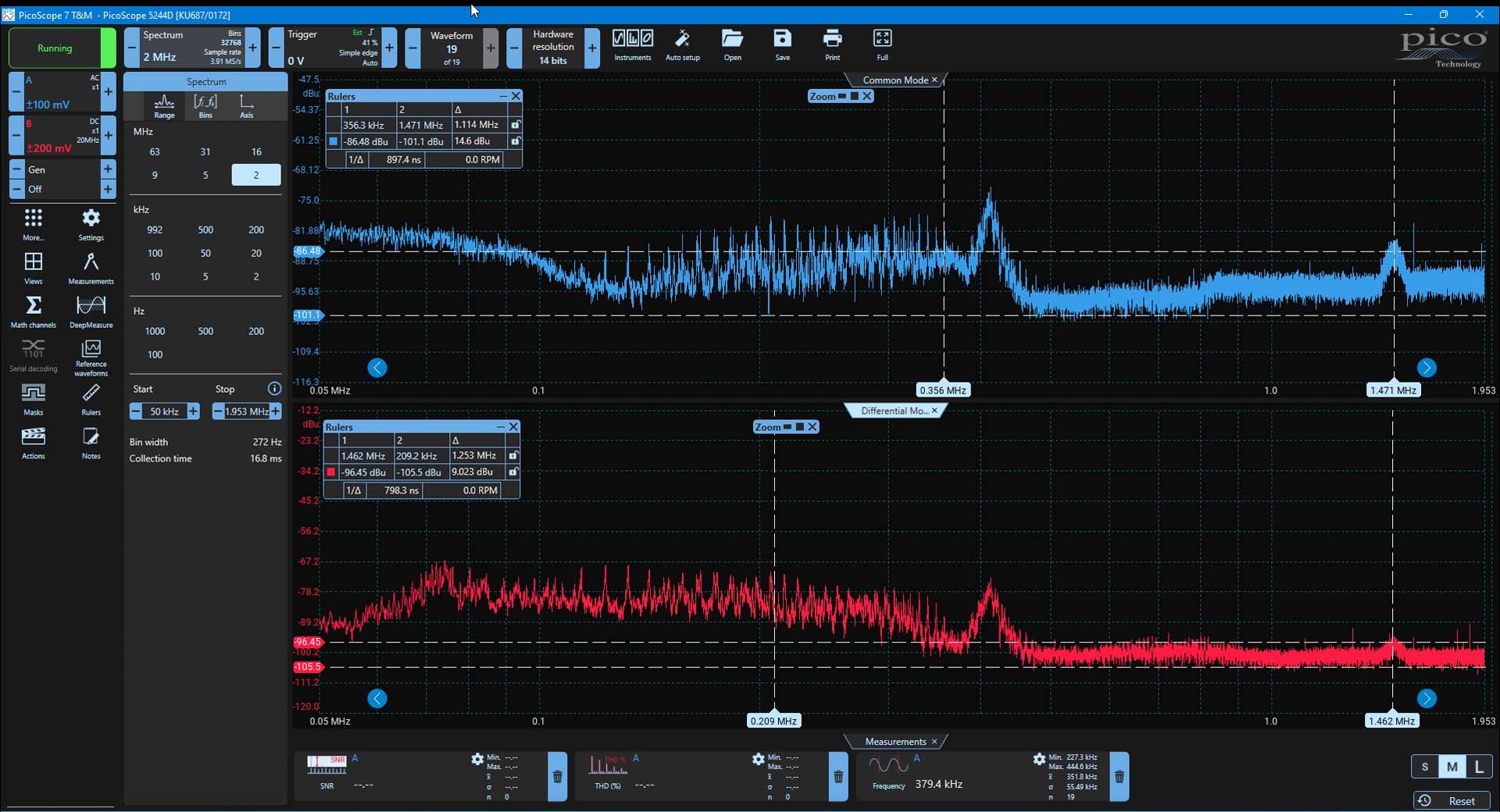

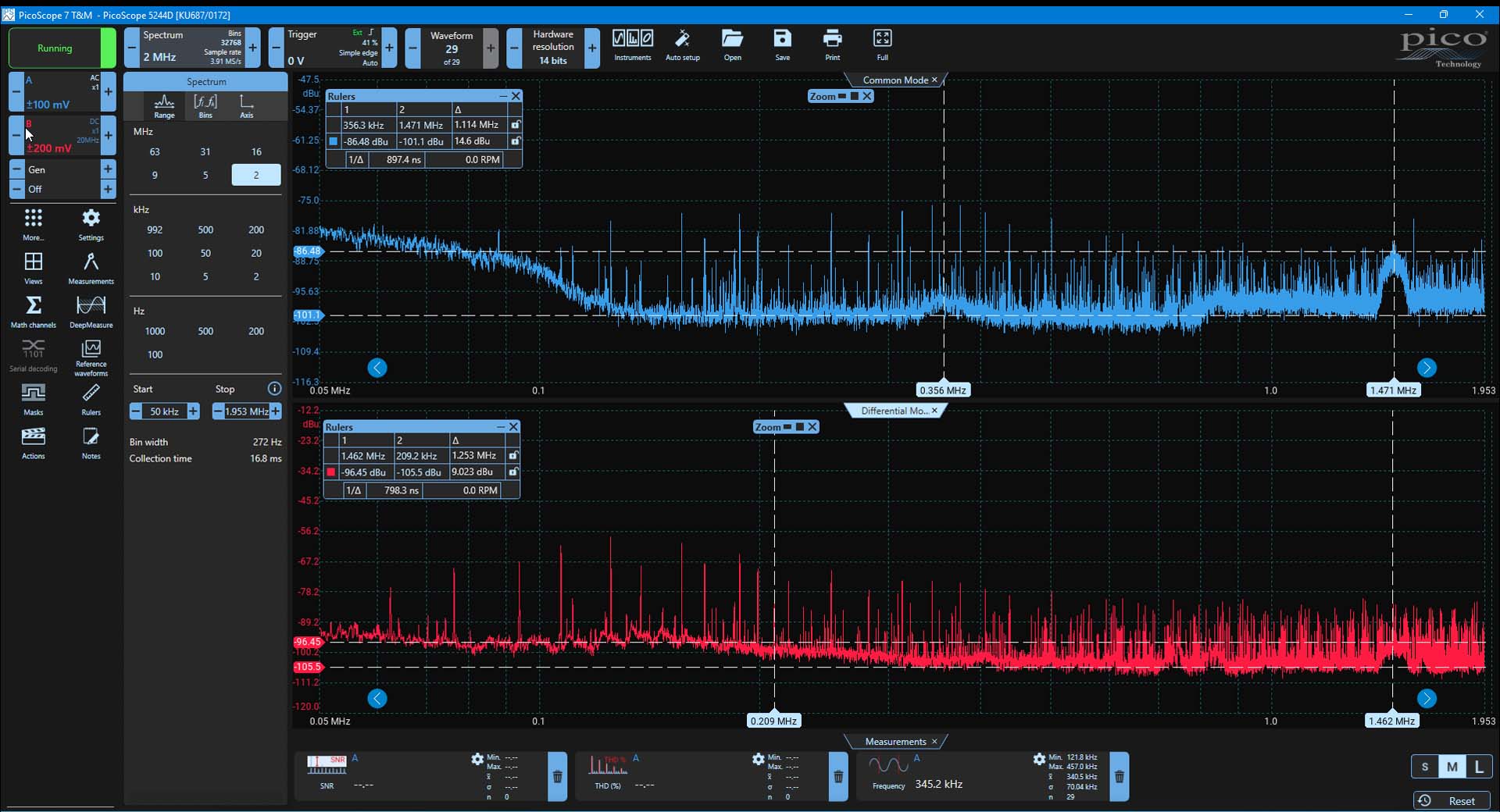

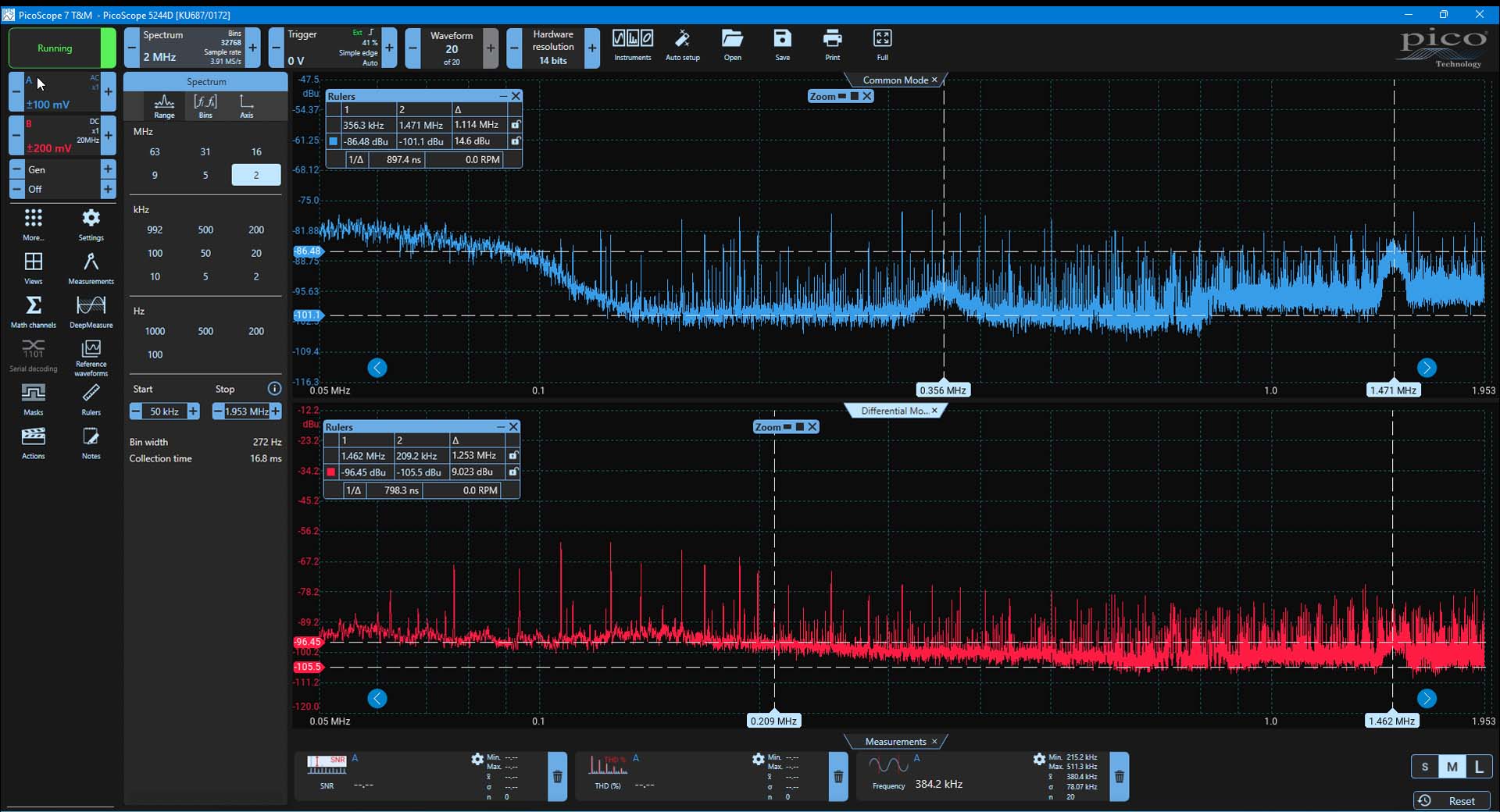

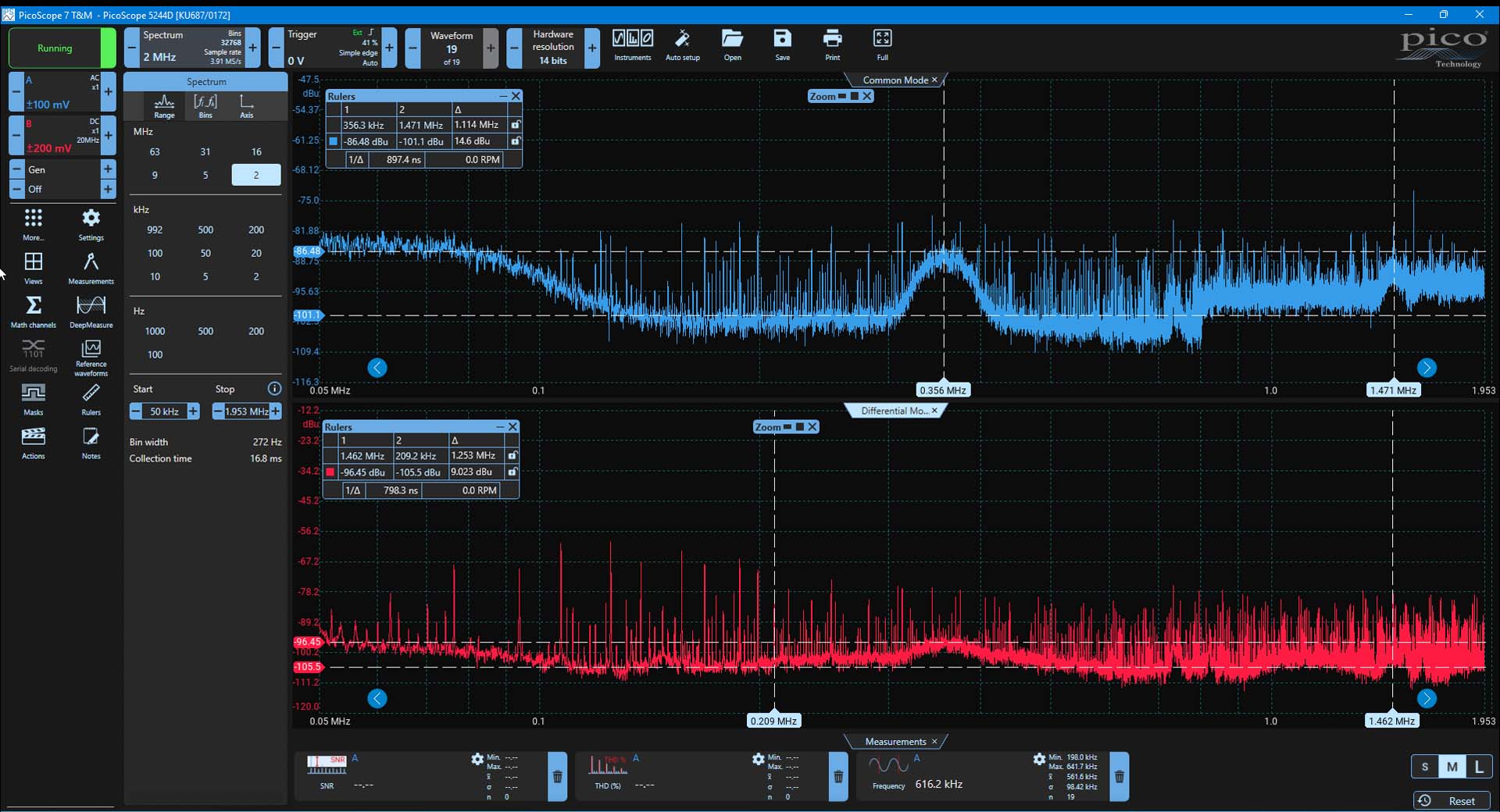

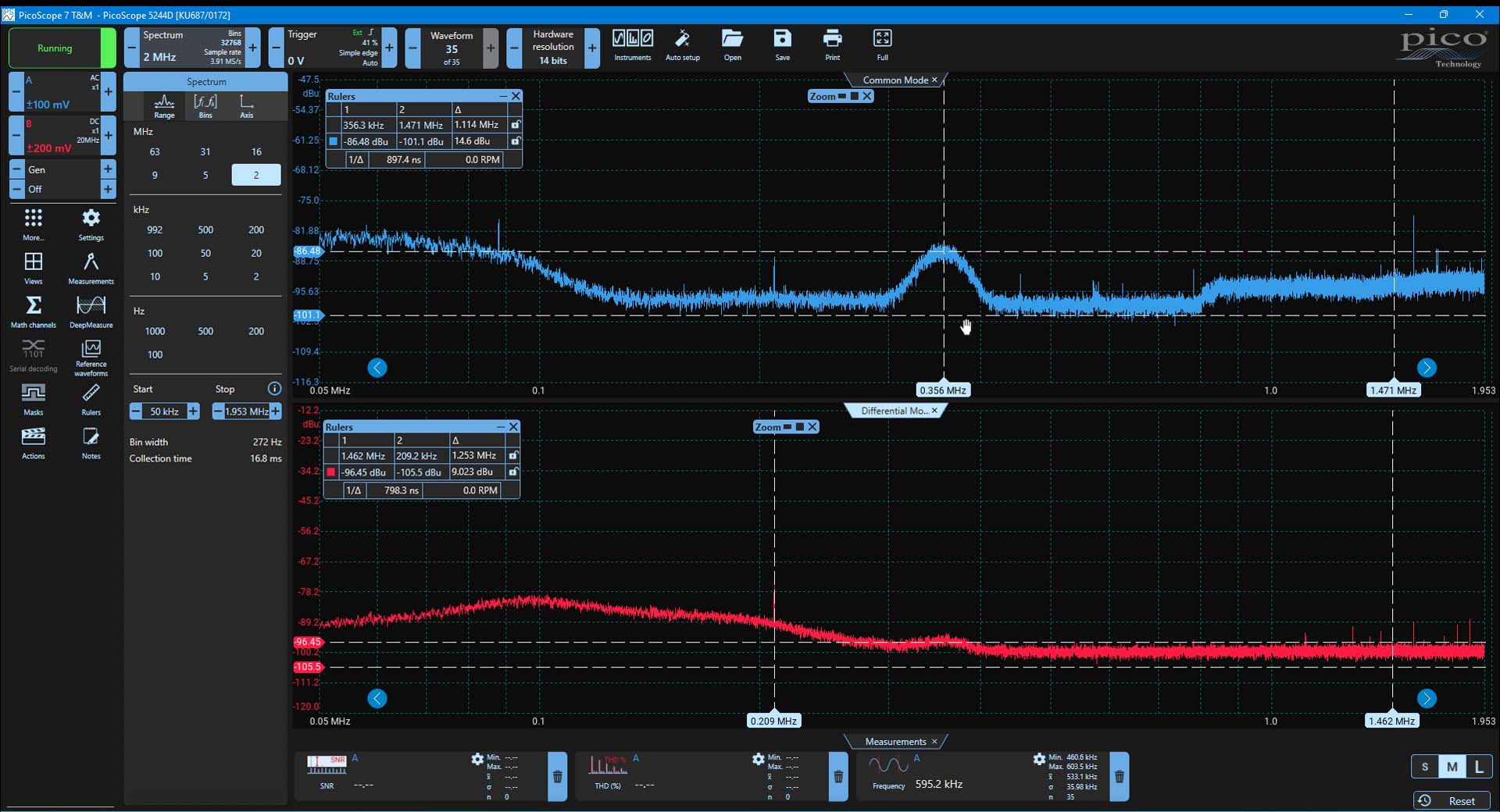

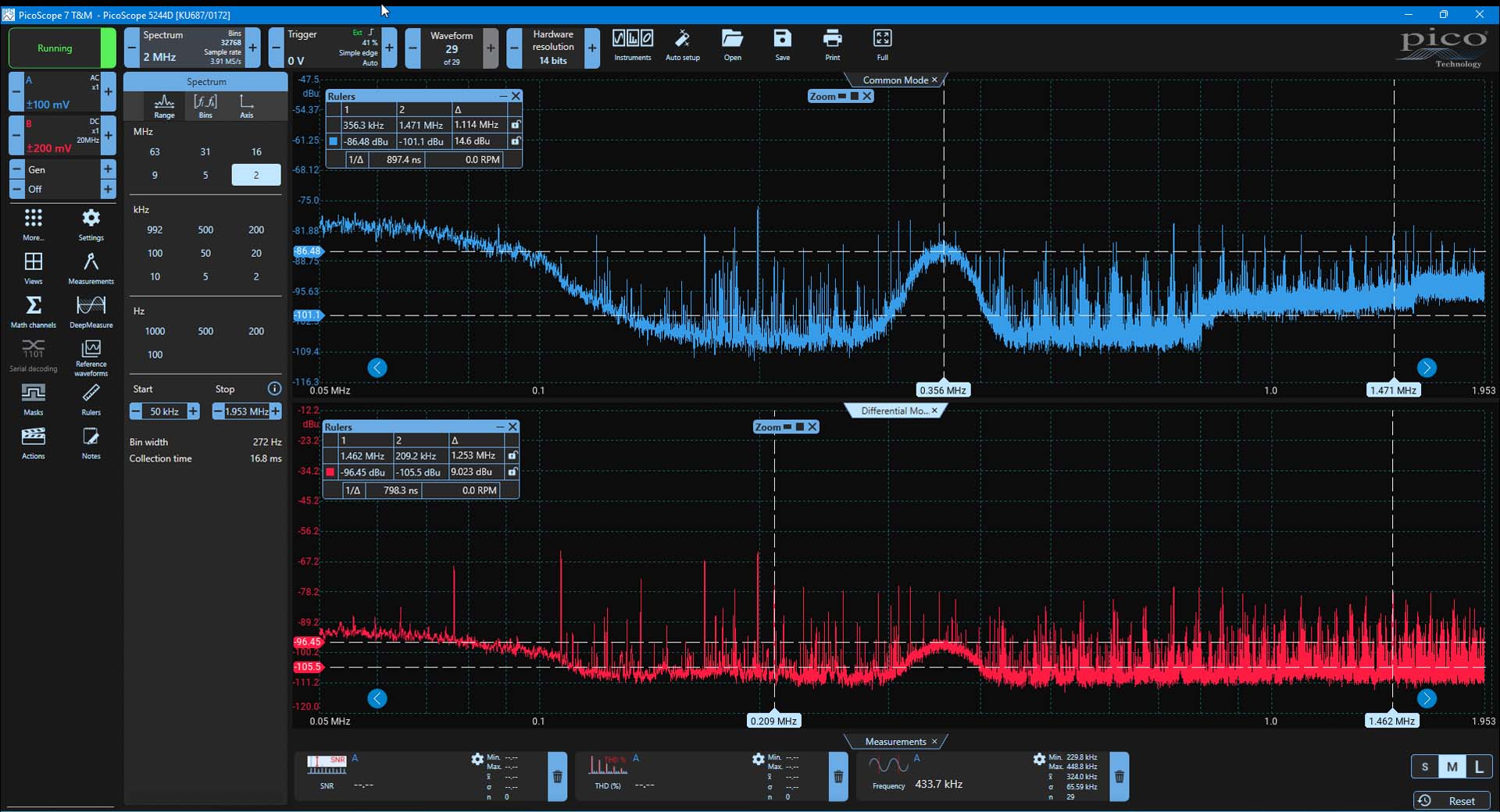

However, what is also noticeable is that the 100 Mbit ports show much more spikes / noise. Now this could be due to two things: the noise is just higher, or we are looking at data. Now it is true that the absolute noise floor is lower. But so there are also a lot of spikes. We are looking into this further.
