Our research on the impact of a data network on sound reproduction never stops. Although some studies seem to be similar, the perspective is often slightly different. Now we look at the influence of power supply and power filtering on jitter, noise and playback quality. The outcome…? Just check out this article.
We actually took three measurements in this test:
- Noise from the adapter/power supply. With and without power filter
- Noise from the Ethernet port. With and without a filter at the power supply
- Phase noise / Allan Variance. With and without a filter on the power supply
What we are curious about is the audibility of a good power supply and a moderate one with and without a power filter. We also want to see if this can be linked to the results from the measurements we took.
Measuring equipment

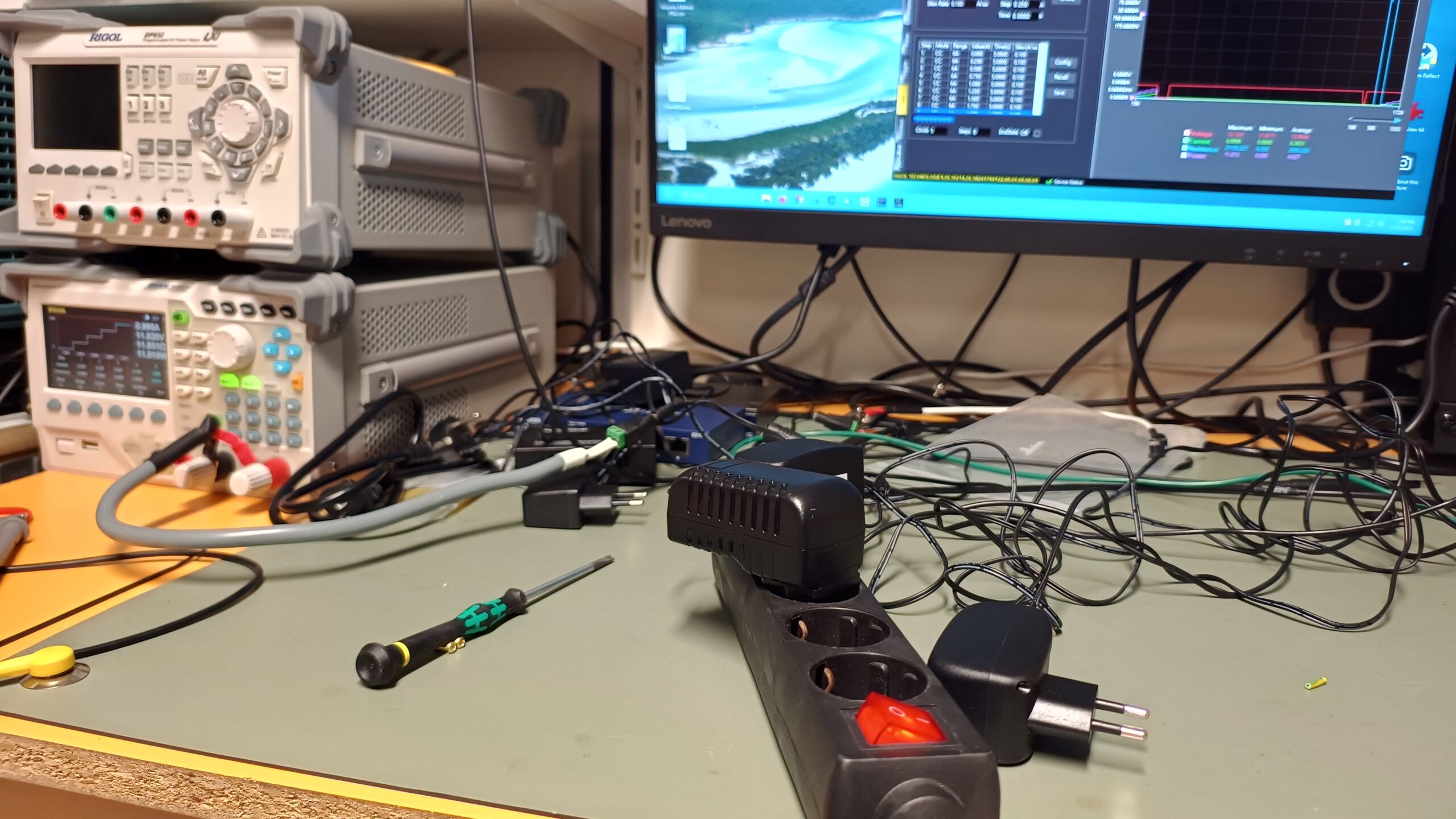

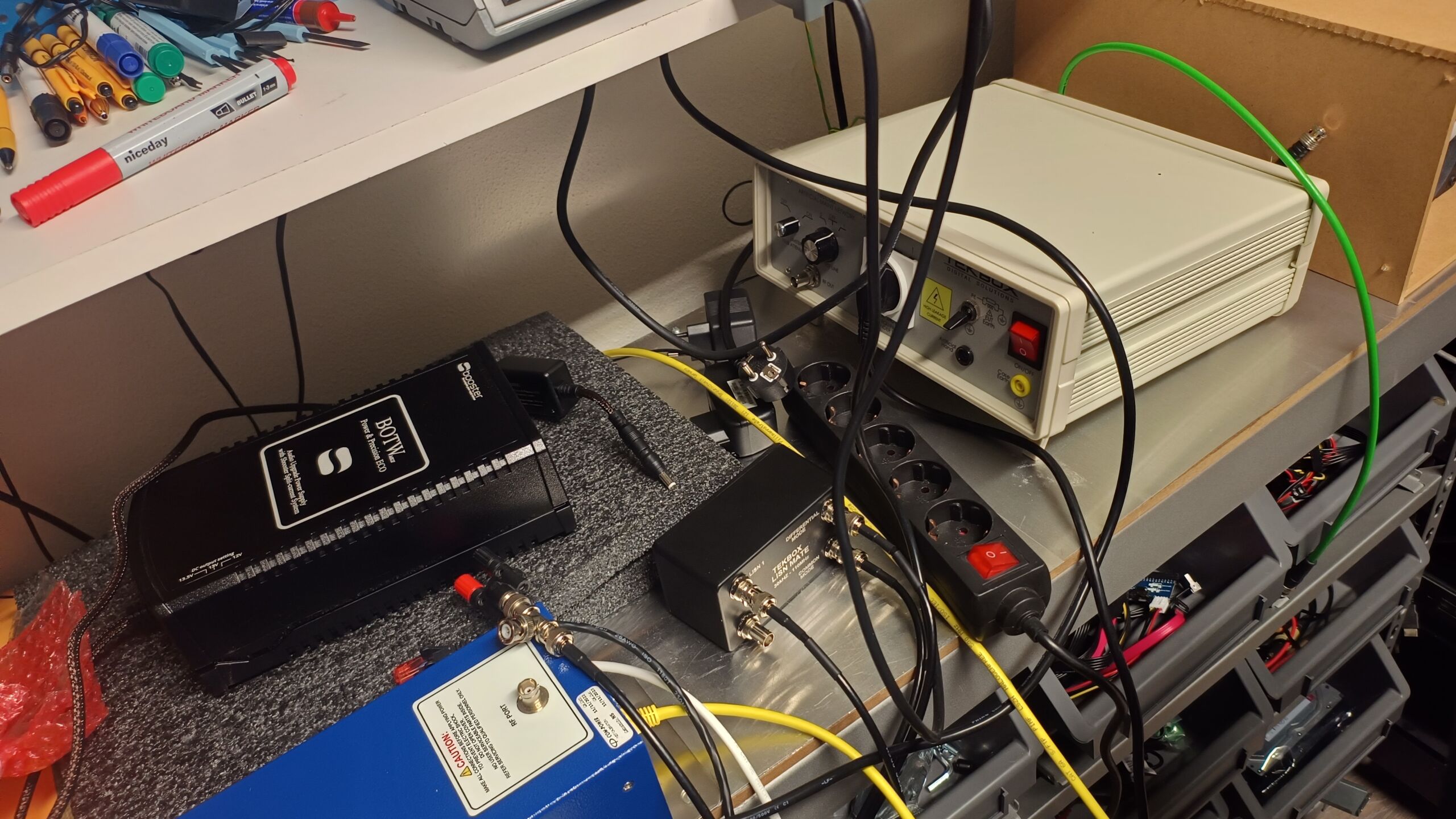

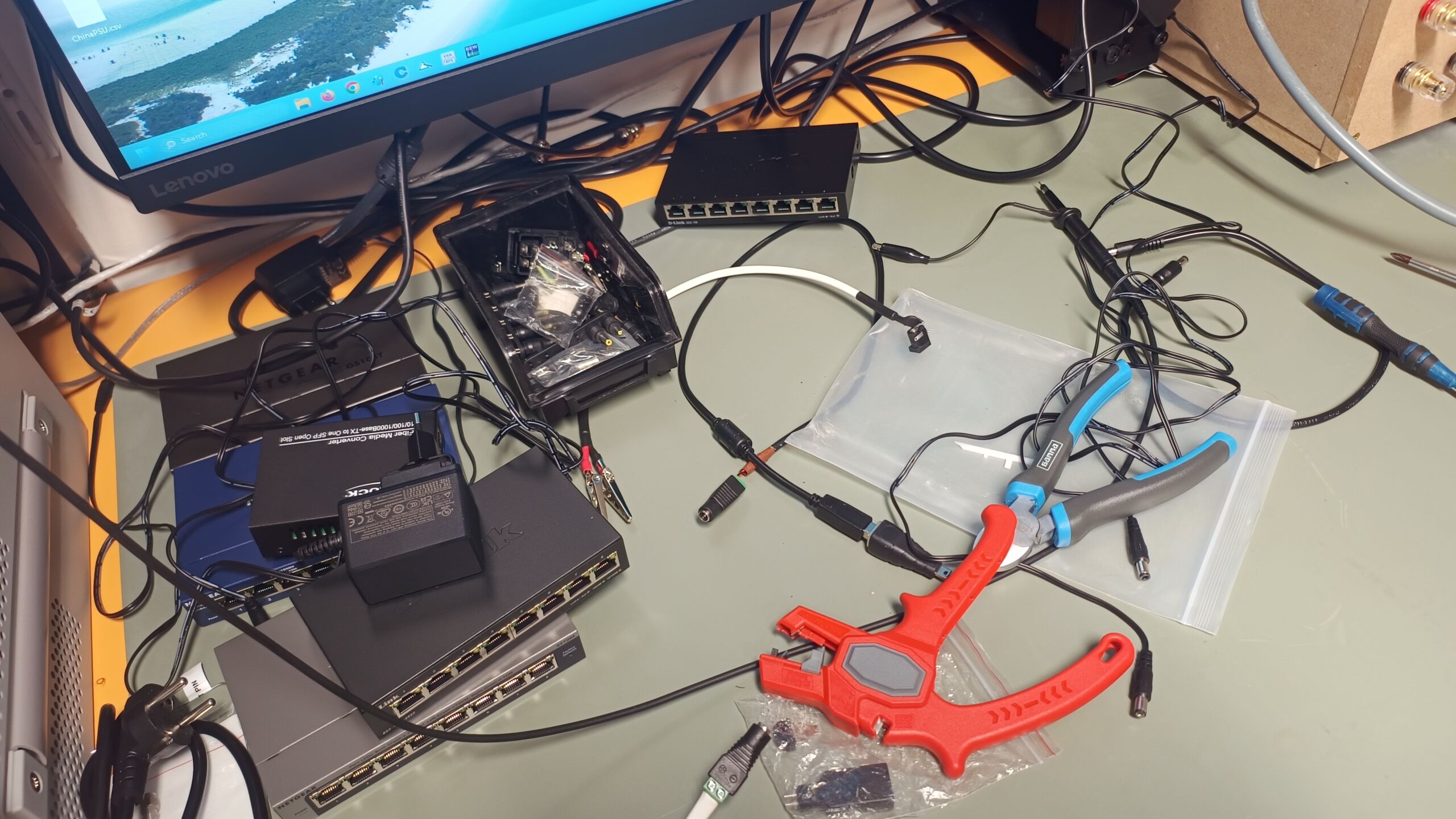

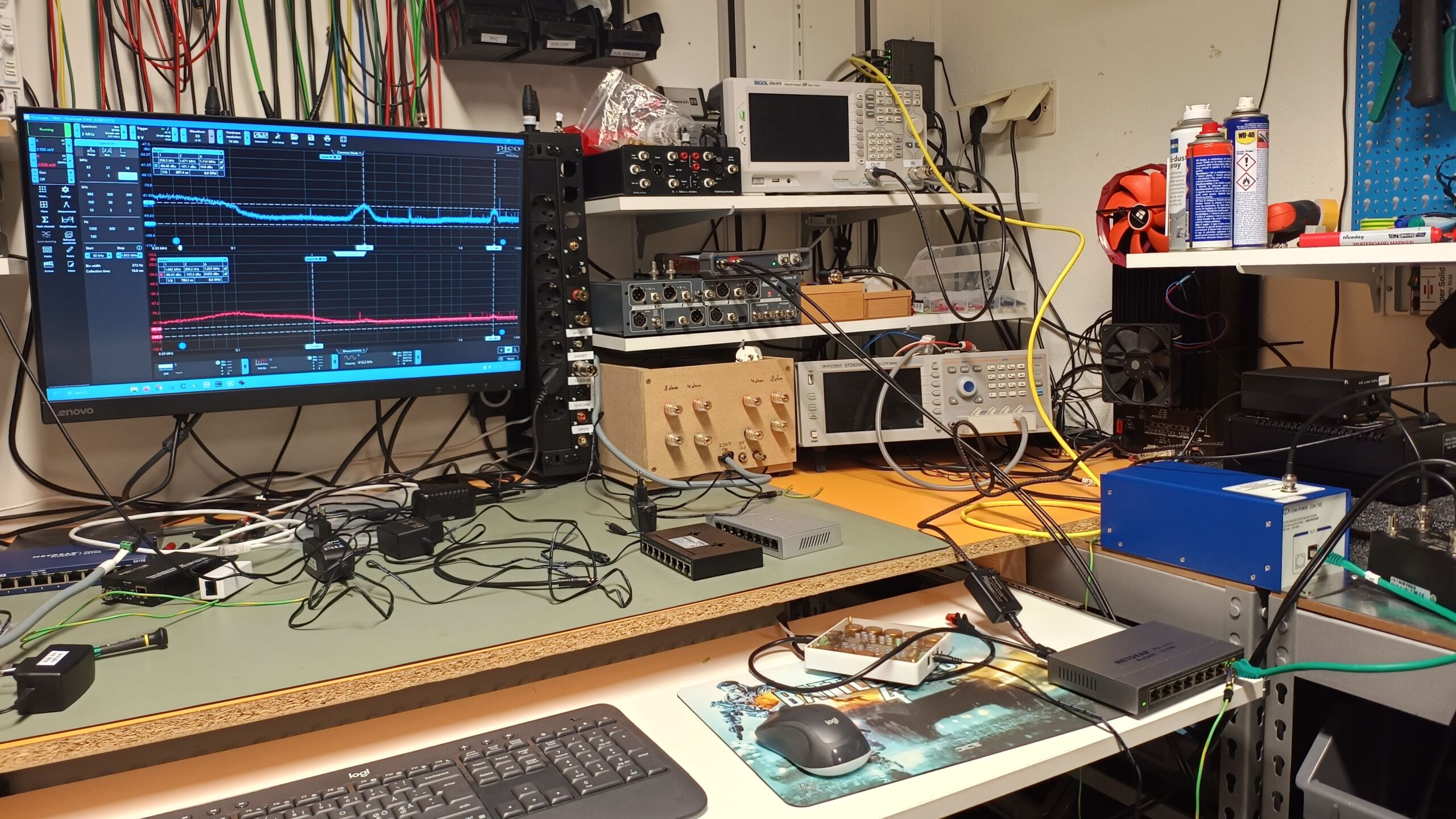

We are using the following equipment to perform the measurements:
- Aeroflex PN9000 with Axtal 100 MHz reference: phase noise / Allan Variance
- Prism dScope III
- Tekbox LISN
- Tekbox Common mode / differential mode splitter
- Picoscope 5000
- CDN-T8 network isolator
- Rigol 815 spectrum analyzer
- Rigol Electronic DC-Load
- Variable / sliding resistor (for a clean 1A ‘load’ on the adapters)

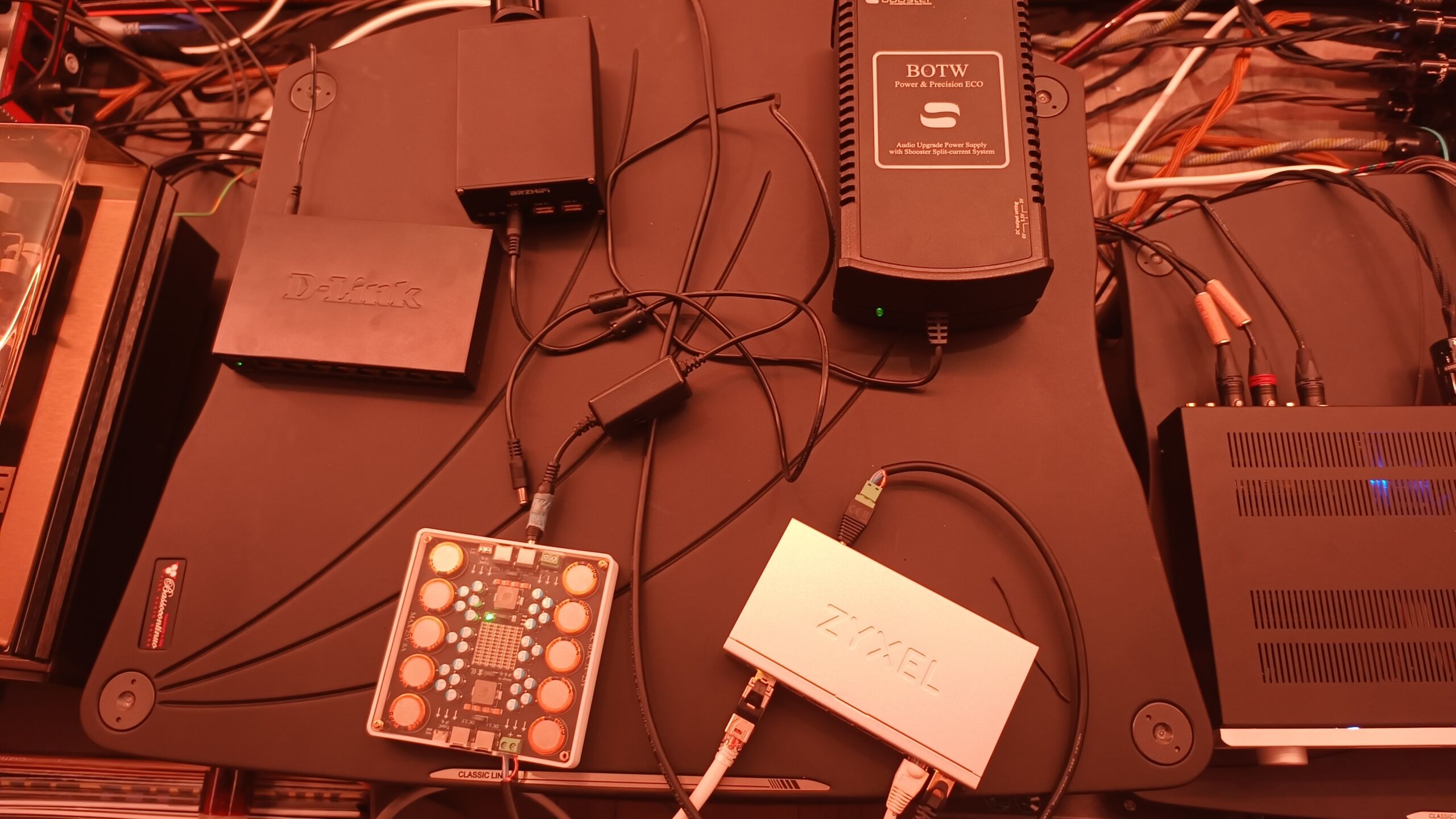

Test candidates
- Netgear GS108(E)
- Dlink 108 V3 and V4
- Dlink 1100
- Zyxel 1200-08
- IFI iPower 12V
- Lineair power supply from AliExpress
- Sbooster BOTW 5V
Let’s start looking at the results.
