Home Review Primare i35 with DM36 dac board

Review Primare i35 with DM36 dac board

7

Pros

  • Sounds nice
  • Fine balance
  • Lots of connectivity
  • Nicely built

Cons

  • App could be better
  • AES or BNC in for DAC

Price: € 4999

Build quality
Usability
App
Sound
Price
Alpha-Audio Approved
Primare i35

Intro

We have had the i35 with DM36 from Primare for a while now. A very nice all-rounder that competes with the NAD M33 and, for example, the Hegel H390. Both also very nice performing products. Let’s see if Primare has the punch and power to offer some resistance!

The Primare i35 is not in itself a new amplifier. The DM36 dac board, however, is. But it would be a bit weird and boring to write only about the dac board. So we are going to treat it as a “full package” with the Prisma streaming module.

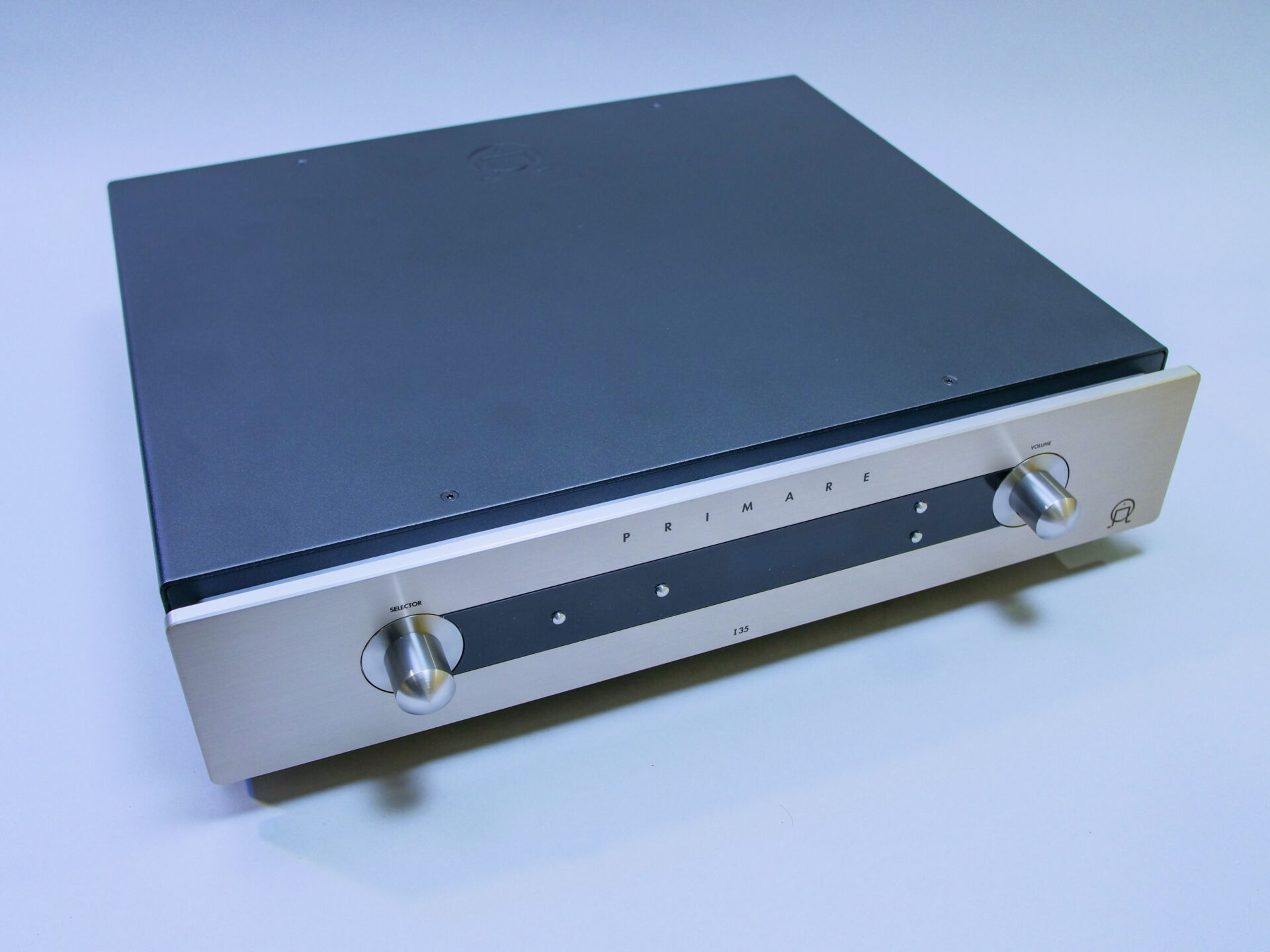

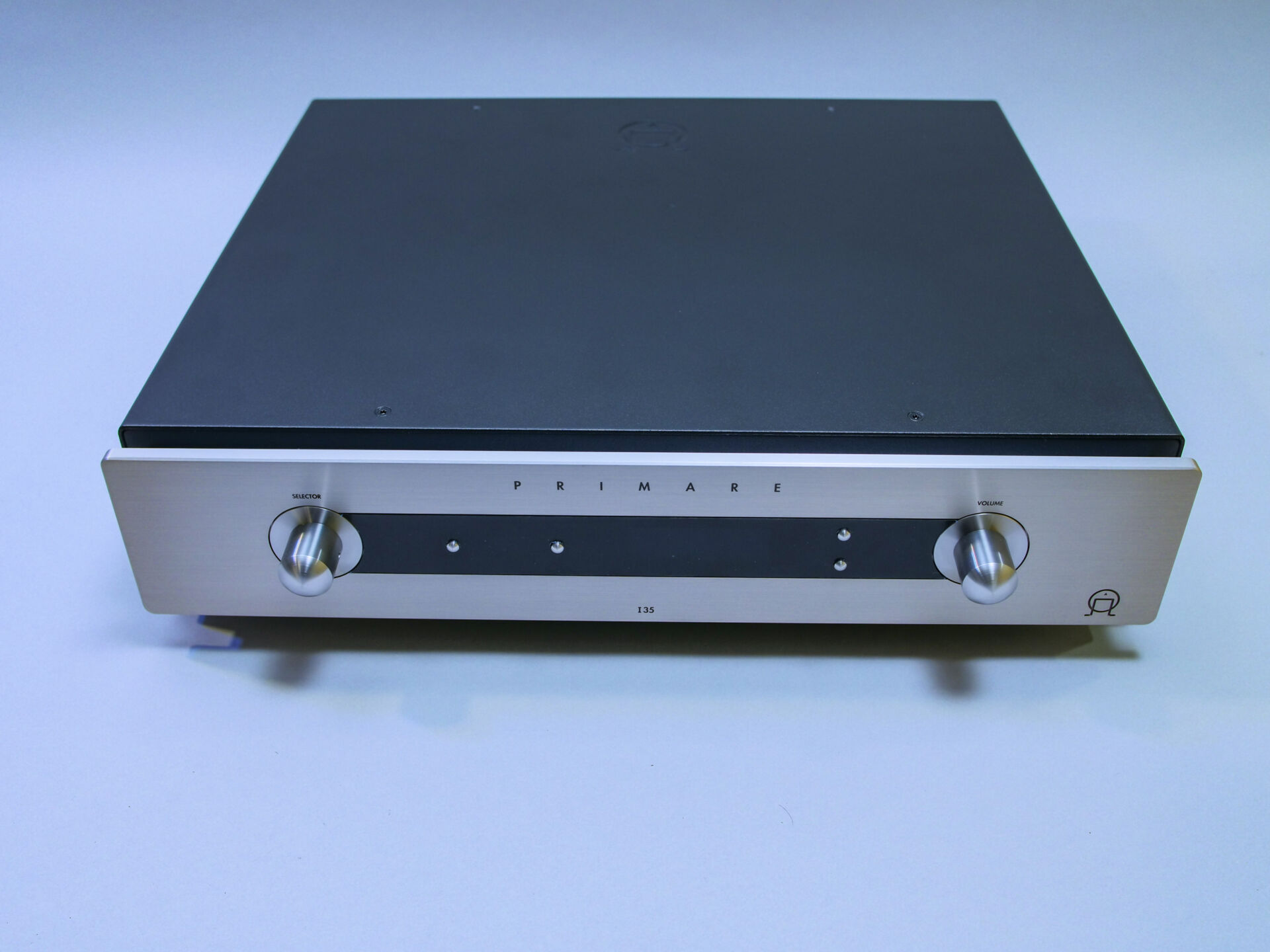

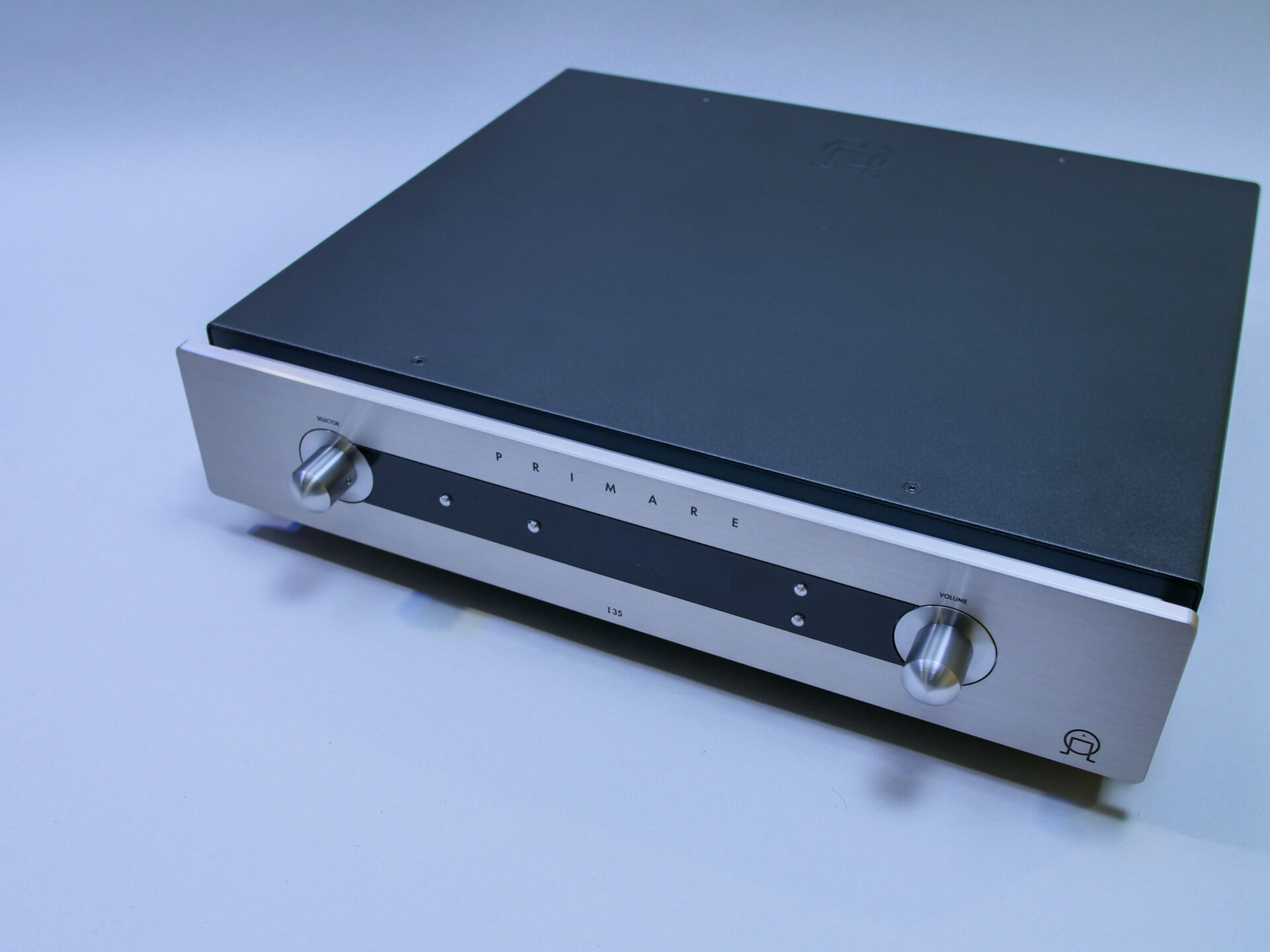

Primare i35

The Primare i35 with prism and DM36 module is an all-in-one solution. A “Just Add Speakers” product. But with a Swedish slant. The appearance is sleek and stylish. Without countless frills. Lagom, Primare calls it.

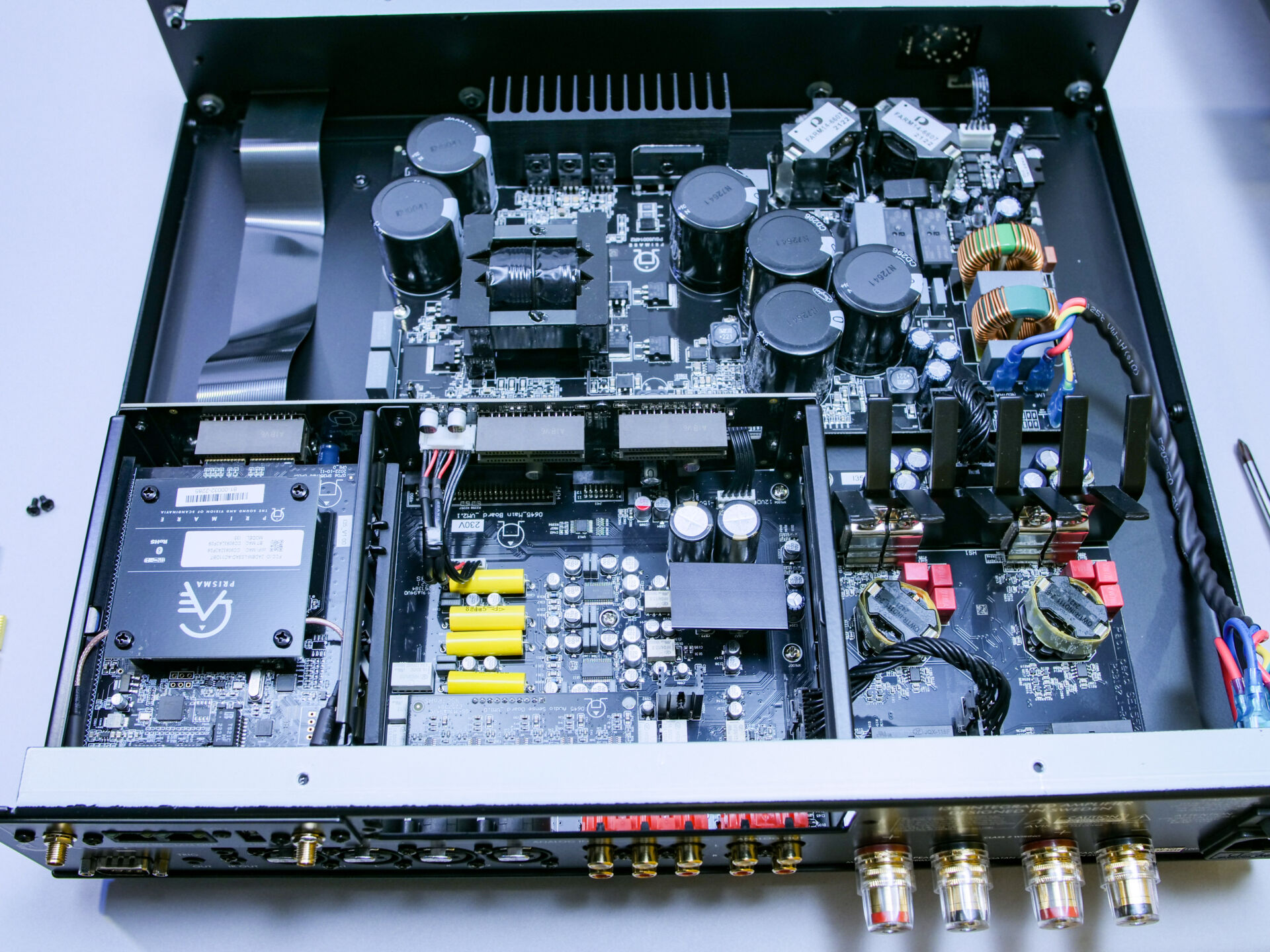

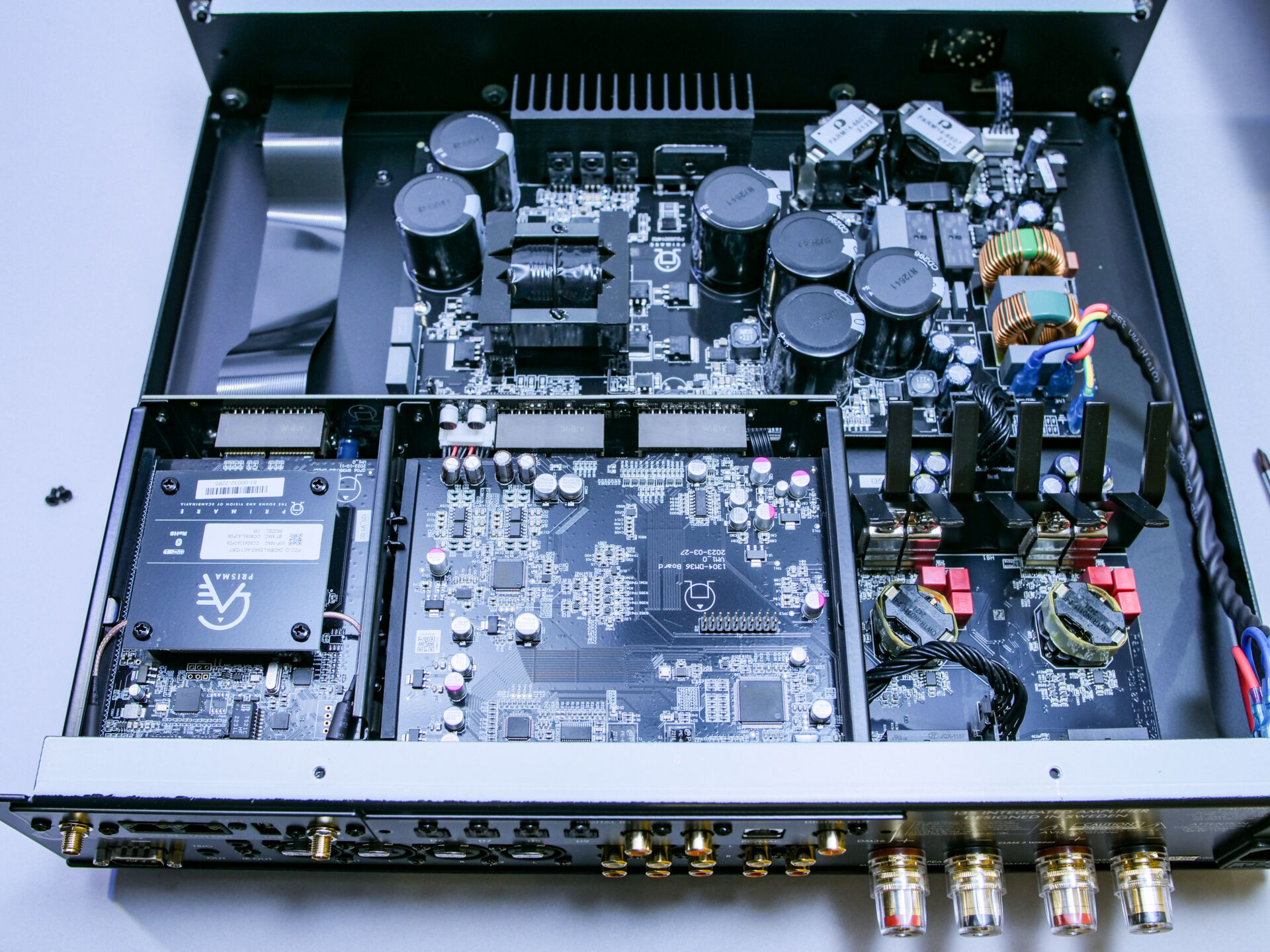

Under the hood, however, is a lot of technology. Think of the UPFD-2 amplifier technogy. That’s Class D but from Primare itself. With two times 150 watts into 8 Ohms and 2 x 300 watts into 4 Ohms, everyone has enough power. The powerful power supply provides the necessary control and flow. How it sounds we’ll tell you later.

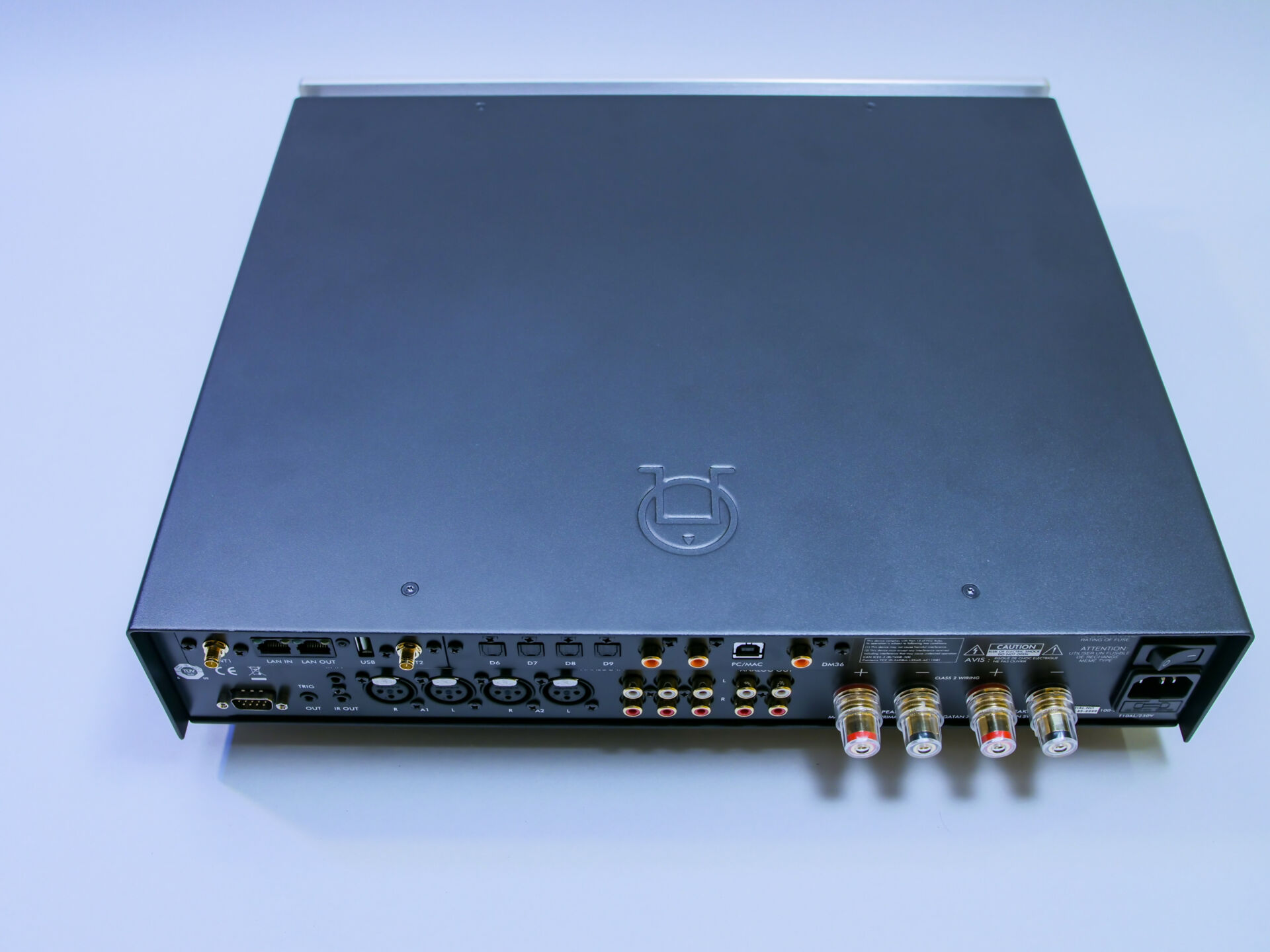

No shortage of inputs: two times XLR, three times RCA, line out and pre-out. And of course stereo out to the speakers. And yes… those are only the analog inputs.

Then there is the Prisma module with Ethernet, wifi and usb. And the dac module: four optical, two coaxial, USB and another digital out. And before we forget: RS232 for home-automation.

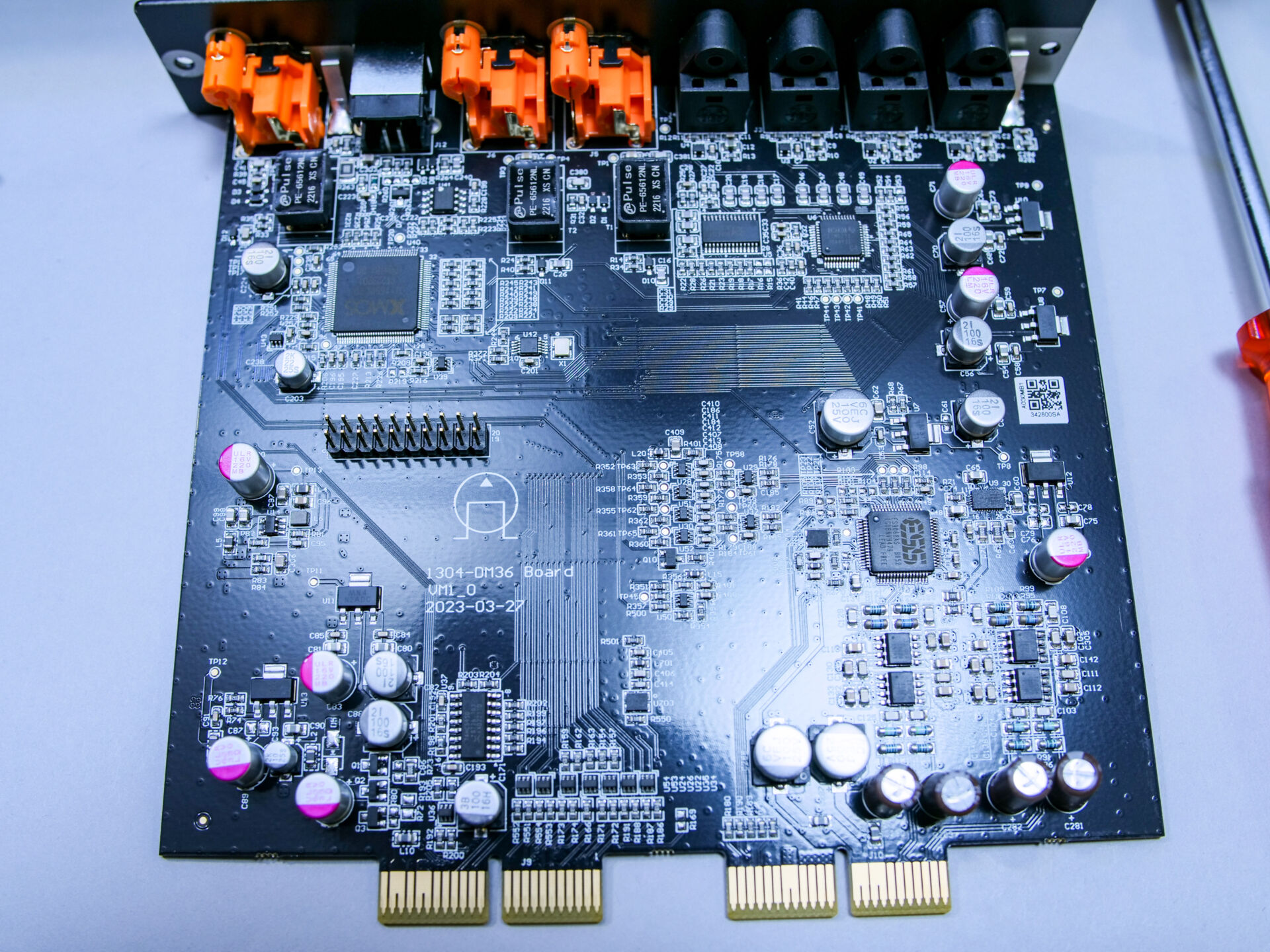

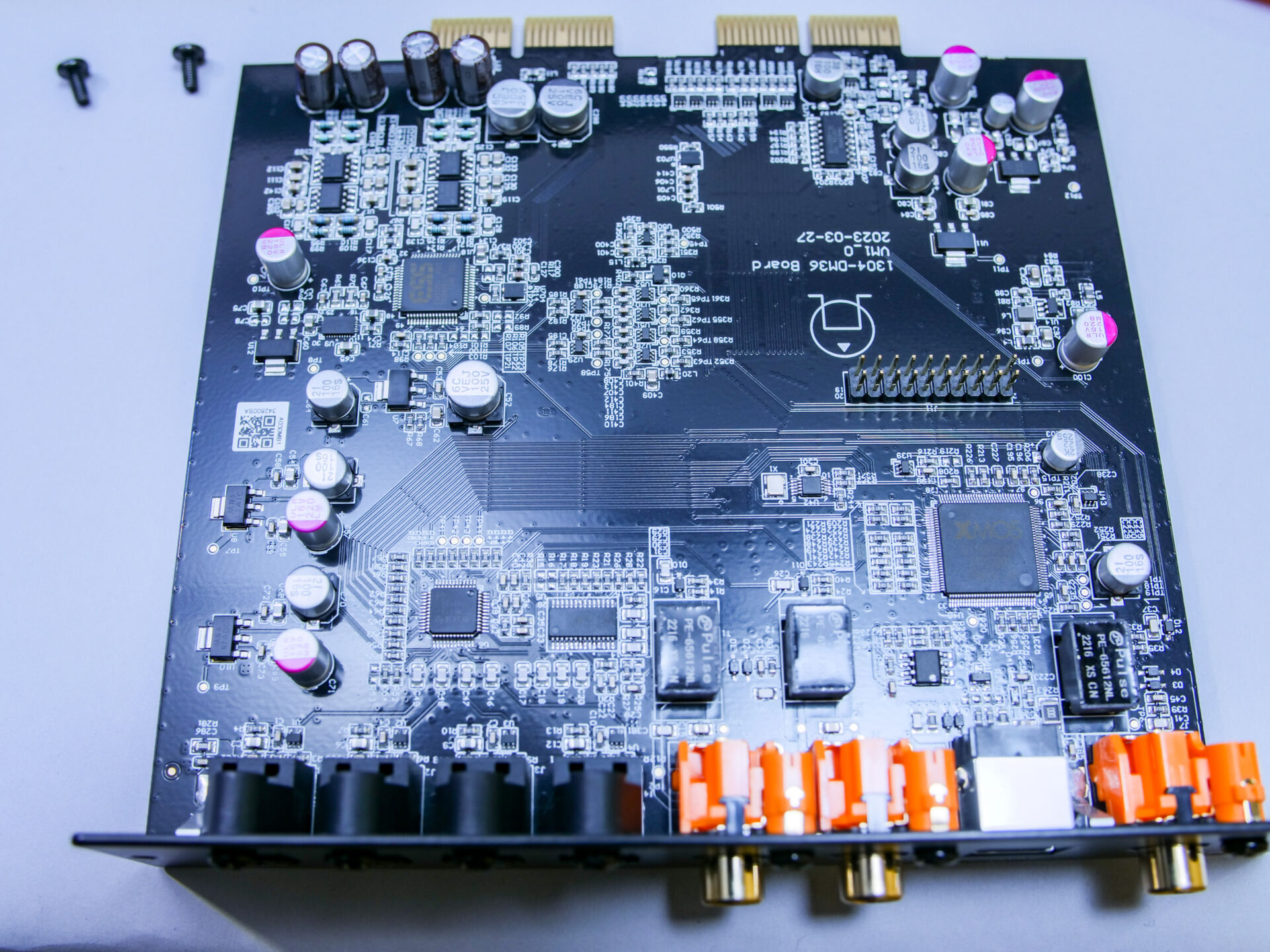

DM36 DAC

The new DM36 DAC has one big difference: Primare has gone from an AKM dac-chip to an ESS Sabre. Now, honestly: we are fans of AKM. So at first glance, this is not a positive development. However, it’s not just any ESS chip; it’s the 9068AS. And that’s a serious piece of technology. The dac can process signals up to 32 bit, can handle native MQA (if you care about that) and has a particularly low noise floor, so a dynamic range of 126dBA should be achievable. That’s not 32 bit, by the way, but still not bad!

The DAC board can be installed in several Primare products. We tested it in the i35. What we really like is that customers can easily upgrade their beautiful Primare products. If only more manufacturers would do that! It pevents a lot of e-waste, and it prevents a huge, unnecesary investment. Not everyone can and not everyone wants to buy a new amp to get a new dac. And that makes sense: digital technology ages much faster than analog technology… In short: it is not always necessary to buy a completely new device!

Type test
Single Test
Inputs
  • Digital Coaxial
  • Digital Optical
Outputs
  • Digital Coaxial
Product type
D/A-converter
Max samplingrate
384 kHz
Max bit depth
24 bit
Dimensions
    Production country
    Sweden
    Amplifier type
    Integrated
    Amplifier technology
    Class D
    Bridgemode
    No
    Amplifier inputs
    • Analog RCA
    • Analog XLR
    • Digital Coaxial
    • Digital Optical
    • Digital USB
    • Streamer Ethernet
    • Streamer wifi
    Amplifier outputs
    • Analog RCA
    Power
    Specification #1
    • Resistance: 8 ohm
    • Value specified: 150 watt
    • Value measured: 170 watt
    Specification #2
    • Resistance: 4 ohm
    • Value specified: 300 watt
    • Value measured: 306 watt
    Dimensions
    • Width: 43 cm
    • Depth: 42 cm
    • Height: 11 cm
    Weight amplifier
    11 Kg
    Build in dac
    Yes
    Production country
    Sweden
    Sound Samples
    Measurements
    Primare DM36 dac board - line out - Lineairity
    Primare DM36 dac board - line out - Lineairity
    Primare DM36 dac board - line out - Jtest
    Primare DM36 dac board - line out - Jtest
    Primare DM36 dac board - line out - interference
    Primare DM36 dac board - line out - interference
    Primare DM36 dac board - line out - imaging 44 kHz
    Primare DM36 dac board - line out - imaging 44 kHz
    Primare DM36 dac board - line out - Dynamic range
    Primare DM36 dac board - line out - Dynamic range
    Primare DM36 dac board - line out - THD
    Primare DM36 dac board - line out - THD
    Primare DM36 dac board - line out - Crosstalk
    Primare DM36 dac board - line out - Crosstalk
    Primare i35 - 1 watt - response and phase
    Primare i35 - 1 watt - response and phase
    Primare i35 - 1 watt - max power - 8 Ohm
    Primare i35 - 1 watt - max power - 8 Ohm
    Primare i35 - 1 watt - residu
    Primare i35 - 1 watt - residu
    Primare i35 - 1 watt - max power - 4 Ohm
    Primare i35 - 1 watt - max power - 4 Ohm
    Primare i35 - 1 watt - distortion
    Primare i35 - 1 watt - distortion
    Primare i35 - 1 watt - crosstalk
    Primare i35 - 1 watt - crosstalk
    Primare i35 - 1 watt - 8 Ohm
    Primare i35 - 1 watt - 8 Ohm
    Primare i35 - PSU noise
    Primare i35 - PSU noise
