It continues to fascinate us that a data network affects the performance of a hi-fi system. Changing a switch, the power supply on a switch or even adding a network filter can be a significant dot on the ‘i’. In this article, we present our latest measurements and insights.

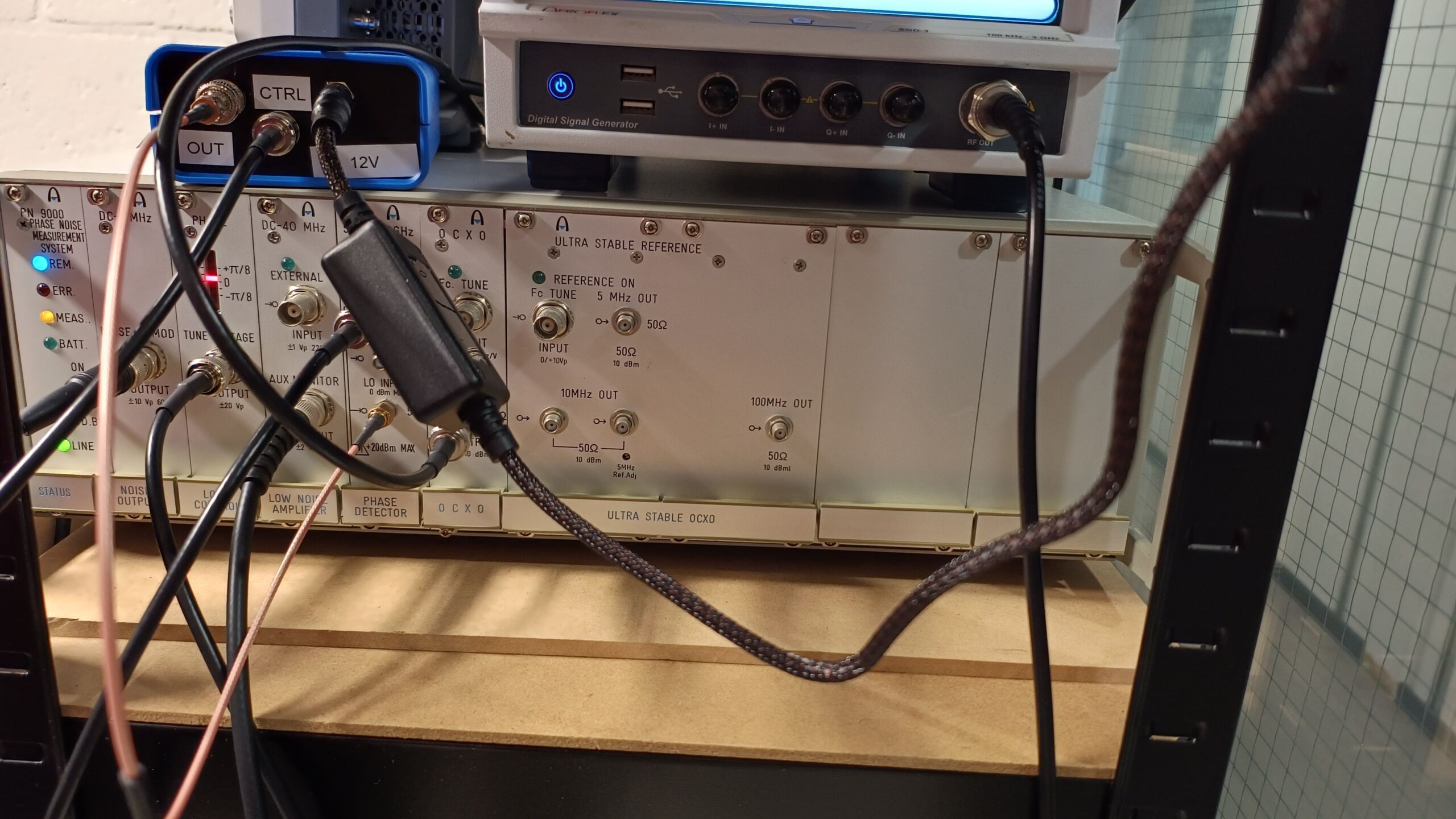

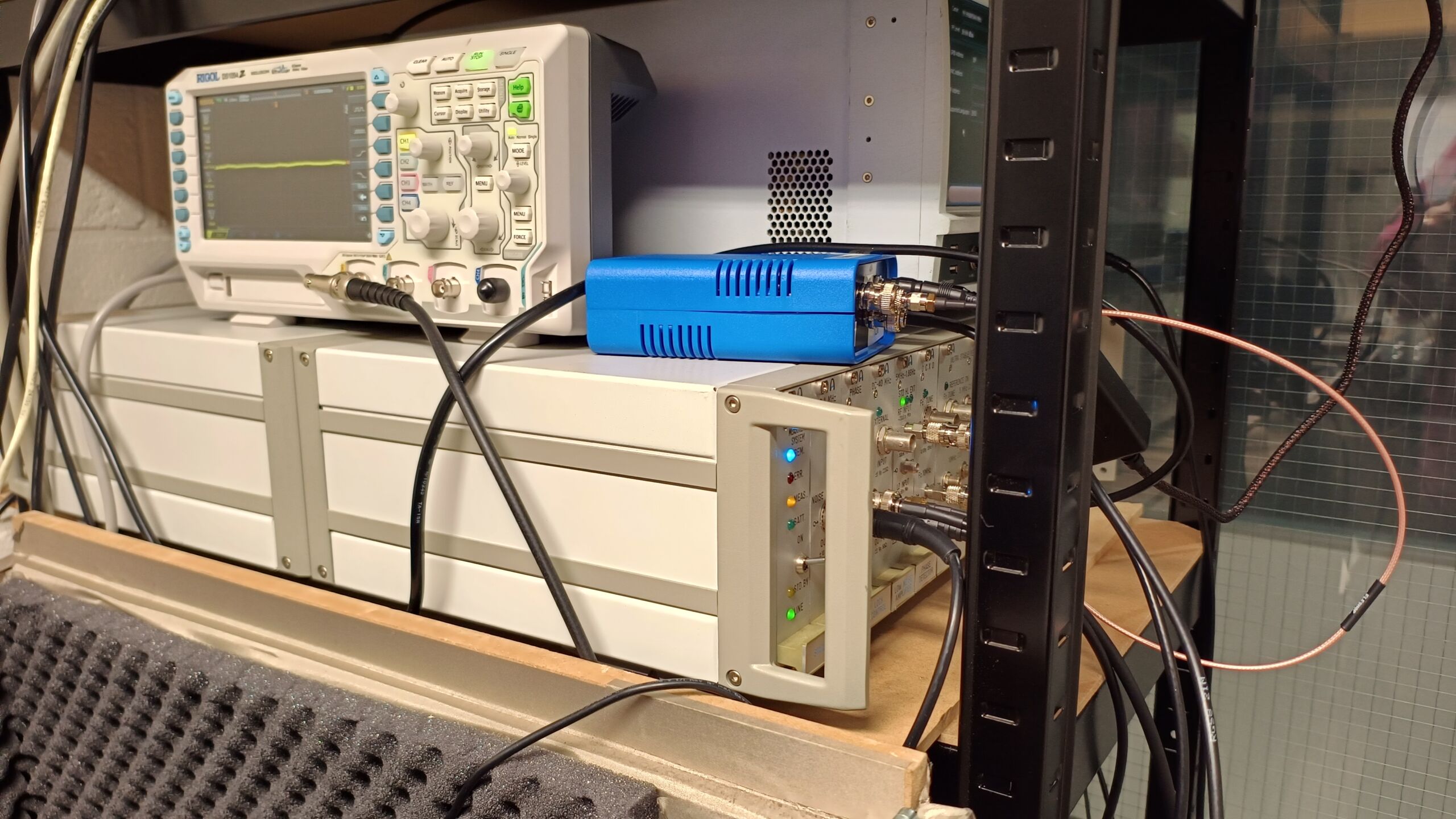

Regular readers know that we have had a nice Aeroflex PN9000 in our lab for a while now. We bought a few high-quality reference crystals for this device that can measure phase noise very precisely, including a 100 MHz model from Axtal. Mutec provided us with a custom model of the REF10-120. In addition, we have models of 25 MHz, 20 MHz and a low phase noise generator from Aeroflex for other measurements.
The measurement setup
For this little study, we took out the Volumio Primo again and placed it in the RF-shielded measurement box. We used the Volumio’s standard power supply. On the 100 MHz crystal we placed an active probe. This probe sends the clock signal to the Aeroflex. As a reference, we connected the Axtal 100 MHz crystal.

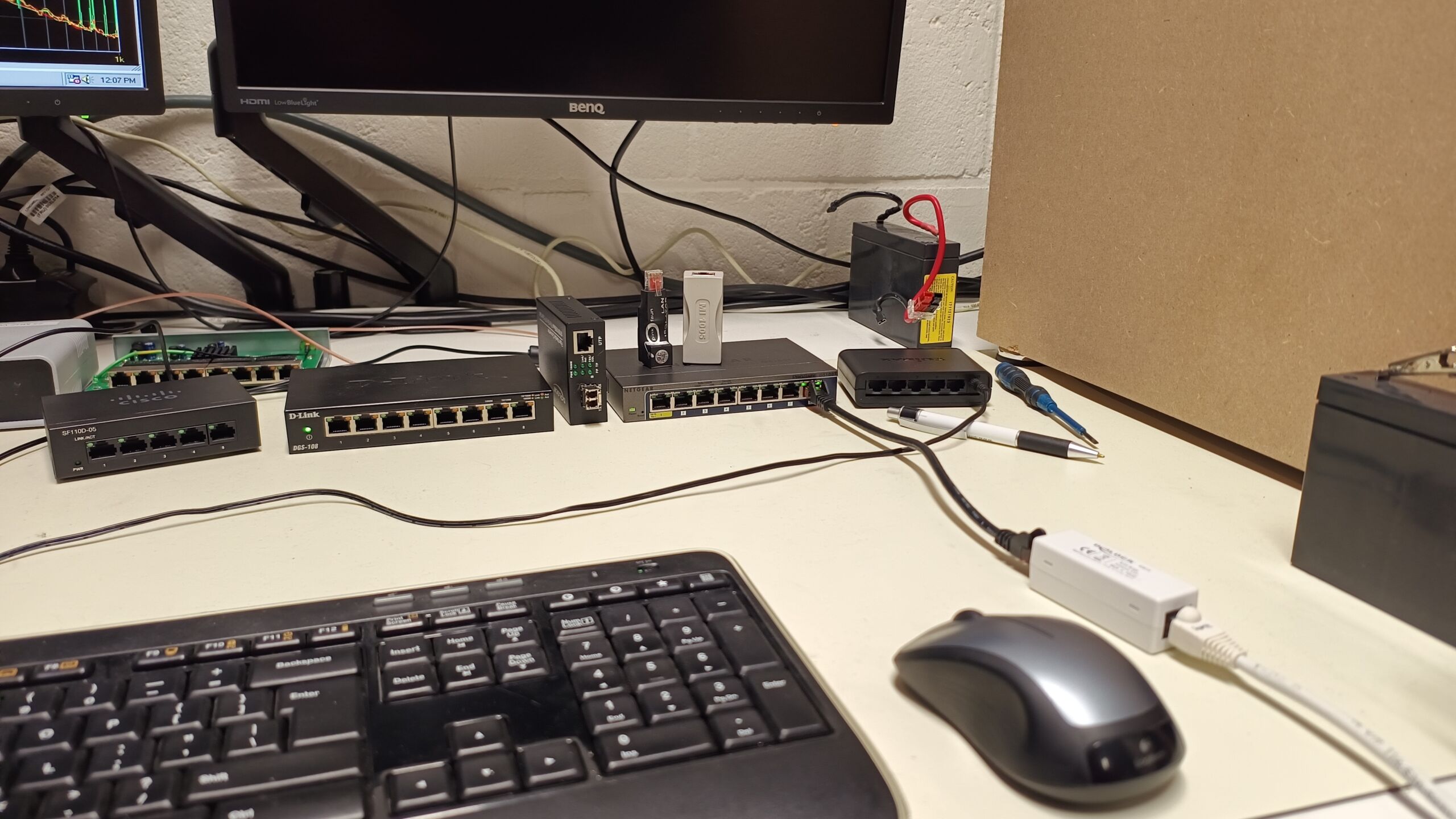

For this investigation, we grabbed a couple of switches:
- Netgear 108T
- Dlink GS108
- Cisco SF110D-05
- Delock Fiber converter
We also threw a couple of network filters into the mix, as well as a power supply from IFI (12V) and Sbooster (5V). This to get some insight in to what this does to the performance.
Phase Noise
The Aeroflex PN9000 primarily makes phase noise measurements. From these phase noise measurements, the Aeroflex software can also calculate jitter. The difference is that phase noise is measured in the frequency domain and jitter is measured in the time domain. So you could say that phase noise indicates how pure a frequency is and jitter indicates how stable the frequency is in the time domain.
Now it would be very crazy if the above measurements were very extremely different. However, we do see differences in noise. And that is in line with what we had expected, and what we hear…. we are talking about subtle differences; but they are audible.

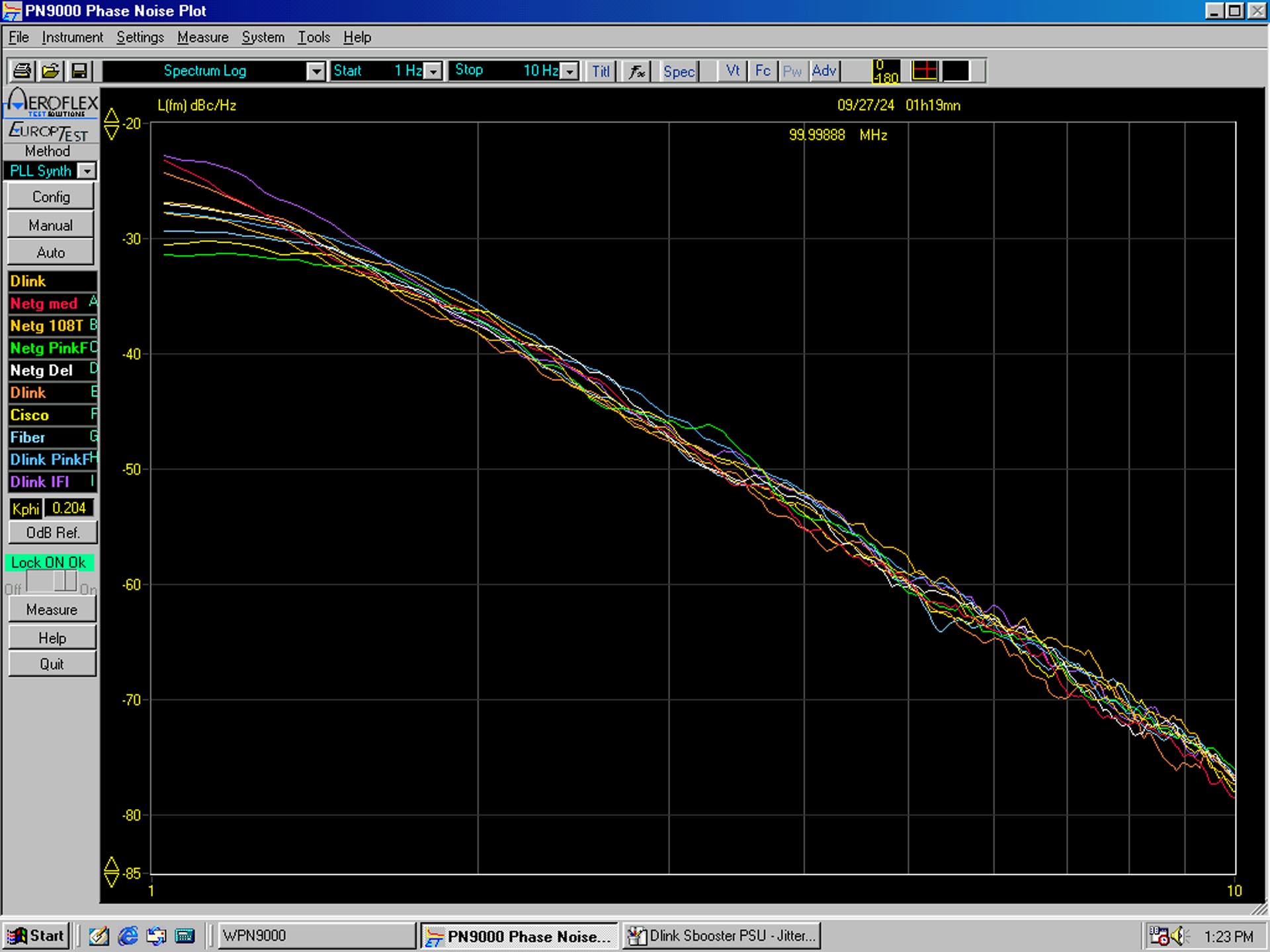

The difference at 1 Hz (offset from the 100 MHz carrier wave) is quite large: there the Netgear with IFI power supply and Pink Faun filter scores around -33dBc/Hz. The Dlink with IFI power supply and Pink Faun filter scores -25dBc/Hz there. That’s a hefty difference of 8dBc/Hz.

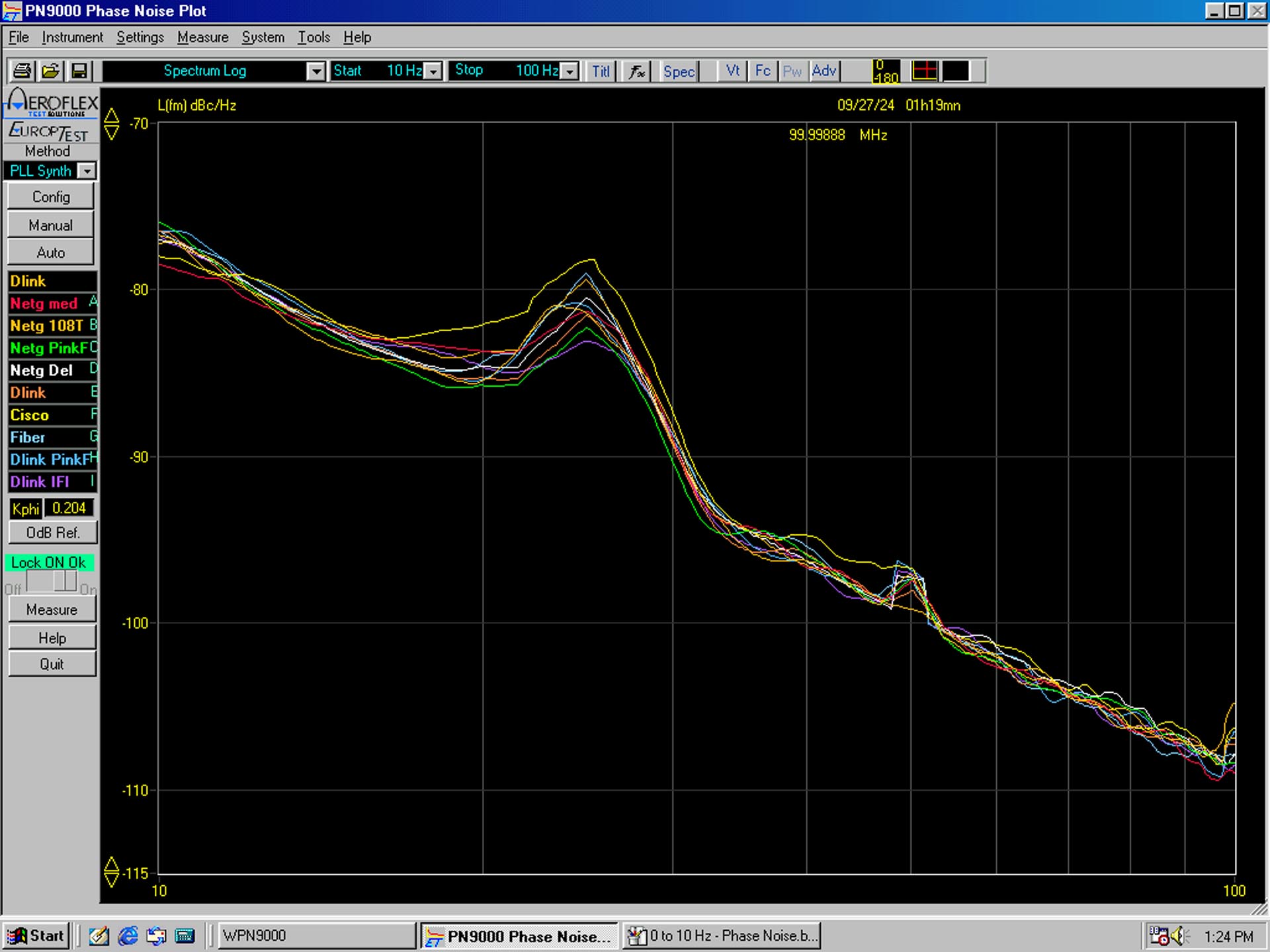

In the 10Hz to 100Hz section, we see that the Cisco is well above the rest (higher noise). Even there, the difference between the best and the worst is still more than 5dBc/Hz. This can also be called significant.

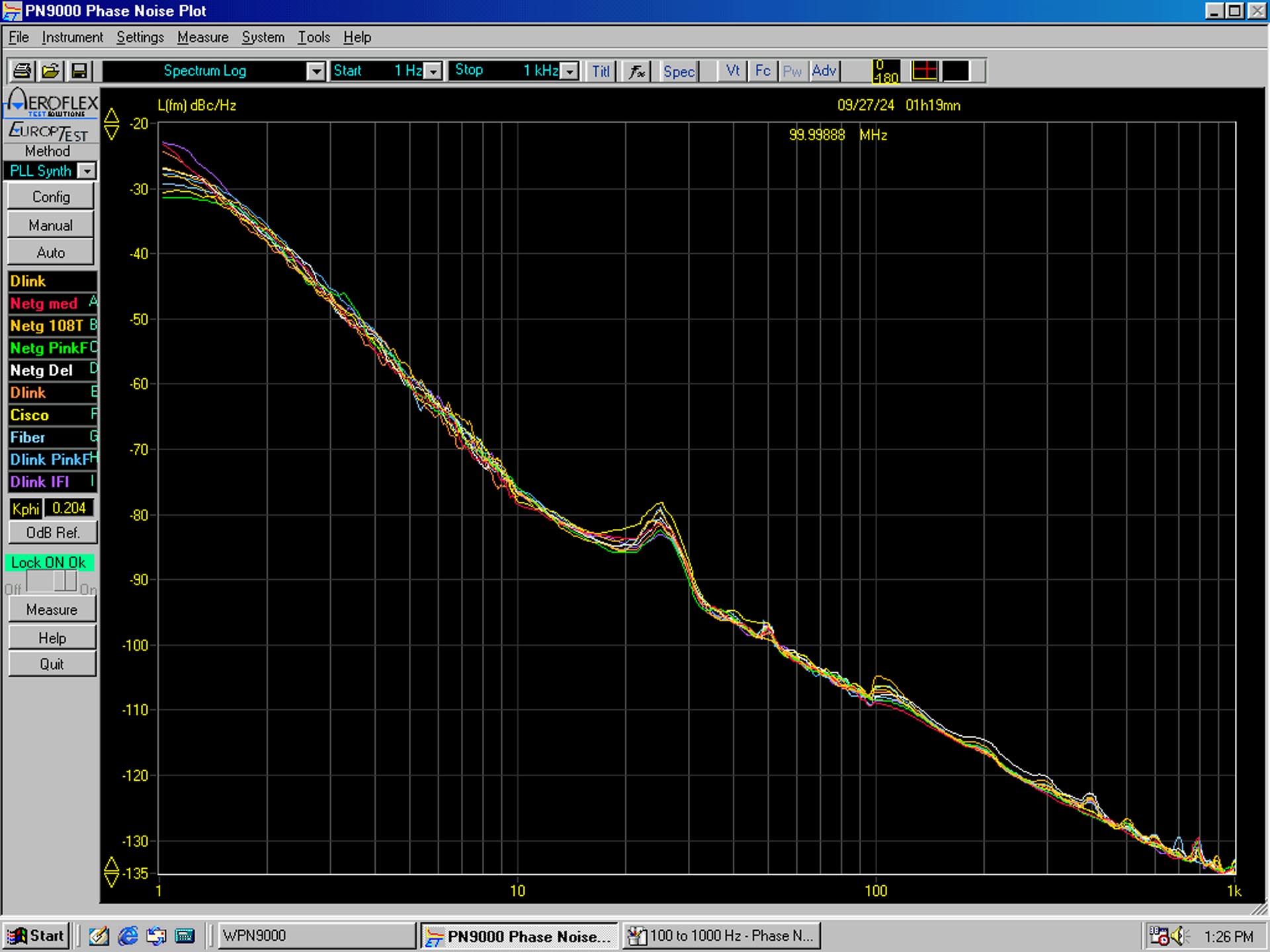

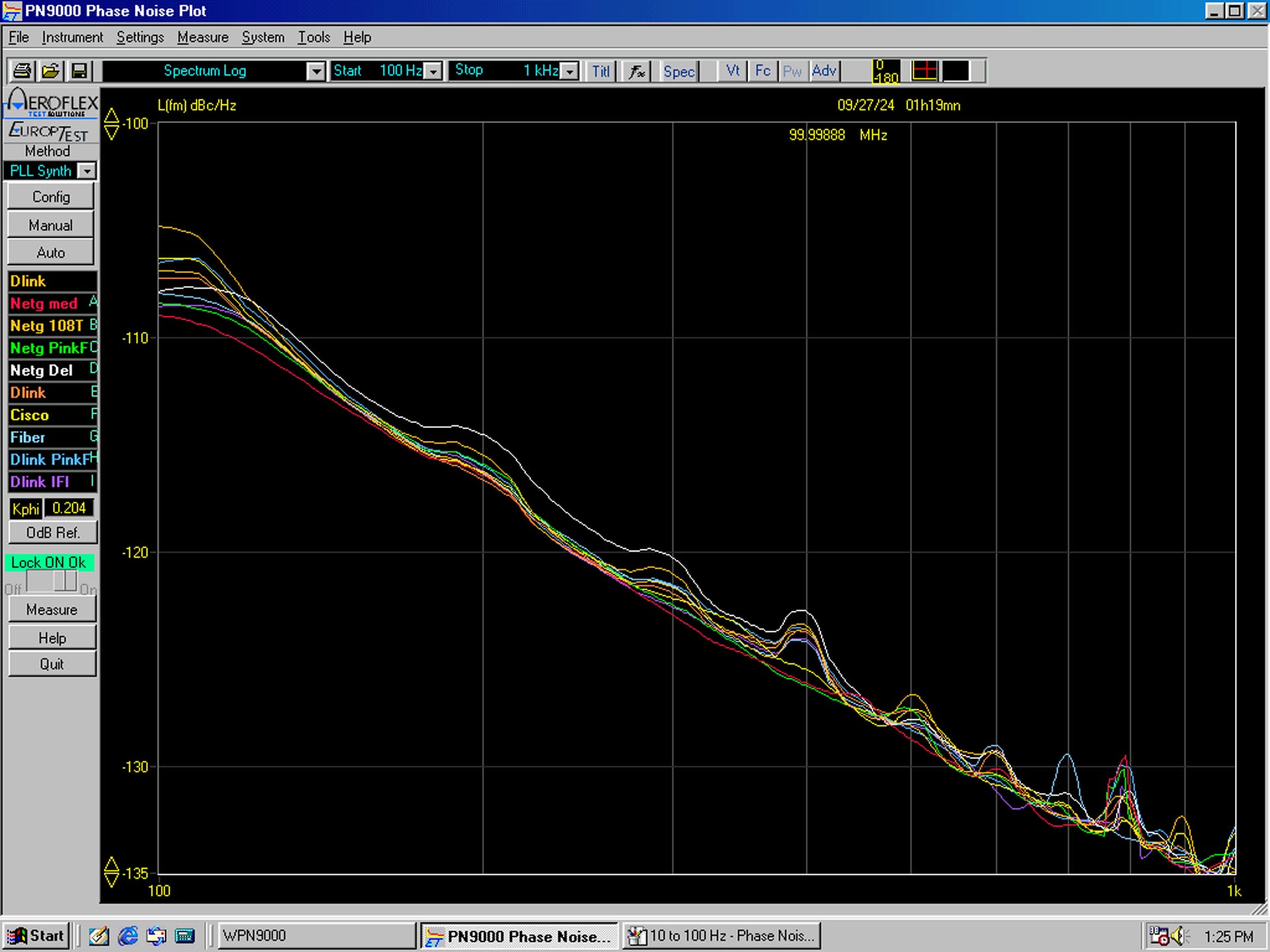

Finally, 100 to 1000 Hz. There we see especially a big difference between plots that give bumps and plots that stay straight. The Netgear with Delock filter swings significantly. The Netgear with Medical grade filter stays pretty straight. As does the Netgear with Pink Faun filter.
Jitter

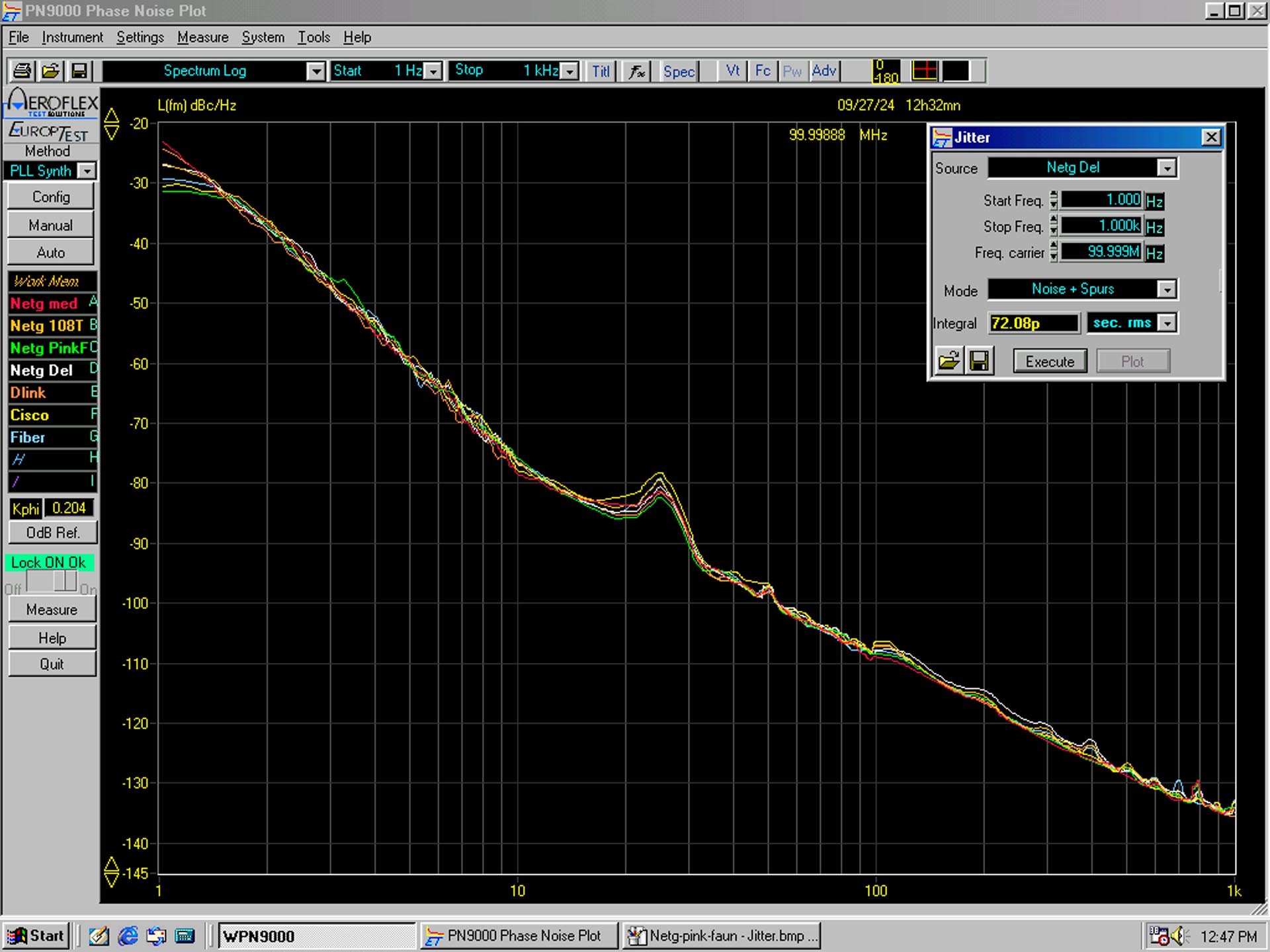

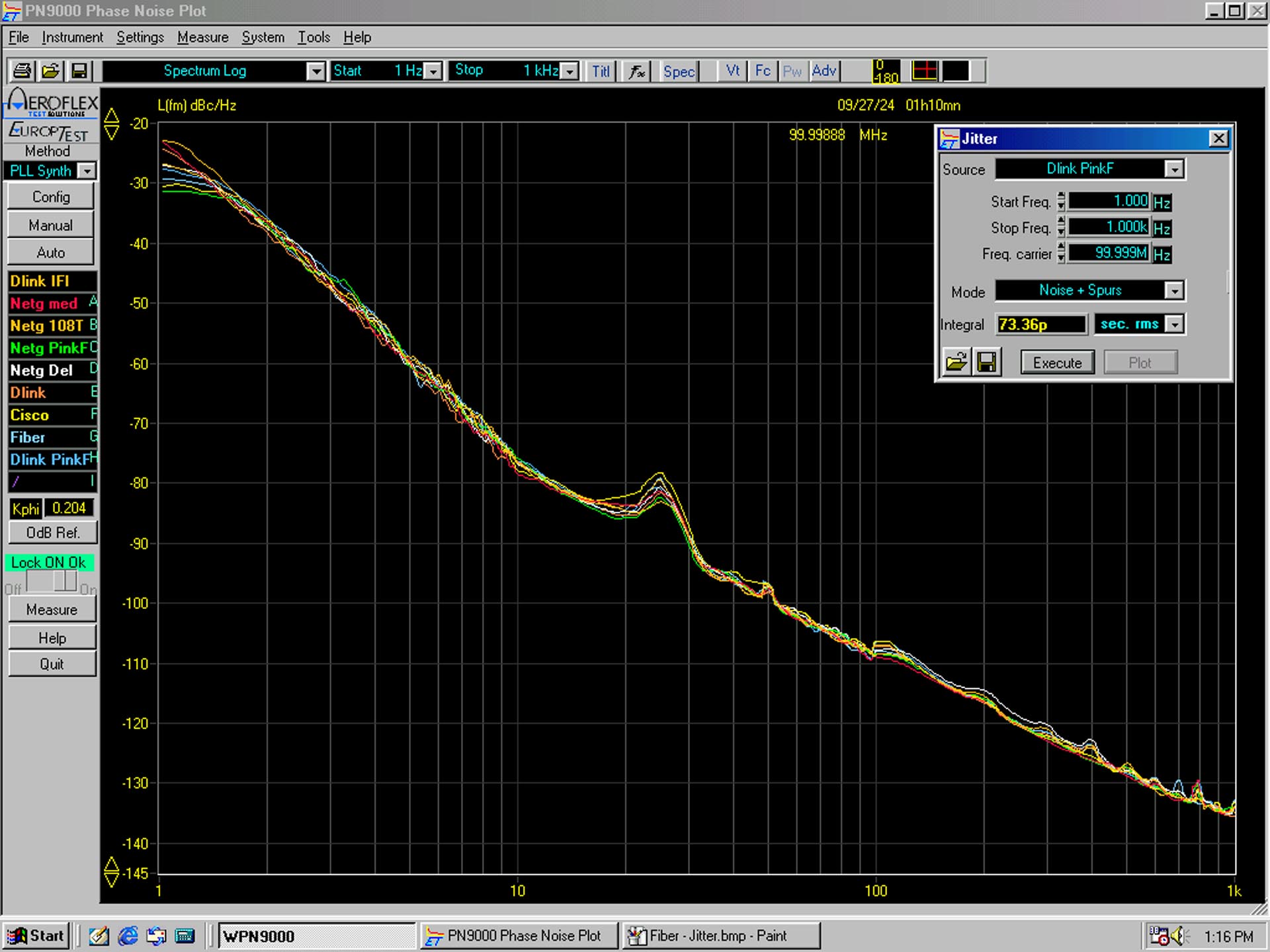

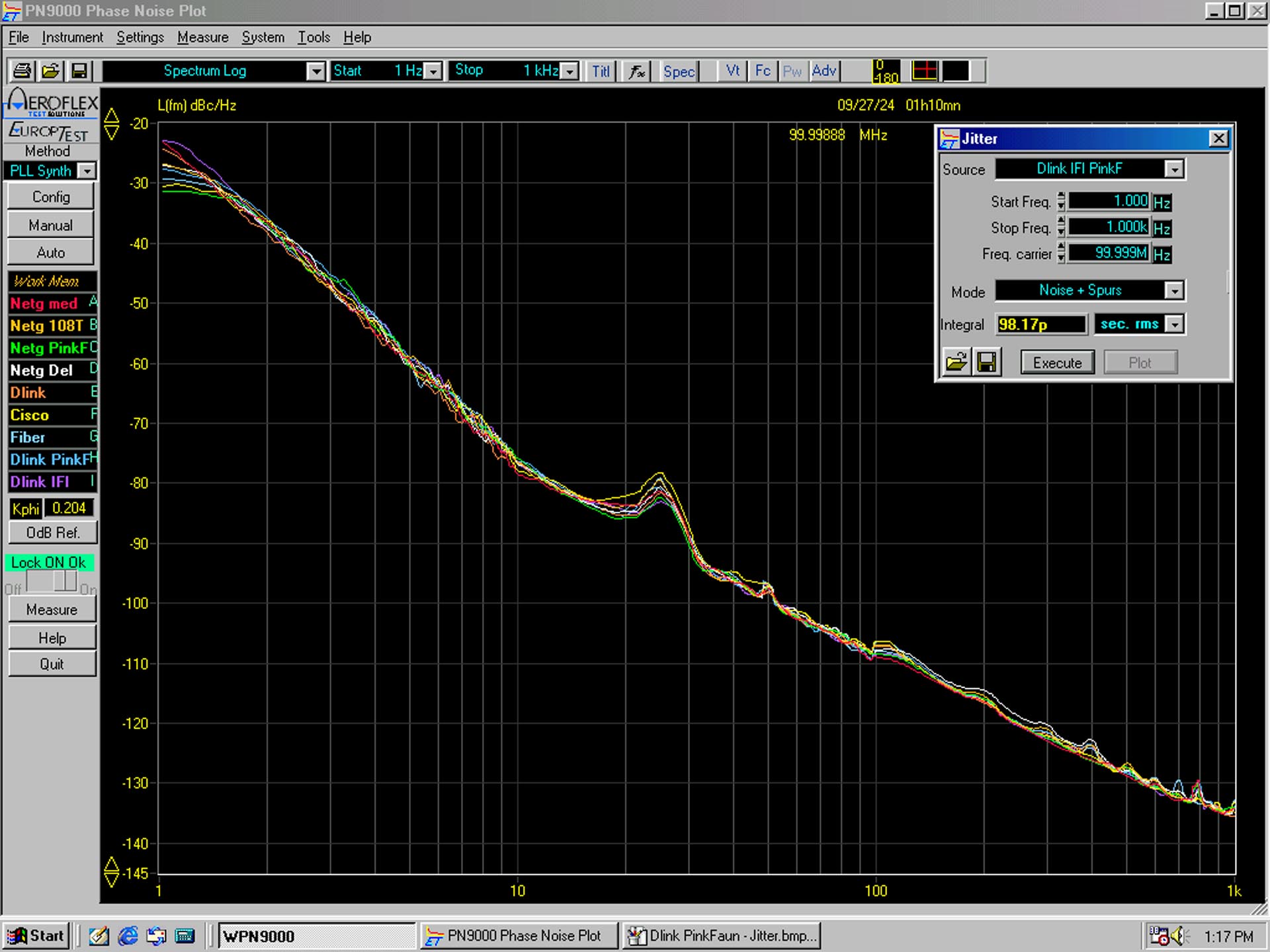

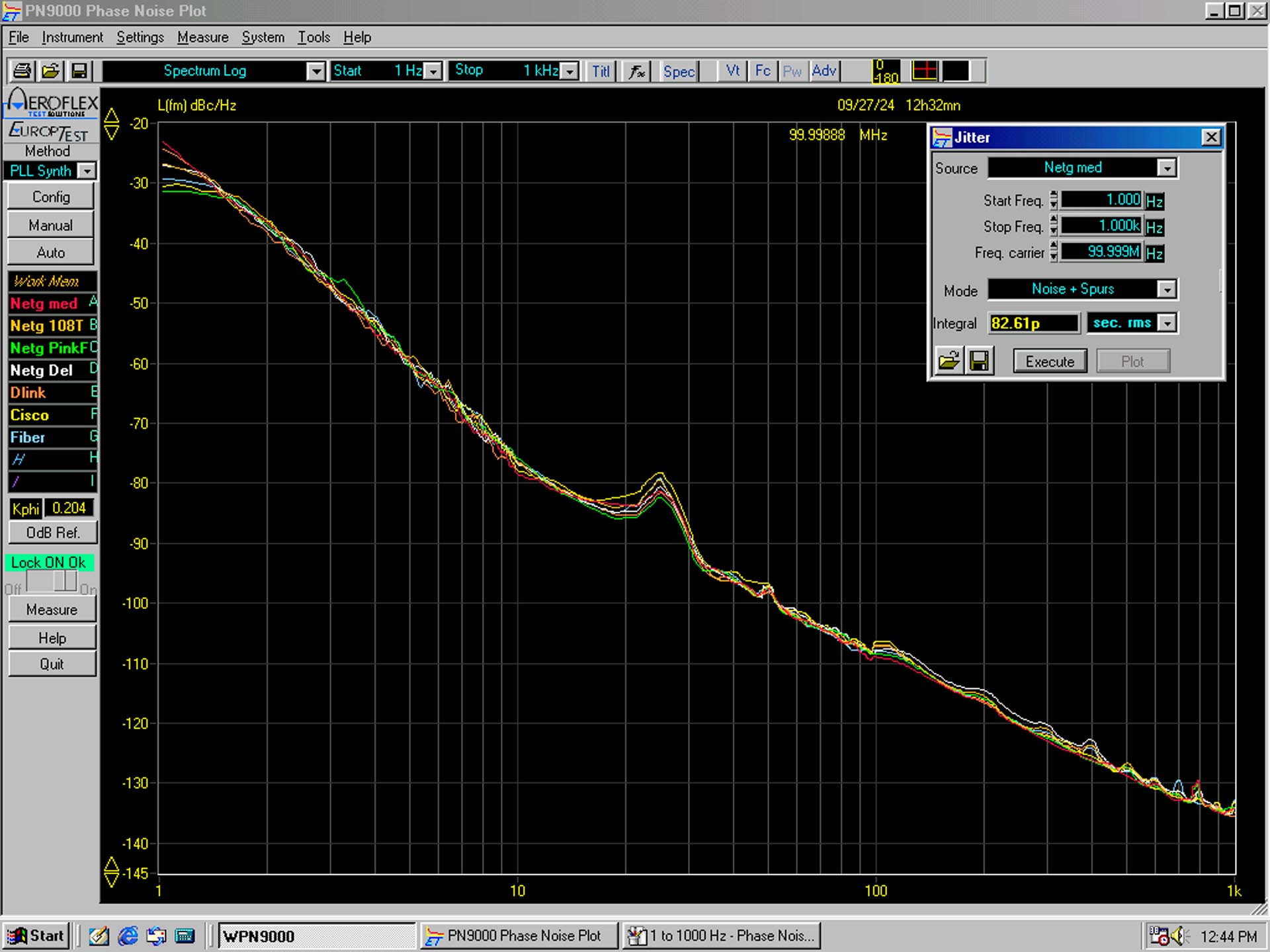

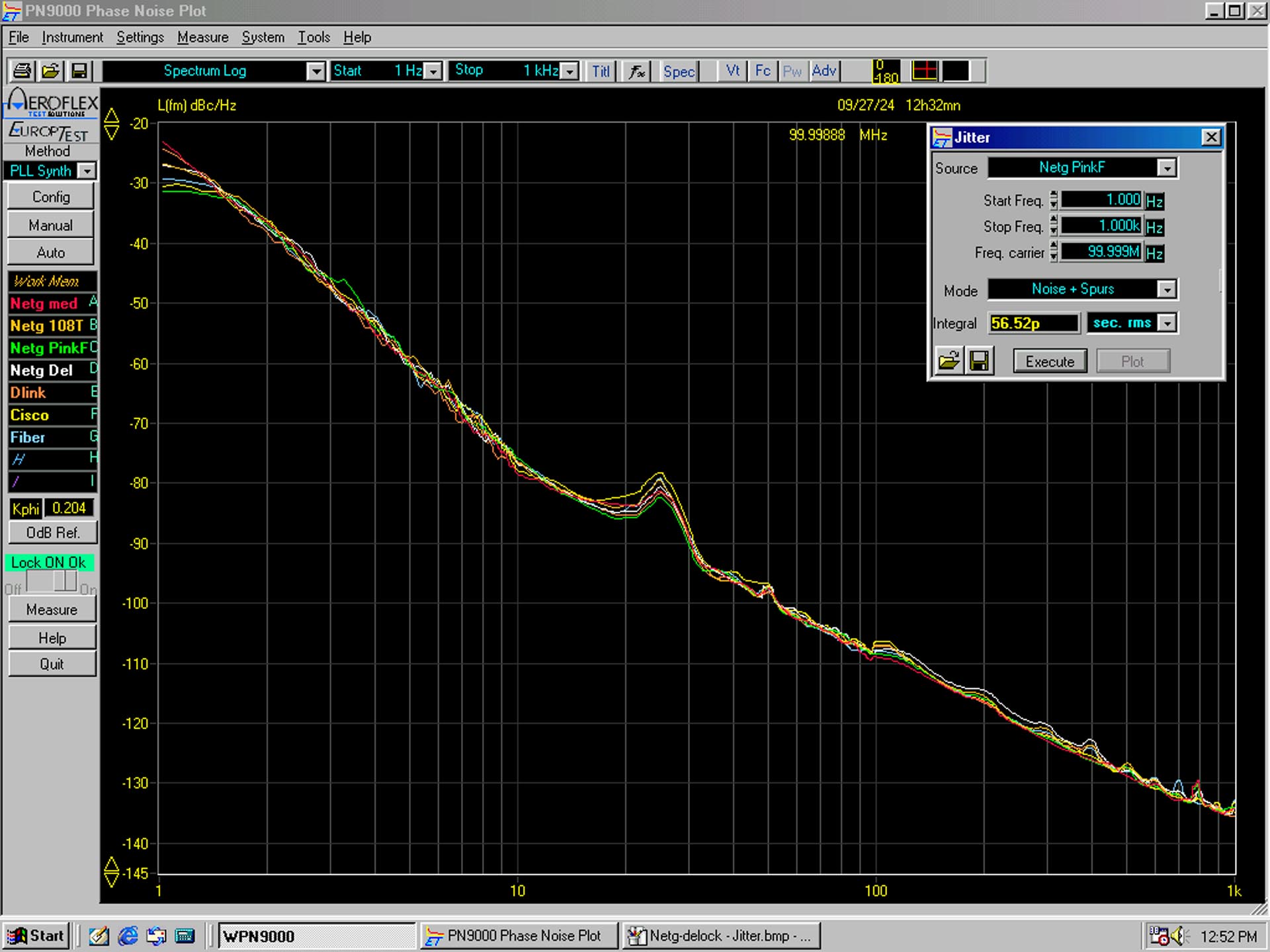

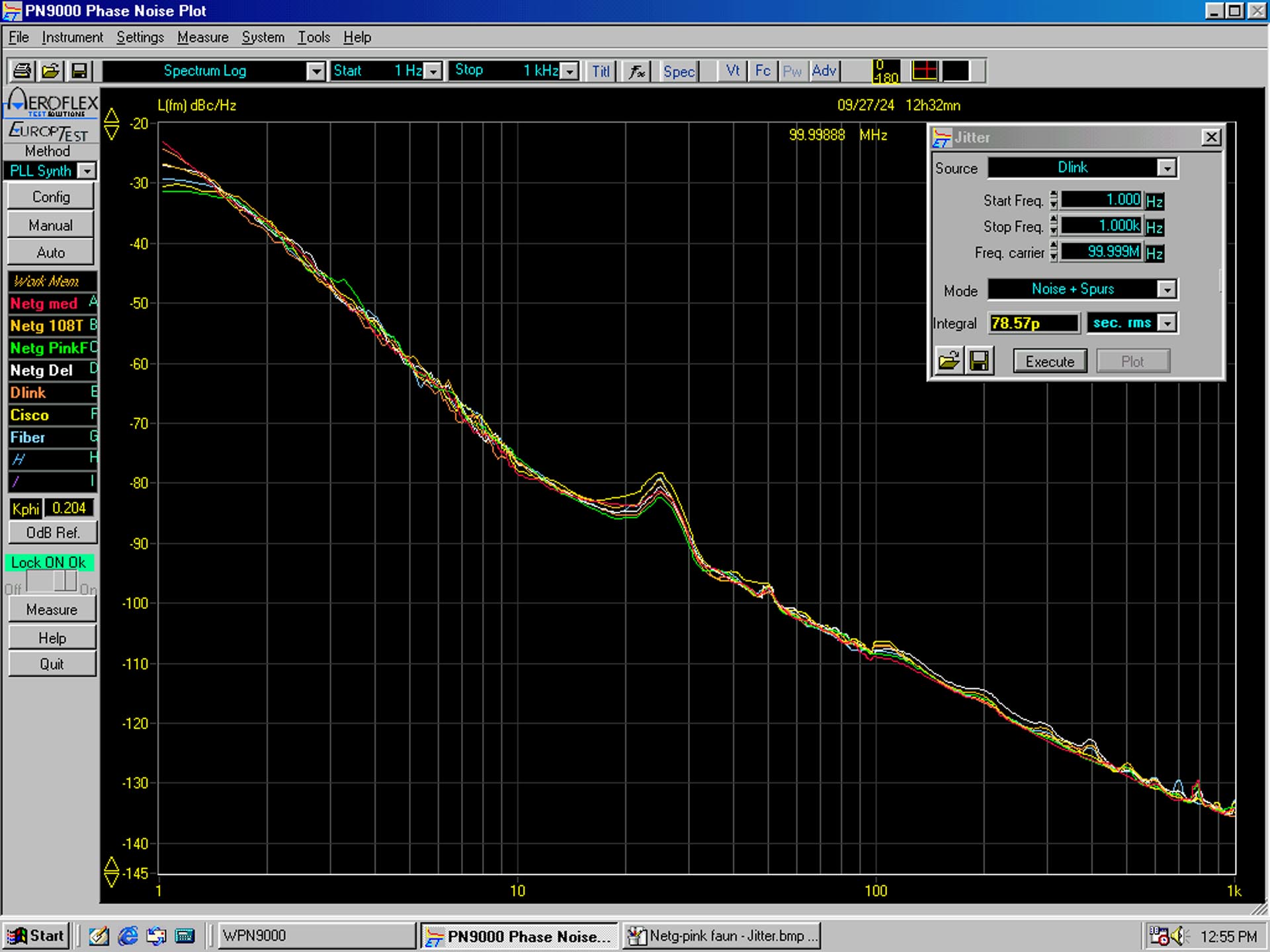

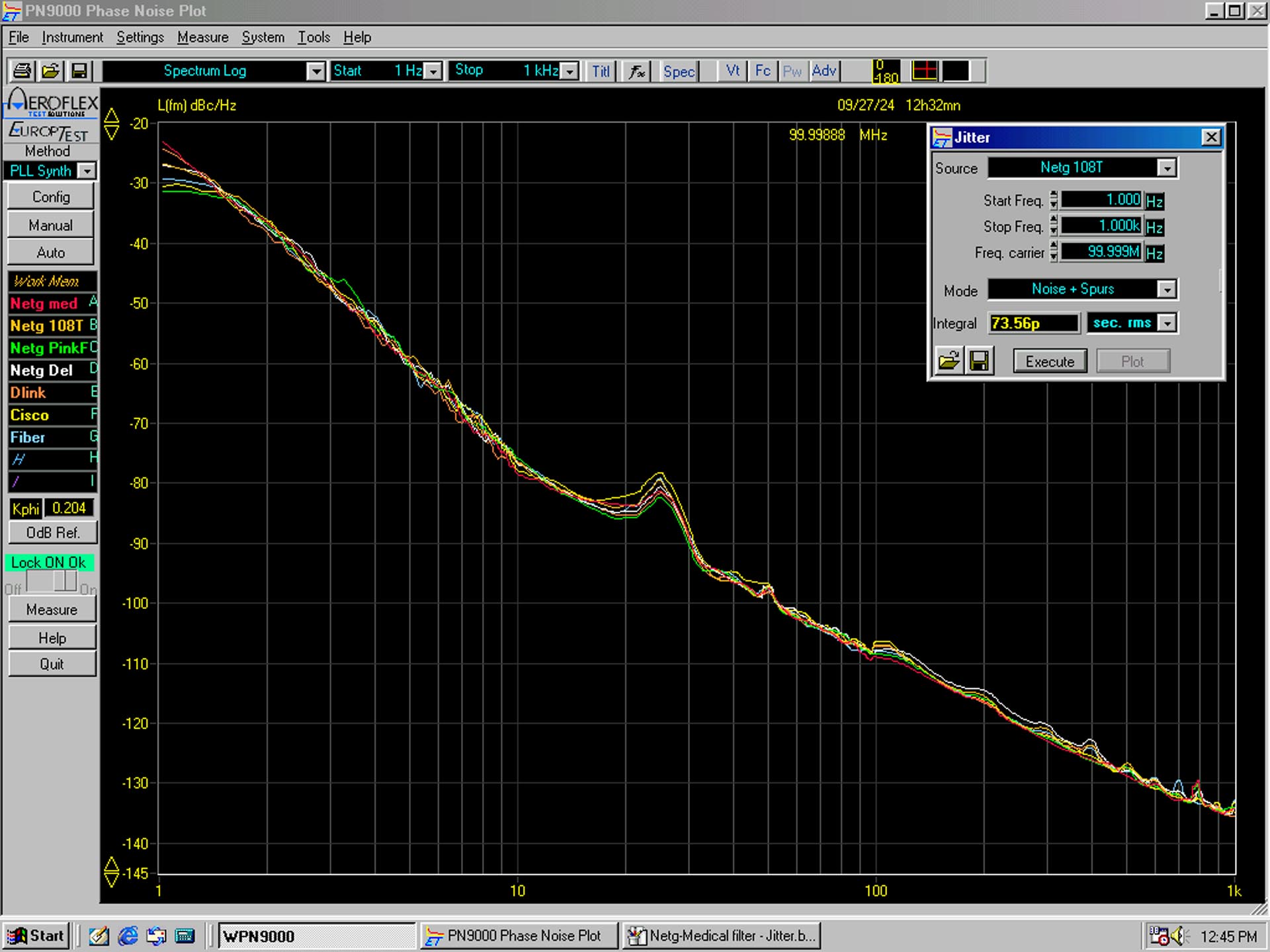

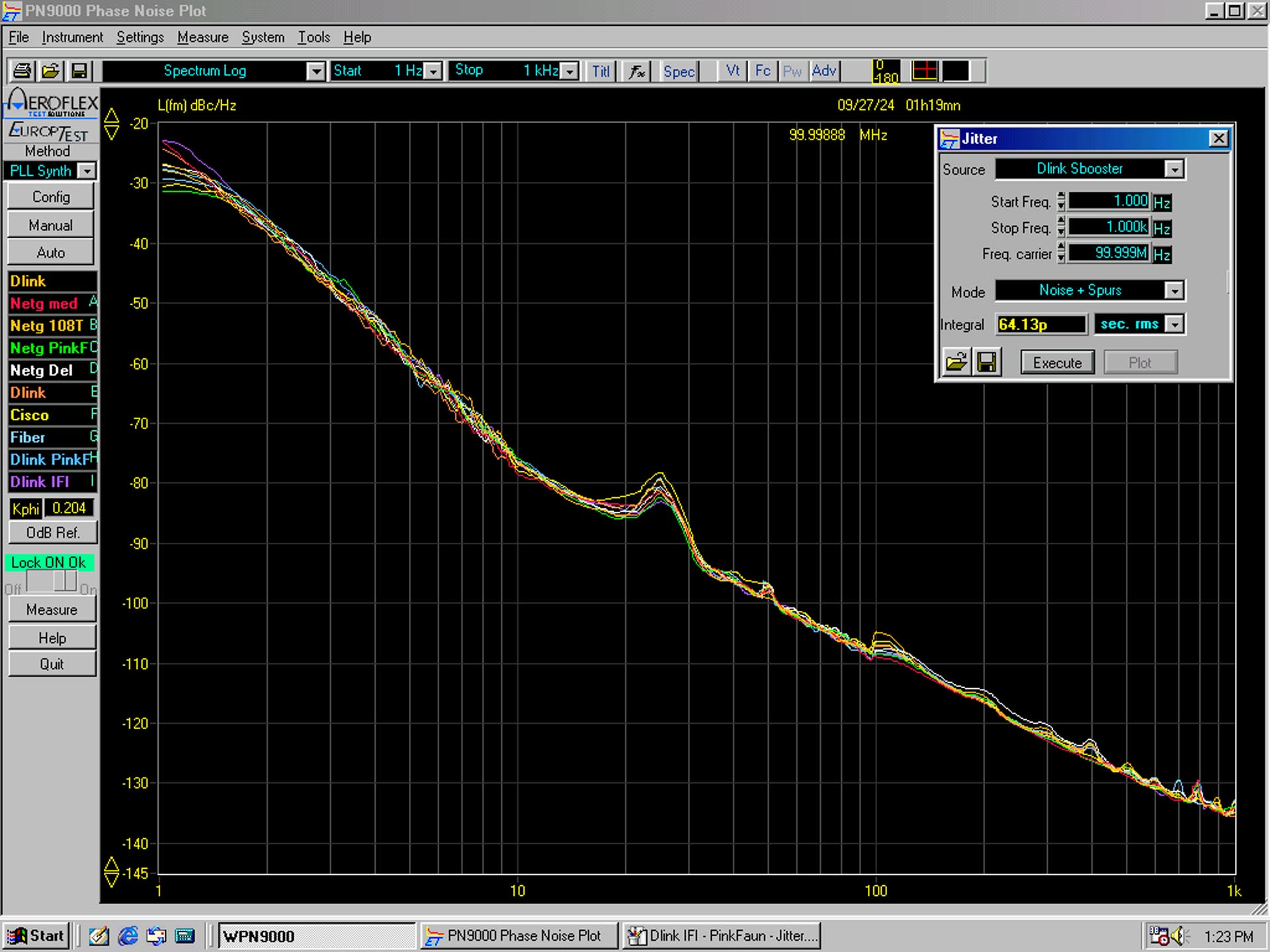

We also had the jitter calculated for all combinations. The difference between the best and worst is particularly large: 56ps and 98ps. That’s more than 40ps difference between the best performing combination (Netgear with IFI power supply and Pink Faun filter) and the worst: Dlink with IFI power supply and Pink Faun. The reason is quite simple: the Dlink is a switch that is supposed to operate at 5V: the IFI is 12V. That works because the Dlink has a voltage regulator that just brings the voltage back down to 5V. However, this does create extra noise. And we measure that right back with the Aeroflex. So be careful with this: it works, but it potentially creates extra jitter.

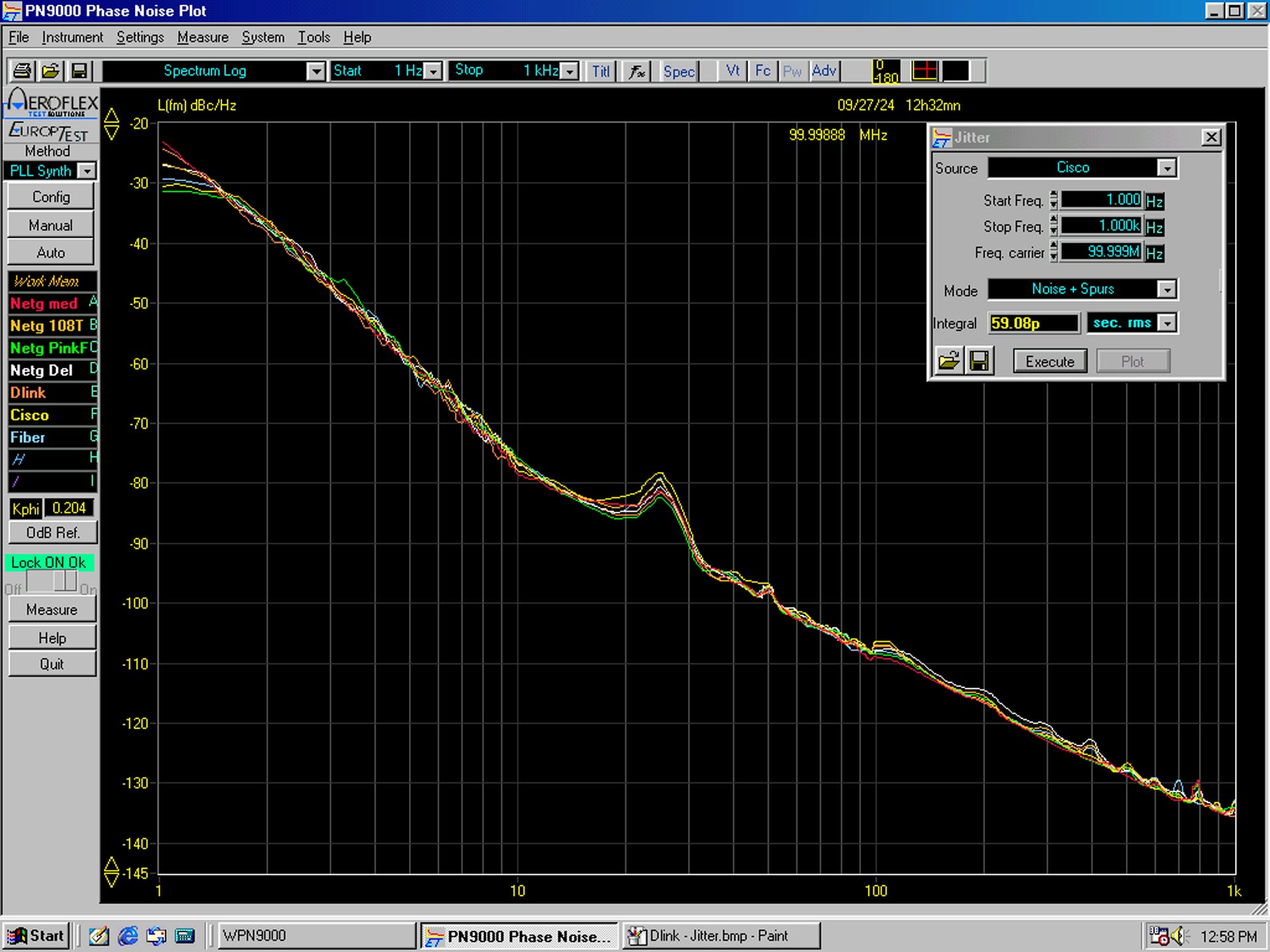

We are surprised that the Cisco scores so well in this test, because in other tests we measure quite a lot of noise. At least with the standard power supply. We have now used the Dlink power supply. Which is a lot cleaner than the Cisco power supply, we know from other tests. However, the Cisco scores a lot better than the Dlink with stock power supply. Worth noting.
The difference between the Netgear (with IFI power supply) without filter, medical grade filter, Delock filter and Pink Faun filter is quite large. The Pink Faun pushes jitter in the Volumio to 56ps. The medical grade scores just under 83ps. Still, 30ps difference!

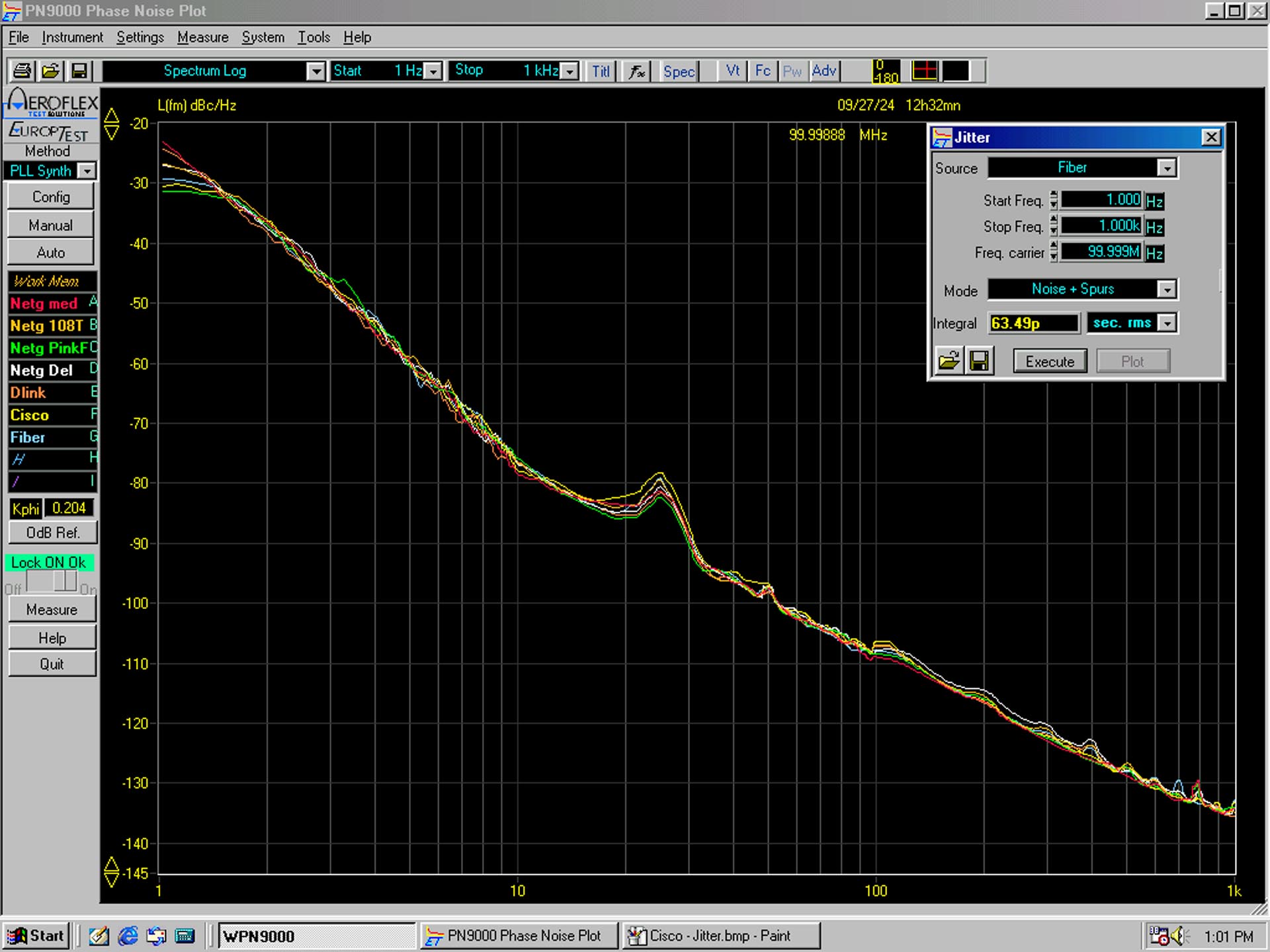

Fiber without tweaks does not do badly: 63ps jitter. In short: definitely a neat option for those who want quick results.
Conclusion
Does networking make a difference in your hi-fi system? Yes… 100%. It is audible and also just plain measurable. We hope that this really ends the discussion whether a switch, filter or power supply can make a difference in listening pleasure.
